Abstract
本实用新型公开了一种室外建筑装饰用幕墙结构，包括幕墙主体，所述幕墙主体一侧设有建筑墙体，且幕墙主体上设有支承骨架，并且支承骨架一侧安装有装饰墙板，所述支承骨架上均匀设有连接柱，且连接柱其中一端与建筑墙体连接，并且连接柱另一端连接有连接横杆，所述连接横杆之间均匀连接有连接竖杆，且连接竖杆处于连接柱之间，并且连接竖杆之间设有支撑杆，所述连接竖杆、连接横杆以及支撑杆靠近建筑墙体的一侧均连接有缓冲插杆，且缓冲插杆上插设有套筒，并且套筒内卡合有弹簧。该室外建筑装饰用幕墙结构安装简单，结构稳固，幕墙受到较强风力以及飞行物撞击时产生的位移，能够在缓冲后回复原位，便于幕墙的安全使用。
The utility model discloses a curtain wall structure for outdoor building decoration. The supporting frame is evenly provided with connecting columns, and one end of the connecting columns is connected with the building wall, and the other end of the connecting columns is connected with connecting cross bars, and connecting vertical bars are evenly connected between the connecting cross bars, and the connecting vertical bars are connected to each other. The rods are located between the connecting columns, and there are support rods between the connecting vertical rods. The connecting vertical rods, the connecting horizontal rods and the side of the support rods close to the building wall are all connected with buffer inserting rods, and the buffering inserting rods are inserted on the side. A sleeve is provided, and a spring is engaged in the sleeve. The curtain wall structure for outdoor building decoration is simple in installation and stable in structure, and the displacement generated when the curtain wall is hit by strong wind and flying objects can be restored to its original position after buffering, which is convenient for the safe use of the curtain wall.
Description
Technical Field
The utility model relates to a curtain technical field specifically is an outdoor curtain wall construction for architectural decoration.
Background
The curtain wall is the outer wall enclosure of the building, does not bear the weight, hangs like a curtain, so is also called as a curtain wall, and is a light wall with decorative effect commonly used by modern large-scale and high-rise buildings. The building outer protective structure or decorative structure consists of a panel and a support structure system, can have certain displacement capacity or certain deformation capacity relative to the main structure, and does not bear the function of the main structure. The curtain wall has the performances of wind pressure deformation resistance, water tightness, air tightness, shock resistance, heat preservation, sound insulation, fire prevention, decoration, energy conservation and the like. The curtain wall can be divided into a glass curtain wall, a metal plate curtain wall and a non-metal plate (except glass) curtain wall.
The curtain wall for outdoor architectural decoration has a complex structure, is inconvenient for efficient installation of the curtain wall, and can not effectively restore to the original position after buffering when the curtain wall is impacted by external wind power or flyers and displaces.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a curtain wall construction for outdoor architectural decoration to solve the structure of outdoor architectural decoration curtain wall on the existing market that above-mentioned background art provided more complicated, the high-efficient installation of the curtain of being not convenient for, the curtain is when bearing the striking of external wind-force or flyer and taking place the displacement simultaneously, can not effectually be in the problem of the answer normal position behind the buffering.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an outdoor curtain wall construction for architectural decoration, includes the curtain main part, curtain main part one side is equipped with building wall, and is equipped with the supporting framework in the curtain main part to supporting framework installs on one side and decorates the wallboard, evenly be equipped with the spliced pole on the supporting framework, and spliced pole wherein one end and building wall are connected to the spliced pole other end is connected with the connection horizontal pole, evenly be connected with the connection montant between the connection horizontal pole, and connect the montant and be in between the spliced pole to be equipped with the bracing piece between the connection montant, one side that connection montant, connection horizontal pole and bracing piece are close to building wall all is connected with the buffering inserted bar, and inserts on the buffering inserted bar and be equipped with.
Preferably, the two opposite sides of the decorative wallboard are of complementary structures, and the upper end of the decorative wallboard is fixedly connected with the connecting cross rod through a bolt.
Preferably, the length of decorating the wallboard equals with the distance between the connecting vertical rod, and the height of decorating the wallboard equals with the distance between the connecting horizontal rod.
Preferably, the buffering inserted bar is connected with the connecting vertical bar, the connecting horizontal bar and the supporting bar through welding and fixing, and the buffering inserted bar is movably connected with the sleeve.
Preferably, the length of the buffer insertion rod plus the free length of the spring is equal to that of the connecting column, and the sleeve is fixed with the building wall through a bolt.
Preferably, the supporting rod is arranged in the middle of the connecting vertical rod.
Compared with the prior art, the beneficial effects of the utility model are that: this curtain wall construction installation for outdoor architectural decoration is simple, and the structure is firm, and the curtain receives the displacement that produces when stronger wind-force and flyer striking, can reply the normal position after the buffering, the safe handling of the curtain of being convenient for. The buffer structure of the curtain wall structure for outdoor architectural decoration is arranged between the supporting framework and the wall body, so that the supporting framework can play a role in protecting the decorative wall board while carrying out self buffer protection.
Drawings

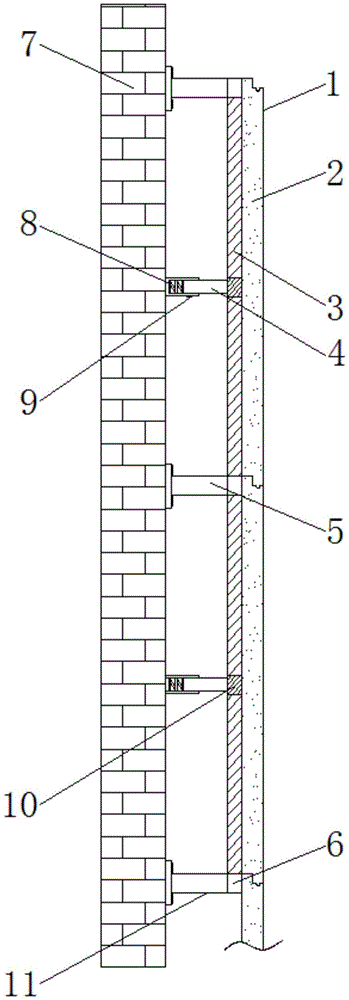

FIG. 1 is a schematic structural view of a curtain wall structure for outdoor architectural decoration of the present invention;
FIG. 2 is a schematic view of a supporting frame connection three-dimensional structure of the curtain wall structure for outdoor architectural decoration of the present invention;
fig. 3 is the utility model discloses a three-dimensional structure sketch map is connected with curtain to outdoor curtain wall construction's for architectural decoration supporting framework.
In the figure: 1. the curtain wall comprises a curtain wall body, 2 decorative wallboards, 3 connecting vertical rods, 4 buffering inserted rods, 5 connecting columns, 6 connecting transverse rods, 7 building walls, 8 springs, 9 sleeves, 10 supporting rods, 11 supporting frameworks.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a curtain wall structure for outdoor architectural decoration comprises a curtain wall main body 1, wherein a building wall body 7 is arranged on one side of the curtain wall main body 1, a supporting framework 11 is arranged on the curtain wall main body 1, a decorative wall board 2 is arranged on one side of the supporting framework 11, connecting columns 5 are uniformly arranged on the supporting framework 11, one ends of the connecting columns 5 are connected with the building wall body 7, the other ends of the connecting columns 5 are connected with connecting cross rods 6, the two opposite sides of the decorative wall board 2 are of complementary structures, the upper ends of the decorative wall boards 2 are fixedly connected with the connecting cross rods 6 through bolts, the two opposite sides of the structural decorative wall boards 2 are of complementary structures, two adjacent decorative wall boards 2 can be mutually clamped and fixed, the decorative wall boards 2 are convenient to install and fix from bottom to top, connecting vertical rods 3 are uniformly connected between the connecting cross rods 6, and the lengths of, the height of the decorative wall board 2 is equal to the distance between the connecting cross rods 6, the structure enables one decorative wall board 2 to be simultaneously supported through the connecting vertical rods 3 and the connecting cross rods 6, so that the decorative wall board 2 is stably connected with the supporting framework 11, the connecting vertical rods 3 are positioned between the connecting columns 5, the supporting rods 10 are arranged between the connecting vertical rods 3, one sides of the connecting vertical rods 3, the connecting cross rods 6 and the supporting rods 10, which are close to the building wall 7, are respectively connected with the buffering inserted rods 4, sleeves 9 are inserted on the buffering inserted rods 4, the buffering inserted rods 4 are fixedly connected with the connecting vertical rods 3, the connecting cross rods 6 and the supporting rods 10 through welding, the buffering inserted rods 4 are movably connected with the sleeves 9, and the structure enables the supporting framework 11 to be buffered and protected through the matching between the buffering inserted rods 4 and the sleeves 9 when the curtain wall body 1 is influenced by wind or impacted by a flying object, and the block has spring 8 in the sleeve 9, the length of buffering inserted bar 4 is equal with spliced pole 5's length with spring 8's free length, sleeve 9 passes through the bolt fastening with building wall 7, this structure makes buffering inserted bar 4 and spring 8 and sleeve 9's cooperation can make to decorate wallboard 2 and support between skeleton 11 and the building wall 7 and be connected more firm, bracing piece 10 is in the middle part position of connecting montant 3, this structure can support the one side of decorating wallboard 2 and the contact of support skeleton 11 through bracing piece 10, bracing piece 10 cushions protection to decorating wallboard 2 through the cooperation of buffering inserted bar 4 and spring 8 and sleeve 9 simultaneously.
The working principle is as follows: when using this outdoor curtain wall construction for architectural decoration, at first curtain main part 1 is when installing, can make supporting framework 11 fix on building wall 7 through spliced pole 5, then make sleeve 9 pass through the bolt fastening on building wall 7 again, later make decorative wallboard 2 install in proper order by from bottom to top and fix on connecting horizontal pole 6, the installation is simple, the structure is firm, supporting framework 11 comprises vertical connection montant 3 and horizontal connection horizontal pole 6 frame construction, bracing piece 10 connects the reinforcement processing to connecting montant 3, buffering inserted bar 4 on connecting horizontal pole 6 and the bracing piece 10 can cooperate with sleeve 9, when making decorative wallboard 2 receive the striking, through the removal of buffering inserted bar 4 in sleeve 9, make buffering inserted bar 4 extrusion spring 8 carry out the buffering processing, thereby accomplish a series of works.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (6)
1. The utility model provides an outdoor curtain wall construction for architectural decoration, includes curtain wall main part (1), curtain wall main part (1) one side is equipped with building wall (7), and is equipped with supporting framework (11) on curtain wall main part (1) to decorative wallboard (2), its characterized in that are installed to supporting framework (11) one side: evenly be equipped with spliced pole (5) on supporting framework (11), and spliced pole (5) wherein one end is connected with building wall (7) to spliced pole (5) other end is connected with connection horizontal pole (6), evenly be connected with between connection horizontal pole (6) and connect montant (3), and connect montant (3) and be in between spliced pole (5) to be equipped with bracing piece (10) between connecting montant (3), one side of connecting montant (3), connecting horizontal pole (6) and bracing piece (10) and being close to building wall (7) all is connected with buffering inserted bar (4), and inserts on buffering inserted bar (4) and is equipped with sleeve (9) to the block has spring (8) in sleeve (9).
2. The curtain wall construction for outdoor architectural decoration of claim 1, wherein: decorate wallboard (2) relative both sides and be complementary structure, and decorate wallboard (2) upper end and all pass through bolt fixed connection with connecting horizontal pole (6).
3. The curtain wall construction for outdoor architectural decoration of claim 1, wherein: the length of the decorative wall board (2) is equal to the distance between the connecting vertical rods (3), and the height of the decorative wall board (2) is equal to the distance between the connecting horizontal rods (6).
4. The curtain wall construction for outdoor architectural decoration of claim 1, wherein: the buffer inserted bar (4) is fixedly connected with the connecting vertical bar (3), the connecting horizontal bar (6) and the supporting bar (10) by welding, and the buffer inserted bar (4) is movably connected with the sleeve (9).
5. The curtain wall construction for outdoor architectural decoration of claim 1, wherein: the length of buffering inserted bar (4) adds the free length of spring (8) and equals with the length of spliced pole (5), sleeve (9) pass through the bolt fastening with building wall (7).
6. The curtain wall construction for outdoor architectural decoration of claim 1, wherein: the supporting rod (10) is arranged in the middle of the connecting vertical rod (3).
