Abstract
The utility model discloses a concrete mixing device is used in concrete member production, the on-line screen storage device comprises a base, the one end at base top is equipped with first mount pad, and the other end at base top is equipped with the second mount pad, the outer wall of first mount pad is equipped with the rotating electrical machines, and the output shaft of rotating electrical machines is equipped with the agitator, the inner wall of second mount pad is equipped with installation axle, and installs the inner wall that the axle other end extends to the agitator, the circumference department of installation axle is equipped with evenly distributed's stirring rake. The utility model discloses the rotating electrical machines drives the agitator and rotates the stirring of stirring to the material, and the stirring rake in the agitator stirs the concrete simultaneously, improves stirring effect, and accessible electric telescopic handle reciprocates and promotes the circumference that the fly leaf pushed the rubber sleeve to promote the concrete and gather together to the inside both ends of agitator or centre, improve stirring efficiency, steerable feed opening rotates the dodge gate to the top or the dodge gate department of bottom carries out material loading or unloading, convenient to use.
Description
Technical Field
The utility model relates to a concrete member produces technical field, especially relates to a concrete mixing device is used in concrete member production.
Background
The production of concrete members requires a large amount of concrete as a raw material, the concrete is a common building material and is formed by mixing sand, a cementing material and slurry, and the concrete needs to be stirred by a stirring device so as to uniformly mix all components in the concrete.
Through the retrieval, chinese patent publication is CN 211440600U's patent discloses a concrete mixing device of stirring, include the concrete mixing device of stirring includes the agitator tank, agitator tank right side wall fixed mounting has crushing motor and agitator motor, crushing motor power take off end is connected with transmission shaft A power input end, transmission shaft A end transmission is connected with the driving gear, the meshing of driving gear upper end is connected with driven gear. The concrete mixing device for uniformly mixing in the patent has the following defects: the problem of insufficient efficiency of stirring and mixing exists.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a concrete stirring device for producing concrete members.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a concrete mixing device for producing concrete members comprises a base, wherein one end of the top of the base is provided with a first mounting seat, and the other end of the top of the base is provided with a second mounting seat, the outer wall of the first mounting seat is provided with a rotating motor, and the output shaft of the rotating motor is provided with a stirring barrel, the inner wall of the second mounting seat is provided with a mounting shaft, the other end of the mounting shaft extends to the inner wall of the stirring barrel, stirring paddles which are uniformly distributed are arranged at the circumference of the mounting shaft, a feed opening is arranged on the outer wall of one end of the stirring barrel, which is close to the second mounting seat, a sealing plug is inserted in the lower opening, the top and the bottom of the outer wall of one side of the second mounting seat are both provided with through holes, and the inside of two fenestrations all articulates there is the dodge gate, the circumference department of agitator both ends inner wall is equipped with same rubber sleeve, and the circumference outer wall of agitator is provided with the pushing mechanism of annular distribution.
As a further aspect of the present invention: the pushing mechanism comprises a fixed seat, an electric telescopic rod and a movable plate, and the outer wall of the circumference of the stirring barrel is provided with the fixed seat distributed annularly.
As a further aspect of the present invention: the one end inner wall of fixing base is equipped with electric telescopic handle, and the one end of electric telescopic handle piston rod extends to the inside of agitator and is equipped with the fly leaf.
As a further aspect of the present invention: the one end that the agitator is close to first mount pad has seted up the cavity, and one side inner wall of cavity sets up evenly distributed's venthole, and the outer wall of first mount pad is equipped with the air pump.
As a further aspect of the present invention: the spout has all been seted up at the both ends of agitator circumference outer wall, and the top inner wall and the bottom inner wall of first mount pad, the top inner wall and the bottom inner wall of second mount pad all are equipped with the slider, the external diameter of slider and the internal diameter looks adaptation of spout.
As a further aspect of the present invention: the outer wall of second mount pad is equipped with agitator motor, and agitator motor's output shaft passes through the bolt and connects with the one end of installation axle.
The utility model has the advantages that:
1. the stirring device is provided with the rotating motor, the stirring barrel, the stirring paddle, the electric telescopic rod, the movable plate and the rubber sleeve, the rotating motor drives the stirring barrel to rotate to stir materials, meanwhile, the stirring paddle in the stirring barrel stirs concrete, the stirring effect is improved, the movable plate can be pushed to push against the circumference of the rubber sleeve through the electric telescopic rod in a reciprocating mode, so that the concrete is pushed to gather to the two ends or the middle of the inner part of the stirring barrel, the stirring efficiency is improved, the feeding port can be controlled to rotate to a movable door at the top or a movable door at the bottom to feed or discharge, and the use is convenient;
2. through setting up air pump, cavity and venthole, accessible air pump injects the air into to the cavity during unloading, and the air current blows to feed opening department to the concrete in the agitator from the venthole blowout, guarantees that the unloading is thorough.
Drawings

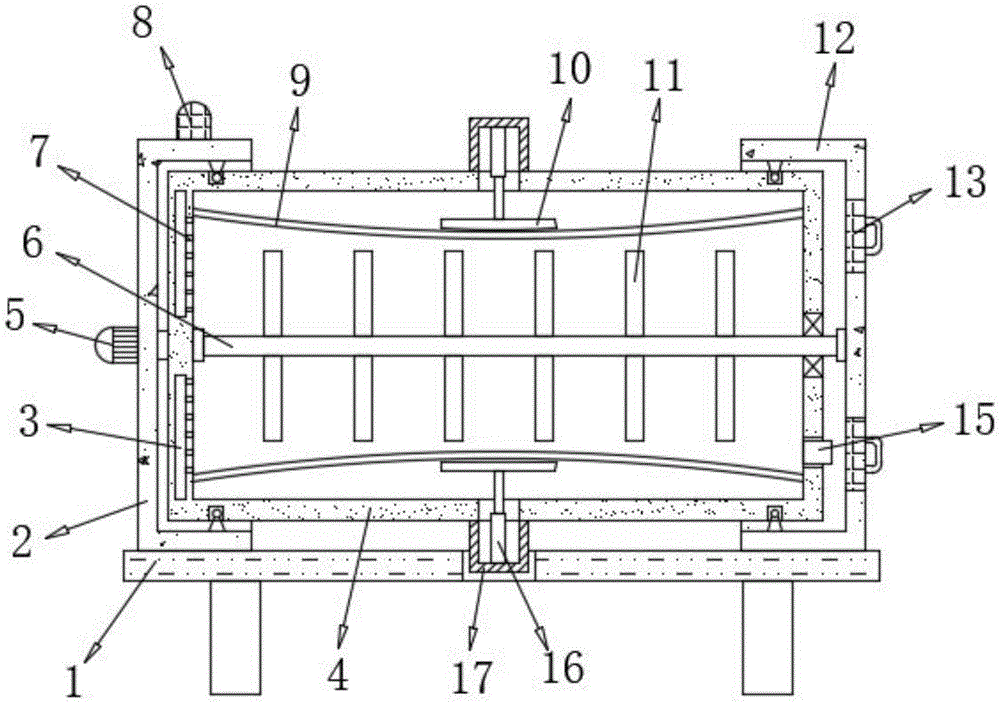

FIG. 1 is a schematic structural view of a concrete mixing apparatus for producing a concrete structural member according to example 1;
FIG. 2 is a schematic view showing the overall construction of a concrete mixing apparatus for producing a concrete structural member according to example 1;
fig. 3 is a side structural sectional view of a first mounting seat, a mixing tank and a second mounting seat of the concrete mixing device for producing concrete members, which is provided by the embodiment 2.
In the figure: the stirring device comprises a base 1, a first mounting seat 2, a cavity 3, a stirring barrel 4, a rotating motor 5, a mounting shaft 6, an air outlet 7, an air pump 8, a rubber sleeve 9, a movable plate 10, a stirring paddle 11, a second mounting seat 12, a movable door 13, a stirring motor 14, a sealing plug 15, an electric telescopic rod 16 and a fixed seat 17.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Reference will now be made in detail to embodiments of the present patent, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present patent and are not to be construed as limiting the present patent.
In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.
In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
Example 1
Referring to fig. 1-2, a concrete mixing device for concrete member production, comprising a base 1, one end of the top of the base 1 is connected with a first mounting seat 2 through a bolt, the other end of the top of the base 1 is connected with a second mounting seat 12 through a bolt, the outer wall of the first mounting seat 2 is connected with a rotating motor 5 through a bolt, the output shaft of the rotating motor 5 is connected with a mixing barrel 4 through a bolt, the inner wall of the second mounting seat 12 is connected with a mounting shaft 6 through a bolt, the other end of the mounting shaft 6 extends to the inner wall of the mixing barrel 4, the circumference of the mounting shaft 6 is connected with uniformly distributed mixing paddles 11 through bolts, the outer wall of one end of the mixing barrel 4 close to the second mounting seat 12 is provided with a feed opening, the interior of the feed opening is inserted with a sealing plug 15, the top and the bottom of the outer wall of one side of the second mounting seat 12 are both, circumference department of 4 both ends inner walls of agitator has same rubber sleeve 9 through bolted connection, and the circumference outer wall of agitator 4 is provided with the pushing mechanism that the annular distributes, rotating electrical machines 5 drives agitator 4 and rotates the stirring of stirring to the material, stirring rake 11 in the agitator 4 stirs the concrete simultaneously, the stirring effect is improved, and the reciprocal circumference outer wall that promotes rubber sleeve 9 of accessible pushing mechanism, thereby promote the concrete and gather together to the inside both ends of agitator 4 or centre, the efficiency of stirring is improved, steerable feed opening rotates the dodge gate 13 to the top or the dodge gate 13 department of bottom carries out material loading or unloading, high durability and convenient use.
Wherein, pushing mechanism includes fixing base 17, electric telescopic handle 16 and fly leaf 10, and the circumference outer wall of agitator 4 has the fixing base 17 of annular distribution through bolted connection.
Wherein, there is electric telescopic handle 16 in the one end inner wall of fixing base 17 through bolted connection, and the one end of electric telescopic handle 16 piston rod extends to the inside of agitator 4 and has fly leaf 10 through bolted connection, and accessible electric telescopic handle 16 reciprocates and promotes fly leaf 10 and push up the circumference of moving rubber sleeve 9.
Wherein, agitator 4 has been seted up cavity 3 near the one end of first mount pad 2, and one side inner wall of cavity 3 sets up evenly distributed's venthole 7, and there is air pump 8 outer wall of first mount pad 2 through bolted connection, and accessible air pump 8 injects the air into cavity 3 during the unloading, and the air current blows to feed opening department from the concrete of venthole 7 blowout in to agitator 4, guarantees that the unloading is thorough.
Wherein, the spout has all been seted up at the both ends of 4 circumference outer walls of agitator, and the top inner wall and the bottom inner wall of first mount pad 2, the top inner wall and the bottom inner wall of second mount pad 12 all have a slider through bolted connection, the external diameter of slider and the internal diameter looks adaptation of spout, when rotating electrical machines 5 drove agitator 4 and rotates, spout and slider carried out spacing direction to agitator 4's rotation.
The working principle is as follows: the rotating motor 5 drives the stirring barrel 4 to rotate to stir the materials, the stirring paddle 11 in the stirring barrel 4 stirs the concrete, the stirring effect is improved, the circumferential outer wall of the rubber sleeve 9 can be pushed to and fro through the pushing mechanism, thereby pushing the concrete to gather to the two ends or the middle of the inner part of the mixing barrel 4, improving the mixing efficiency, the feed opening can be controlled to rotate to the movable door 13 at the top or the movable door 13 at the bottom for feeding or discharging, the use is convenient, accessible electric telescopic handle 16 promotes the circumference that rubber sleeve 9 was pushed to fly leaf 10 reciprocal, and accessible air pump 8 injects the air in to cavity 3 during the unloading, and the air current blows to feed opening department from 7 blowout of venthole to the concrete in agitator 4, guarantees that the unloading is thorough, and when rotating electrical machines 5 drove agitator 4 and rotates, spout and slider carried out spacing direction to the rotation of agitator 4.
Example 2
Referring to fig. 3, in a concrete mixing device for producing a concrete member, compared to embodiment 1, in this embodiment, a mixing motor 14 is connected to an outer wall of a second mounting base 12 through a bolt, and an output shaft of the mixing motor 14 is connected to one end of a mounting shaft 6 through a bolt.
The working principle is as follows: when the stirring barrel 4 rotates, the mounting shaft 6 and the stirring paddle 11 can be driven by the stirring motor 14 to rotate in the opposite direction, so that the stirring efficiency is improved.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. A concrete mixing device for producing concrete members comprises a base (1) and is characterized in that a first mounting seat (2) is arranged at one end of the top of the base (1), a second mounting seat (12) is arranged at the other end of the top of the base (1), a rotating motor (5) is arranged on the outer wall of the first mounting seat (2), a mixing barrel (4) is arranged on an output shaft of the rotating motor (5), a mounting shaft (6) is arranged on the inner wall of the second mounting seat (12), the other end of the mounting shaft (6) extends to the inner wall of the mixing barrel (4), uniformly distributed mixing paddles (11) are arranged at the circumference of the mounting shaft (6), a discharging opening is formed in the outer wall of one end, close to the second mounting seat (12), of the mixing barrel (4), a sealing plug (15) is inserted into the discharging opening, through holes are formed in the top and the bottom of the outer wall of one side of the second mounting seat (12), and the insides of the two through holes are hinged with movable doors (13), the circumference of the inner walls at the two ends of the stirring barrel (4) is provided with the same rubber sleeve (9), and the circumference outer wall of the stirring barrel (4) is provided with a pushing mechanism distributed in an annular manner.
2. The concrete mixing device for producing the concrete member is characterized in that the pushing mechanism comprises a fixed seat (17), an electric telescopic rod (16) and a movable plate (10), and the outer circumferential wall of the mixing tank (4) is provided with the fixed seat (17) which is distributed annularly.
3. The concrete mixing device for producing the concrete member is characterized in that an electric telescopic rod (16) is arranged on the inner wall of one end of the fixed seat (17), and one end of a piston rod of the electric telescopic rod (16) extends to the inside of the mixing tank (4) and is provided with a movable plate (10).
4. The concrete mixing device for producing the concrete member is characterized in that one end of the mixing tank (4) close to the first mounting seat (2) is provided with a cavity (3), the inner wall of one side of the cavity (3) is provided with uniformly distributed air outlet holes (7), and the outer wall of the first mounting seat (2) is provided with an air pump (8).
5. The concrete mixing device for producing the concrete member is characterized in that sliding grooves are formed in two ends of the circumferential outer wall of the mixing barrel (4), sliding blocks are arranged on the top inner wall and the bottom inner wall of the first mounting seat (2) and the top inner wall and the bottom inner wall of the second mounting seat (12), and the outer diameter of each sliding block is matched with the inner diameter of each sliding groove.
6. A concrete mixing device for producing concrete elements according to claim 5, characterized in that the outer wall of the second mounting seat (12) is provided with a mixing motor (14), and the output shaft of the mixing motor (14) is connected with one end of the mounting shaft (6) through a bolt.
