CN213525027U

CN213525027U - A soft and durable fly-knit upper

Info

Publication number: CN213525027U
Application number: CN202022071897.0U
Authority: CN
Inventors: 吴立新
Original assignee: Jinjiang Furun Weaving Co ltd
Current assignee: Jinjiang Furun Weaving Co ltd
Priority date: 2020-09-21
Filing date: 2020-09-21
Publication date: 2021-06-25
Anticipated expiration: 2030-09-21

Abstract

The utility model discloses a soft and wear-resistant flying woven shoe upper, the technical solution of which is as follows: comprising a shoe body and a first surface layer, the first surface layer is located on the outer surface of the shoe body, and the first surface layer is located on the outer surface of the shoe body. The left side is sewed and connected with a second surface layer, the left side of the first surface layer is sewed and connected with a skin layer through the second surface layer, and the right side of the second surface layer is sewed and connected with a woven mesh layer. The right side of the second surface layer is sewed with a heel layer through a woven mesh layer, the top of the woven mesh layer is sewed and connected with an open layer, and the open layer is sewed with the second surface layer, the woven mesh layer and the heel layer. connected, and one side of the heel layer is sewed and connected with an endless belt. The second facing layer includes a first composite material and a second composite material and a third composite material. By connecting the first composite material with the second composite material and the third composite material, the second surface layer has a good wear-resisting effect, and also has the effect of being breathable, soft and skin-friendly.

Description

Soft wear-resisting flying-weaving vamp

Technical Field

The utility model relates to a fly to knit vamp field, in particular to soft wear-resisting fly to knit vamp.

Background

The fly-knitted vamp is a main vamp of the existing sports and leisure shoes and is woven by a plurality of special yarns through the pre-programming of a computerized flat knitting machine. Fly to knit vamp is only a notion, just as artifical sweater needs a stitch of a stitch and weaves out, nevertheless for raise the efficiency, this kind of work of weaving is replaced by computer intelligence gradually, utilizes computerized flat knitting machine can directly weave out with full-automatic mode and fly to knit the vamp, in order to increase the comfort level, in the production process of simulation shoes, with the vamp whole weaving.

However, the traditional flying-woven shoe uppers are always only limited to a certain extent, and the requirements on quality are neglected due to the pursuit of yield, so that the produced flying-woven shoe uppers have the defects of hardness and poor wear resistance, and cannot meet the requirements of customers.

SUMMERY OF THE UTILITY MODEL

To the problem of mentioning in the background art, the utility model aims at providing a soft wear-resisting flying textile vamp to solve the problem of mentioning in the background art.

The above technical purpose of the present invention can be achieved by the following technical solutions: the utility model provides a soft wear-resisting flying knitted vamp, includes shoes body and first surface course, first surface course is located shoes body external surface, the left side seam of first surface course is connected with the second surface course, the left side of first surface course has been connected with the cortex through second surface course seam, the right side seam of second surface course is connected with and weaves the stratum reticulare, the right side of second surface course has been connected with the aspect through weaving the stratum reticulare seam, the top seam of weaving the stratum reticulare is connected with the opening aspect, and the opening aspect all with the second surface course with weave the stratum reticulare and with the aspect seam and be connected, one side seam with the aspect is connected with the clitellum.

The second surface layer comprises a first combined material, a second combined material and a third combined material, the first combined material is arranged at the vertical position inside the second surface layer, the second combined material is arranged at the transverse position inside the second surface layer, and the third combined material is arranged at the oblique position inside the second surface layer.

The woven net layer comprises a woven surface and a synthetic material, one side of the woven surface is attached to the synthetic material, and the outer surface of the woven net layer is connected with a woven ornament in a sewing mode.

Through adopting above-mentioned technical scheme, through first surface course mainly used fixed vamp, the second surface course makes the second surface course have good comfort level through adopting first combined material and second combined material and third combined material, and the wearability is good, through weaving the stratum reticulare and adopting face of knitting and synthetic material with the stratum reticulare, makes it have soft and wear-resisting effect again.

Preferably, the skin layer is located at the front end of the second surface layer and is made of rubber materials.

Through adopting above-mentioned technical scheme, can strengthen the wear resistance of vamp front end through setting up the cortex.

Preferably, the outer surface of the first surface layer is provided with a perforation, and the first surface layer is connected with a lace through the perforation in a tying mode.

Through adopting above-mentioned technical scheme, through set up perforation and frenulum at first surface course, can fix the upper end of vamp.

Preferably, the bottom of the shoe body is connected with a bottom upper in a sewing mode, and the leather layer, the second surface layer, the woven net layer and the heel layer are connected with the bottom upper in a sewing mode.

Through adopting above-mentioned technical scheme, can fix second surface course and woven the stratum reticulare and follow the aspect through the end group.

Preferably, the first composite material specifically adopts polyester fibers, the second composite material specifically adopts superfine fibers, and the third composite material specifically adopts bamboo charcoal fibers.

Through adopting above-mentioned technical scheme, the second surface course makes the netted face that the second surface course constitutes possess certain toughness through adopting first combined material dacron fibre and second combined material superfine fiber and third combined material bamboo charcoal fiber, and has the wearability well concurrently, the high effect of comfort level.

Preferably, BK cloth is adopted as the weaving surface, the BK cloth is composed of 16 yarns of polyester yarns, and EVA foam is adopted as the synthetic material.

By adopting the technical scheme, the BK cloth formed by assembling multiple strands of polyester yarns is combined with the EVA foam for the woven net layer, so that the woven net layer is soft in texture and wear-resistant.

Preferably, the open layer is a profile body formed by natural skin and filling sponge.

By adopting the technical scheme, the opening surface is frequently rubbed with the skin of a human body, the filling sponge is sewn inside the natural skin to serve as the opening surface, and the natural skin is non-toxic and harmless, so that the skin-friendly effect is good, and the wear resistance is strong.

To sum up, the utility model discloses mainly have following beneficial effect:

firstly, the knitted net layer of the vamp is soft and comfortable by connecting the knitted surface with the synthetic material;

and the second surface layer has a good wear-resistant effect and has the effects of ventilation, softness and skin friendliness by connecting the first combined material with the second combined material and the third combined material.

Drawings

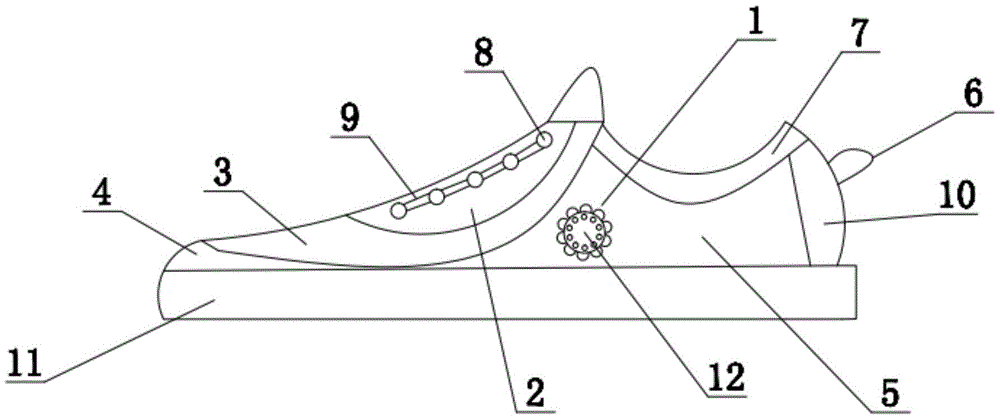

Fig. 1 is a schematic structural diagram of the present invention;

fig. 2 is a schematic structural view of a second surface layer of the present invention;

fig. 3 is a cross-sectional view of a woven mesh layer of the present invention.

Reference numerals: 1. a shoe body; 2. a first facing; 3. a second facing; 4. a skin layer; 5. weaving a mesh layer; 6. a girdle; 7. an opening layer; 8. perforating; 9. a tie strap; 10. a heel layer; 11. a bottom upper; 12. Weaving decoration; 301. a first combination material; 302. a second combined material; 303. a third combined material; 501. Weaving the surface; 502. and (3) synthesizing the material.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Example one

Referring to fig. 1-3, a soft and wear-resistant flying-knitted vamp comprises a vamp body 1 and a first surface layer 2, wherein the first surface layer 2 is a net surface mainly woven by bulked yarns, the first surface layer 2 is positioned on the outer surface of the shoe body 1, the left side of the first surface layer 2 is sewed and connected with a second surface layer 3, the left side of the first surface layer 2 is connected with a leather layer 4 through a second surface layer 3 in a sewing way, the right side of the second surface layer 3 is connected with a woven net layer 5 in a sewing way, the right side of the second surface layer 3 is connected with a heel layer surface 10 by a woven net layer 5 in a sewing way, the heel layer surface 10 is specifically made of AS soft shinny cloth, and the interior is sewed with a natural rubber body, the top of the woven net layer 5 is sewed with an opening layer 7, the opening layer 7 is connected with the second layer 3, the woven mesh layer 5 and the heel layer 10 in a sewing mode, and one side of the heel layer 10 is connected with the annular belt 6 in a sewing mode.

The second surface layer 3 comprises a first combined material 301, a second combined material 302 and a third combined material 303, the first combined material 301 is arranged at the vertical position inside the second surface layer 3, the second combined material 302 is arranged at the horizontal position inside the second surface layer 3, and the third combined material 303 is arranged at the oblique position inside the second surface layer 3.

The knitted net layer 5 includes a knitting surface 501 and a synthetic material 502, one side of the knitting surface 501 is attached to the synthetic material 502, and a knit fabric 12 is sewn to an outer surface of the knitted net layer 5, so that the aesthetic feeling of the knitted net layer 5 can be enhanced by the knit fabric 12.

Referring to fig. 1, in order to achieve the purpose of wear-resistance of the front end of the upper; the skin layer 4 is positioned at the front end of the second surface layer 3 and is made of rubber materials; a good wear-resistant effect can be achieved by providing the skin layer 4.

With reference to fig. 1, for the purpose of securing the top of the upper; the outer surface of the first surface layer 2 is provided with a through hole 8, and the first surface layer 2 is connected with a lace 9 through the through hole 8; the first upper layer 2 on top of the vamp can be fixed by providing perforations 8 and lacing 9.

Referring to fig. 1, for purposes; the bottom of the shoe body 1 is connected with a bottom upper 11 in a sewing mode, and the leather layer 4, the second surface layer 3, the woven net layer 5 and the heel layer 10 are connected with the bottom upper 11 in a sewing mode; through setting up end group 11, can be to the second surface course 3 and the cortex 4 of vamp bottom with weave the stratum reticulare 5 and with aspect 10 fixedly.

Referring to fig. 2, in order to achieve wear resistance of the second facing 3; the first combined material 301 specifically adopts polyester fibers, the second combined material 302 specifically adopts superfine fibers, and the third combined material 303 specifically adopts bamboo charcoal fibers; the net-shaped surface formed by the first composite 301, the second composite 302 and the third composite 303 has good wear resistance.

Referring to fig. 2, in order to achieve the purpose that the knitted mesh layer 5 is soft and wear-resistant, the knitted surface 501 is specifically BK cloth, the BK cloth is formed by 16 yarns of polyester yarns, and the synthetic material 502 is specifically EVA foam; the woven mesh layer 5 can achieve the effects of softness and wear resistance by arranging the woven surface 501 and the synthetic material 502.

Referring to fig. 1, in order to make the open layer 7 have the effects of wear resistance and skin affinity, the open layer 7 is specifically a profile body formed by natural skin and filled sponge; the open deck 7 is comfortable and wear-resistant by using natural skin and filling sponge.

The use principle and the advantages are as follows: through with the vamp according to carrying out specific division, be connected through first surface course 2 and second surface course 3 and can fix the top of second surface course 3, because second surface course 3 is through being provided with first combined material 301 and second combined material 302 and third combined material 303, can make second surface course 3 have wear-resisting ventilative, and good comfortable effect, weave stratum reticulare 5 through what second surface course 3 connected, weave stratum reticulare 5 and combined together with combined material 502 through the network structure that plane of knitting 501 material constitutes, make and weave stratum reticulare 5 and have good pliability, have the wearability concurrently, through setting up cortex 4 at the front end of vamp, can strengthen the wearability of the front end of second surface course 3.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a soft wear-resisting flying textile vamp, includes shoes body (1) and first surface course (2), its characterized in that: the shoe is characterized in that the first surface layer (2) is located on the outer surface of the shoe body (1), the left side of the first surface layer (2) is connected with a second surface layer (3) in a sewing mode, the left side of the first surface layer (2) is connected with a leather layer (4) in a sewing mode through the second surface layer (3), the right side of the second surface layer (3) is connected with a woven net layer (5) in a sewing mode, the right side of the second surface layer (3) is connected with a heel layer (10) in a sewing mode through the woven net layer (5), the top of the woven net layer (5) is connected with an opening layer (7) in a sewing mode, the opening layer (7) is connected with the second surface layer (3), the woven net layer (5) and the heel layer (10) in a sewing mode, and one side of the heel layer (10) is connected with a girdle (;

the second surface layer (3) comprises a first combined material (301), a second combined material (302) and a third combined material (303), the first combined material (301) is arranged at the vertical position in the second surface layer (3), the second combined material (302) is arranged at the transverse position in the second surface layer (3), and the third combined material (303) is arranged at the oblique position in the second surface layer (3);

the knitted net layer (5) comprises a knitted surface (501) and a synthetic material (502), one side of the knitted surface (501) is attached to the synthetic material (502), and the outer surface of the knitted net layer (5) is connected with a knitted ornament (12) in a sewing mode.

2. A soft, wear-resistant, fly-woven upper according to claim 1, wherein: the leather layer (4) is located at the front end of the second surface layer (3) and is made of rubber materials.

3. A soft, wear-resistant, fly-woven upper according to claim 1, wherein: the outer surface of the first surface layer (2) is provided with a through hole (8), and the first surface layer (2) is connected with a lace (9) through the through hole (8) in a tying mode.

4. A soft, wear-resistant, fly-woven upper according to claim 1, wherein: the bottom of the shoe body (1) is connected with a bottom upper (11) in a sewing mode, and the leather layer (4), the second surface layer (3), the woven net layer (5) and the heel surface layer (10) are connected with the bottom upper (11) in a sewing mode.

5. A soft, wear-resistant, fly-woven upper according to claim 1, wherein: the first combined material (301) specifically adopts polyester fibers, the second combined material (302) specifically adopts superfine fibers, and the third combined material (303) specifically adopts bamboo charcoal fibers.

6. A soft, wear-resistant, fly-woven upper according to claim 1, wherein: the knitted fabric (501) is specifically made of BK cloth, the BK cloth is formed by 16 yarns of polyester yarns, and the synthetic material (502) is specifically made of EVA foam.

7. A soft, wear-resistant, fly-woven upper according to claim 1, wherein: the opening layer surface (7) is a profile body formed by natural skin and filling sponge.
