CN213513026U - Culture media is photographic with adjustable camera mount table - Google Patents
Culture media is photographic with adjustable camera mount table Download PDFInfo
- Publication number
- CN213513026U CN213513026U CN202021956138.6U CN202021956138U CN213513026U CN 213513026 U CN213513026 U CN 213513026U CN 202021956138 U CN202021956138 U CN 202021956138U CN 213513026 U CN213513026 U CN 213513026U
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- rotating shaft
- bearing
- handle
- people
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Accessories Of Cameras (AREA)
Abstract
本实用新型属于相机安装台技术领域，尤其为一种文化传媒摄影用可调节相机安装台，包括支撑台、升降台、传动仓和电机，所述升降台固定连接在支撑台上表面，所述传动仓开设在升降台内部；该文化传媒摄影用可调节相机安装台，通过第一转轴、第一轴承、齿轮和扇形齿轮，当人们需要对该装置的横向角度进行调节时，人们只需要通过转动放置台，在第一转轴和第一轴承的配合下，从而方便了人们对该装置的横向角度进行调节，当人们需要对放置架纵向的角度进行调节时，人们只需要拉动手柄，将手柄与定位槽相分离，然后通过转动把手，同时带动第二转轴转动，在齿轮和扇形齿轮的配合下，从而方便了人们对放置架的纵向的角度进行调节。
The utility model belongs to the technical field of camera mounting tables, in particular to an adjustable camera mounting table for cultural media photography, comprising a support table, a lift table, a transmission bin and a motor, wherein the lift table is fixedly connected on the upper surface of the support table, and the The transmission bin is opened inside the lifting platform; the adjustable camera mounting platform for cultural media photography, through the first rotating shaft, the first bearing, the gear and the sector gear, when people need to adjust the lateral angle of the device, people only need to pass Rotating the placing table, under the cooperation of the first rotating shaft and the first bearing, facilitates people to adjust the lateral angle of the device. When people need to adjust the vertical angle of the placing stand, people only need to pull the handle and put the handle It is separated from the positioning groove, and then the second rotating shaft is driven to rotate by turning the handle, and under the cooperation of the gear and the sector gear, it is convenient for people to adjust the longitudinal angle of the placing rack.
Description
Technical Field
The utility model belongs to the technical field of the camera mount table, concretely relates to photographic adjustable camera mount table of using of culture media.
Background
The culture media is an extended field in the media industry, the modern propagation means is used for carrying out culture propagation and communication among different cultures through the media, the propagation media are called as the media, the media or the media, refer to a carrier for propagating information, can be private mechanisms or official mechanisms, and carry out culture propagation and communication among different cultures through the media.
SUMMERY OF THE UTILITY MODEL
To solve the problems set forth in the background art described above. The utility model provides a photographic adjustable camera mount table of using of culture media has simple structure, the simple operation to have the characteristics of facilitate the use.
In order to achieve the above object, the utility model provides a following technical scheme: an adjustable camera mounting table for culture media photography comprises a supporting table, a lifting table, a transmission bin and a motor, wherein the lifting table is fixedly connected to the upper surface of the supporting table, the transmission bin is arranged inside the lifting table, the motor is fixedly connected inside the transmission bin, an output shaft of the motor is fixedly connected with a threaded column, the upper end of the threaded column is in threaded connection with a threaded pipe, the other end of the threaded pipe is fixedly connected with a first rotating shaft, a placing table is arranged at the upper end of the first rotating shaft, a first bearing is fixedly connected to the lower surface of the placing table, the other end of the first rotating shaft is arranged in the first bearing in a penetrating mode, a first fixing block is fixedly connected to the upper surface of the placing table, a second bearing is arranged on the surface of the first fixing block in a penetrating mode, a second rotating shaft is arranged in the second bearing in a penetrating mode, a handle is fixedly connected to one end of the, the utility model discloses a bearing rack, including first fixed block, second fixed block, fourth bearing, fan-shaped gear and gear phase-match, second fixed block side fixedly connected with third bearing, the other end of second pivot is worn to establish in the third bearing, second pivot fixed surface is connected with the gear, second fixed block side fixedly connected with fourth bearing, the third pivot is worn to be equipped with inside the wearing of fourth bearing, the other end fixedly connected with rack of third pivot, the third pivot is total two sets of to the symmetry sets up in the rack both sides, the fixed surface is connected with fan-shaped gear under the rack, fan-.
As a further aspect of the present invention: the threaded pipe is characterized in that sliding blocks are fixedly connected to the side faces of the threaded pipe, sliding grooves are formed in the inner wall of the transmission bin, the sliding blocks are connected in the sliding grooves in a sliding mode, and the sliding blocks and the sliding grooves are two groups and are symmetrically arranged on two sides of the threaded pipe.
As a further aspect of the present invention: the surface of the handle is fixedly connected with a limiting rod, the side face of the handle is provided with a handle, the surface of the handle is provided with a limiting groove, the limiting rod is arranged in the limiting groove in a penetrating mode, the side face of the placing table is provided with a positioning groove, and the handle is connected in the positioning groove in a clamping mode.
As a further aspect of the present invention: the rack inner wall fixedly connected with telescopic link, the other end fixedly connected with splint of telescopic link, the spring has been cup jointed on the surface of telescopic link, splint side fixedly connected with slipmat, splint are total two sets of to the symmetry sets up inside the rack.
As a further aspect of the present invention: the supporting bench lower surface has been seted up flexible groove, fixedly connected with electric putter in the flexible groove, electric putter's other end fixedly connected with wheel group, wheel group is total four to be the rectangle and arrange at the supporting bench lower extreme, supporting bench lower surface fixedly connected with base, the base is total four to be the rectangle and arrange at the supporting bench lower surface.
As a further aspect of the present invention: an energy storage bin is arranged inside the supporting table, a storage battery is fixedly connected inside the energy storage bin, a control switch is fixedly connected to the front face of the lifting table, and a microprocessor is arranged inside the control switch.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the adjustable camera mounting table for cultural media photography comprises a first rotating shaft, a first bearing, a gear and a sector gear, when people need to adjust the transverse angle of the device, people only need to rotate the placing table, under the matching of the first rotating shaft and the first bearing, the transverse angle of the device can be conveniently adjusted by people, when people need to adjust the longitudinal angle of the placing rack, people only need to pull the handle to separate the handle from the positioning groove and then drive the second rotating shaft to rotate through rotating the handle, under the matching of the gear and the sector gear, the longitudinal angle of the rack can be conveniently adjusted by people, after the adjustment is completed, people only need to clamp the handle and the positioning groove once more, so that the angle of the device can be adjusted conveniently, and the practicability of the device is improved.
2. This photographic adjustable camera mount table of using of culture media through screw thread post and screwed pipe, when people need adjust the device's height, people only need operate through control switch control motor to drive the screw thread post and rotate, under the cooperation of screw thread post and screwed pipe, thereby made things convenient for people to carry the rack place the platform highly adjust, alleviateed people's operating pressure.
3. This culture media is photographic with adjustable camera mount table, through setting up electric putter, wheel group and base, when people need fix the device, people only need control the electric putter function through control switch, thereby drive the wheel group and remove, take place to break away from with ground when the wheel group, when the base contacted with ground simultaneously, people only need stop the function through control switch control electric putter, thereby guaranteed that the device can keep stable operating condition at the in-process that carries out normal operation.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

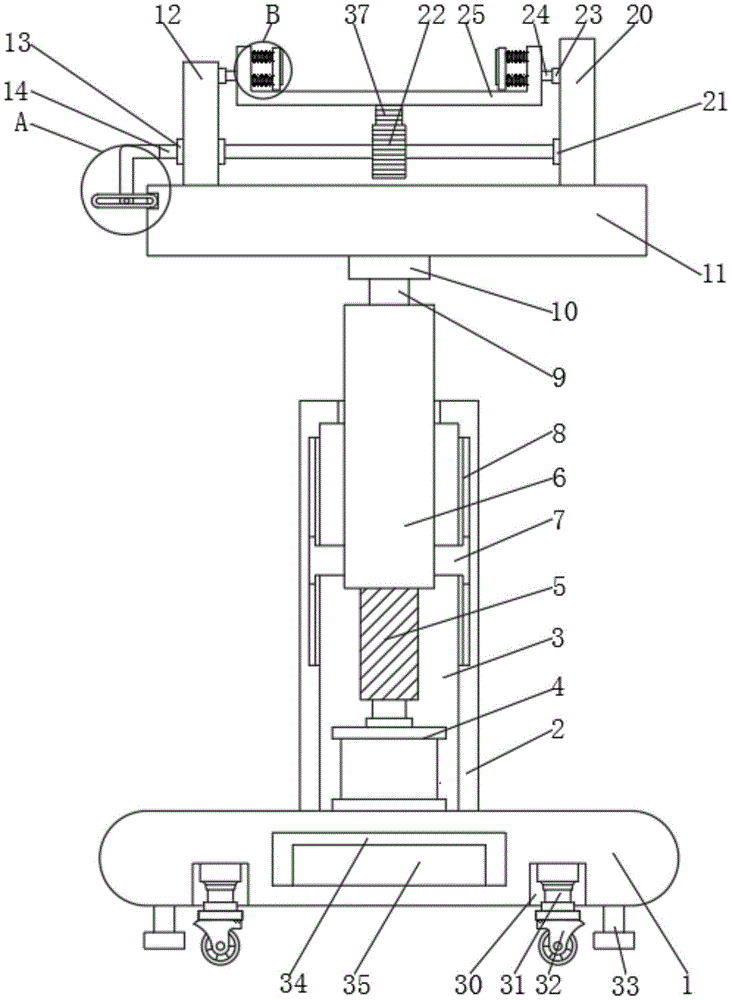

FIG. 1 is a front sectional view of the present invention;
FIG. 2 is a front view of the present invention;
FIG. 3 is an enlarged schematic structural view of the position A of the present invention;
FIG. 4 is an enlarged schematic structural view of the position B of the present invention;
fig. 5 is a three-dimensional structural schematic diagram of the middle threaded column of the present invention;
in the figure: 1. a support table; 2. a lifting platform; 3. a transmission bin; 4. a motor; 5. a threaded post; 6. a threaded pipe; 7. a slider; 8. a chute; 9. a first rotating shaft; 10. a first bearing; 11. a placing table; 12. a first fixed block; 13. a second bearing; 14. a second rotating shaft; 15. a handle; 16. a limiting rod; 17. a handle; 18. a limiting groove; 19. positioning a groove; 20. a second fixed block; 21. a third bearing; 22. a gear; 23. a fourth bearing; 24. a third rotating shaft; 25. placing a rack; 26. a telescopic rod; 27. a spring; 28. A splint; 29. a non-slip mat; 30. a telescopic groove; 31. an electric push rod; 32. a wheel set; 33. a base; 34. an energy storage bin; 35. a storage battery; 36. a control switch; 37. a sector gear.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Examples
Referring to fig. 1-5, the present invention provides the following technical solutions: an adjustable camera mounting platform for culture media photography comprises a supporting platform 1, a lifting platform 2, a transmission bin 3 and a motor 4, wherein the lifting platform 2 is fixedly connected to the upper surface of the supporting platform 1, the transmission bin 3 is arranged inside the lifting platform 2, the motor 4 is fixedly connected inside the transmission bin 3, an output shaft of the motor 4 is fixedly connected with a threaded column 5, the upper end of the threaded column 5 is in threaded connection with a threaded pipe 6, the adjustable camera mounting platform for culture media photography is characterized in that through the threaded column 5 and the threaded pipe 6, when people need to adjust the height of the device, people only need to control the motor 4 to operate through a control switch 36, so as to drive the threaded column 5 to rotate, under the matching of the threaded column 5 and the threaded pipe 6, the height of a placing platform 11 with a placing rack 25 is conveniently adjusted, the working pressure of people is relieved, the other end of the threaded pipe 6 is fixedly connected with a first rotating shaft 9, a placing table 11 is arranged at the upper end of the first rotating shaft 9, a first bearing 10 is fixedly connected to the lower surface of the placing table 11, the other end of the first rotating shaft 9 penetrates through the first bearing 10, a first fixing block 12 is fixedly connected to the upper surface of the placing table 11, a second bearing 13 penetrates through the surface of the first fixing block 12, a second rotating shaft 14 penetrates through the second bearing 13, a handle 15 is fixedly connected to one end of the second rotating shaft 14, a second fixing block 20 is fixedly connected to the upper surface of the placing table 11, a third bearing 21 is fixedly connected to the side surface of the second fixing block 20, the other end of the second rotating shaft 14 penetrates through the third bearing 21, a gear 22 is fixedly connected to the surface of the second rotating shaft 14, a fourth bearing 23 is fixedly connected to the side surface of the second fixing block 20, a third rotating shaft 24 penetrates through the inside of the fourth bearing 23, a placing frame 25 is fixedly connected to the other, and are symmetrically arranged at both sides of the placing frame 25, the lower surface of the placing frame 25 is fixedly connected with a sector gear 37, the sector gear 37 is matched with the gear 22, when people need to adjust the transverse angle of the device, people only need to rotate the placing table 11 under the matching of the first rotating shaft 9 and the first bearing 10 by rotating the placing table 11, so that people can conveniently adjust the transverse angle of the device, when people need to adjust the longitudinal angle of the placing frame 25, people only need to pull the handle 17 to separate the handle 17 from the positioning groove 19, then the handle 15 is rotated to simultaneously drive the second rotating shaft 14 to rotate, under the matching of the gear 22 and the sector gear 37, so that people can conveniently adjust the longitudinal angle of the placing frame 25, after the adjustment is completed, people only need to clamp the handle 17 and the positioning groove 19 again, so that the angle of the device can be adjusted conveniently, and the practicability of the device is improved.
Specifically, 6 side fixedly connected with sliders 7 of screwed pipe, spout 8 has been seted up to 3 inner walls of transmission storehouse, and slider 7 sliding connection is in spout 8, and slider 7 and spout 8 respectively have two sets ofly to the symmetry sets up in 6 both sides of screwed pipe.
Specifically, the fixed surface of handle 15 is connected with gag lever post 16, and handle 15 side is provided with handle 17, and spacing groove 18 has been seted up on handle 17 surface, and gag lever post 16 wears to establish in spacing groove 18, places platform 11 side and has seted up constant head tank 19, and handle 17 joint is in constant head tank 19.
Specifically, rack 25 inner wall fixedly connected with telescopic link 26, telescopic link 26's other end fixedly connected with splint 28, spring 27 has been cup jointed on telescopic link 26's surface, splint 28 side fixedly connected with slipmat 29, splint 28 are total two sets of to the symmetry sets up inside rack 25.
Specifically, the lower surface of the support table 1 is provided with a telescopic groove 30, an electric push rod 31 is fixedly connected in the telescopic groove 30, the other end of the electric push rod 31 is fixedly connected with four wheel sets 32, the number of the wheel sets 32 is four, and is arranged at the lower end of the support platform 1 in a rectangular shape, the lower surface of the support platform 1 is fixedly connected with four bases 33, the number of the bases 33 is four, and the bases are arranged at the lower surface of the support platform 1 in a rectangular shape, the adjustable camera mounting table for cultural media photography is provided with an electric push rod 31, a wheel set 32 and a base 33, when people need to fix the device, people only need to control the electric push rod 31 to operate through the control switch 36, thereby driving the wheel set 32 to move, when the wheel set 32 is separated from the ground and the base 33 is contacted with the ground, people only need to control the electric push rod 31 to stop operating through the control switch 36, thereby ensuring that the device can keep a stable working state in the normal operation process.
Specifically, supporting bench 1 is inside to be seted up energy storage storehouse 34, the inside fixedly connected with battery 35 in energy storage storehouse 34, the positive fixedly connected with control switch 36 of elevating platform 2, the inside microprocessor that is provided with of control switch 36.
The utility model discloses a theory of operation does:
s1, when the device is used, the device is firstly moved to a designated position, when people need to fix the device, people only need to control the electric push rod 31 to operate through the control switch 36, so that the wheel set 32 is driven to move, when the wheel set 32 is separated from the ground and the base 33 is contacted with the ground, people only need to control the electric push rod 31 to stop operating through the control switch 36, and therefore the device is guaranteed to be kept in a stable working state in the normal operation process;
s2, when people need to adjust the height of the device, people only need to control the motor 4 to operate through the control switch 36, so that the threaded column 5 is driven to rotate, and under the matching of the threaded column 5 and the threaded pipe 6, people can conveniently adjust the height of the placing table 11 with the placing rack 25, and the working pressure of people is reduced;
s3, when people need to adjust the transverse angle of the device, people only need to place the platform 11 through rotating, under the cooperation of the first rotating shaft 9 and the first bearing 10, thereby the transverse angle of the device is adjusted by people conveniently, when people need to adjust the longitudinal angle of the placing rack 25, people only need to pull the handle 17, separate the handle 17 from the positioning groove 19, then through rotating the handle 15, simultaneously, the second rotating shaft 14 is driven to rotate, under the cooperation of the gear 22 and the sector gear 37, thereby the longitudinal angle of the placing rack 25 is adjusted by people conveniently, after the adjustment is completed, people only need to clamp the handle 17 and the positioning groove 19 again, the angle of the device is adjusted by people conveniently, and the practicability of the device is improved.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
