CN213509975U

CN213509975U - An environmental protection device based on wetland protection

Info

Publication number: CN213509975U
Application number: CN202022435520.9U
Authority: CN
Inventors: 曹馨月
Original assignee: Qinhuangdao Zhuosheng Technology Co Ltd
Current assignee: Qinhuangdao Zhuosheng Technology Co Ltd
Priority date: 2020-10-28
Filing date: 2020-10-28
Publication date: 2021-06-22
Anticipated expiration: 2030-10-28

Abstract

The utility model discloses an environment-friendly protection device based on wetland protection, which relates to the field of guardrails. A screw rod is provided, a placement bin is set on the outside of the support column, a No. 1 connecting block is set on the outside of the screw rod, and a slider that penetrates into the interior of the placing bin is provided on the outside of the No. 1 connecting block. The top of the frame is provided with a positioning column, the outer side of the placement bin is provided with a frame, and the outer side of the frame is provided with a No. There are bolts through to the bottom of the fixing block. By arranging the bottom plate and the bolts, the utility model can make the bottom plate contact the ground by rotating the bolts, so that the bottom plate and the bolts support the frame, thereby increasing the stability of the device.

Description

Environment-friendly protector based on wetland protection

Technical Field

The utility model relates to a rail guard field specifically is an environment-friendly protector based on wetland protection.

Background

The wetland is a very precious natural resource, is an important component of an earth ecosystem, has the effects of improving water quality and regulating regional climate, can also protect the diversity of organisms, provides living environment for 20 percent of known species on the earth, is called as 'kidneys of the earth' by people, and has irreplaceable effects, so that a plurality of wetland protection areas are provided with protection devices to prevent tourists from crossing the line and strengthen the protection of the wetland ecosystem.

However, the general protection device is very troublesome to install, thereby affecting the installation efficiency; and the stability is poor.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a: in order to solve the problems that the guardrail cannot be simply and conveniently installed and the stability is poor, the environment-friendly protection device based on the wetland protection is provided.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an environment-friendly protector based on wetland protection, includes the base, the top of base is provided with the support column, and the top of support column is provided with the apron, the inside of support column is provided with the lead screw, the outside of support column is provided with places the storehouse, the outside of lead screw is provided with the connecting block No. one, and the outside of connecting block is provided with and runs through to the inside slider in placing the storehouse, the top of slider is provided with the reference column, the outside of placing the storehouse is provided with the frame, and the outside of frame is provided with and runs through to the inside connecting block No. two in placing the storehouse, the one end of frame is provided with the fixed block, and the top of fixed block is provided with the bolt that runs through to the fixed block bottom, the bottom of bolt is.

Preferably, the inside of a connecting block is provided with a threaded hole matched with the screw rod, and the outer side of the supporting column is provided with a sliding groove matched with the sliding block.

Preferably, the inside of No. two connecting blocks is provided with the draw-in groove that agrees with the reference column mutually.

Preferably, the fixing block is internally provided with a threaded hole matched with the bolt.

Preferably, the screw rod is rotatably connected with the support column through a bearing.

Preferably, the number of the sliding blocks is four, and the four sliding blocks are uniformly distributed along the central axis of the first connecting block.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model is provided with the first connecting block, the screw rod, the slider and the positioning column, and the slider can drive the positioning column to move by rotating the screw rod, so that the second connecting block is buckled, and the device is installed;

2. the utility model discloses a set up bottom plate, bolt, accessible rotation bolt makes bottom plate and ground contact to make bottom plate and bolt support the frame, with this stability that increases the device.

Drawings

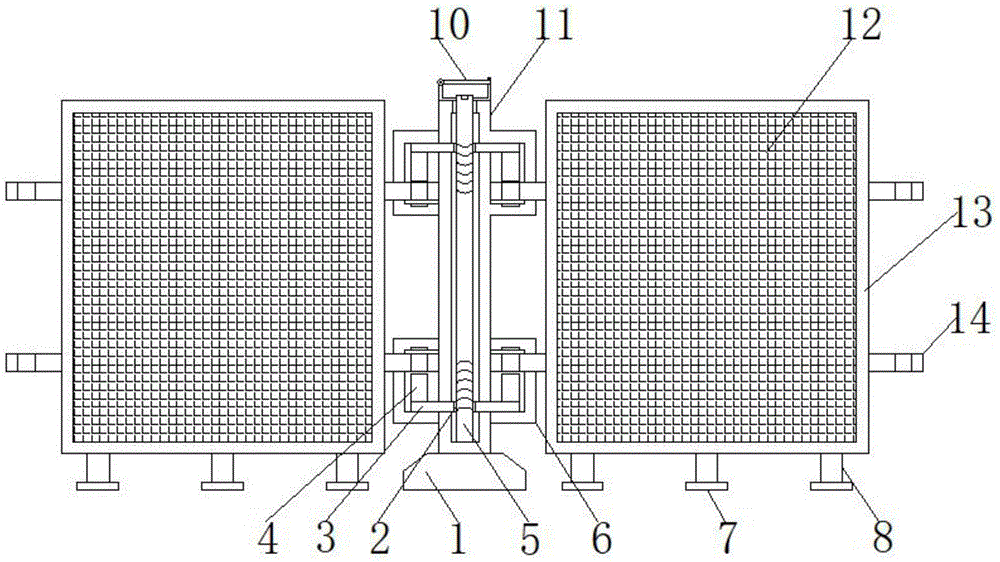

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a top cross-sectional view of the support post of the present invention;

fig. 3 is a schematic view of the connection between the bolt and the fixing block of the present invention.

In the figure: 1. a base; 2. a first connecting block; 3. a slider; 4. a positioning column; 5. a screw rod; 6. placing a bin; 7. a base plate; 8. a fixed block; 9. a bolt; 10. a cover plate; 11. a support pillar; 12. a screen plate; 13. a frame; 14. and a second connecting block.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance. In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "connected" and "disposed" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art. The following describes an embodiment of the present invention according to its overall structure.

Referring to fig. 1-3, an environment-friendly protection device based on wetland protection comprises a base 1, wherein a support column 11 is arranged at the top end of the base 1, a cover plate 10 is arranged at the top end of the support column 11, a screw rod 5 is arranged inside the support column 11, a placing bin 6 is arranged outside the support column 11, a first connecting block 2 is arranged outside the screw rod 5, a slider 3 penetrating into the placing bin 6 is arranged outside the first connecting block 2, a positioning column 4 is arranged at the top end of the slider 3, a frame 13 is arranged outside the placing bin 6, a second connecting block 14 penetrating into the placing bin 6 is arranged outside the frame 13, a fixed block 8 is arranged at one end of the frame 13, a bolt 9 penetrating to the bottom of the fixed block 8 is arranged at the top of the fixed block 8, a bottom plate 7 is arranged below the fixed block 8 at the bottom end of the bolt 9, the inside of the frame 13 is provided with a mesh plate 12.

Please refer to fig. 1, a threaded hole matched with the screw rod 5 is arranged inside the first connecting block 2, and a sliding groove matched with the sliding block 3 is arranged outside the supporting column 11, so that the sliding block 3 can move when the screw rod 5 rotates.

Please refer to fig. 1, a slot matching with the positioning column 4 is disposed inside the second connecting block 14, so as to fix the positioning column 4.

Please refer to fig. 3, a threaded hole matched with the bolt 9 is formed in the fixing block 8, so that the bolt 9 can be conveniently screwed.

Please refer to fig. 1, the screw rod 5 is rotatably connected to the supporting column 11 through a bearing, so that the screw rod 5 can rotate conveniently.

Please refer to fig. 2, the number of the sliding blocks 3 is four, and the four sliding blocks 3 are uniformly distributed along the central axis of the first connecting block 2, so as to be conveniently connected with the second connecting block 14.

The working principle is as follows: can place the inside of placing storehouse 6 with No. two connecting blocks 14 when installing the device earlier, later open apron 10, twist and move lead screw 5, lead screw 5 can make a connecting block remove along lead screw 5 when rotating, thereby make slider 3 drive reference column 4 remove, from this alright make reference column 4 buckle the inside of No. two connecting blocks 14, from this alright be connected support column 11 and No. two connecting blocks 14 fixedly, thereby fix frame 13, later rotate bolt 9, bolt 9 just can drive bottom plate 7 and move down, thereby make bottom plate 7 and ground contact, thereby support frame 13, only need open apron 10 and invert lead screw 5 when needing to dismantle the device, thereby make reference column 4 and No. two connecting blocks 14 separate, thereby take off frame 13.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. An environmental protection device based on wetland protection, comprising a base (1), characterized in that: the top of the base (1) is provided with a support column (11), and the top of the support column (11) is provided with a cover A plate (10), a screw rod (5) is provided inside the support column (11), a placement bin (6) is provided on the outside of the support column (11), and a screw rod (5) is provided on the outside of the screw rod (5). No. 1 connecting block (2), and the outer side of the No. 1 connecting block (2) is provided with a sliding block (3) that penetrates into the interior of the storage bin (6), and a positioning column (4) is provided at the top of the sliding block (3). , a frame (13) is provided on the outer side of the placement bin (6), and the outer side of the frame (13) is provided with a No. 2 connecting block (14) that penetrates into the interior of the placement bin (6). One end is provided with a fixing block (8), and the top of the fixing block (8) is provided with a bolt (9) penetrating to the bottom of the fixing block (8), and the bottom end of the bolt (9) is located below the fixing block (8) A bottom plate (7) is provided, and a mesh plate (12) is provided on the inner side of the frame (13).

2. An environmental protection device based on wetland protection according to claim 1, characterized in that: the inside of the No. 1 connecting block (2) is provided with a threaded hole matching the screw (5), so The outer side of the support column (11) is provided with a chute which fits with the sliding block (3).

3 . An environmental protection device based on wetland protection according to claim 1 , characterized in that: the No. 2 connecting block ( 14 ) is internally provided with a slot that fits with the positioning post ( 4 ). 4 .

4. An environmental protection device based on wetland protection according to claim 1, characterized in that: the interior of the fixing block (8) is provided with threaded holes matching with the bolts (9).

5 . An environmental protection device based on wetland protection according to claim 1 , wherein the screw rod ( 5 ) and the support column ( 11 ) are rotatably connected through a bearing. 6 .

6. An environmental protection device based on wetland protection according to claim 1, characterized in that: the number of the sliders (3) is four, and the four sliders (3) are along a The central axis of the connecting block (2) is evenly distributed.
