Abstract
本申请涉及一种地下室密封式污水提升器，包括腔壳，所述腔壳上连通且固定连接有进水管和出水管，所述腔壳内转动连接有粉碎筒，所述进水管连通所述粉碎筒，所述粉碎筒外壁上开设有多个穿孔，所述腔壳上设有用于驱动所述粉碎筒转动的驱动组件，所述腔壳内转动连接有转动杆，所述转动杆的一端插入所述粉碎筒内固定连接有刀片，所述腔壳上设有用于驱动所述转动杆转动的电机一，本申请具有能改善预粉碎筒上的通孔容易被杂物堵塞的情况的效果。
The application relates to a basement sealed sewage lifter, comprising a cavity shell, a water inlet pipe and a water outlet pipe are communicated and fixedly connected to the cavity shell, a pulverizing cylinder is rotatably connected in the cavity shell, and the water inlet pipe is connected to the A pulverizing cylinder, the outer wall of the pulverizing cylinder is provided with a plurality of perforations, the cavity shell is provided with a driving component for driving the rotation of the pulverizing cylinder, a rotating rod is rotatably connected in the cavity shell, and one end of the rotating rod is A blade is inserted into the crushing cylinder and fixedly connected, and the cavity shell is provided with a motor for driving the rotation rod to rotate. The present application has the effect of improving the situation that the through hole on the pre-crushing cylinder is easily blocked by debris .
Description
Technical Field
The application relates to the field of sewage treatment equipment, in particular to a basement sealed sewage lifting device.
Background
The sewage lifting device is a drainage device, is mainly used for basements, ships, vehicles and other places which are far away from a drainage vertical pipe and have poor drainage conditions, and can collect and treat domestic water in toilets.
Chinese patent No. CN205296378U discloses a pre-crushing sewage lifter, which comprises a cavity, wherein the cavity is provided with a water inlet pipe and a plurality of water outlet pipes, the water inlet pipe and the water outlet pipes are communicated with the cavity space, a water pump is arranged at the water outlet pipe, the water outlet pipes are connected with a lifting pipe, the water pump is connected to a control mechanism, and the water inlet pipe is connected with a pre-crushing mechanism arranged in the cavity; the pre-crushing mechanism comprises a pre-crushing barrel internally provided with a rotating shaft in the horizontal direction, a plurality of blade sets arranged in parallel are longitudinally distributed on the rotating shaft, the blade sets are distributed on the same vertical circular surface, and the rotating shaft is connected with the control mechanism through a motor; the water inlet pipe is arranged on the water inlet pipe, the water outlet is arranged on one side of the pre-crushing barrel opposite to the water inlet pipe, the upper portion of the rotating shaft is arranged on the water outlet, and the pre-crushing barrel is provided with a plurality of through holes for crushed sundries to pass through.
In view of the above-mentioned related art, the inventor believes that, in the actual use process, the through holes on the pre-crushing barrel are easily blocked by impurities, and the drainage efficiency of the pre-crushing barrel is affected.
SUMMERY OF THE UTILITY MODEL
In order to improve the condition that the through-hole on the pre-crushing section of thick bamboo is blockked up by debris easily, this application provides a basement sealed sewage lifting mechanism.
The application provides a basement sealed sewage lifting mechanism adopts following technical scheme:
the utility model provides a basement sealed sewage lifting mechanism, includes the chamber shell, intercommunication and fixedly connected with inlet tube and outlet pipe on the chamber shell, chamber shell internal rotation is connected with crushing barrel, the inlet tube intercommunication crushing barrel, a plurality of perforation have been seted up on the crushing barrel outer wall, be equipped with on the chamber shell and be used for the drive crushing barrel pivoted drive assembly, chamber shell internal rotation is connected with the dwang, the one end of dwang is inserted fixedly connected with blade in the crushing barrel, be equipped with on the chamber shell and be used for the drive dwang pivoted motor is one.
Through adopting above-mentioned technical scheme, the during operation, sewage enter into the crushing barrel, open motor one this moment, drive the dwang and rotate to drive the blade and rotate, cut up the great debris of sewage volume, and drive assembly can drive the crushing barrel and rotate, thereby sewage in the crushing barrel receives centrifugal action, and is thrown away the crushing barrel, and meanwhile, the crushing barrel rotates, and debris receive the effect of centrifugal force, are difficult for blockking up the through-hole, accelerate crushing barrel blowdown efficiency.
Preferably, the driving assembly comprises a second motor and a first gear, the second motor is fixedly connected in the cavity shell, an output shaft of the second motor is coaxially and fixedly connected with the first gear, one end of the crushing barrel is coaxially and fixedly connected with the second gear, and the first gear is meshed with the second gear.
By adopting the technical scheme, when the crushing barrel is driven to rotate, the second motor is started to drive the first gear to rotate, so that the second gear is driven to rotate, and the second gear rotates to drive the crushing barrel to rotate; the driving assembly is simple in structure and stable in driving.
Preferably, a brush abutting against the outer wall of the crushing barrel is connected in the cavity shell in a sliding mode along the length direction of the crushing barrel, and a transmission part used for driving the brush to slide is arranged in the cavity shell.
Through adopting above-mentioned technical scheme, the driving medium drives the brush and slides along crushing barrel length direction, and the brush butt is on crushing chamber outer wall to can clear up the debris of adhesion on the crushing barrel, prevent that the debris of adhesion on the crushing barrel from blockking up the perforation on the crushing barrel.
Preferably, the transmission part comprises a screw rod, the screw rod is arranged along the sliding direction of the hairbrush, the screw rod is rotatably connected in the cavity shell, and the screw rod is in threaded connection with the hairbrush.
By adopting the technical scheme, the screw rod is in threaded connection with the brush plate, and the brush is in sliding connection with the cavity shell, so that the screw rod can drive the brush plate to slide by rotating; the lead screw has certain limit function, can restrict the brush in a certain position to a certain extent.
Preferably, a transmission assembly for driving the screw rod to rotate intermittently is arranged on the second output shaft of the motor.
By adopting the technical scheme, when the output shaft of the motor II rotates, the screw rod is driven to rotate intermittently by the transmission assembly, so that the brush plate is driven to move; the lead screw is driven to rotate and the crushing barrel is driven to rotate through the motor, the complexity of the device is reduced, meanwhile, the lead screw rotates intermittently, and the hair brush is convenient to clean the crushing barrel comprehensively.
Preferably, the transmission assembly comprises an incomplete gear and a third gear, the incomplete gear is coaxially and fixedly connected to an output shaft of the second motor, the third gear is coaxially and fixedly connected to the screw rod, and the incomplete gear is meshed with the third gear.
Through adopting above-mentioned technical scheme, when motor two opened, incomplete gear revolve to drive gear three intermittent rotation, this transmission assembly transmission is effectual, and the transmission is stable.
Preferably, the brush is fixedly connected with a telescopic rod, the other end of the telescopic rod is connected in the cavity shell in a sliding mode along the length direction of the crushing barrel, and a driving piece used for driving the telescopic rod to extend to control the brush to abut against the outer wall of the crushing barrel is arranged on the telescopic rod.
Through adopting above-mentioned technical scheme, because the brush uses for a long time, the easy wearing and tearing that produce of brush to drive brush clearance effect variation, and the setting of telescopic link and driving piece can control the brush butt all the time at crushing barrel surface, promotes the clearance effect of brush.
Preferably, the telescopic link includes sleeve pipe and extension rod, sleeve pipe one end is followed crushing barrel length direction sliding connection is in the chamber shell, the sleeve pipe other end cup joints the extension rod, extension rod other end fixed connection the brush, spring housing establishes and fixed connection be in on the extension rod, spring other end fixed connection the sleeve pipe.
Through adopting above-mentioned technical scheme, the spring has certain pretightning force, can provide certain deformation power to can control the brush and butt all the time on crushing barrel outer wall, this driving piece simple structure, the installation is rapid.
In summary, the present application includes at least one of the following beneficial technical effects:
1. according to the sewage treatment device, the driving assembly drives the crushing barrel to rotate, so that sewage in the crushing barrel is thrown out of the crushing barrel under the centrifugal action, meanwhile, the crushing barrel rotates, sundries are influenced by the centrifugal action, the through holes are not easy to block, and the sewage discharge efficiency of the crushing barrel is accelerated;
2. this application is done intermittent type through two lead screws of motor and is rotated to drive the brush and slide along rubbing crusher length direction intermittent type, thereby the convenience is to being comprehensive clearance to rubbing crusher outer wall, prevents that the adhesion from blockking up the perforation on the rubbing crusher on rubbing crusher.
Drawings

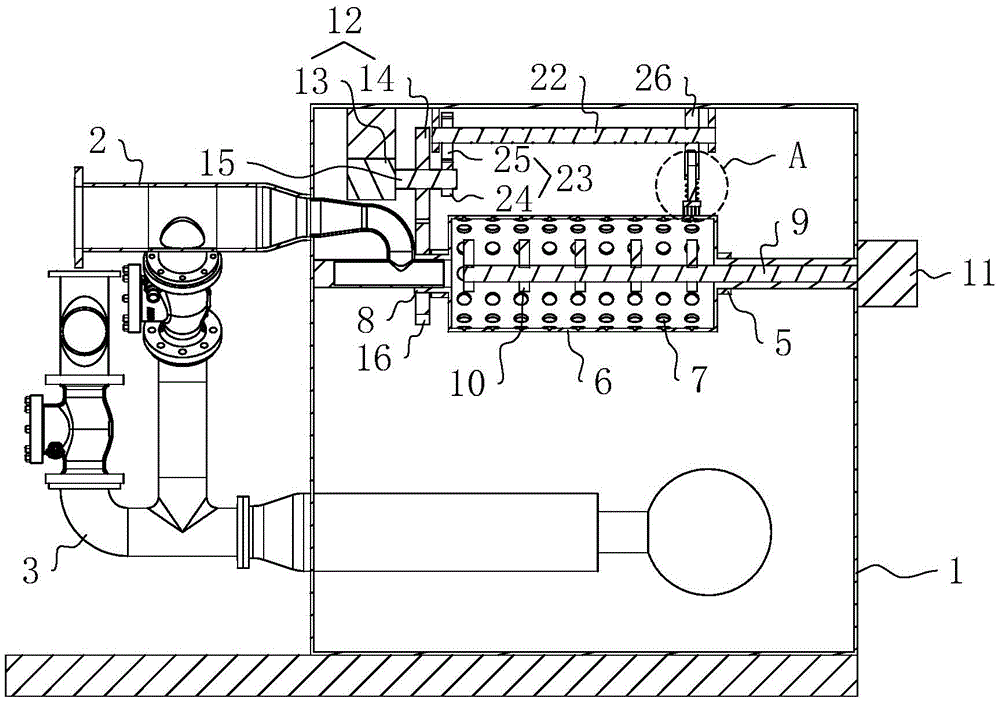

FIG. 1 is a first cross-sectional view of a sealed sewage elevator for basement according to an embodiment of the present application;
FIG. 2 is a second sectional view of the sealed sewage lifter for basement according to the embodiment of the present application;
fig. 3 is an enlarged schematic view of region a in fig. 2.
Description of reference numerals: 1. a chamber housing; 2. a water inlet pipe; 3. a water outlet pipe; 4. mounting a rod; 5. a mounting ring; 6. a milling drum; 7. perforating; 8. a communicating pipe; 9. rotating the rod; 10. a blade; 11. a first motor; 12. a drive assembly; 13. a second motor; 14. a first gear; 15. a rotating shaft; 16. a second gear; 17. a telescopic rod; 18. a sleeve; 19. an extension rod; 20. a spring; 21. a brush; 22. a screw rod; 23. a transmission assembly; 24. an incomplete gear; 25. a third gear; 26. a slide block.
Detailed Description
The present application is described in further detail below with reference to figures 1-3.
The embodiment of the application discloses basement sealed sewage lifting mechanism. Referring to fig. 1 and 2, this lifting mechanism, including chamber shell 1, intercommunication and fixedly connected with inlet tube 2 and outlet pipe 3 on the chamber shell 1, two installation poles 4 of fixedly connected with in the chamber shell 1, installation pole 4 is the horizontal direction setting, 4 other end fixedly connected with collar 5 of installation pole, it is connected with crushing barrel 6 to rotate between two collars 5, a plurality of perforation 7 have been seted up on 6 periphery walls of crushing barrel, 6 axis of rotation of crushing barrel sets up along the horizontal direction, one end intercommunication and fixedly connected with communicating pipe 8 of crushing barrel 6, inlet tube 2 intercommunication and fixedly connected communicating pipe 8.
The internal rotation of chamber shell 1 is connected with dwang 9, and dwang 9 axis of rotation sets up along 6 length direction of a crushing barrel, and the one end that the one end of dwang 9 inserted crushing barrel 6 and kept away from communicating pipe 8 extends to a plurality of blades 10 of array and fixedly connected with in the crushing barrel 6, through screw fixedly connected with motor 11 on the 1 outer wall of chamber shell, and the output shaft of the 1 coaxial fixedly connected with motor of chamber shell is worn out to the one end that blade 10 was kept away from to dwang 9.
The inner wall of the cavity shell 1 is provided with a driving assembly 12 used for driving the crushing barrel 6 to rotate, the driving assembly 12 comprises a second motor 13 and a first gear 14, the second motor 13 is fixedly connected to the inner wall of the cavity shell 1 through screws, an output shaft of the second motor 13 is coaxially and fixedly connected with a rotating shaft 15, the first gear 14 is coaxially and fixedly connected to the rotating shaft 15, a second gear 16 is coaxially and fixedly connected to the communicating pipe 8, and the first gear 14 and the second gear 16 are meshed and connected.
Referring to fig. 2 and 3, the inner wall of the chamber shell 1 is slidably connected with a telescopic rod 17 along the length direction of the crushing barrel 6, the telescopic rod 17 comprises a sleeve 18 and an extension rod 19, one end surface of the sleeve 18 is fixedly connected with a slide block 26, the slide block 26 abuts against the inner wall of the chamber shell 1, one surface of the slide block 26, which is used for abutting against the inner wall of the chamber shell 1, is a plane, the other end of the sleeve 18 is sleeved with the extension rod 19, the outer wall of the extension rod 19 abuts against the inner wall of the sleeve 18, one end of the extension rod 19, which is far away from the sleeve 18,
the telescopic rod 17 is provided with a driving piece for driving the telescopic rod 17 to extend so as to control the brush 21 to abut against the outer wall of the crushing barrel 6, the driving piece is a spring 20, the spring 20 is sleeved on the extension rod 19, and two ends of the spring 20 are respectively fixedly connected with the sleeve 18 and the brush 21.
The inner wall of the cavity shell 1 is provided with a transmission part for driving the sleeve 18 to slide along the length direction of the crushing cylinder 6, the transmission part is a screw rod 22, the screw rod 22 is arranged along the length direction of the crushing cylinder 6, the screw rod 22 is rotatably connected to the inner wall of the cavity shell 1, and one end of the screw rod 22 penetrates through the sleeve 18 and is in threaded fit with the sleeve 18.
The rotating shaft 15 is provided with a transmission assembly 23 used for driving the screw rod 22 to rotate, the transmission assembly 23 comprises an incomplete gear 24 and a gear III 25, the incomplete gear 24 is coaxially and fixedly connected to the rotating shaft 15, the gear III 25 is coaxially and fixedly connected to one end of the screw rod 22, and the incomplete gear 24 is meshed with the gear III 25.
The implementation principle of the sealed sewage lifting mechanism for the basement is as follows: during operation, sewage enters the crushing barrel 6, the first motor 11 is started at the moment, the rotating rod 9 is driven to rotate, the blade 10 is driven to rotate, sundries in the sewage are crushed, the second motor 13 is started at the same time, the direction of the second motor 13 is controlled to be opposite to the direction of the first motor 11, the second motor 13 drives the rotating shaft 15 to rotate, the first gear 14 is driven to rotate, the first gear 14 rotates to drive the second gear 16 to rotate, the second gear 16 rotates to drive the crushing barrel 6 to rotate, the sewage is thrown out of the through hole 7, meanwhile, the rotating shaft 15 rotates to drive the incomplete gear 24 to rotate, the incomplete gear 24 rotates to drive the third gear 25 to rotate intermittently, the screw rod 22 is driven to rotate intermittently, the screw rod 22 rotates intermittently to drive the brush 21 to slide intermittently along the length direction of the crushing barrel 6, and sundries adhered to the outer wall of the.
The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.
Claims (8)
1. The utility model provides a basement sealed sewage lifting mechanism, includes chamber shell (1), intercommunication and fixedly connected with inlet tube (2) and outlet pipe (3), its characterized in that on chamber shell (1): chamber shell (1) internal rotation is connected with crushing barrel (6), inlet tube (2) intercommunication crushing barrel (6), a plurality of perforation (7) have been seted up on crushing barrel (6) outer wall, be equipped with on chamber shell (1) and be used for the drive crushing barrel (6) pivoted drive assembly (12), chamber shell (1) internal rotation is connected with dwang (9), the one end of dwang (9) is inserted fixedly connected with blade (10) in crushing barrel (6), be equipped with on chamber shell (1) and be used for the drive dwang (9) pivoted motor (11).
2. The sealed sewage lifting device for basements as claimed in claim 1, wherein: the driving assembly (12) comprises a second motor (13) and a first gear (14), the second motor (13) is fixedly connected in the cavity shell (1), an output shaft of the second motor (13) is coaxially and fixedly connected with the first gear (14), one end of the crushing barrel (6) is coaxially and fixedly connected with a second gear (16), and the first gear (14) is meshed with the second gear (16).
3. The sealed sewage lifting device for basements as claimed in claim 2, wherein: the inner edge of the cavity shell (1) along the length direction of the crushing barrel (6) is connected with a brush (21) which is abutted against the outer wall of the crushing barrel (6), and a transmission part used for driving the brush (21) to slide is arranged in the cavity shell (1).
4. The sealed sewage lifting device for basements as claimed in claim 3, wherein: the transmission part comprises a screw rod (22), the screw rod (22) is arranged along the sliding direction of the hairbrush (21), the screw rod (22) is rotatably connected in the cavity shell (1), and the screw rod (22) is in threaded connection with the hairbrush (21).
5. The sealed sewage lifting device for basements as claimed in claim 4, wherein: and a transmission assembly (23) for driving the screw rod (22) to rotate intermittently is arranged on an output shaft of the second motor (13).
6. The sealed sewage lifting device for basements as claimed in claim 5, wherein: the transmission assembly (23) comprises an incomplete gear (24) and a gear III (25), the incomplete gear (24) is coaxially and fixedly connected to an output shaft of the motor II (13), the gear III (25) is coaxially and fixedly connected to the screw rod (22), and the incomplete gear (24) is meshed with the gear III (25).
7. The sealed sewage lifting device for basements as claimed in claim 3, wherein: fixedly connected with telescopic link (17) on brush (21), telescopic link (17) other end is followed crushing barrel (6) length direction sliding connection is in chamber shell (1), be equipped with on telescopic link (17) and be used for the drive telescopic link (17) extension is in order to control brush (21) butt is in the driving piece of crushing barrel (6) outer wall.
8. The sealed sewage lifting device for basements as claimed in claim 7, wherein: institute the driving piece includes spring (20), telescopic link (17) include sleeve pipe (18) and extension rod (19), sleeve pipe (18) one end is followed crushing barrel (6) length direction sliding connection is in chamber shell (1), sleeve pipe (18) other end cup joints extension rod (19), extension rod (19) other end fixed connection brush (21), spring (20) cover is established and fixed connection is in on extension rod (19), spring (20) other end fixed connection sleeve pipe (18).
