Abstract
本实用新型涉及干细胞采集分散技术领域，且公开了一种干细胞采集的分散装置，包括处理仓，所述处理仓的左右两侧均固定连接有连接块，两个所述连接块的底部均固定连接有数量为两个的支撑腿，所述处理仓的顶部固定连接有进料仓，所述进料仓的顶部固定连接有一端贯穿并延伸至进料仓内部的进料管，所述进料仓的左侧内壁固定安装有第二电机，所述第二电机的输出轴固定连接有与进料仓的右侧内壁活动连接的转轴，所述转轴的外侧固定连接有输送桨。该干细胞采集的分散装置，通过设置第一搅拌叶片和第二搅拌叶片呈交叉分布，从而第一搅拌叶片和第二搅拌叶片的旋转造成的扰流效果更好，加快了干细胞采集分散的速率。
The utility model relates to the technical field of stem cell collection and dispersion, and discloses a dispersion device for stem cell collection, comprising a processing chamber, the left and right sides of the processing chamber are fixedly connected with connection blocks, and the bottoms of the two connection blocks are fixed There are two supporting legs connected, the top of the processing bin is fixedly connected with a feeding bin, and the top of the feeding bin is fixedly connected with a feeding pipe whose one end penetrates and extends into the interior of the feeding bin. A second motor is fixedly installed on the left inner wall of the silo, an output shaft of the second motor is fixedly connected with a rotating shaft movably connected with the right inner wall of the feeding silo, and a conveying paddle is fixedly connected to the outer side of the rotating shaft. In the dispersing device for stem cell collection, the first stirring blade and the second stirring blade are arranged in a cross-distributed manner, so that the turbulence effect caused by the rotation of the first stirring blade and the second stirring blade is better, and the rate of stem cell collection and dispersion is accelerated.
Description
Technical Field
The utility model relates to a stem cell gathers dispersion technical field, specifically is a dispersion devices that stem cell gathered.
Background
The human hematopoietic stem cell is similar to small lymphocyte in morphology, only occupies about 1 percent of nucleated cells in bone marrow, comes from mesothelial cells of yolk sac in embryonic period, is the most unique somatic cell group in human body, is a kind of primitive cell with self-replication and multidirectional differentiation potential like APSC pluripotent cell, and is the most basic power for maintaining life, and the multifunctional activated cell is used for resisting senility.
In stem cell collection, need will gather and obtain raw and other materials, transfer the medicine and carry out the dispersion operation, the dispersion devices that common stem cell gathered on the market often is through high-speed rotatory dispersion blade, carries out the dispersion operation, and this mode is at the during operation, and dispersion blade often is unidirectional rotation, and the vortex effect is poor, and inconvenient material loading speed to the medicine adjusts, has further reduced work efficiency, so, proposes the dispersion devices that a stem cell was gathered and solves foretell problem.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a dispersion devices that stem cell gathered possesses advantages such as vortex is effectual, has solved at the during operation, and dispersion blade often is unidirectional rotation, and the vortex effect is poor, has further reduced work efficiency's problem.
(II) technical scheme
For realizing the effectual purpose of above-mentioned vortex, the utility model provides a following technical scheme: a dispersing device for stem cell collection comprises a processing bin, wherein the left side and the right side of the processing bin are fixedly connected with connecting blocks, the bottom of the two connecting blocks is fixedly connected with two supporting legs, the top of the processing bin is fixedly connected with a feeding bin, the top of the feeding bin is fixedly connected with an inlet pipe, one end of the inlet pipe penetrates through and extends to the inside of the feeding bin, the inner wall of the left side of the feeding bin is fixedly provided with a second motor, the output shaft of the second motor is fixedly connected with a rotating shaft movably connected with the inner wall of the right side of the feeding bin, the outer side of the rotating shaft is fixedly connected with a conveying paddle, the inner bottom wall of the feeding bin is fixedly connected with a material passing pipe, one end of the material passing pipe penetrates through and extends to the inside of the processing bin, the inner top wall of the processing bin is fixedly connected with a first motor, the output shaft of the, the interior diapire swing joint who handles the storehouse has quantity be two and with the interior roof swing joint's of handling the storehouse second bull stick, two the equal fixedly connected with driven gear in the outside of second bull stick, the outside fixedly connected with and the driven gear engaged with driving gear of first bull stick, the equal fixedly connected with stock guide of the left and right sides inner wall of handling the storehouse, the interior diapire fixedly connected with quantity of handling the storehouse is two and one end runs through and extends to the outside discharging pipe of handling the storehouse.
Preferably, the material guide plate inclines downwards, the inclination angle of the material guide plate is smaller than ninety degrees, and a material outlet valve is fixedly connected to the outer side of the material outlet pipe.
Preferably, the outer side of the first rotating rod is fixedly connected with a first stirring blade, the outer side of the second rotating rod is fixedly connected with a second stirring blade, and the first stirring blade and the second stirring blade are distributed in a crossed manner.
Preferably, the top of the feeding pipe is funnel-shaped, and the bottom of the material passing pipe inclines to the left and the inclination angle is less than ninety degrees.
Preferably, a movable through hole is formed in the material guide plate, and the movable through hole is matched with the diameter of the second rotating rod.
Preferably, the two material guide plates have the same size and are symmetrical to each other, and the first rotating rod and the second rotating rod are distributed in parallel.
(III) advantageous effects
Compared with the prior art, the utility model provides a dispersion devices that stem cell gathered possesses following beneficial effect:
the stem cell collection dispersing device comprises a feeding bin, a second motor, a conveying paddle, a material guide plate, a first rotating rod, a second rotating rod, a driving gear, a driven gear, a first stirring blade, a second stirring blade and a material guide plate, wherein medicines are added into the feeding bin from a feeding pipe, the second motor is started, an output shaft of the second motor drives the conveying paddle to rotate so as to convey the medicines, the medicines enter the processing bin through the material guide pipe, the medicines are concentrated by arranging the material guide plate, the speed of conveying the medicines by the conveying paddle is adjusted by adjusting the rotating speed of the output shaft of the second motor, when the medicines enter the processing bin through the material guide pipe, the first motor is started, the output shaft of the first motor drives the first rotating rod to rotate, the two second rotating rods are opposite to the rotating direction of the first rotating rod by arranging the driving gear and the driven gear, the first stirring blade and the second stirring, the collection and dispersion rate of stem cells is accelerated.
Drawings

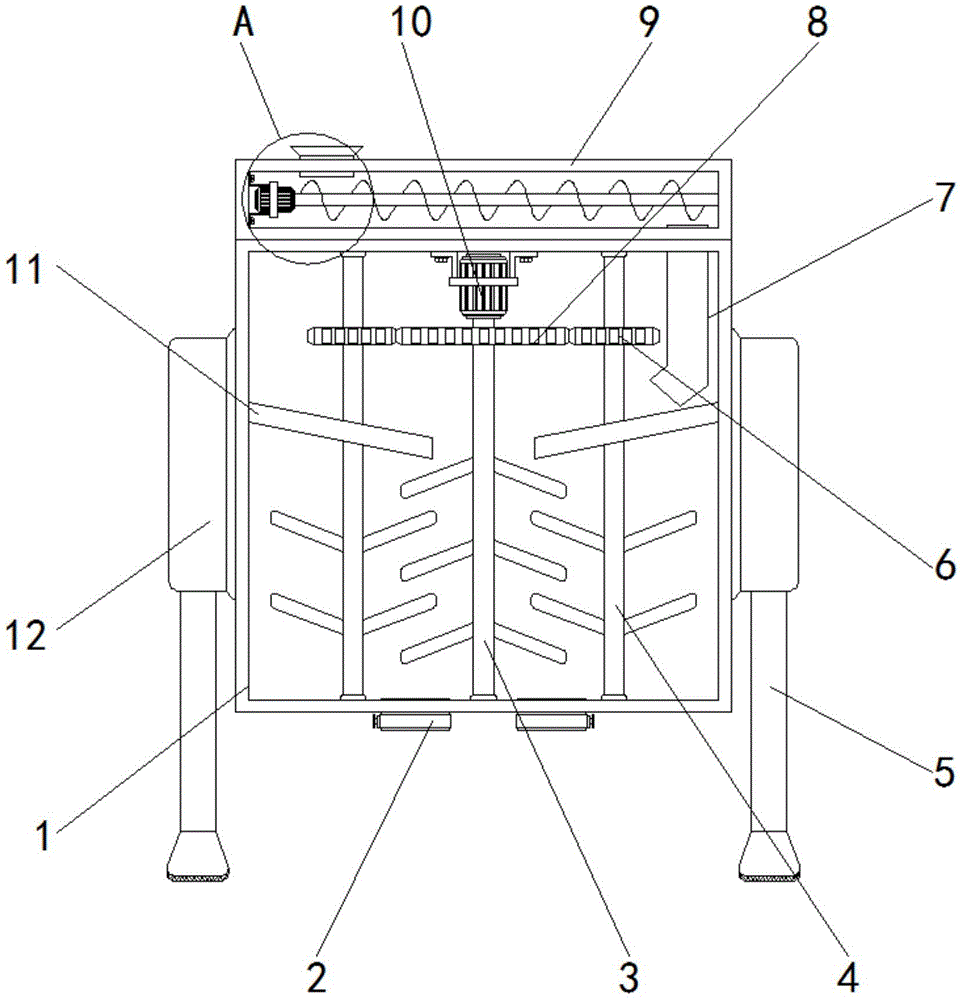

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is an enlarged schematic view of a portion a of fig. 1 according to the present invention.
In the figure: 1 processing bin, 2 discharging pipes, 3 first rotating rods, 4 second rotating rods, 5 supporting legs, 6 driven gears, 7 material passing pipes, 8 driving gears, 9 feeding bins, 10 first motors, 11 material guide plates, 12 connecting blocks, 13 second motors, 14 conveying paddles, 15 rotating shafts and 16 feeding pipes.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, a stem cell collecting dispersion device comprises a processing bin 1, wherein the left side and the right side of the processing bin 1 are fixedly connected with connecting blocks 12, the bottoms of the two connecting blocks 12 are fixedly connected with two supporting legs 5, the top of the processing bin 1 is fixedly connected with a feeding bin 9, the top of the feeding bin 9 is fixedly connected with a feeding pipe 16, one end of the feeding pipe 16 penetrates through and extends into the feeding bin 9, the top of the feeding pipe 16 is funnel-shaped, the left inner wall of the feeding bin 9 is fixedly provided with a second motor 13, the output shaft of the second motor 13 is fixedly connected with a rotating shaft 15 movably connected with the right inner wall of the feeding bin 9, the outer side of the rotating shaft 15 is fixedly connected with a conveying paddle 14, the inner bottom wall of the feeding bin 9 is fixedly connected with a material passing pipe 7, one end of the material passing pipe penetrates through and extends into the processing bin, a first motor 10 is fixedly connected with the inner top wall of the processing bin 1, an output shaft of the first motor 10 is fixedly connected with a first rotating rod 3 movably connected with the inner bottom wall of the processing bin 1, a first stirring blade is fixedly connected with the outer side of the first rotating rod 3, the inner bottom wall of the processing bin 1 is movably connected with two second rotating rods 4 which are movably connected with the inner top wall of the processing bin 1, the first rotating rod 3 and the second rotating rods 4 are distributed in parallel, a second stirring blade is fixedly connected with the outer side of the second rotating rod 4, the first stirring blade and the second stirring blade are distributed in a cross way, driven gears 6 are fixedly connected with the outer sides of the two second rotating rods 4, a driving gear 8 meshed with the driven gears 6 is fixedly connected with the outer side of the first rotating rod 3, guide plates 11 are fixedly connected with the inner walls on the left side and the right side of the processing bin 1, a movable through hole is formed in the inner part of each guide plate 11, and is matched with the diameter of the, the two material guide plates 11 are the same in size and are symmetrical to each other, the material guide plates 11 are inclined downwards and have an inclination angle smaller than ninety degrees, the number of the inner bottom wall fixedly connected with of the treatment bin 1 is two, one end of the inner bottom wall fixedly connected with of the treatment bin penetrates through and extends to the discharging pipe 2 outside the treatment bin 1, the outer side of the discharging pipe 2 is fixedly connected with a discharging valve, electric appliance elements appearing in the text are electrically connected with an external master controller and a power supply, the master controller is conventional control equipment known by the public in the prior art, and the electrical connection in the prior art.
In summary, according to the dispersion device for stem cell collection, drugs are fed into the feeding bin 9 from the feeding pipe 16, the second motor 13 is started, the output shaft of the second motor 13 drives the conveying paddle 14 to rotate so as to convey the drugs, the drugs enter the processing bin 1 through the feeding pipe 7, the drugs are concentrated by arranging the material guide plate 11, the speed of the conveying paddle 14 for conveying the drugs is adjusted by adjusting the rotation speed of the output shaft of the second motor 13, when the drugs enter the processing bin 1 through the feeding pipe 7, the first motor 10 is started, the output shaft of the first motor 10 drives the first rotating rod 3 to rotate, the rotation directions of the two second rotating rods 4 are opposite to the rotation directions of the first rotating rod 3 by arranging the driving gear 8 and the driven gear 6, so that the first stirring blades and the second stirring blades are reversed, and the first stirring blades and the second stirring blades are distributed in a crossed manner by arranging the first stirring blades and the second stirring blades, thereby the vortex effect that the rotation of first stirring vane and second stirring vane caused is better for stem cell gathers dispersed speed, has solved at the during operation, and dispersion blade often is unidirectional rotation, and the vortex effect is poor, has further reduced work efficiency's problem.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. A dispersion device for stem cell collection, comprising a processing bin (1), characterized in that: the feeding device comprises a processing bin (1), wherein connecting blocks (12) are fixedly connected to the left side and the right side of the processing bin (1), the number of the two supporting legs (5) is fixedly connected to the bottom of the two connecting blocks (12), a feeding bin (9) is fixedly connected to the top of the processing bin (1), one end of the top of the feeding bin (9) is fixedly connected to an inlet pipe (16) penetrating through and extending to the inside of the feeding bin (9), a second motor (13) is fixedly mounted on the inner wall of the left side of the feeding bin (9), an output shaft of the second motor (13) is fixedly connected to a rotating shaft (15) movably connected with the inner wall of the right side of the feeding bin (9), a conveying paddle (14) is fixedly connected to the outer side of the rotating shaft (15), one end of the inner bottom wall of the feeding bin (9) is fixedly connected to a material passing pipe (7) penetrating through and extending to the inside of the processing bin, output shaft fixedly connected with of first motor (10) and the first bull stick (3) of the interior diapire swing joint who handles storehouse (1), the interior diapire swing joint who handles storehouse (1) quantity be two and with the second bull stick (4) of the interior roof swing joint who handles storehouse (1), two the equal fixedly connected with driven gear (6) in the outside of second bull stick (4), the outside fixedly connected with of first bull stick (3) and driven gear (6) meshed driving gear (8), the equal fixedly connected with stock guide (11) of the left and right sides inner wall of handling storehouse (1), the interior diapire fixedly connected with quantity of handling storehouse (1) is two and one end runs through and extends to the outside discharging pipe (2) of handling storehouse (1).
2. A dispersion apparatus for stem cell collection according to claim 1, wherein: the material guide plate (11) inclines downwards, the inclination angle is smaller than ninety degrees, and the outer side of the material discharge pipe (2) is fixedly connected with a material discharge valve.
3. A dispersion apparatus for stem cell collection according to claim 1, wherein: the outer side of the first rotating rod (3) is fixedly connected with a first stirring blade, the outer side of the second rotating rod (4) is fixedly connected with a second stirring blade, and the first stirring blade and the second stirring blade are distributed in a cross mode.
4. A dispersion apparatus for stem cell collection according to claim 1, wherein: the top of the feeding pipe (16) is funnel-shaped, and the bottom of the material passing pipe (7) inclines to the left and the inclination angle is less than ninety degrees.
5. A dispersion apparatus for stem cell collection according to claim 1, wherein: the material guide plate (11) is internally provided with a movable through hole, and the movable through hole is matched with the diameter of the second rotating rod (4).
6. A dispersion apparatus for stem cell collection according to claim 1, wherein: the two material guide plates (11) are identical in size and symmetrical to each other, and the first rotating rod (3) and the second rotating rod (4) are distributed in parallel.
