CN213489203U

CN213489203U - A brace for preventing foot drop

Info

Publication number: CN213489203U
Application number: CN202021494413.7U
Authority: CN
Inventors: 吴耿; 邓君; 邓雪峰; 夏翠兰
Original assignee: Shenzhen Longhua District Central Hospital
Current assignee: Shenzhen Longhua District Central Hospital
Priority date: 2020-07-23
Filing date: 2020-07-23
Publication date: 2021-06-22
Anticipated expiration: 2030-07-23

Abstract

The utility model relates to a brace for preventing foot drop, belonging to the technical field of medical equipment. The brace for preventing foot drop includes a ring-shaped fixing frame for fixing on the lower leg and a sole support plate, the sole support plate is arranged horizontally, the sole support plate is covered with a first bandage, and the sole support plate is covered with a first bandage. The middle part of the support plate is provided with a limiting part for restricting the movement of the first bandage, the upper part of the first bandage is covered with a second bandage, the two ends of the first bandage and the two ends of the second bandage They are all connected by Velcro, and the fixing frame is provided with a hasp that cooperates with the second bandage. Beneficial effects: the treatment of foot drop is convenient to wear, and the length of the bandage can be adjusted at will.

Description

Brace for preventing foot drop

Technical Field

The utility model belongs to the technical field of medical instrument, concretely relates to prevention drop foot's brace.

Background

Open fracture of the lower leg and nerve injury are frequently encountered, the fracture and the nerve injury need to be treated simultaneously, the function of the ankle joint needs to be maintained, the fracture is fixed by using an annular external fixing bracket in a common mode, but foot drop cannot be treated; later the ring-shaped stent was improved to extend the fixed length to fix the ankle joint at the same time, but the fixing method only has the functions of fixing and jogging and is an invasive method, the ankle joint can not be fully exercised and becomes rigid, and the risk of needle path infection can be increased.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the technical problem and provide a brace of prevention drop foot, the treatment drop foot is convenient to dress, can adjust the length of bandage at will.

The utility model provides an above-mentioned technical problem's technical scheme as follows: this brace of prevention drop foot includes: including being used for fixing annular mount and the sole backup pad at little shank, sole backup pad level sets up, the cover is equipped with first bandage in the sole backup pad, the middle part of sole backup pad is equipped with and is used for the restriction the spacing portion that first bandage removed, the upper portion cover of first bandage is equipped with the second bandage, the both ends of first bandage with the both ends of second bandage are all pasted through the magic and are connected, be provided with on the mount with second bandage complex hasp.

Has the advantages that: annular mount is convenient for the fixed of second bandage, draws the sole backup pad through first bandage and second bandage, treats drop foot, and it is convenient to dress, can adjust the length of bandage at will, makes things convenient for the patient of various age brackets.

On the basis of the technical scheme, the utility model discloses can also do following improvement.

Further, the limiting part is a limiting groove.

The beneficial effect of adopting the further scheme is that: simple structure prevents at the in-process that the user used that first bandage from producing the skew, influences fixed effect.

Furthermore, a breathable soft cushion is arranged on the sole supporting plate.

The beneficial effect of adopting the further scheme is that: can make the sole of the foot feel comfortable.

Furthermore, a plurality of air holes are arranged on the sole supporting plate.

The beneficial effect of adopting the further scheme is that: the various positions of the patient's foot are in a well ventilated state.

Furthermore, the bottom of the sole supporting plate is provided with anti-skid lines.

The beneficial effect of adopting the further scheme is that: prevent the foot of the patient from being damaged due to skidding during walking.

Furthermore, the sole supporting plate is made of polyvinyl chloride materials or polypropylene materials.

The beneficial effect of adopting the further scheme is that: light weight, heat insulation, heat preservation and moisture protection, and is convenient for patients to use.

Drawings

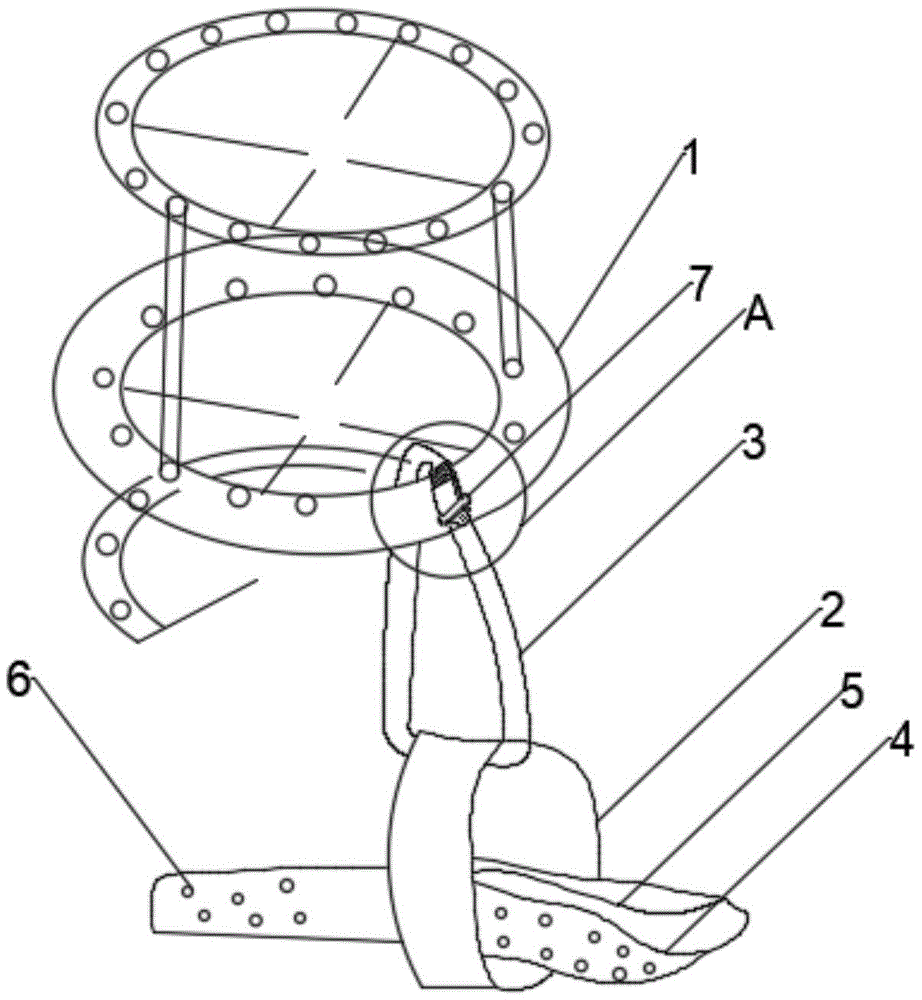

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is an enlarged view of A of FIG. 1;

FIG. 3 is a schematic view of the sole support plate;

in the drawings, the components represented by the respective reference numerals are listed below:

1. a fixed mount; 2. a first bandage; 3. a second bandage; 4. a sole support plate; 5. a soft cushion; 6. air holes are formed; 7. a hasp; 8. and a limiting groove.

Detailed Description

The principles and features of the present invention are described below in conjunction with the following drawings, the examples given are only intended to illustrate the present invention and are not intended to limit the scope of the present invention.

Examples

As shown in fig. 1 to 3, the present embodiment provides a brace for preventing foot drop, comprising: be used for fixing at annular mount 1 and sole backup pad 4 of shank, the 4 levels in sole backup pad set up, the cover is equipped with first bandage 2 on the sole backup pad 4, the middle part of sole backup pad 4 is equipped with and is used for the restriction the spacing portion that first bandage 2 removed, the upper portion cover of first bandage 2 is equipped with second bandage 3, the both ends of first bandage 2 with the both ends of second bandage 3 are all pasted through the magic and are connected, be provided with on mount 1 with 3 complex hasps 7 of second bandage.

The annular fixing frame 1 is driven into a tibia of a patient through a steel needle, the sole supporting plate 4 plays a role in supporting and limiting displacement of a sole of the patient, the sole supporting plate 4 is lifted through the first bandage 2 and the second bandage 3, the foot posture of the patient is restrained, foot drop is prevented, two ends of the first bandage 2 and two ends of the second bandage 3 are respectively pasted through magic tapes, a hook surface is arranged at one end, and a hair surface is arranged at the other end, so that the fixing and the use are convenient; the bandage is convenient to wear, the length of the bandage can be adjusted at will, and patients of various ages can be conveniently dressed.

Preferably, in this embodiment, the sole supporting plate 4 is provided with a breathable cushion 5, so that the sole of the patient can feel comfortable, and specifically, the cushion 5 can be provided with a plurality of massage salient points, so that the blood circulation of the foot of the patient can be improved, and the patient can be helped to recover.

Preferably, in this embodiment, the sole supporting plate 4 is provided with a plurality of ventilation holes 6, so that each position of the foot of the patient is in a good ventilation state, and the foot is wet during long-term treatment.

Preferably, in this embodiment, the bottom of the sole supporting plate 4 is provided with anti-slip lines to prevent the foot of the patient from being damaged due to walking slip.

Preferably, in this embodiment, the sole support plate 4 is made of polyvinyl chloride or polypropylene, and is light in weight, heat-insulating, heat-preserving, moisture-proof, and convenient for a patient to use. The sole supporting plate 4 is integrally formed by polyvinyl chloride or polypropylene, the shape is a curved surface structure matched with the forefoot and the arch of foot, the size covers the forefoot and the middle foot, the sole supporting plate 4 is provided with air holes 6, the sum of the areas of the air holes 6 is 20% -30% of the surface area of the external fixed supporting plate, the air holes are uniformly distributed, the air permeable cushion 5 is latex, and the medical pressure-sensitive adhesive is adhered and fixed on the inner side of the sole supporting plate 4. Two magic tapes with the length of 40cm and the width of 6cm are selected, one surface is a hair side, the other surface is a hook side, the two magic tapes are respectively fixed on a first bandage 2 and a second bandage 3, a latex cushion 5 is pasted on the part, contacting with the skin, of the hair side to protect the skin, the first bandage 2 is arranged in the middle of a sole supporting plate 4, the stress point is arranged on the plane of the metatarsophalangeal joint, one magic tape is connected right in front of an annular external fixation support 1, and the length of the magic tape is adjusted according to the specific.

During this embodiment specifically uses, place patient's sole earlier on sole backup pad 4 with cushion 5, protection step that can be fine through sole backup pad 4 can not receive the extrusion or collide and cause the damage, then establish 2 covers of first bandage in the spacing recess 8 at sole backup pad 4 middle part, reconnection second bandage 3, hasp 7 is passed at the both ends of second bandage 3, according to the actual condition of every patient, through the length of hasp 7 adjustment second bandage 3, fix patient's foot.

In the description of the present invention, it is to be understood that the terms "center", "length", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "inner", "outer", "circumferential", and the like, indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the system or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

In the description of the present invention, "a plurality" means at least two, e.g., two, three, etc., unless specifically limited otherwise.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; they may be directly connected or indirectly connected through intervening media, or they may be connected internally or in any other suitable relationship, unless expressly stated otherwise. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.

In the description herein, references to the description of the term "one embodiment," "some embodiments," "an example," "a specific example," or "some examples," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above are not necessarily intended to refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples. Furthermore, various embodiments or examples and features of different embodiments or examples described in this specification can be combined and combined by one skilled in the art without contradiction.

The above description is only for the preferred embodiment of the present invention, and is not intended to limit the present invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included within the protection scope of the present invention.

Claims

1. A brace for preventing foot drop, comprising:

a spacing portion for fixing at annular mount (1) and sole backup pad (4) of shank, sole backup pad (4) level sets up, the cover is equipped with first bandage (2) on sole backup pad (4), the middle part of sole backup pad (4) is equipped with and is used for the restriction first bandage (2) remove, the upper portion cover of first bandage (2) is equipped with second bandage (3), the both ends of first bandage (2) with the both ends of second bandage (3) are all pasted through the magic and are connected, be provided with on mount (1) with second bandage (3) complex hasp (7).

2. The drop foot prevention brace of claim 1, wherein the stop portion is a stop groove (8).

3. The support for preventing foot drop according to claim 1, wherein the sole support plate (4) is provided with a breathable cushion (5).

4. The support for preventing foot drop according to any one of claims 1-3, wherein the sole support plate (4) is provided with a plurality of ventilation holes (6).

5. The drop foot prevention brace according to any one of claims 1-3, wherein the sole support plate (4) is provided with anti-slip threads on its bottom.

6. The support for preventing foot drop according to any one of claims 1-3, wherein the sole support plate (4) is made of polyvinyl chloride or polypropylene.
