CN213473809U

CN213473809U - Visual intelligent packing box combined with RFID technology

Info

Publication number: CN213473809U
Application number: CN202022007830.0U
Authority: CN
Inventors: 刘浩川; 公姿懿; 薛舒恒; 寇允; 黎冰冰; 徐淑艳
Original assignee: Northeast Forestry University
Current assignee: Northeast Forestry University
Priority date: 2020-09-15
Filing date: 2020-09-15
Publication date: 2021-06-18
Anticipated expiration: 2030-09-15

Abstract

The utility model relates to the technical field of intelligent packaging, and discloses a visual intelligent packaging box combined with RFID technology, comprising a box body, a left cover and a right cover. A through-hole bayonet is opened, a closure tape is provided on the outside of one end of the box close to the right cover, an RFID tag is provided on one side of the closure tape, and a freshness indicator and a freshness indicator are provided on the outer wall of the box body near the right cover. For the temperature sensor, a base is fixedly arranged at the bottom of the inside of the box body, and a tray is embedded in the upper part of the base. The visual intelligent packaging box combined with RFID technology, by setting RFID tags, freshness indicators and temperature sensors, based on RFID technology, enables consumers to scan the electronic tags to view product information through mobile phones, so as to trace the source of the product and solve the problem of product sales. In order to avoid channel safety issues, the packaging shows the internal product status, so that buyers can quickly determine the freshness of the product.

Description

Visual intelligent packing box combined with RFID technology

Technical Field

The utility model relates to an intelligence packing technical field specifically is a visual intelligent packing box that combines with RFID technique.

Background

At present, with the high acceptance of intelligent packaging by the national and enterprises, the intelligent packaging technology is continuously perfected. RFID technology has also emerged, showing great market potential. The RFID label is generally attached to an outer package of a product, and when the corresponding relation between a producer, a seller and a consumer is determined, different acquisition and management can be performed on product information through the intelligent label. The manufacturer can carry out initialization setting to product information to realize the information input to the product, and the seller can obtain the sales information of the product through scanning the intelligent label, control and manage the product circulating on the market in time, and carry out inventory and replenishment management in time. The consumer can know the product information and correctly use the commodity through the intelligent label, and can know the production place and the information such as whether to unseal, and the like, so that counterfeit and shoddy commodities are prevented from being received. Smart packaging refers to providing information on the quality of packaged food during distribution and storage by detecting the environmental conditions of the packaged food. Such as time-temperature indicating packages, freshness indicating packages, package leakage indicating packages, and the like. The existing intelligent package is influenced by the problems of cost, reliability, safety and the like, and large-scale commercial production cannot be realized.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a visual intelligent packing box who combines with RFID technique possesses advantages such as traceable, the fresh degree of real-time understanding, has solved the problem of proposing among the above-mentioned background art.

(II) technical scheme

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a visual intelligent packing box with RFID technique combines, the power distribution box comprises a box body, box one end is provided with left lid, the box is kept away from left lid one end and is provided with right lid, the box top is close to right lid one end top and keeps away from right lid one end bottom and has seted up the through-hole bayonet socket, the box is close to right lid one end outside and is provided with the closed band, closed band one side is provided with the RFID label, the box is close to right lid one end one side outer wall and is provided with new freshness indicator and temperature sensor, the fixed base that is provided with in the inside bottom of box, the embedding of base.

Preferably, the left cover is of a folding type, the length of the left cover is larger than the height of the box body, and the left cover is located at the bottom of one end, close to the left cover, of the box body after exceeding the height of the box body and being folded.

Preferably, the right cover is of a folding type, the length of the right cover is greater than the height of the box body, and the right cover is located at the top of one end, close to the right cover, of the box body after the part exceeding the height of the box body is folded.

Preferably, the left cover and the right cover are folded and closed to form a rectangular whole with the box body.

Preferably, bayonet socket quantity is four, is the strip seam shape, keeps away from box top one end and right lid with the left cover and keeps away from box bottom one end both sides inserted sheet and match.

Preferably, the sealing strip is fixedly arranged on the upper part of the bayonet at the top of one end of the box body close to the right cover in a covering mode.

Preferably, the periphery of the bottom of the tray is an inclined plane, and the middle part of the bottom of the tray is provided with a convex rib.

Compared with the prior art, the utility model provides a visual intelligent packing box with RFID technique combines possesses following beneficial effect:

1. this visual intelligent packing box with RFID technique combination through setting up the RFID label, based on the RFID technique for the consumer looks over product information through cell-phone scanning electronic tags, thereby traces to the source to the product, and then solves the channel safety problem that the product was sold.

2. This visual intelligent packing box with RFID technique combines through setting up new freshness indicator and temperature sensor for the inside product state is shown to the packing, thereby lets buyer can make clear and determine the fresh degree of product fast.

Drawings

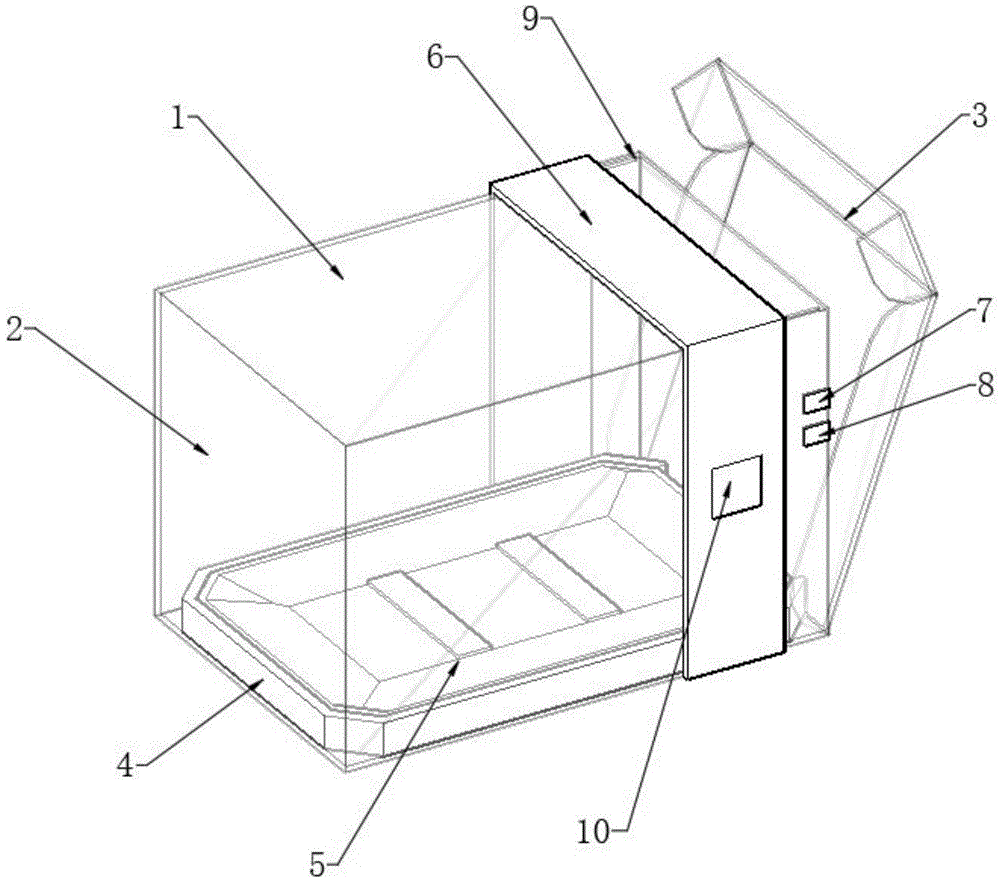

FIG. 1 is a perspective view of the present invention;

FIG. 2 is an expanded view of the structural box body of the present invention;

fig. 3 is a schematic view of the structural base and the tray of the present invention.

Wherein: 1. a box body; 2. a left cover; 3. a right cover; 4. a base; 5. a tray; 6. a sealing tape; 7. a freshness indicator; 8. a temperature sensor; 9. a bayonet; 10. an RFID tag.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, a visual intelligent packing box combined with RFID technology includes a box body 1;

as shown in fig. 1, 1 one end of box is provided with

left cover

2, 2 one end of left cover is kept away from to box 1 is provided with right cover 3, 1 top of box is close to 3 one end tops of right cover and keeps away from 3 one end bottoms of right cover and has seted up through-hole bayonet 9, 3 one end outsides of box 1 is close to right cover are provided with closing tape 6, closing tape 6 one side is provided with RFID tag 10, box 1 is close to 3 one end one side outer walls of right cover and is provided with new freshness indicator 7 and temperature sensor 8, the fixed base 4 that is provided with in 1 inside bottom of box, the embedding of 4 upper portions of.

Specifically, as shown in fig. 1 and 2, the left cover 2 is of a folding type, the length of the left cover is greater than the height of the box body 1, and the left cover is located at the bottom of one end of the box body 1 close to the left cover 2 after the part exceeding the height of the box body 1 is folded.

Specifically, as shown in fig. 1 and 2, the right cover 3 is of a folding type, the length of the right cover is greater than the height of the box body 1, and the right cover is located at the top of one end of the box body 1 close to the right cover 3 after the right cover exceeds the height of the box body 1 and is folded.

Specifically, as shown in fig. 1, the left cover 2 and the right cover 3 are folded and closed to form a rectangular whole with the box body 1.

Specifically, as shown in fig. 1 and 2, the number of the bayonets 9 is four, and the bayonets are in a slit shape and are matched with the insertion pieces on two sides of one end of the left cover 2, which is far away from the top of the box body 1, and one end of the right cover 3, which is far away from the bottom of the box body 1.

Through the scheme, the box body 1, the left cover 2 and the right cover 3 can be closed into a whole without using other adhesives, and meanwhile, the opening is convenient.

Specifically, as shown in fig. 1, the sealing strip 6 is fixedly arranged on the upper portion of the bayonet 9 at the top of one end of the box body 1 close to the right cover 3.

Through the scheme, the right cover 3 is covered and closed by the closing belt 6, so that accidental opening and stealing are prevented.

Specifically, as shown in fig. 3, the periphery of the bottom of the tray 5 is an inclined surface, and the middle of the bottom is provided with a convex rib.

Through the scheme, when the product is placed on the tray 5, the bottom of the tray 5 is not contacted, so that the product is prevented from being extruded and deformed.

When using, this visual intelligent packing box with RFID technique combination, through setting up tray 5, place product package back in tray 5, place tray 5 in base 4 of being connected with box 1 bottom, left side lid 2 and the right side lid 3 of closed box 1, cover the right side lid 3 part through setting up zonula occludens 6, closed box 1, through setting up RFID label 10 on zonula occludens 6, based on the RFID technique, make the consumer look over product information through cell-phone scanning electronic tags, thereby trace to the product source, and then solve the channel safety problem of product sale, through setting up new freshness indicator 7 and thalposis 8, make the inside product state of packing display, thereby let buyer can make clear and determine the fresh degree of product fast.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A visual intelligent packaging box combined with RFID technology, comprising a box body (1), characterized in that: one end of the box body (1) is provided with a left cover (2), and the box body (1) is far away from the left One end of the cover (2) is provided with a right cover (3), and a through hole bayonet (9) is provided at the top of the top of the box body (1) close to the right cover (3) and at the bottom of one end away from the right cover (3). One end of the box body (1) close to the right cover (3) is provided with a closure band (6) on the outside, an RFID tag (10) is arranged on one side of the closure band (6), and the box body (1) is close to the right cover (3). ) a freshness indicator (7) and a temperature sensor (8) are arranged on the outer wall of one end of the box (1), a base (4) is fixedly arranged at the inner bottom of the box (1), and a tray is embedded in the upper part of the base (4). (5).

2. A visual intelligent packaging box combined with RFID technology according to claim 1, characterized in that: the left cover (2) is a foldable type, and its length is greater than the height of the box body (1) and exceeds the box body (1). ) The height part is folded and located at the bottom of the box (1) near the left cover (2).

3. A visual intelligent packaging box combined with RFID technology according to claim 1, characterized in that: the right cover (3) is a foldable type, and its length is greater than the height of the box body (1) and exceeds the box body (1). ) The height part is folded and located at the top of the box (1) near the right cover (3).

4. A visual intelligent packaging box combined with RFID technology according to claim 1, wherein the left cover (2) and the right cover (3) are folded and closed to form a rectangle with the box body (1). overall.

5. A visual intelligent packaging box combined with RFID technology according to claim 1, characterized in that: the number of the bayonet (9) is four, in the shape of a slit, and away from the box with the left cover (2) The top end of the body (1) is matched with the inserts on both sides of the end of the right cover (3) away from the bottom end of the box body (1).

6. A visual intelligent packaging box combined with RFID technology according to claim 1, characterized in that: the closure strip (6) is fixedly covered and arranged on the top of one end of the box body (1) close to the right cover (3) The upper part of the bayonet (9).

7 . The visual intelligent packaging box combined with RFID technology according to claim 1 , wherein the bottom of the tray ( 5 ) is surrounded by inclined planes, and the middle of the bottom is provided with convex ribs. 8 .
