Abstract
本实用新型公开了一种用于污染物分离的废气处理设备，涉及废气处理设备技术领域，包括底板，底板的顶部固定安装有水箱，水箱的顶部固定安装有处理箱，处理箱的一侧底部固定安装有进气泵，进气泵的一侧固定连接有进气管，处理箱的一侧顶部固定安装有出气泵，出气泵的一侧固定连接有出气管。该用于污染物分离的废气处理设备，通过设置喷淋管、喷淋头、去异味装置、净化装置、过滤层、吸附层和分子筛，多级处理，废气处理效果好，设置水箱、导流板、循环口、过滤箱和过滤网，可以对喷淋过的水进行过滤、污染物重新分离收集，使水可以循环利用，设置固定架、滑槽和滑块，方便将过滤箱固定和取出，对污染物进行清理。
The utility model discloses a waste gas treatment equipment for pollutant separation, which relates to the technical field of waste gas treatment equipment. An air intake pump is fixedly installed, an air intake pipe is fixedly connected to one side of the air intake pump, an air outlet pump is fixedly installed on the top of one side of the processing box, and an air outlet pipe is fixedly connected to one side of the air outlet pump. The waste gas treatment equipment for pollutant separation is equipped with spray pipes, spray heads, deodorant devices, purification devices, filter layers, adsorption layers and molecular sieves, multi-stage treatment, and the effect of waste gas treatment is good. Plate, circulation port, filter box and filter screen, can filter the sprayed water, separate and collect pollutants again, so that the water can be recycled, set up a fixed frame, a chute and a slider to facilitate the fixing and removal of the filter box , to clean up contaminants.
Description
Technical Field
The utility model relates to a waste gas treatment equipment technical field specifically is a waste gas treatment equipment for pollutant separation.
Background
Air is necessary for human survival, however, the increasing air pollution in recent years raises the concern that human respiration is harmful to health. Air pollution is generally caused by the accumulation of activities such as industrial processes, transportation, fuel combustion, etc., wherein exhaust gas generated by the industrial processes is a large amount of air pollution, the generation of exhaust gas in the industrial manufacturing process is difficult to avoid, and if the generated exhaust gas is further purified by an exhaust gas treatment device to remove toxic substances contained therein, the influence of the generated exhaust gas on the air pollution can be reduced.
In chinese utility model patent application no: CN201521073864.2 discloses a separation and filtration device for removing pollutants in exhaust gas, which comprises a box with a multi-layer interior, a first nozzle module, a second nozzle module, a water pump, a water liquid treatment tank, and a plurality of flow guide plates. The first nozzle module, the second nozzle module and the guide plates are respectively arranged in each layer of the box body from bottom to top. The bottom of the box body is provided with a water storage tank, the water treatment tank is arranged between the water storage tank and the water suction pump, and the water suction pump pumps water and supplies the water to the first nozzle module and the second nozzle module. This remove separation filter equipment of pollutant in waste gas, in the use, it still has the treatment effect to waste gas poor, can not effectively get rid of harmful component and peculiar smell in the waste gas, can not carry out shortcoming such as flash segregation clearance to the pollutant.
Therefore, it is necessary to provide an exhaust gas treatment apparatus for pollutant separation to solve the above problems.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
An object of the utility model is to provide a waste gas treatment device for pollutant separation to it is poor to the current treatment to waste gas that provides in the above-mentioned background art to solve, can not effectively get rid of harmful components and peculiar smell in the waste gas, can not carry out the problem of quickly separating the clearance to the pollutant.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a waste gas treatment device for pollutant separation comprises a bottom plate, wherein a water tank is fixedly mounted at the top of the bottom plate, a treatment box is fixedly mounted at the top of the water tank, an air inlet pump is fixedly mounted at the bottom of one side of the treatment box, an air inlet pipe is fixedly connected to one side of the air inlet pump, an air outlet pump is fixedly mounted at the top of one side of the treatment box, an air outlet pipe is fixedly connected to one side of the air outlet pump, a water pump is fixedly mounted at one side of the water tank, a water suction pipe is fixedly connected between the water pump and the water tank, a spray pipe is fixedly connected to the top of the water pump, one end of the spray pipe, which is far away from the water pump, penetrates through the treatment box and is fixedly connected with a plurality of spray heads, a guide plate is fixedly mounted on the lower surface inside of the treatment box, a, the inside swing joint of spout has the slider, the inboard fixedly connected with rose box of slider, the bottom fixed mounting of rose box has the filter screen, one side fixed mounting of water tank has the connecting pipe, the outside fixed mounting of connecting pipe has the valve, the inside one side fixed mounting who handles the case has the peculiar smell device, the inside opposite side fixed mounting who handles the case has purifier, the inside top side fixed mounting who handles the case has the filter layer, the top fixed mounting of filter layer has the adsorbed layer, the top fixed mounting of adsorbed layer has the molecular sieve.
Preferably, the odor removing device is an injection type low-temperature plasma device.
Preferably, the purification device is a UV photocatalytic device.
Preferably, a plurality of the spray headers are distributed at equal intervals.
Preferably, the sliding groove is attached to the surface of the sliding block, and the sliding groove and the sliding block are both T-shaped.
Preferably, the adsorption layer and the filter screen are both made of activated carbon filter cotton.
Preferably, a sealing ring is arranged on the outer side of the filter box.
(III) advantageous effects
Compared with the prior art, the utility model provides a waste gas treatment device for pollutant separation possesses following beneficial effect:
1. this a waste gas treatment equipment for pollutant separation, through setting up water tank, water pump, shower and shower head, can be through to waste gas water spray, filter pollutants such as dust, particulate matter, solution in the waste gas effectively, set up and remove peculiar smell device, purifier, filter layer, adsorbed layer and molecular sieve, can effectually purify waste gas, remove the peculiar smell, multi-stage treatment, waste gas treatment is effectual, efficient, avoids environmental pollution.
2. This a waste gas treatment equipment for pollutant separation through setting up water tank, guide plate, circulation mouth, rose box and filter screen, can filter, pollutant re-separation collection to the water that sprays to water can cyclic utilization, resources are saved, green sets up mount, spout and slider, can conveniently fix the rose box and take out, clears up the pollutant, simple structure, convenient to use.
Drawings

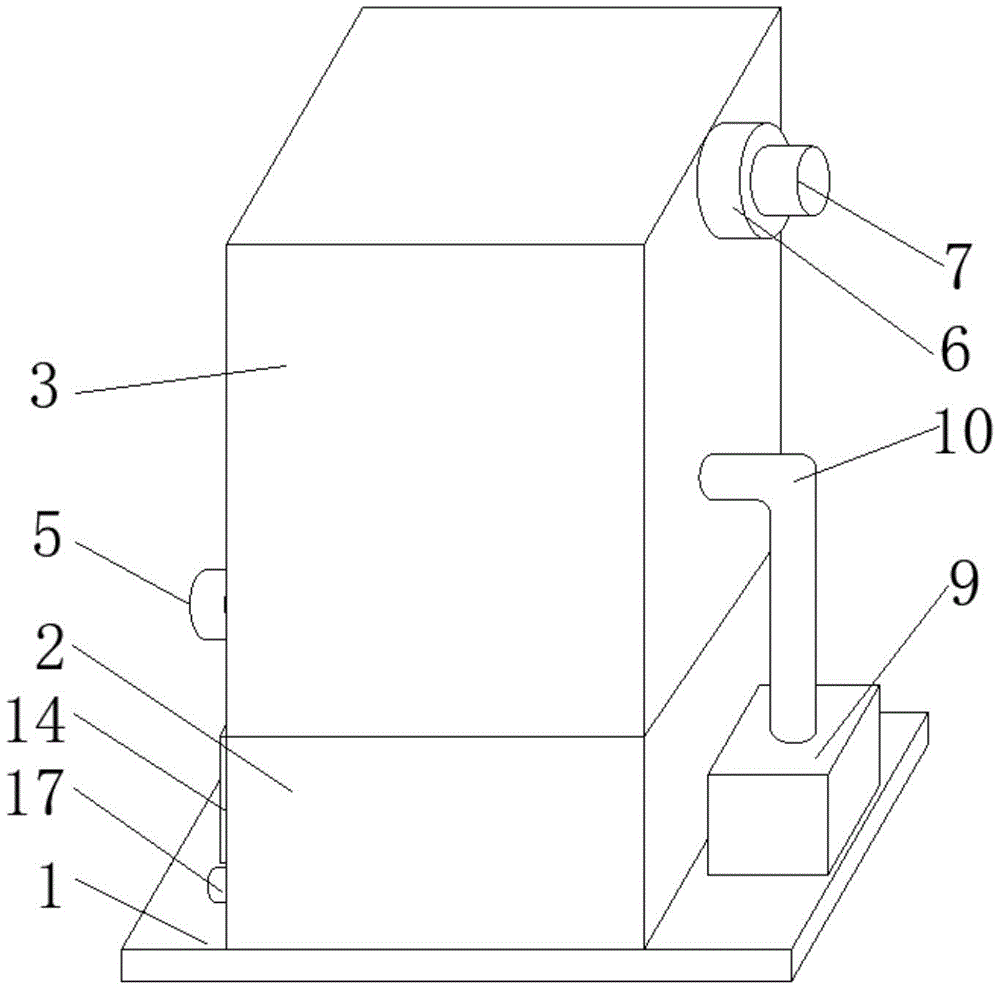

FIG. 1 is a schematic perspective view of the structure of the treatment tank of the present invention;
FIG. 2 is a schematic front sectional view of the structure of the treatment tank of the present invention;
FIG. 3 is a schematic left sectional view of the structure of the filtering box of the present invention;
fig. 4 is an enlarged schematic view of the structure of the area a in fig. 2 according to the present invention.
In the figure: 1. a base plate; 2. a water tank; 3. a treatment tank; 4. an intake pump; 5. an air inlet pipe; 6. discharging the air pump; 7. an air outlet pipe; 8. a suction pipe; 9. a water pump; 10. a shower pipe; 11. a shower head; 12. a baffle; 13. a circulation port; 14. a filter box; 15. a filter screen; 16. a valve; 17. a connecting pipe; 18. a peculiar smell removing device; 19. a purification device; 20. a filter layer; 21. an adsorption layer; 22. a molecular sieve; 23. a fixed mount; 24. a chute; 25. a slide block.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, a waste gas treatment device for separating pollutants comprises a bottom plate 1, a water tank 2 is fixedly installed on the top of the bottom plate 1, a treatment tank 3 is fixedly installed on the top of the water tank 2, an air inlet pump 4 is fixedly installed on the bottom of one side of the treatment tank 3, an air inlet pipe 5 is fixedly connected to one side of the air inlet pump 4, an air outlet pump 6 is fixedly installed on the top of one side of the treatment tank 3, an air outlet pipe 7 is fixedly connected to one side of the air outlet pump 6, a water pump 9 is fixedly installed on one side of the water tank 2, a water suction pipe 8 is fixedly connected between the water pump 9 and the water tank 2, a spray pipe 10 is fixedly connected to the top of the water pump 9, one end of the spray pipe 10 far away from the water pump 9 penetrates through the treatment tank 3 and is fixedly connected with a plurality of spray heads 11, the plurality of spray heads 11 are distributed, the bottom of the treatment box 3 is provided with a circulation port 13, the bottom of the circulation port 13 is fixedly connected with a fixing frame 23, two sides inside the fixing frame 23 are respectively provided with a sliding groove 24, the sliding groove 24 is movably connected with a sliding block 25, the sliding groove 24 is attached to the surface of the sliding block 25, the sliding groove 24 and the sliding block 25 are both in a T shape, the filter box 14 can be conveniently taken out and fixed, the inner side of the sliding block 25 is fixedly connected with a filter box 14, the bottom of the filter box 14 is fixedly provided with a filter screen 15, the water box 2, the guide plate 12, the circulation port 13, the filter box 14 and the filter screen 15 are arranged, the sprayed water can be filtered, pollutants can be separated and collected again, so that the water can be recycled, resources are saved, the environment is protected, the fixing frame 23, the sliding groove 24 and the sliding block 25 are arranged, the filter box, one side fixed mounting of water tank 2 has connecting pipe 17, the outside fixed mounting of connecting pipe 17 has valve 16, the inside one side fixed mounting who handles case 3 has peculiar smell device 18 that removes, it is injection type low temperature plasma device to remove peculiar smell device 18, can effectively get rid of in the waste gas, purify waste gas, the inside opposite side fixed mounting who handles case 3 has purifier 19, purifier 19 is UV light catalytic unit, can purify the harmful gas in the waste gas, the inside top side fixed mounting who handles case 3 has filter layer 20, the top fixed mounting of filter layer 20 has adsorption layer 21, adsorption layer 21 and filter screen 15 are made by active carbon filter pulp, can adsorb the filtration pollutant, the top fixed mounting of adsorption layer 21 has molecular sieve 22, through setting up water tank 2, water pump 9, shower 10 and shower head 11, can be through to waste gas water spray, effectively filter dust in the waste gas, Pollutants such as particulate matters and solution are provided with the peculiar smell removing device 18, the purifying device 19, the filter layer 20, the adsorption layer 21 and the molecular sieve 22, so that the waste gas can be effectively purified and peculiar smell can be removed, the multi-stage treatment is realized, the waste gas treatment effect is good, the efficiency is high, and the environmental pollution is avoided.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
The working principle is as follows: when the device is used, the device is placed and connected to a to-be-used area, sufficient water is added into the water tank 2 through the valve 16 and the connecting pipe 17, the air inlet pump 4 starts to operate to drive waste gas to enter the treatment box 3 from the air inlet pipe 5, the water pump 9 starts to operate while the air inlet pump 4 operates, the water in the water tank 2 is conveyed through the water suction pipe 8 and is sprayed out of the spray header 11 through the spray pipe 10 to be sprayed to the waste gas entering the treatment box 3, pollutants such as dust, particles, solution and the like in the waste gas can be effectively filtered, the pollutants enter the filter box 14 through the guide plate 12 and the circulation port 13, the filter screen 15 is arranged at the bottom of the filter box 14, the sprayed water can be filtered and the pollutants can be separated and collected again, so that the water can be recycled, resources are saved, the device is green and environment-friendly, the waste gas after being sprayed and filtered can go upwards under the action of the air outlet, purifier 19 can purify the harmful gas in the waste gas, at last through filter layer 20, adsorbed layer 21, molecular sieve 22, filter once more, adsorb, purify, it is better to make the exhaust-gas treatment effect, at last through going out air pump 6, outlet duct 7 discharges again in the atmosphere, handle flow operation simple, the purifying rate is high, after the processing, can take out rose box 14 under mount 23, spout 24 and slider 25's additional function, clear up the pollutant in the case, moreover, the steam generator is simple in structure, high durability and convenient use.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
