Abstract
本实用新型公开了一种文化旅游区高温急救降温装置，涉及旅游区应急设施技术领域，包括四个呈矩形分布的支撑杆，各所述支撑杆之间固定连接有一下床板，各所述支撑杆之间固定连接有一位于下床板上方的上床板，所述上床板上开设有若干阵列分布的通孔，所述下床板与上床板之间设置有一储水袋，所述储水袋上连通有若干与各通孔相配合的空心鼓包，所述鼓包顶部延伸到通孔上方，其中两所述支撑杆之间竖直滑动设置有一滑动杆。该文化旅游区高温急救降温装置，通过上床板、储水袋、鼓包之间的配合，能够在提升中暑者平躺舒适度的同时为中暑者背部快速降温，通过设置高度可调的敷额头水袋和一敷上身水袋，能够为患者的额部和上身快速降温。
The utility model discloses a high-temperature emergency cooling device in a cultural tourist area, which relates to the technical field of emergency facilities in tourist areas. The utility model comprises four support rods distributed in a rectangular shape. The rods are fixedly connected with an upper bed plate located above the lower bed plate, the upper bed plate is provided with a plurality of through holes distributed in an array, a water storage bag is arranged between the lower bed plate and the upper bed plate, and the water storage bag communicates with the upper bed plate. There are a plurality of hollow drums matched with the through holes, the tops of the drums extend above the through holes, and a sliding rod is vertically slidable between the two support rods. The high-temperature emergency cooling device in the cultural tourism area, through the cooperation between the upper bed plate, the water storage bag, and the drum bag, can quickly cool the back of the heatstroke person while improving the comfort of the person with heatstroke lying down. By setting a height-adjustable forehead water bag and an upper body hydration pack to quickly cool the patient's forehead and upper body.
Description
Technical Field
The utility model relates to an emergent facility technical field in tourism district specifically is a culture tourism district high temperature first aid heat sink.
Background
The cultural tourism, abbreviated as the literary tourism, is defined as the behavioral process for realizing the purposes of perceiving, understanding and observing the specific contents of human culture through tourism, and is generally defined as the tourism aiming at appreciating the traditional culture in foreign countries and foreign places, pursuing the trails of cultural celebrities or attending various cultural activities held locally. The seeking of cultural enjoyment has become a fashion for tourists today.
In a cultural tourism area, tourists suffering from high-temperature heatstroke often appear, the tourism area generally only takes the tourists to a shady and cool place, feeds a certain amount of water, then waits for medical first-aid personnel, and the situation is worsened because the heatstroke person cannot be cooled down quickly in the process of waiting for medical rescue.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a culture tourism district high temperature first aid heat sink to solve the problem that the person in the middle of the tourism district heatstroke can not rapid cooling and lead to the condition to worsen waiting for medical rescue.
In order to achieve the above object, the utility model provides a following technical scheme: a high-temperature first-aid cooling device for cultural tourist areas comprises four support rods which are distributed in a rectangular shape, a lower bed plate is fixedly connected between the support rods, an upper bed plate which is positioned above the lower bed plate is fixedly connected between the support rods, a plurality of through holes which are distributed in an array manner are formed in the upper bed plate, a water storage bag is arranged between the lower bed plate and the upper bed plate, a plurality of hollow bulges which are matched with the through holes are communicated with the water storage bag, the tops of the bulges extend to the upper part of the through holes, a sliding rod is vertically and slidably arranged between the two support rods which are positioned at one end of the upper bed plate, a forehead water bag and an upper body water bag are respectively and fixedly connected onto the sliding rod through a bracket, a height adjusting mechanism for adjusting the height of the sliding rod is arranged between the sliding rod and the two support rods which are slidably connected with the sliding rod, and the same end of the forehead water bag and the upper body water bag is communicated with, the water pump is communicated with the water storage bag through a third pipeline.
Furthermore, one end of the upper bed plate is provided with a pillow positioned below the forehead water bag, so that the head of a heatstroke lying on the upper bed plate is pillowed.
Furthermore, a foot lifting plate is arranged between the two support rods far away from the pillow in a sliding mode along the length direction of the upper bed plate, and the feet of a heatstroke person are lifted by the foot lifting plate, so that the brain blood supply can be facilitated.
Furthermore, four corners of the foot lifting plate are respectively and fixedly connected with a limiting block, the limiting blocks can prevent the foot lifting plate from completely sliding off the supporting rods, and two arc-shaped concave surfaces convenient for placing feet are arranged on the foot lifting plate.
Furthermore, two the vertical spout has been seted up respectively to the relative side of bracing piece, the mode that the slide bar extends to in the spout through its both ends slides and sets up on two bracing pieces.
Furthermore, height adjusting mechanism includes fixed connection at the connecting plate that is close to the two bracing piece tops of pillow, still includes the screw rod of fixed connection at the slide bar middle part and run through the connecting plate, threaded connection has the handle of turning round that is located the connecting plate top on the screw rod.
Furthermore, the middle part of the forehead applying water bag is provided with an arc-shaped part which is convenient to apply on the forehead.
Furthermore, the upper body water bag is in a grid shape, and the grid gaps on the upper body water bag can facilitate heat dissipation of the heatstroke patients while the upper body water bag absorbs the heat of the heatstroke patients.
Compared with the prior art, the beneficial effects of the utility model are that: this culture tourism district high temperature first aid heat sink through last bed board, water storage bag, the cooperation between the swell, can be for heatstroke person's back rapid cooling when promoting the person's of heatstroke comfort of lying, through setting up height-adjustable's forehead water bag and one apply the upper part of the body water bag, can be for patient's forehead and upper part of the body rapid cooling.
Drawings

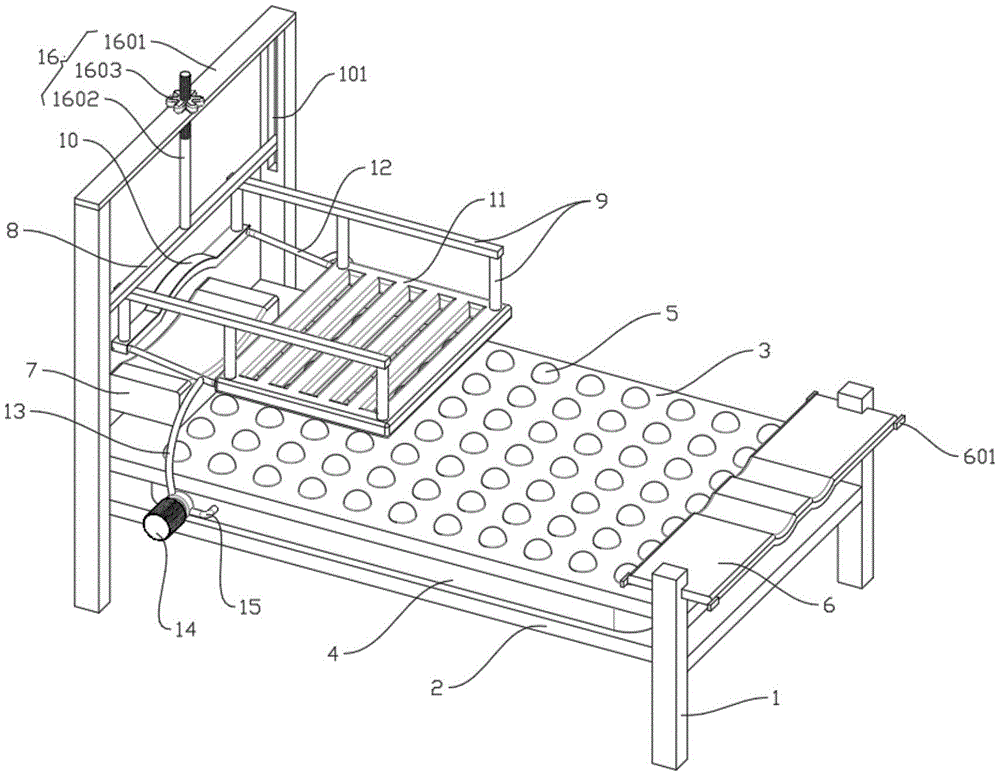

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the upper bed plate structure of the present invention;
FIG. 3 is a schematic view of the structure of the water storage bag and the bulge of the present invention;
FIG. 4 is a schematic view of the forehead applying water bag of the present invention;
FIG. 5 is a schematic view of the structure of the water bag for applying the upper body of the present invention;
fig. 6 is a schematic diagram of the structure of the foot lifting plate of the present invention.
In the figure: 1. a support bar; 101. a chute; 2. a bed plate is arranged; 3. a bed board is arranged; 301. a through hole; 4. a water storage bag; 5. bulging; 6. lifting the foot plate; 601. a limiting block; 602. a concave surface; 7. a pillow; 8. a slide bar; 9. a support; 10. applying forehead water bag; 1001. an arc-shaped portion; 11. applying a body water bag; 12. a first conduit; 13. a second conduit; 14. a water pump; 15. a third pipeline; 16. a height adjustment mechanism; 1601. a connecting plate; 1602. a screw; 1603. and (4) rotating a handle.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: the utility model provides a culture tourist area high temperature first aid heat sink, including four bracing pieces 1 that are the rectangular distribution, bed board 2 is fixedly connected with between each bracing piece 1, fixedly connected with one is located bed board 3 on bed board 2 top down between each bracing piece 1, the one end of going up bed board 3 is provided with a pillow 7, go up and set up a plurality of array distribution's through-hole 301 on the bed board 3, be provided with a water storage bag 4 between bed board 2 and the bed board 3 down, the intercommunication has a plurality of and each through-hole 301 matched with hollow swell 5 on the water storage bag 4, swell 5 tops extend to through-hole 301 top, the person of heatstroke lies on bed board 3 flatly, the comfort level that the person of heatstroke lies on bed board 3 can be promoted to soft hollow swell 5 and the hydroenergy in it, the water in the swell 5 can also absorb the heat of the person of heatstroke's back simultaneously, help the person of heatstroke.
Wherein a sliding rod 8 is vertically arranged between two supporting rods 1 positioned at one end of the upper bed plate 3 in a sliding way through a sliding groove (101) arranged on the upper supporting rod, a forehead applying water bag 10 and an upper body applying water bag 11 are respectively and fixedly connected onto the sliding rod 8 through a support 9, an arc part 1001 convenient for being applied on the forehead is arranged in the middle of the forehead applying water bag 10, the heat of the forehead of a heatstroke can be fully absorbed through the forehead applying water bag 10 and the water flowing inside, the heatstroke can be rapidly cooled by the aid of the upper body applying water bag 11, the upper body applying water bag 11 is in a grid shape, the heat of the upper body of the heatstroke can be absorbed through the upper body applying water bag 11 and the water flowing inside, and meanwhile, the heat dissipation of the heatstroke can be facilitated through.
Be provided with a height adjustment mechanism 16 between slide bar 8 and rather than sliding connection's two bracing pieces 1, height adjustment mechanism 16 includes fixed connection at the connecting plate 1601 between the two bracing pieces 1 tops that are close to pillow 7, still include fixed connection at slide bar 8 middle part and run through the screw 1602 of connecting plate 1601, threaded connection has a commentaries on classics handle 1603 that is located the connecting plate 1601 top on the screw 1602, through adjusting the position of commentaries on classics handle 1603 on screw 1602, can adjust the height that slide bar 8 fell to adjust the height that applies forehead water bag 10 and one and apply upper part of the body water bag 11.
The same end of the forehead applying water bag 10 and the upper body applying water bag 11 is communicated with the water storage bag 4 through a first pipeline 12, the end parts of the forehead applying water bag 10 and the upper body applying water bag 11 far away from the first pipeline 12 are communicated with a water pump 14 through a second pipeline 13, the water pump 14 is communicated with the water storage bag 4 through a third pipeline 15, and through the matching among the water pump 14, the first pipeline 12, the second pipeline 13 and the third pipeline 15, the forehead applying water bag 10, the upper body applying water bag 11 and the water storage bag 4 can flow, so that the rapid cooling of a heatstroke person is realized.
Wherein, a foot lifting plate 6 is arranged between two support rods 1 far away from the pillow 7 along the length direction of the upper bed plate 3 in a sliding way, four corners of the foot lifting plate 6 are respectively and fixedly connected with a limiting block 601, two arc concave surfaces 602 convenient for placing feet are arranged on the foot lifting plate 6, the feet of heatstroke persons can be lifted by the foot lifting plate 6, the supply of brain blood can be facilitated, and the position of the foot lifting plate 6 can be adjusted according to the sliding of the heatstroke persons with different heights.
The working principle is as follows: firstly, the sliding rod 8 is lifted by hand, so that the forehead applying water bag 10 and the upper body applying water bag 11 are lifted to the upper part, then a heatstroke person lies on the upper bed plate 3, the soft hollow drum bag 5 and the water in the drum bag can improve the comfort level of the heatstroke person lying on the upper bed plate 3, meanwhile, the water in the drum bag 5 can absorb the heat of the back of the heatstroke person to help the heatstroke person to cool down, then the forehead applying water bag 10 and the upper body applying water bag 11 are slowly put down, the distance between the forehead applying water bag 10 and the upper body applying water bag 11 and the heatstroke person is adjusted by rotating the rotary knob 1603, so that the forehead applying water bag 10 is contacted with the forehead of the heatstroke person, the forehead applying water bag 10 and the water flowing inside can fully absorb the heat of the forehead of the heatstroke person to help the heatstroke person to cool down quickly, at the moment, the upper body applying water bag 11 is contacted with the upper body of the heatstroke person, and the upper body applying water bag 11 and the water flowing inside can absorb the heat of the upper, then, the feet of the heatstroke person are lifted and placed on the foot lifting plate 6, the foot lifting plate 6 is adjusted to a proper position according to the height of the heatstroke person, and the foot lifting plate 6 is beneficial to the supply of brain blood.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
