Abstract
本实用新型公开了一种医学模拟临床演练评估装置，包括底板，所述底板顶部中间设置有液压缸，所述液压缸外侧设置有套板，所述套板顶端内部设置有导向板，所述套板两侧对称设置有放置箱，所述放置箱前侧铰接有箱门，所述液压缸顶部的输出端设置有评估板，且所述评估板底端与导向板固定连接，所述评估板内部开设有收纳槽，所述收纳槽内设置有加长板，所述评估板两侧对称设置有竖板，所述竖板与加长板固定连接，所述竖板与评估板相背的一侧设置有把手以及螺栓，本实用新型结构简单，设计合理，在评估板的操作面积不足时，通过抽出加长板，能够增加操作面积，并且能够通过液压缸对评估板的高度进行调节，使其更好的适合不同高度的使用者。
The utility model discloses a medical simulation clinical exercise evaluation device, comprising a bottom plate, a hydraulic cylinder is arranged in the middle of the top of the bottom plate, a sleeve plate is arranged outside the hydraulic cylinder, a guide plate is arranged inside the top of the sleeve plate, and the A placement box is symmetrically arranged on both sides of the sleeve board, a box door is hinged on the front side of the placement box, an evaluation board is provided at the output end of the top of the hydraulic cylinder, and the bottom end of the evaluation board is fixedly connected with the guide plate. A storage slot is opened inside the board, an extension board is arranged in the storage slot, a vertical plate is symmetrically arranged on both sides of the evaluation board, the vertical board is fixedly connected with the extension board, and the vertical board is opposite to the evaluation board. The side is provided with a handle and a bolt. The utility model has a simple structure and a reasonable design. When the operation area of the evaluation board is insufficient, the operation area can be increased by pulling out the extension board, and the height of the evaluation board can be adjusted through the hydraulic cylinder to make it Better for users of different heights.
Description
Technical Field
The utility model relates to a clinical rehearsal evaluation device of medical science simulation belongs to medical education technical field.
Background
In medical science education, superior proctor is often required to evaluate interns, the interns need to diagnose and treat real patients, the superior proctor is trained professionally, the whole diagnosis and treatment process of a subject is observed and recorded in real time, timely feedback and guidance are given to places where the subject performs well and places where the subject needs to be improved, and a medical simulation clinical exercise evaluation device is provided for better recording.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a clinical rehearsal evaluation device of medical simulation to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a clinical rehearsal evaluation device of medical simulation, includes the bottom plate, be provided with the pneumatic cylinder in the middle of the bottom plate top, the pneumatic cylinder outside is provided with the lagging, the inside deflector that is provided with in lagging top, the lagging bilateral symmetry is provided with places the case, it has the chamber door to place the articulated chamber door in case front side, the output at pneumatic cylinder top is provided with the aassessment board, just aassessment board bottom and deflector fixed connection, the inside groove of accomodating of having seted up of aassessment board, accomodate the inslot and be provided with the extension board, aassessment board bilateral symmetry is provided with the riser, riser and extension board fixed connection, the riser is provided with handle and bolt with one side that the aassessment board carried on the back mutually, just the bolt tail.
Furthermore, limiting grooves are formed in the evaluation plate and are symmetrically arranged on two sides of the containing groove.
Furthermore, a limiting block is arranged in the limiting groove and fixedly connected with the lengthened plate.
Further, the two sides of the bottom of the evaluation plate are symmetrically provided with stabilizing plates, and the stabilizing plates are attached to the placing box.
Furthermore, one side of the stabilizing plate, which is close to the placing box, is provided with a sliding groove.
Furthermore, a sliding plate is connected in the sliding groove in a sliding mode, the sliding plate is fixedly connected with the placing box, and the sliding plate is of a T-shaped structure.
The utility model has the advantages that:
1. when the operating area of aassessment board is not enough, through taking out the extension board, can increase operating area to can adjust the height of aassessment board through the pneumatic cylinder, make its better user that is fit for not co-altitude.
2. Through setting up restriction piece and restriction groove, can restrict extension board, prevent that it from breaking away from and accomodating the groove, through setting up lagging and deflector, when can shelter from the protection to the pneumatic cylinder, make the lift stability more of aassessment board, through setting up steadying plate and sliding plate, can be further restrict aassessment board, make aassessment board stability more, the practicality is strong.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.

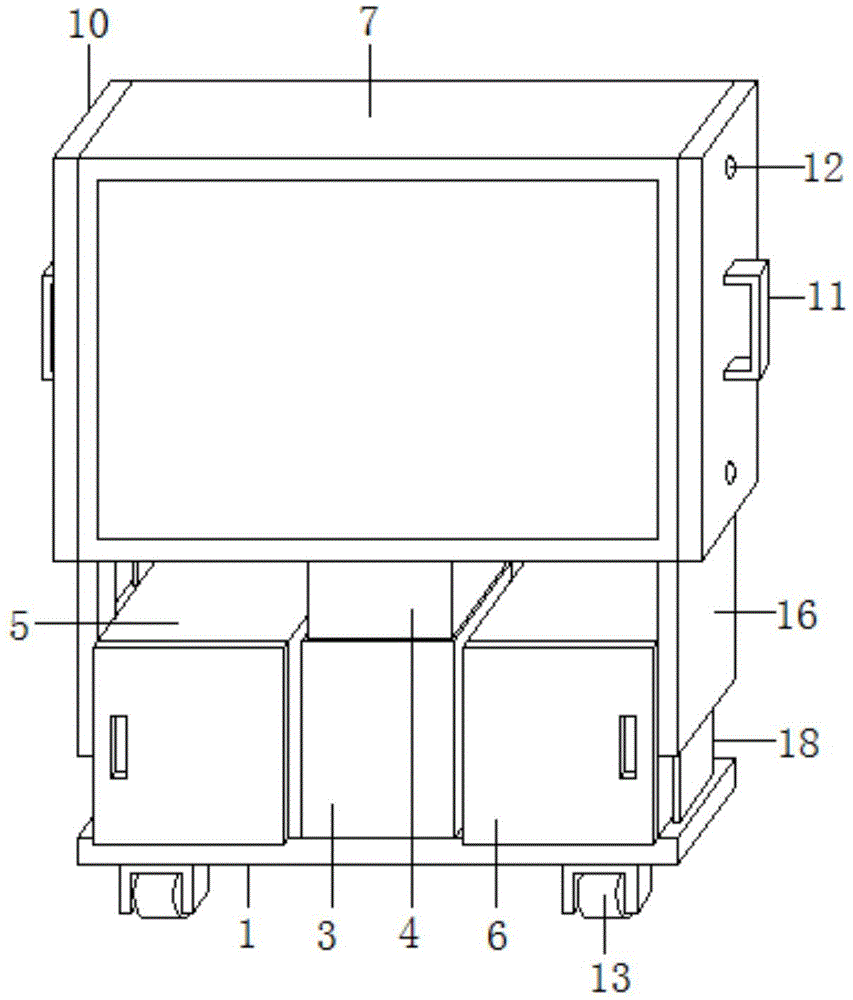

Fig. 1 is a schematic diagram of the overall structure of a medical simulation clinical practice evaluation device of the present invention;
fig. 2 is a schematic diagram of the internal structure of a medical simulation clinical practice evaluation device of the present invention;
fig. 3 is a schematic view of the internal structure of an evaluation board of the medical simulation clinical practice evaluation device of the present invention;
FIG. 4 is a schematic view of a placement box of the medical simulation clinical practice evaluation device of the present invention;
FIG. 5 is a schematic diagram of a socket of the device for evaluating a medical simulation clinical drill of the present invention;
reference numbers in the figures: 1. a base plate; 2. a hydraulic cylinder; 3. sheathing; 4. a guide plate; 5. placing a box; 6. a box door; 7. evaluating the board; 8. a receiving groove; 9. a lengthening plate; 10. a vertical plate; 11. a handle; 12. a bolt; 13. a universal wheel; 14. a limiting groove; 15. a limiting block; 16. a stabilizing plate; 17. a sliding groove; 18. a sliding plate.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a medical simulation clinical exercise evaluation device comprises a bottom plate 1, a hydraulic cylinder 2 is arranged in the middle of the top of the bottom plate 1, a sleeve plate 3 is arranged outside the hydraulic cylinder 2, a guide plate 4 is arranged inside the top end of the sleeve plate 3, the two sides of the sleeve plate 3 are symmetrically provided with a placing box 5, the front side of the placing box 5 is hinged with a box door 6, the output end of the top of the hydraulic cylinder 2 is provided with an evaluation plate 7, the bottom end of the evaluation plate 7 is fixedly connected with the guide plate 4, a containing groove 8 is arranged inside the evaluation plate 7, the holding groove 8 is internally provided with a lengthened plate 9, the two sides of the evaluation plate 7 are symmetrically provided with vertical plates 10, the vertical plate 10 is fixedly connected with the elongated plate 9, a handle 11 and a bolt 12 are arranged on one side of the vertical plate 10 opposite to the evaluation plate 7, and the tail end of the bolt 12 penetrates through the vertical plate 10 to be in threaded connection with the evaluation plate 7, and the bottom of the bottom plate 1 is provided with a universal wheel 13.
Specifically, as shown in fig. 3, limiting grooves 14 are formed in the evaluation plate 7, the limiting grooves 14 are symmetrically formed in two sides of the storage groove 8, limiting blocks 15 are arranged in the limiting grooves 14, and the limiting blocks 15 are fixedly connected with the elongated plate 9 to limit the elongated plate 9 and prevent the elongated plate from separating from the storage groove 8.
Specifically, as shown in fig. 2 and 4, stabilizing plates 16 are symmetrically arranged on two sides of the bottom of the evaluation plate 7, the stabilizing plates 16 are attached to the placing box 5, a sliding groove 17 is formed in one side, close to the placing box 5, of each stabilizing plate 16, a sliding plate 18 is connected in the sliding groove 17 in a sliding mode, the sliding plate 18 is fixedly connected with the placing box 5, the sliding plate 18 is of a T-shaped structure, the evaluation plate 7 is further limited, and the evaluation plate 7 is made to be more stable.
The utility model discloses the theory of operation: open pneumatic cylinder 2, make the height of aassessment board 7 suit user's height, will carry out the record to real-time doctor's observation through aassessment board 7, when the operating area of aassessment board 7 is not enough, screw out bolt 12, through handle 11, take out extension board 9, increase operating area, set up restriction piece 15 and restriction groove 14, can restrict extension board 9, prevent that it from breaking away from and accomodating groove 8, set up lagging plate 3 and deflector 4, can shelter from when protecting pneumatic cylinder 2, make the lift of aassessment board 7 more stable, set up stabilizing plate 16 and sliding plate 18, can further restrict aassessment board 7, make aassessment board 7 more stable.
The above is the preferred embodiment of the present invention, and the technical personnel in the field of the present invention can also change and modify the above embodiment, therefore, the present invention is not limited to the above specific embodiment, and any obvious improvement, replacement or modification made by the technical personnel in the field on the basis of the present invention all belong to the protection scope of the present invention.
Claims (6)
1. A medical simulation clinical drill evaluation device, includes bottom plate (1), its characterized in that: the middle of the top of the bottom plate (1) is provided with a hydraulic cylinder (2), the outer side of the hydraulic cylinder (2) is provided with a sleeve plate (3), a guide plate (4) is arranged inside the top end of the sleeve plate (3), two sides of the sleeve plate (3) are symmetrically provided with placing boxes (5), the front side of each placing box (5) is hinged with a box door (6), the output end of the top of the hydraulic cylinder (2) is provided with an evaluation plate (7), the bottom end of the evaluation plate (7) is fixedly connected with the guide plate (4), a containing groove (8) is formed inside the evaluation plate (7), an extension plate (9) is arranged in the containing groove (8), two sides of the evaluation plate (7) are symmetrically provided with vertical plates (10), the vertical plates (10) are fixedly connected with the extension plate (9), one sides of the vertical plates (10) and the evaluation plate (7) back on the other are provided with a handle (, and the tail end of the bolt (12) penetrates through the vertical plate (10) to be in threaded connection with the evaluation plate (7), and the bottom of the bottom plate (1) is provided with a universal wheel (13).
2. The apparatus for evaluating a medical simulation clinical drill according to claim 1, wherein: limiting grooves (14) are formed in the evaluation plate (7), and the limiting grooves (14) are symmetrically arranged on two sides of the accommodating groove (8).
3. The apparatus for evaluating a medical simulation clinical drill according to claim 2, wherein: and a limiting block (15) is arranged in the limiting groove (14), and the limiting block (15) is fixedly connected with the lengthened plate (9).
4. The apparatus for evaluating a medical simulation clinical drill according to claim 1, wherein: the two sides of the bottom of the evaluation plate (7) are symmetrically provided with stabilizing plates (16), and the stabilizing plates (16) are attached to the placing box (5).
5. The apparatus for evaluating a medical simulation clinical drill according to claim 4, wherein: one side of the stabilizing plate (16) close to the placing box (5) is provided with a sliding groove (17).
6. The apparatus for evaluating a medical simulation clinical drill according to claim 5, wherein: the sliding groove (17) is connected with a sliding plate (18) in a sliding mode, the sliding plate (18) is fixedly connected with the placing box (5), and the sliding plate (18) is of a T-shaped structure.
