Abstract
本实用新型公开了一种净化空气环保型PS装饰板材，包括多组相互耦合对接的拼装式装饰板，多组拼装式装饰板的连接位置设置有H型连接件，拼装式装饰板包括呈矩形板状结构的装饰板主体以及装饰板主体一侧贴附安装的活性炭装饰层，装饰板主体的一侧构造有一组第一对接卡块，且装饰板主体远离第一对接卡块的一侧构造有一组第二对接卡块，第一对接卡块与第二对接卡块的相反面分别开设有第二耦合槽和第一耦合槽，H型连接件包括一组嵌合板以及嵌合板两端安装的第一插接柱与第二插接柱，嵌合板设置于第一插接柱与第二插接柱的中部。该净化空气环保型PS装饰板材，便于实现安装对接，且安装连接稳定可靠，具有较高的实用价值。
The utility model discloses an air-purifying and environment-friendly PS decorative plate, which comprises a plurality of sets of assembled decorative plates which are coupled and connected to each other. H-shaped connectors are arranged at the connecting positions of the plurality of assembled decorative plates. The decorative board body of the plate-like structure and the activated carbon decorative layer attached to one side of the decorative board body, one side of the decorative board body is constructed with a group of first docking blocks, and the side of the decorative board main body away from the first docking block is structured There is a group of second docking blocks, the opposite surfaces of the first docking block and the second docking block are respectively provided with a second coupling slot and a first coupling slot, the H-type connector includes a set of inserting plates and the two ends of the inserting plates are installed The first plug-in post and the second plug-in post are arranged in the middle of the first plug-in post and the second plug-in post. The air-purifying and environment-friendly PS decorative sheet is convenient for installation and connection, and the installation connection is stable and reliable, and has high practical value.
Description
Technical Field
The utility model belongs to the technical field of dalle, concretely relates to air-purifying environment-friendly PS dalle.
Background
The decorative material is divided into two parts: one part is outdoor material and the other part is indoor material. The indoor material is subdivided into five types, namely stone, plate, sheet, section and wire. The decorative plate is a general name of all plates and mainly comprises the following components: laminated wood board, plywood, decorative panel, density board, laminated wood, shaving board, fireproof board, gypsum board, PVC board, aluminous gusset plate, aluminum plastic board, three-dimensional board and the like.
Along with the customer constantly improves to the requirement of panel quality, dalle later stage adopts the environmental protection material more, and the coating adsorbs peculiar smell and air-purifying's active carbon layer to satisfy the demand of customer to the high-quality panel of environmental protection, current dalle is after the attached installation of cooperation wall, and the connection between panel and the panel is inseparable enough, has the problem that is difficult for swift butt joint, and the practicality is poor.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an air-purifying environment-friendly PS dalle to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: an environment-friendly PS decorative plate for purifying air comprises a plurality of groups of spliced decorative plates which are mutually coupled and butted, wherein H-shaped connecting pieces are arranged at the connecting positions of the spliced decorative plates;
the assembled decorative plate comprises a decorative plate main body in a rectangular plate-shaped structure and an activated carbon decorative layer attached to one side of the decorative plate main body, wherein one side of the decorative plate main body is provided with a group of first butt joint fixture blocks, one side of the decorative plate main body, which is far away from the first butt joint fixture blocks, is provided with a group of second butt joint fixture blocks, and the opposite surfaces of the first butt joint fixture blocks and the second butt joint fixture blocks are respectively provided with a second coupling groove and a first coupling groove;
the H-shaped connecting piece comprises a group of embedded plates, a first inserting column and a second inserting column which are arranged at two ends of each embedded plate, the embedded plates are arranged in the middle of the first inserting column and the second inserting column, the axes of the first inserting column and the second inserting column are parallel to each other, and connecting portions matched with the H-shaped connecting pieces are arranged at four corners of the decorating plate main body.
Preferably, one side of the first butt joint clamping block facing the second coupling groove and one side of the second butt joint clamping block facing the first coupling groove are both constructed to be inclined planes, and the inclined planes of the first butt joint clamping blocks are mutually abutted with the inclined planes of the second butt joint clamping blocks on the adjacent decorative plate main body.
Preferably, the first coupling groove is coupled and butted with a first butting clamping block on one side of the adjacent decorative plate main body, and the second coupling groove is coupled and butted with a second butting clamping block on one side of the adjacent decorative plate main body.
Preferably, the connecting portions provided at four corners of the decorative plate main body include first fitting grooves provided at two ends of the first butt-joint block and second fitting grooves provided at two ends of the second butt-joint block, and the depth of the first fitting groove and the depth of the second fitting groove are half of the thickness of the fitting plate.
Preferably, one side of the first embedding groove, which is far away from the second coupling groove, is provided with a first inserting groove matched with the first inserting column, and one side of the second embedding groove, which is far away from the first coupling groove, is provided with a second inserting groove matched with the second inserting column.
The utility model discloses a technological effect and advantage: according to the environment-friendly PS decorative plate for purifying air, due to the fact that the first butt joint clamping block and the second butt joint clamping block which are respectively constructed on two sides of the decorative plate main body are convenient for quick butt joint installation between adjacent decorative plate main bodies, the first butt joint clamping block is in butt joint with the first coupling groove, the second butt joint clamping block is in butt joint with the second coupling groove, and the inclined plane of the first butt joint clamping block is in mutual butt joint with the inclined plane of the second butt joint clamping block on the adjacent decorative plate main body to guarantee connection tightness between the adjacent decorative plate main bodies; the connecting part of the adjacent decorative plate main bodies is connected by the H-shaped connecting piece, and the adjacent decorative plate main bodies on the upper parts can be butted, so that the overall stability of the decorative plate during wall installation is ensured.
Drawings

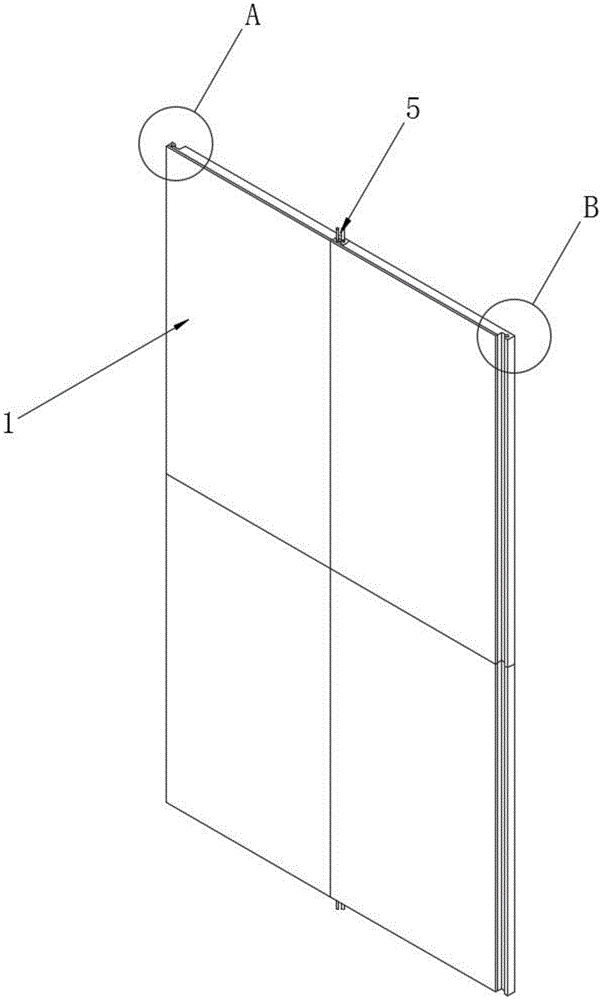

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is an enlarged schematic view of the structure at A in FIG. 1 according to the present invention;
FIG. 3 is an enlarged view of the structure B of FIG. 1 according to the present invention;
fig. 4 is a schematic structural view of the H-shaped connecting member of the present invention.
In the figure: 1 pin-connected panel decorative board, 2 decorative board main part, 201 active carbon decorative layer, 3 first butt joint fixture blocks, 301 first coupling groove, 4 second butt joint fixture blocks, 401 second coupling groove, 5H type connecting piece, 6 gomphosis board, the first gomphosis groove of 601, 602 second gomphosis groove, 7 first grafting post, 701 first grafting groove, 8 second grafting posts, 801 second grafting groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Unless defined otherwise, all references to up, down, left, right, front, back, inner and outer directions herein are to be interpreted as referring to up, down, left, right, front, back, inner and outer directions in the drawings to which the invention is applied, and all references are hereby incorporated herein by reference.
The utility model provides an air-purifying environment-friendly PS decorative plate as shown in figures 1-4, which comprises a plurality of groups of mutually coupled and butted assembled decorative plates 1, wherein H-shaped connecting pieces 5 are arranged at the connecting positions of the assembled decorative plates 1;
the assembled decorative plate 1 comprises a decorative plate main body 2 in a rectangular plate-shaped structure and an activated carbon decorative layer 201 attached and installed on one side of the decorative plate main body 2 (in specific implementation, the activated carbon decorative layer 201 is a coating structure made of mixed activated carbon materials so as to achieve odor removal and air purification, but other coatings can be used for replacement in implementation), one side of the decorative plate main body 2 is constructed with a group of first butt joint clamping blocks 3, one side of the decorative plate main body 2, far away from the first butt joint clamping blocks 3, is constructed with a group of second butt joint clamping blocks 4, the opposite surfaces of the first butt joint clamping blocks 3 and the second butt joint clamping blocks 4 are respectively provided with a second coupling groove 401 and a first coupling groove 301, and due to the fact that the first butt joint clamping blocks 3 and the second butt joint clamping blocks 4 which are respectively constructed on the two sides of the decorative plate main body 2 are convenient for quick butt joint installation between adjacent decorative plate main bodies 2, the first butt joint clamping blocks 3 butt joint the first coupling grooves 301 and the second butt, the inclined plane of the first butt joint clamping block 3 and the inclined plane of the second butt joint clamping block 4 on the adjacent decorative plate main body 2 are mutually abutted to ensure the connection tightness between the adjacent decorative plate main bodies 2;
the H-shaped connecting piece 5 comprises a group of embedded plates 6 and a first inserting column 7 and a second inserting column 8 which are arranged at two ends of the embedded plates 6, the embedded plates 6 are arranged in the middle of the first inserting column 7 and the second inserting column 8, the axle centers of the first inserting column 7 and the second inserting column 8 are parallel to each other, the four corners of the decorative plate main body 2 are provided with connecting parts matched with the H-shaped connecting piece 5, the H-shaped connecting pieces 5 are arranged to connect the connecting parts of the adjacent decorative plate main bodies 2 and can be butted with the upper adjacent decorative plate main bodies 2, and the integral stability of the decorative plate during wall installation is guaranteed.
Specifically, the side of the first butt joint block 3 facing the second coupling groove 401 and the side of the second butt joint block 4 facing the first coupling groove 301 are both configured to be inclined surfaces, and the inclined surface of the first butt joint block 3 is abutted against the inclined surface of the second butt joint block 4 on the adjacent decorative plate main body 2.
Specifically, the first coupling groove 301 is coupled and butted with a first butting clamping block 3 on one side of the adjacent decorative plate main body 2, and the second coupling groove 401 is coupled and butted with a second butting clamping block 4 on one side of the adjacent decorative plate main body 2.
Specifically, the connecting portions provided at four corners of the decorative panel main body 2 include first fitting grooves 601 provided at two ends of the first butt-joint block 3 and second fitting grooves 602 provided at two ends of the second butt-joint block 4, and the depth of each of the first fitting grooves 601 and the second fitting grooves 602 is half of the thickness of the fitting plate 6.
Specifically, a first inserting groove 701 adapted to the first inserting column 7 is formed in a side of the first engaging groove 601 away from the second coupling groove 401, and a second inserting groove 801 adapted to the second inserting column 8 is formed in a side of the second engaging groove 602 away from the first coupling groove 301.
The working principle of the environment-friendly PS decorative plate for purifying air is that during installation, only the assembled decorative plate 1 at the bottom needs to be installed in a butting skirting line way, and the decorative plate bodies 2 are attached to the wall surface one by adopting building materials such as cement, during installation, each assembled decorative plate body 2 is butted with the adjacent first butting clamping block 3 through the second butting clamping block 4, the H-shaped connecting pieces 5 are sequentially arranged and installed, after one row of installation, the connecting parts of the decorative plate bodies 2 are spliced and installed with the H-shaped connecting pieces 5, so that the embedded plates 6 are partially embedded into the first embedded grooves 601 and the second embedded grooves 602, the first inserting columns 7 are inserted into the first inserting grooves 701, the second inserting columns 8 are inserted into the second inserting grooves 801 for butting and limiting, then the decorative plate bodies 2 are upwards overlapped and installed, and the bottom ends of the decorative plate bodies 2 above are butted with the H-shaped connecting pieces 5 to realize sequential, this air-purifying environment-friendly PS dalle is convenient for realize the installation butt joint, and the erection joint is reliable and stable, has higher practical value.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
