Abstract
本申请公开了一种高弹性的涤纶弹力布，包括耐磨面料层、弹力结构和亲肤结构，所述弹力结构包括隔热面料层，所述耐磨面料层底端粘合有隔热面料层，所述隔热面料层底端粘合有弹力面料层，所述亲肤结构包括亲肤面料层，所述弹力面料层的底端粘合有吸湿面料层，且吸湿面料层底端粘合有柔性面料层，所述柔性面料层底端粘合有亲肤面料层。通过耐磨面料层增大面料的耐磨性，提高了面料的使用寿命，且通过隔热面料层减少面料的热量传送，提高了面料的保温隔热效果，通过柔性面料层、亲肤面料层和透气孔配合，使得面料具有更好的亲肤性，同时具有较好的吸湿性，解决了现有的涤纶弹力布在使用时不够亲肤和吸湿性较差的问题，提高了面料的适用范围。
The application discloses a high-elastic polyester elastic fabric, comprising a wear-resistant fabric layer, an elastic structure and a skin-friendly structure, the elastic structure includes a heat-insulating fabric layer, and the bottom end of the wear-resistant fabric layer is bonded with a heat-insulating fabric layer , the bottom end of the heat insulating fabric layer is bonded with an elastic fabric layer, the skin-friendly structure includes a skin-friendly fabric layer, the bottom end of the elastic fabric layer is bonded with a moisture-absorbing fabric layer, and the bottom end of the moisture-absorbing fabric layer is bonded There is a flexible fabric layer, and the bottom end of the flexible fabric layer is bonded with a skin-friendly fabric layer. The wear resistance of the fabric is increased by the wear-resistant fabric layer, which improves the service life of the fabric, and the heat transfer of the fabric is reduced through the heat-insulating fabric layer, which improves the thermal insulation effect of the fabric. Combined with the ventilation holes, the fabric has better skin-friendly and moisture-absorbing properties, which solves the problems of insufficient skin-friendly and poor hygroscopicity of the existing polyester elastic fabric during use, and improves the application of the fabric. scope.
Description
Technical Field
The application relates to a polyester elastic fabric, in particular to a high-elasticity polyester elastic fabric.
Background
Along with the rapid development of the textile industry, the types of the existing fabrics are gradually increased, the types of the fabrics in the current market are various, and the terylene stretch fabric is deeply popular with people as a fabric with wider application.
The terylene stretch cloth is a synthetic fiber obtained by spinning polyester formed by polycondensation of organic dibasic acid and dihydric alcohol, has good crease resistance and shape retention, higher strength and elasticity recovery capability, is firm and durable, crease-resistant and non-ironing, and does not stick hair, but has poor hygroscopicity when in use, hard hand feeling and poor skin-friendly property, and can generate uncomfortable feelings such as stinging and the like when being worn next to the skin, so that the comfort level of the terylene stretch cloth is reduced, the terylene stretch cloth can not be used for manufacturing next-to-skin clothes, and the application range of the terylene stretch cloth is reduced. Therefore, a high elastic polyester stretch fabric has been proposed to solve the above problems.
Disclosure of Invention
A high-elasticity terylene stretch fabric comprises a wear-resistant fabric layer, a stretch structure and a skin-friendly structure;
the elastic structure comprises a heat insulation fabric layer, the bottom end of the wear-resistant fabric layer is bonded with the heat insulation fabric layer, and the bottom end of the heat insulation fabric layer is bonded with the elastic fabric layer;
the skin-friendly structure comprises a skin-friendly fabric layer, a moisture absorption fabric layer is bonded at the bottom end of the elastic fabric layer, a flexible fabric layer is bonded at the bottom end of the moisture absorption fabric layer, and the skin-friendly fabric layer is bonded at the bottom end of the flexible fabric layer.
Furthermore, the thickness of the wear-resistant fabric layer is equal to one half of that of the heat-insulating fabric layer, and air holes are uniformly formed in the wear-resistant fabric layer.
Further, the thickness of the elastic fabric layer is equal to that of the heat insulation fabric layer.
Further, the thickness of the moisture absorption fabric layer is equal to that of the elastic fabric layer.
Further, the thickness of the flexible fabric layer is equal to one half of the thickness of the absorbent fabric layer.
Further, the thickness of the skin-friendly fabric layer is equal to that of the flexible fabric layer.
The beneficial effect of this application is: the application provides a dacron elasticity cloth of high elasticity.
Drawings
In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present application, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without inventive exercise.

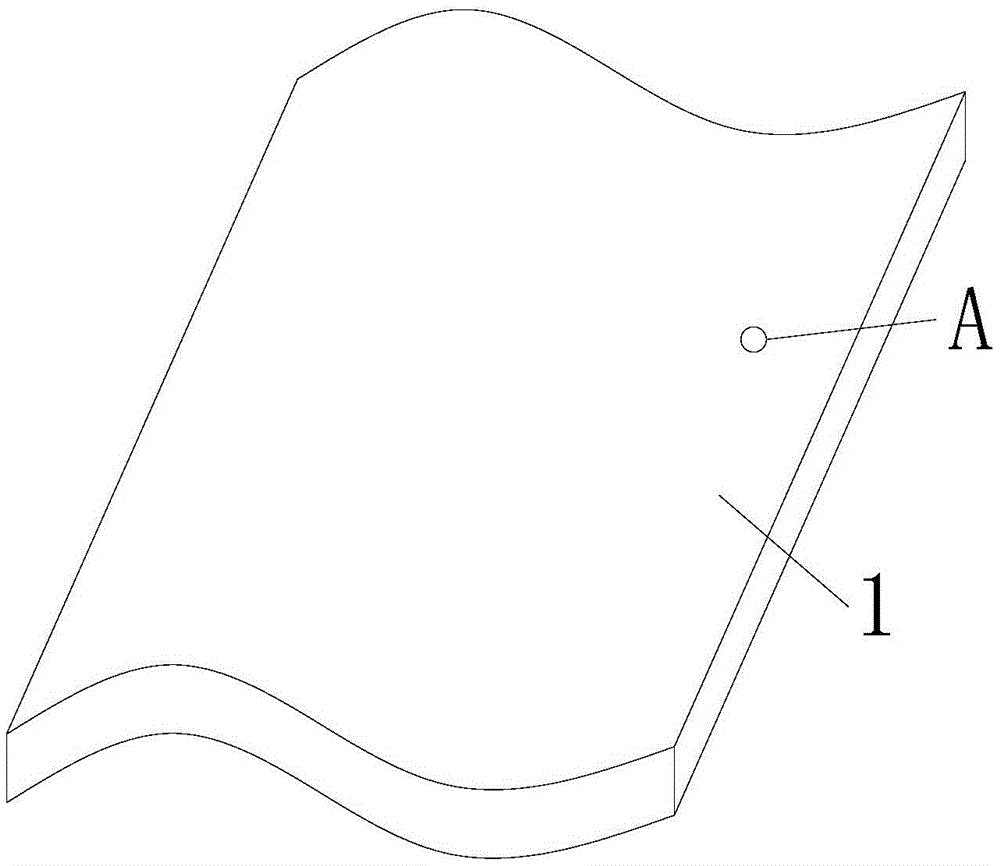

FIG. 1 is a schematic perspective view of an embodiment of the present application;
FIG. 2 is a schematic cross-sectional elevation view of an embodiment of the present application;
fig. 3 is an enlarged schematic view of a structure at a in fig. 1 according to an embodiment of the present application.
In the figure: 1. the fabric comprises a wear-resistant fabric layer, 2 a heat-insulating fabric layer, 3 an elastic fabric layer, 4 a moisture-absorbing fabric layer, 5 a flexible fabric layer, 6 a skin-friendly fabric layer, 7 and air holes.
Detailed Description
In order to make the technical solutions better understood by those skilled in the art, the technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it is obvious that the described embodiments are only partial embodiments of the present application, but not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.
It should be noted that the terms "first," "second," and the like in the description and claims of this application and in the drawings described above are used for distinguishing between similar elements and not necessarily for describing a particular sequential or chronological order. It should be understood that the data so used may be interchanged under appropriate circumstances such that embodiments of the application described herein may be used. Furthermore, the terms "comprises," "comprising," and "having," and any variations thereof, are intended to cover a non-exclusive inclusion, such that a process, method, system, article, or apparatus that comprises a list of steps or elements is not necessarily limited to those steps or elements expressly listed, but may include other steps or elements not expressly listed or inherent to such process, method, article, or apparatus.
In this application, the terms "upper", "lower", "left", "right", "front", "rear", "top", "bottom", "inner", "outer", "middle", "vertical", "horizontal", "lateral", "longitudinal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings. These terms are used primarily to better describe the present application and its embodiments, and are not used to limit the indicated devices, elements or components to a particular orientation or to be constructed and operated in a particular orientation.
Moreover, some of the above terms may be used to indicate other meanings besides the orientation or positional relationship, for example, the term "on" may also be used to indicate some kind of attachment or connection relationship in some cases. The specific meaning of these terms in this application will be understood by those of ordinary skill in the art as appropriate.
Furthermore, the terms "mounted," "disposed," "provided," "connected," and "sleeved" are to be construed broadly. For example, it may be a fixed connection, a removable connection, or a unitary construction; can be a mechanical connection, or an electrical connection; may be directly connected, or indirectly connected through intervening media, or may be in internal communication between two devices, elements or components. The specific meaning of the above terms in the present application can be understood by those of ordinary skill in the art as appropriate.
It should be noted that the embodiments and features of the embodiments in the present application may be combined with each other without conflict. The present application will be described in detail below with reference to the embodiments with reference to the attached drawings.
Referring to fig. 1-3, a high-elasticity terylene stretch fabric includes a wear-resistant fabric layer 1, a stretch structure and a skin-friendly structure;
the elastic structure comprises a heat-insulating fabric layer 2, the bottom end of the wear-resistant fabric layer 1 is bonded with the heat-insulating fabric layer 2, and the bottom end of the heat-insulating fabric layer 2 is bonded with an elastic fabric layer 3;
the skin-friendly structure comprises a skin-friendly fabric layer 6, a moisture absorption fabric layer 4 is bonded at the bottom end of the elastic fabric layer 3, a flexible fabric layer 5 is bonded at the bottom end of the moisture absorption fabric layer 4, and the skin-friendly fabric layer 6 is bonded at the bottom end of the flexible fabric layer 5.
The thickness of the wear-resistant fabric layer 1 is equal to one half of the thickness of the heat-insulating fabric layer 2, the air holes 7 are uniformly formed in the wear-resistant fabric layer 1, the wear resistance of the fabric is improved, the air permeability of the wear-resistant fabric layer 1 is improved through the air holes 7, and the air permeability effect of the fabric is improved; the thickness of the elastic fabric layer 3 is equal to that of the heat insulation fabric layer 2, so that the heat insulation effect of the fabric is improved, and the fabric is ensured to have better elasticity; the thickness of the moisture absorption fabric layer 4 is equal to that of the elastic fabric layer 3, so that the moisture absorption effect of the fabric is improved; the thickness of the flexible fabric layer 5 is equal to one half of that of the moisture absorption fabric layer 4, so that the fabric is softer; the thickness of the skin-friendly fabric layer 6 is equal to that of the flexible fabric layer 5, so that the skin-friendly performance of the fabric is improved, and the comfort degree of the fabric in use is improved.
When the wear-resistant fabric layer is used, the wear-resistant fabric layer 1 is made of polyamide fibers and nylon, and is good in dyeability and synthetic fibers, light and convenient to wear, good in waterproof and windproof performance, high in wear resistance and good in strength and elasticity; the heat insulation fabric layer 2 is made of modified acrylic fiber with flame retardant property; the elastic fabric layer 3 is synthetic fiber obtained by spinning polyester formed by polycondensation of organic diacid and dihydric alcohol, has good crease resistance and shape retention, and has high strength and elastic recovery capability; the moisture absorption fabric layer 4 is a fabric which is napped by a napping machine to form fluffy fluff, is usually woven by plain weave or twill, and has soft hand feeling, good heat retention, strong moisture absorption and comfortable wearing; the flexible fabric layer 5 is made of chemical materials containing natural cellulose, such as wood, cotton linter, reed and the like, and has the advantages of good dyeing property, good fastness, soft fabric, high specific gravity and good draping; the skin-friendly fabric layer 6 is woven by fine super cotton yarn, viscose fiber yarn, cotton viscose yarn, polyester cotton yarn and the like, and is characterized by fine, clean and soft cloth body, light, thin and compact texture and less cloth cover impurities.
The application has the advantages that:
1. the utility model discloses simple structure through the wearability of the 1 increase surface fabric of wear-resisting surface fabric layer, has improved the life of surface fabric, and reduces the heat conveying of surface fabric through thermal-insulated surface fabric layer 2, has improved the thermal-insulated effect of heat preservation of surface fabric.
2. Through the cooperation of the flexible fabric layer 5, the skin-friendly fabric layer 6 and the air holes 7, the fabric has better skin-friendly performance and better hygroscopicity, the problems that the existing terylene elastic fabric is not skin-friendly enough and has poorer hygroscopicity when in use are solved, and the application range of the fabric is widened.
It is well within the skill of those in the art to implement, without undue experimentation, the present application is not directed to software and process improvements, as they relate to circuits and electronic components and modules.
The above description is only a preferred embodiment of the present application and is not intended to limit the present application, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, improvement and the like made within the spirit and principle of the present application shall be included in the protection scope of the present application.
Claims (6)
