CN213433462U - Dust removal sack with detachable cage - Google Patents
Dust removal sack with detachable cage Download PDFInfo
- Publication number
- CN213433462U CN213433462U CN202021434644.9U CN202021434644U CN213433462U CN 213433462 U CN213433462 U CN 213433462U CN 202021434644 U CN202021434644 U CN 202021434644U CN 213433462 U CN213433462 U CN 213433462U
- Authority
- CN
- China
- Prior art keywords
- cage
- dust removal
- steel wire
- cloth bag
- dust
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Filtering Of Dispersed Particles In Gases (AREA)
Abstract
本实用新型公开了一种具有可拆卸式笼架的除尘布袋，包括除尘布袋和进尘口，所述除尘布袋的内部设置有钢丝，且钢丝的左端设置有凸块，所述凸块的外部设置有凹槽，且凹槽的外部设置有笼架口，所述笼架口的右端设置有进尘口，所述除尘布袋的左端设置有松紧带，所述钢丝的右端设置有卡扣栓，且卡扣栓的外部设置有卡槽。本实用新型的有益效果：除尘布袋包裹在钢丝的外部，其内部的钢丝对除尘布袋起到支撑的作用，防止除尘布袋塌陷，同时除尘布袋与松紧带之间为活动连接，除尘布袋通过松紧带固定在整个笼架的外部，使用者可通过控制松紧带的松紧程度来对除尘布袋进行安装与拆卸。
The utility model discloses a dust removal bag with a detachable cage, which comprises a dust removal bag and a dust inlet. Steel wires are arranged inside the dust removal bag, and a convex block is arranged at the left end of the steel wire. A groove is provided, and the outside of the groove is provided with a cage mouth, the right end of the cage mouth is provided with a dust inlet, the left end of the dust bag is provided with an elastic band, and the right end of the steel wire is provided with a snap bolt. And the outside of the snap bolt is provided with a snap slot. The beneficial effects of the utility model are as follows: the dust removal bag is wrapped on the outside of the steel wire, and the inner steel wire supports the dust removal bag to prevent the dust removal bag from collapsing. Outside the entire cage, the user can install and remove the dust bag by controlling the tightness of the elastic band.
Description
Technical Field
The utility model relates to a dust removal field specifically is a dust removal sack with detachable cage.
Background
The dust collecting bag can be called as the heart of the bag type dust collector and is generally called as a dust filtering bag, a dust collecting bag and the like, the dust collecting bag is a key part of the operation process of the bag type dust collector, and usually, the cylindrical filter bag is vertically hung in the dust collector.
The in-process of using of dust removal sack on market, inside filters a large amount of dusts, and the user is carrying out abluent in-process to it, is not convenient for dismantle its inside cage, leads to using at every turn and accomplishes the back, all need spend a large amount of times and dismantle the cage, for this reason, we provide a dust removal sack with detachable cage.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a dust removal sack with detachable cage to the in-process that uses is being carried out to the dust removal sack that proposes on the market among the solution above-mentioned background art, and inside filters a large amount of dusts, and the user is carrying out abluent in-process to it, is not convenient for dismantle its inside cage, leads to using at every turn and accomplishes the back, all needs to spend a large amount of times to carry out the problem dismantled to the cage.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a dust removal sack with detachable cage, includes dust removal sack and dust inlet, the inside of dust removal sack is provided with the steel wire, and the left end of steel wire is provided with the lug, the outside of lug is provided with the recess, and the outside of recess is provided with the cage mouth, the right-hand member of cage mouth is provided with dust inlet, the left end of dust removal sack is provided with the elastic cord, the right-hand member of steel wire is provided with the buckle bolt, and the outside of buckle bolt is provided with the draw-in groove, the outside of draw-in groove is provided with at the bottom of the cage, and the right-hand member middle part at the bottom of the cage is provided with the base, the inside slider that is provided with of lower extreme of base, and the outside of slider is provided with the spout, the right.
Preferably, the cage opening forms a clamping structure with the steel wire through a convex block, and the convex block and the groove are mutually attached.
Preferably, the steel wire is wrapped inside the dust removal cloth bag, and the dust removal cloth bag is movably connected with the elastic band.
Preferably, the steel wires are symmetrically distributed, and the steel wires are connected with the support ring in a welding mode.
Preferably, the steel wire passes through the buckle bolt and constitutes buckle structure at the bottom of the cage frame, and the outside outer wall that the buckle was tied closely laminates with the inside inner wall of draw-in groove.
Preferably, the cage bottom and the base form a sliding structure through a sliding block, and the base is fixedly connected with the sliding block.
Compared with the prior art, the beneficial effects of the utility model are that: the lug at the left end of the steel wire can be manually placed into the groove in the cage opening by a user, so that the cage opening is tightly attached to the steel wire, the cage opening is attached to the whole cage, the lug and the groove are convenient for the user to detach and clean the cage at the later stage, time is saved, the lug and the groove are attached to each other, the cage opening is fixed on the steel wire, and the fixity of the whole device is kept;
the dust removal cloth bag is wrapped outside the steel wires, the steel wires in the dust removal cloth bag play a supporting role on the dust removal cloth bag, the dust removal cloth bag is prevented from collapsing, meanwhile, the dust removal cloth bag is movably connected with the elastic band, the dust removal cloth bag is fixed outside the whole cage through the elastic band, and a user can install and detach the dust removal cloth bag by controlling the tightness degree of the elastic band, so that the time is saved, and the user can clean the dust removal cloth bag in time;
the user can be manual with the buckle of steel wire right-hand member bolt put into the draw-in groove for be connected at the bottom of steel wire and the cage, tie through the buckle at the bottom of the cage and fix on whole cage, later stage also convenient to use person dismantles it simultaneously and washs, the outside outer wall of buckle bolt closely laminates with the inside inner wall of draw-in groove, make at the bottom of the cage and steel wire fixed connection, avoid the later stage to carry out the during operation production and rock, lead to at the bottom of the cage and the separation of steel wire.
Drawings

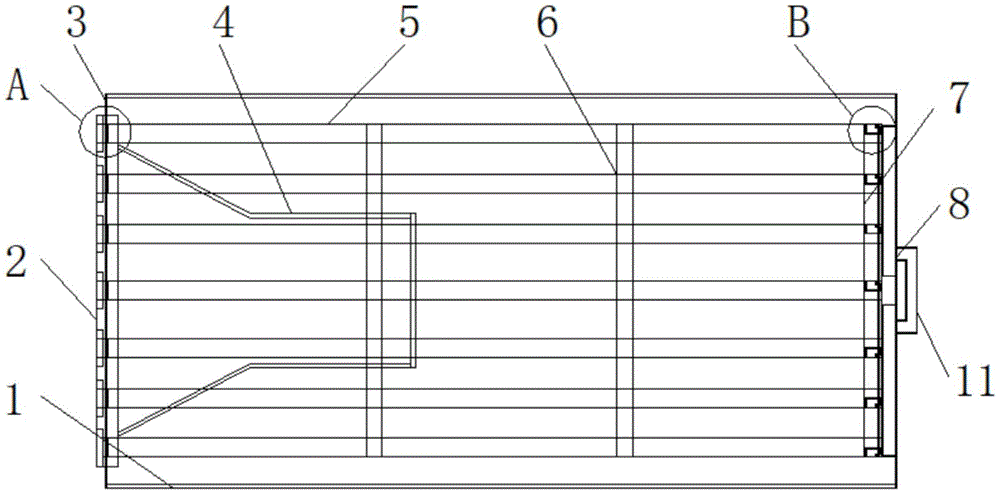

FIG. 1 is a schematic view of the front view of the internal structure of the present invention;
FIG. 2 is a right side view of the structure of the present invention;
FIG. 3 is an enlarged schematic view of the structure at A of FIG. 1 according to the present invention;
fig. 4 is an enlarged schematic structural diagram of the point B in fig. 1 according to the present invention.
In the figure: 1. a dust removal cloth bag; 2. a cage opening; 3. elastic bands; 4. a dust inlet; 5. a steel wire; 6. a support ring; 7. a cage bottom; 8. a base; 9. a chute; 10. a slider; 11. a fixing buckle; 12. a bump; 13. A groove; 14. a buckle bolt; 15. a clamping groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a dust removal cloth bag with a detachable cage comprises a dust removal cloth bag 1, a cage opening 2, an elastic band 3, a dust inlet 4, a steel wire 5, a support ring 6, a cage bottom 7, a base 8, a sliding groove 9, a sliding block 10, a fixing buckle 11, a convex block 12, a groove 13, a buckle bolt 14 and a clamping groove 15, wherein the steel wire 5 is arranged inside the dust removal cloth bag 1, the convex block 12 is arranged at the left end of the steel wire 5, the groove 13 is arranged outside the convex block 12, the cage opening 2 is arranged outside the groove 13, the dust inlet 4 is arranged at the right end of the cage opening 2, the elastic band 3 is arranged at the left end of the dust removal cloth bag 1, the buckle bolt 14 is arranged at the right end of the steel wire 5, the clamping groove 15 is arranged outside the buckle bolt 14, the cage bottom 7 is arranged outside the clamping groove 15, the base 8 is arranged in the middle of the right end of the cage bottom 7, the sliding block 10 is arranged inside the, a fixing buckle 11 is arranged in the middle of the right end of the base 8, and a support ring 6 is arranged inside the steel wire 5;
the cage opening 2 and the steel wire 5 form a clamping structure through the convex block 12, the convex block 12 and the groove 13 are mutually attached, a user can manually place the convex block 12 at the left end of the steel wire 5 into the groove 13 in the cage opening 2, so that the cage opening 2 and the steel wire 5 are tightly attached, the cage opening 2 is attached to the whole cage, meanwhile, the user can conveniently detach and clean the cage opening in the later period, the time is saved, the convex block 12 and the groove 13 are mutually attached, the cage opening 2 is fixed on the steel wire 5, and the fixation of the whole device is kept;
the steel wire 5 is wrapped inside the dust removal cloth bag 1, the dust removal cloth bag 1 is movably connected with the elastic band 3, the dust removal cloth bag 1 is wrapped outside the steel wire 5, the steel wire 5 inside the dust removal cloth bag 1 plays a supporting role in the dust removal cloth bag 1, the dust removal cloth bag 1 is prevented from collapsing, meanwhile, the dust removal cloth bag 1 is movably connected with the elastic band 3, the dust removal cloth bag 1 is fixed outside the whole cage through the elastic band 3, a user can install and detach the dust removal cloth bag 1 by controlling the tightness degree of the elastic band 3, time is saved, and the user can clean the dust removal cloth bag in time;
the steel wires 5 are symmetrically distributed, the steel wires 5 are in welded connection with the support rings 6, the steel wires 5 are uniformly distributed outside the cage, so that the whole device can support the dust removal cloth bag 1, the support rings 6 are arranged inside the steel wires 5, the support rings 6 are distributed inside the steel wires 5, the steel wires 5 are fixed, the whole device is fixed, the steel wires 5 are in welded connection with the support rings 6, and the fixed connectivity of the whole device is improved;
the steel wire 5 and the cage bottom 7 form a buckle structure through the buckle bolt 14, the outer wall of the buckle bolt 14 is tightly attached to the inner wall of the clamp groove 15, a user can manually place the buckle bolt 14 at the right end of the steel wire 5 into the clamp groove 15 to enable the steel wire 5 to be connected with the cage bottom 7, the cage bottom 7 is fixed on the whole cage through the buckle bolt 14, meanwhile, the cage is convenient to detach and clean by the user in the later period, the outer wall of the buckle bolt 14 is tightly attached to the inner wall of the clamp groove 15 to enable the cage bottom 7 to be fixedly connected with the steel wire 5, and the cage bottom 7 and the steel wire 5 are prevented from shaking when the cage bottom 7 is in later period working and separated from each other;
The working principle is as follows: for the dust removal cloth bag with the detachable cage, a user firstly manually sleeves the dust removal cloth bag 1 outside the cage, then tightens the elastic band 3 to fix the dust removal cloth bag 1 outside the cage 2, then introduces dust into the interior through the dust inlet 4, then filters the dust in the interior of the dust removal cloth bag 1 through diffusing the dust, filters the dust, after the filtering is completed, the user loosens the elastic band 3, then takes the dust removal cloth bag 1 off the cage, then takes the fastening bolt 14 at the right end of the steel wire 5 out of the fastening groove 15, further separates the steel wire 5 from the cage bottom 7, then manually takes the lug 12 at the left end of the steel wire 5 out of the groove 13 in the cage mouth 2, thereby separating the cage mouth 2 from the steel wire 5, after the whole device is disassembled, the user can conveniently clean the dust removal cloth bag, the next use is convenient, when the device is not used, the user takes off from cage bottom 7 fixed knot 11, then slides base 8 in spout 9 through slider 10 to increase the area of contact on whole base 8 and ground, be convenient for place whole device, make its stable support subaerial.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a dust removal sack with detachable cage, includes dust removal sack (1) and dust inlet (4), its characterized in that: the dust removing bag is characterized in that a steel wire (5) is arranged inside the dust removing bag (1), a convex block (12) is arranged at the left end of the steel wire (5), a groove (13) is arranged outside the convex block (12), a cage opening (2) is arranged outside the groove (13), a dust inlet (4) is arranged at the right end of the cage opening (2), an elastic band (3) is arranged at the left end of the dust removing bag (1), a buckle bolt (14) is arranged at the right end of the steel wire (5), a clamping groove (15) is arranged outside the buckle bolt (14), a cage bottom (7) is arranged outside the clamping groove (15), a base (8) is arranged in the middle of the right end of the cage bottom (7), a sliding block (10) is arranged inside the lower end of the base (8), a sliding groove (9) is arranged outside the sliding block (10), a fixing buckle (11) is arranged in the middle of the right end of, and a support ring (6) is arranged in the steel wire (5).
2. The dusting cloth bag with detachable cage of claim 1, characterized in that: the cage opening (2) and the steel wire (5) form a clamping structure through the convex block (12), and the convex block (12) and the groove (13) are mutually attached.
3. The dusting cloth bag with detachable cage of claim 1, characterized in that: the steel wire (5) is wrapped inside the dust removal cloth bag (1), and the dust removal cloth bag (1) is movably connected with the elastic band (3).
4. The dusting cloth bag with detachable cage of claim 1, characterized in that: the steel wires (5) are symmetrically distributed, and the steel wires (5) are connected with the support ring (6) in a welding mode.
5. The dusting cloth bag with detachable cage of claim 1, characterized in that: the steel wire (5) forms a buckle structure with the cage bottom (7) through a buckle bolt (14), and the outer wall of the buckle bolt (14) is tightly attached to the inner wall of the clamp groove (15).
6. The dusting cloth bag with detachable cage of claim 1, characterized in that: the cage bottom (7) and the base (8) form a sliding structure through the sliding block (10), and the base (8) is fixedly connected with the sliding block (10).
