CN213432053U

CN213432053U - A drainage fluid collection device for continuous flushing

Info

Publication number: CN213432053U
Application number: CN202021233853.7U
Authority: CN
Inventors: 华步芳; 陈香萍; 王春君
Original assignee: Sir Run Run Shaw Hospital of Zhejiang University School of Medicine
Current assignee: Sir Run Run Shaw Hospital of Zhejiang University School of Medicine
Priority date: 2020-06-29
Filing date: 2020-06-29
Publication date: 2021-06-15
Anticipated expiration: 2030-06-29

Abstract

The utility model disclosed by the utility model belongs to the technical field of medical devices, in particular to a drainage liquid collection device for continuous flushing, comprising a drainage collection bottle 1, a rubber stopper is embedded in the opening of the drainage collection bottle 1, and the rubber stopper is inserted with a Joint one and joint two, the joint two is connected with a suction tube, the suction tube is connected with a Y-shaped tube one, and the other two outlets of the Y-shaped tube are connected with a suction tube, and the joint one is connected to the suction tube through the suction tube. The leather tube is connected with a Y-shaped tube 2, and the other two outlets of the Y-shaped tube 2 are respectively connected with a negative pressure bottle and a drainage collection bottle 2, and the drainage collection bottle 2 is connected with a Y-shaped tube 3. The liquid collection bottle and the suction tube are integrated into one. When it is needed, it is directly connected to the pipeline of the patient to be flushed. The color, character and quantity of the flushing fluid of a certain pipeline of the patient can be observed to judge the patient's condition. Simplify the connection method, reduce the workload of nurses, and make nursing work more convenient.

Description

Drainage liquid collecting device for continuous flushing

Technical Field

The utility model relates to the technical field of medical equipment, specifically a drainage liquid collection device for continuously washing.

Background

Acute severe pancreatitis has become one of the important disease species of the severe medical science.

In view of the fact that the department is a key subcategory for abdominal infection and severe pancreatitis in hospitals, patients with acute severe pancreatitis and abdominal infection and postoperative complicated fistula have more cases. In the traditional method, the abdominal cavity is infected by systemic or local medication, and the digestive fistula is operated again after the operation, so that the wound of a patient is large, and the treatment effect is uncertain.

Continuous irrigation and drainage are a simple and effective treatment method with small wound. After the abdominal cavity is washed, the digestive juice is diluted and then is led out, so that the chances of abdominal cavity infection and bleeding are reduced; the continuous water flow flushing can avoid the blockage of large necrotic tissues to the drainage pipe orifice and ensure the smooth drainage; the digestive tract liquid is prevented from overflowing out of the skin from the periphery of the drainage tube mouth to cause skin erosion and infection.

The patient after the operation is washed and drained is brought into the double-sleeve for continuous washing and drainage. The drainage liquid negative pressure suction tube and the collection device are temporarily assembled and need to be prepared in advance. The number of the double sleeves is large, and the connected negative pressure suction tubes need to be connected in series and assembled by Y-shaped connecting tubes. How to assemble and the number of suction tubes required are difficult to judge for a nurse with low annual capital.

SUMMERY OF THE UTILITY MODEL

The utility model discloses the problem that solves is: the utility model provides a drainage liquid collection device for lasting washing simplifies the connected mode, reduces nurse's work load, makes nursing work more convenient.

The utility model provides a technical scheme that its technical problem adopted is: a drainage liquid collecting device for continuous flushing comprises a first drainage liquid collecting bottle, a rubber stopper, a through hole, a first connector, a second connector, a suction leather hose, a first Y-shaped pipe, a second Y-shaped pipe, a negative pressure bottle, a second drainage liquid collecting bottle and a third Y-shaped pipe, wherein the rubber stopper is embedded into the opening of the first drainage liquid collecting bottle, the rubber stopper is provided with two through holes, the first connector and the second connector are installed in the two through holes, the second connector is connected with the suction leather hose, the first suction leather hose is connected with the first Y-shaped pipe, the other two outlets of the first Y-shaped pipe are connected with the suction leather hose, the first connector is connected with the second Y-shaped pipe through the suction leather hose, the negative pressure bottle is arranged on the left side of the first drainage liquid collecting bottle, the first negative pressure bottle is provided with the first connector and the second connector, the second connector is connected with the second Y-shaped pipe through the suction leather hose, the first connector is connected with the suction leather, the rubber stopper is embedded into the opening of the second drainage liquid collecting bottle, two through holes are formed in the rubber stopper, a first connector and a second connector are installed in the through holes, the first connector of the second drainage liquid collecting bottle is connected with the second Y-shaped tube through a suction leather tube, the second connector of the second drainage liquid collecting bottle is connected with the third Y-shaped tube through the suction leather tube, and the rest two outlets of the third Y-shaped tube are connected with the suction leather tube.

As a preferred scheme for a drainage liquid collection device for continuously washing, wherein: drainage liquid collecting bottle one and drainage liquid collecting bottle two are the glass bottle and all are equipped with the scale mark on the body, can observe drainage liquid and measurement, adjust the flush fluid and instil into speed, are convenient for observe patient's situation.

As a preferred scheme for a drainage liquid collection device for continuously washing, wherein: the Y-shaped tube I, the Y-shaped tube II and the Y-shaped tube III are in the same specification, and certain conicity is arranged at the interface, so that mutual replacement is facilitated, and the Y-shaped tube I, the Y-shaped tube II and the Y-shaped tube II are favorable for being inserted into an attraction leather hose.

As a preferred scheme for a drainage liquid collection device for continuously washing, wherein: the first connector and the second connector are arranged in the through holes, the sizes of the two through holes are equal, the first connector and the second connector are the same in specification and can be replaced mutually, and time waste during operation is avoided.

As a preferred scheme for a drainage liquid collection device for continuously washing, wherein: attract the leather hose to make for transparent silica gel, silica gel is soft, and the crooked speed of dripping into of flushing fluid can be controlled to the colour that can observe the suction liquid.

Compared with the prior art: with drainage liquid receiving flask and suction leather hose through the parallelly connected collection of Y venturi tube in an organic whole, directly take to connect the pipeline that the patient washed when needs use, can be directed against the flush fluid of certain pipeline of patient, be convenient for observe its colour, property, volume and judge patient's situation, simplified the connected mode, reduced nurse's work load, the time nursing worker is more convenient.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the present invention will be described in detail with reference to the accompanying drawings and detailed embodiments, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive labor. Wherein:

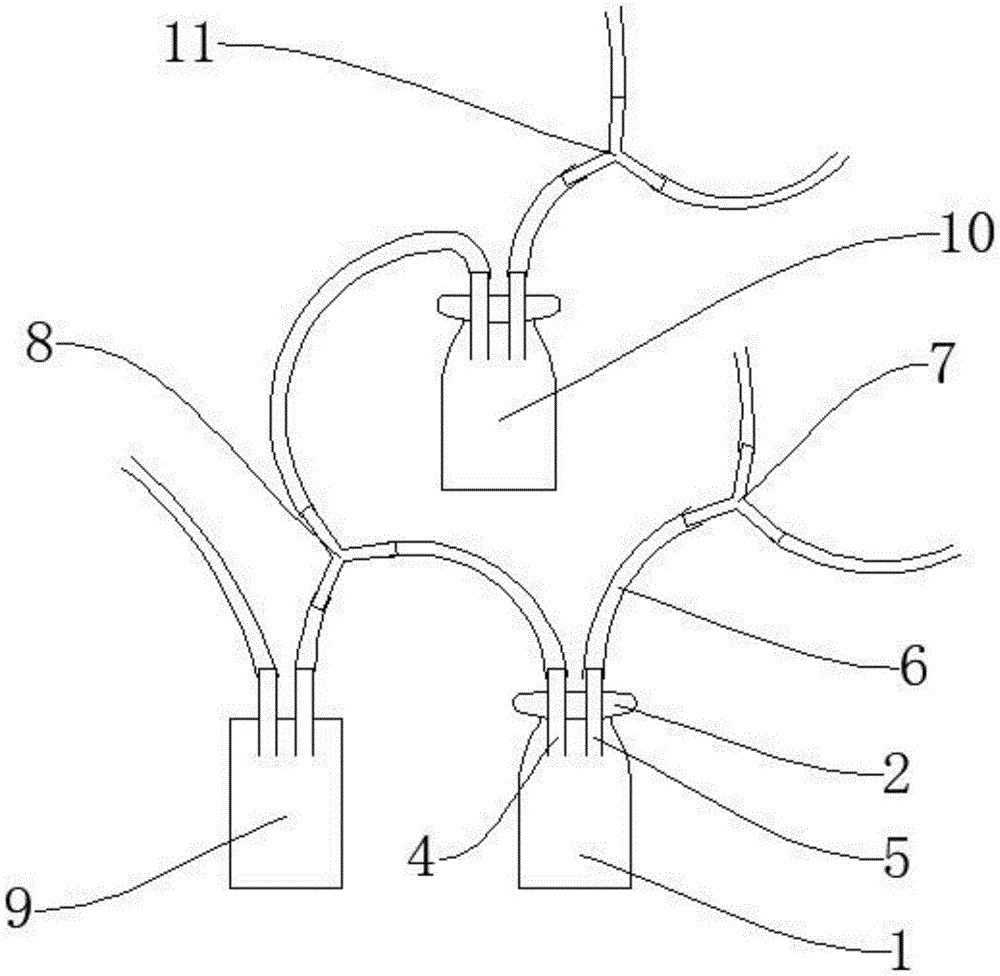

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the drainage fluid collection bottle of the present invention;

fig. 3 is a schematic view of the Y-shaped tube of the present invention:

FIG. 4 is the top view of the drainage liquid collecting bottle of the utility model.

In the figure, 1, a drainage liquid collecting bottle I; 2. a rubber stopper; 3. a through hole; 4. a first connector; 5. a second joint; 6. Sucking the leather hose; 7. a Y-shaped pipe I; 8. a Y-shaped tube II; 9. a negative pressure bottle; 10. a drainage liquid collecting bottle II; 11. And a Y-shaped pipe III.

Detailed Description

In order to make the above objects, features and advantages of the present invention more comprehensible, embodiments of the present invention are described in detail below with reference to the accompanying drawings.

In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, but the present invention may be implemented in other ways than those specifically described herein, and one skilled in the art may similarly generalize the present invention without departing from the spirit of the present invention, and therefore the present invention is not limited to the specific embodiments disclosed below.

Next, the present invention will be described in detail with reference to the schematic drawings, and in the detailed description of the embodiments of the present invention, for convenience of explanation, the sectional view showing the device structure will not be enlarged partially according to the general scale, and the schematic drawings are only examples, and should not limit the scope of the present invention. In addition, the three-dimensional dimensions of length, width and depth should be included in the actual fabrication.

In order to make the objects, technical solutions and advantages of the present invention clearer, embodiments of the present invention will be described in further detail below with reference to the accompanying drawings.

The utility model provides an motormeter dish panel injection mold, please refer to fig. 1, the embedding of drainage liquid collecting bottle 1 opening part has rubber stopper 2, rubber stopper 2 installs first 4 of joint and connects two 5, it is connected with and attracts leather hose 6 to connect two 6, attract leather hose 6 to make for transparent silica gel, and silica gel is soft, and the crooked speed of instiling into of flush fluid can be controlled to the colour that can observe the suction liquid. The suction leather hose 6 is connected with a Y-shaped hose I7, the other two outlets of the Y-shaped hose I7 are connected with suction leather hoses 6, the first joint 4 is connected with a Y-shaped hose II 8 through the suction leather hose 6, the left side of the first drainage liquid collecting bottle 1 is provided with a negative pressure bottle 9, the negative pressure bottle 9 is provided with a first joint 4 and a second joint 5, the second joint 5 is connected with the Y-shaped hose II 8 through the suction leather hose 6, the first joint 4 is connected with the suction leather hose 6, the negative pressure bottle 9 provides pressure to facilitate drainage liquid discharge, a second drainage liquid collecting bottle 10 is arranged above the first drainage liquid collecting bottle 1, a rubber plug 2 is embedded in an opening of the second drainage liquid collecting bottle 10, the rubber plug 2 is provided with two through holes 3, the first joint 4 and the second joint 5 are installed on the two through holes 3, the first joint 4 of the second drainage liquid collecting bottle 10 is connected with the Y-shaped hose II 8 through the suction leather hose, the connector two 5 of the drainage liquid collecting bottle two 10 is connected with a Y-shaped tube three 11 through a suction leather hose 6, the other two outlets of the Y-shaped tube three 11 are connected with a suction leather hose 6, the negative pressure bottle 9 connects the drainage liquid collecting bottle one 1 and the drainage liquid collecting bottle 10 in parallel through a Y-shaped tube 8 and the suction leather hose 6, the quantity of the suction leather hose 6 and the Y-shaped tube is determined according to the quantity of double sleeves which need to be washed by a patient, and drainage can be simultaneously carried out on different parts of the patient.

Referring to fig. 2, the first drainage fluid collecting bottle 1 and the second drainage fluid collecting bottle 10 are glass bottles, and are provided with scale marks on the bottle body, so that drainage fluid and measurement can be observed, the dropping speed of flushing fluid can be adjusted, the condition of a patient can be observed conveniently, and the first connector 4 and the second connector 5 are equal in size and can be connected with a Y-shaped pipe, so that the flow of the drainage fluid is facilitated.

Referring to fig. 3, the first Y-shaped tube 7, the second Y-shaped tube 8 and the third Y-shaped tube 11 have the same specification and have a certain taper at the interface, so that the tubes can be replaced with each other conveniently, and can be inserted into the suction leather hose, the Y-shaped tubes have the function of branch connection, and the first drainage liquid collecting bottle 1 and the second drainage liquid collecting bottle 10 are connected in parallel through the suction leather hose 6, so that drainage and observation can be performed on different parts.

Referring to fig. 4, the rubber stopper 2 is embedded in the opening of the drainage fluid collection bottle 1, the rubber stopper 4 is symmetrically provided with two through holes 3 with respect to the center thereof, the first connector 4 and the second connector 5 are installed in the through holes 3, the two through holes 3 are equal in size, the first connector 4 and the second connector 5 have the same specification and can be replaced with each other, and time waste during operation is avoided.

The utility model discloses when concrete implementation, with the suction leather hose 6 of the all the other two exports of Y venturi tube 7 and the interior suction union coupling of patient's end, with the suction leather hose 6 of the all the other two exports of Y venturi tube three 11 and the interior suction union coupling of patient's end, the suction leather hose 6 that will be connected with negative pressure bottle 9 is connected to wall formula negative pressure, open wall formula negative pressure, connect in parallel drainage fluid receiving flask one 1 and two 10 drainage fluid receiving flasks through Y venturi tube two 8, the drainage fluid enters into in drainage fluid receiving flask one 1 and two 10 drainage fluid receiving flasks through Y venturi tube one 7 and three 11 of Y venturi tube through suction leather hose 6, can adjust the speed of instiling into of flush fluid through the colour and the drainage fluid receiving flask one 1 of observation drainage fluid in the suction leather hose 6, drainage fluid volume and the property in the drainage fluid receiving flask two 10.

While the invention has been described above with reference to an embodiment, various modifications may be made and equivalents may be substituted for elements thereof without departing from the scope of the invention. In particular, as long as there is no structural conflict, the various features of the disclosed embodiments of the present invention can be used in any combination with each other, and the non-exhaustive description of these combinations in this specification is merely for the sake of brevity and resource conservation. Therefore, it is intended that the invention not be limited to the particular embodiments disclosed, but that the invention will include all embodiments falling within the scope of the appended claims.

Claims

1. The utility model provides a drainage liquid collection device for continuously washing, includes drainage liquid receiving flask one (1), rubber stopper (2), through-hole (3), joint one (4), joint two (5), attracts leather hose (6), Y venturi tube one (7), Y venturi tube two (8), negative pressure bottle (9), drainage liquid receiving flask two (10), Y venturi tube three (11), its characterized in that: the drainage liquid collecting bottle is characterized in that a rubber plug (2) is embedded into an opening of a first drainage liquid collecting bottle (1), two through holes (3) are formed in the rubber plug (2), a first connector (4) and a second connector (5) are installed in the two through holes (3), the second connector (5) is connected with a suction leather hose (6), the suction leather hose (6) is connected with a first Y-shaped pipe (7), the other two outlets of the first Y-shaped pipe (7) are connected with the suction leather hose (6), the first connector (4) is connected with a second Y-shaped pipe (8) through the suction leather hose (6), a negative pressure bottle (9) is arranged on the left side of the first drainage liquid collecting bottle (1), the negative pressure bottle (9) is provided with a first connector (4) and a second connector (5), the second connector (5) is connected with the second Y-shaped pipe (8) through the suction leather hose (6), the first connector (4) is connected with the suction leather hose (6), and a second drainage liquid collecting bottle (10) is arranged above the first, the utility model discloses a drainage liquid collection bottle, including drainage liquid collection bottle two (10), rubber stopper (2) are embedded into to the opening part, two through-holes (3) have been seted up in rubber stopper (2), two connect (4) and connect two (5) are installed in through-hole (3), Y venturi tube two (8) are connected through attracting leather hose (6) in joint (4) of drainage liquid collection bottle two (10), connect two (5) of drainage liquid collection bottle two (10) are connected with Y venturi tube three (11) through attracting leather hose (6), all the other two exports of Y venturi tube three (11) all are connected with and attract leather hose (6).

2. The drainage fluid collection device for continuous flushing of claim 1, wherein the first drainage fluid collection bottle (1) and the second drainage fluid collection bottle (10) are both glass bottles and are provided with scale marks on the bottle body.

3. The drainage fluid collection device for continuous flushing according to claim 1, wherein the Y-shaped tube I (7), the Y-shaped tube II (8) and the Y-shaped tube III (11) are the same in size and are provided with a certain taper at the interface.

4. The drainage fluid collection device for continuous irrigation of claim 1, wherein the two through holes (3) are equal in size.

5. The drainage collection device for continuous irrigation as recited in claim 1, wherein the suction catheter (6) is made of transparent silica gel.
