Abstract
本实用新型公开了一种椅式妇科坐浴护理用坐浴椅，本实用新型涉及妇科技术领域，包括坐浴椅以及组成坐浴椅的支撑椅架、坐浴板、固定椅架和扶手架，所述坐浴椅由支撑椅架、坐浴板、固定椅架和扶手架组成，所述固定椅架安装在坐浴板的一侧，所述扶手架的一侧与固定椅架固定连接，且扶手架的底部与支撑椅架固定连接，所述坐浴板的中间位置处开设有固定槽，且坐浴板上铺设有海绵垫，本实用新型通过设置支撑椅架、坐浴板、固定椅架和扶手架，将坐浴盆放在坐浴板上的固定槽内，病人可坐在坐浴板上，背靠在靠垫上，支撑椅架与日常所坐的椅子高度一致，更加舒适，解决了病人长时间下蹲引起体位性低血压等不适的问题。
The utility model discloses a chair-type gynecological sitz bath nursing sitz chair, which relates to the technical field of gynecology. , the bathing chair is composed of a supporting chair frame, a bathing board, a fixed chair frame and an armrest frame, the fixed chair frame is installed on one side of the bathing board, and one side of the armrest frame is fixedly connected with the fixed chair frame , and the bottom of the armrest frame is fixedly connected with the supporting chair frame, the middle position of the bathing board is provided with a fixing groove, and the bathing board is laid with a sponge pad. Fix the chair frame and armrest frame, place the bidet in the fixing groove on the bidet, and the patient can sit on the bidet with his back on the cushion. , to solve the problem of discomfort such as orthostatic hypotension caused by patients squatting for a long time.
Description
Technical Field
The utility model belongs to the technical field of gynaecology, concretely relates to hip bath chair is used in nursing of chair formula gynaecology hip bath.
Background
The department of gynecology is a diagnosis and treatment subject of medical institutions, the department of gynecology is a branch of department of gynecology, and the department of gynecology is a professional department taking female gynecopathy as diagnosis and treatment, and is divided into western medicine gynecopathy and traditional Chinese medicine gynecopathy. The gynecological diseases include female reproductive system diseases, such as vulvar diseases, vaginal diseases, uterine diseases, fallopian tube diseases, ovarian diseases, etc., and the gynecological diseases are only diseases suffered by the female reproductive system in the medical science with the gynecological diseases as subjects. The gynecological diseases can be classified into various types, and commonly include hysteromyoma, ovarian cyst, vaginitis, cervicitis, cervical erosion, pelvic inflammatory disease, adnexitis, functional uterine bleeding, breast diseases, infertility, irregular menstruation, endometritis, abnormal leucorrhea and the like. From the young, the female should understand the basic medical knowledge of menstruation, fertility, pregnancy, parturition, menopause, etc., and always maintain optimistic mood, thus avoiding or reducing the occurrence of some gynecological diseases.
In the gynecological nursing process, a hip bath fumigation and washing mode is usually used for treatment, but the existing hip bath chair has some defects in the using process, for example, the hip bath chair is low, a patient needs to squat and sit on a hip bath tub, and the patient squats for a long time to cause discomfort such as postural hypotension and the like; and the hip bath chair has single function, does not have the function of massaging while hip bath, and is inconvenient to use.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a hip bath chair is used in nursing of chair formula gynaecology's hip bath to solve the problem that the patient who provides in the above-mentioned background art squats down for a long time and arouses discomfort such as postural hypotension and hip bath chair's function singleness.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a hip bath chair is used in nursing of seat formula gynaecology hip bath, includes the hip bath chair and constitutes the support chair frame, the board of bathing, fixed chair frame and the handrail frame of hip bath chair, the hip bath chair comprises support chair frame, the board of bathing, fixed chair frame and handrail frame, one side at the board of bathing is installed to fixed chair frame, one side and fixed chair frame fixed connection of handrail frame, and the bottom of handrail frame with support chair frame fixed connection, the fixed slot has been seted up to the intermediate position department of the board of bathing, and the hip bath board upper berth is equipped with the foam-rubber cushion, the bidet has been placed in the fixed slot, install the cushion on the fixed chair frame, install massage device on the cushion.
Preferably, the massage device is internally provided with a vibration motor and a massage cushion, and the massage cushion is wrapped outside the vibration motor.
Preferably, handrail frame and support chair frame all are provided with two, and two handrail frames are located the top of two support chair frames and the both sides of cushion respectively, two all be provided with the handrail pad on the handrail frame.
Preferably, a reinforcing rod is arranged between the two supporting chair frames, and the bottoms of the two supporting chair frames are respectively sleeved with an anti-slip mat.
Preferably, the bidet is of a circular truncated cone structure, and a clamping ring is arranged at the edge of the top end of the bidet and clamped on the fixing groove.
Preferably, the bottom of the hip bath board is provided with an auxiliary fixing frame, the auxiliary fixing frame is provided with a fixing plate, and the fixing plate is provided with a groove matched with the hip bath tub.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) the utility model discloses a set up support chair frame, bathing board, fixed chair frame and handrail frame, put the fixed slot on bathing board with the bidet, patient can sit on bathing board, leans against on the cushion, supports chair frame and the daily chair highly uniform who sits, and is more comfortable, and it is lower to have solved the bathing chair, needs patient to squat down and sits on the bidet, and patient squats down for a long time and arouses uncomfortable problems such as postural hypotension.
(2) The utility model discloses a set up massage device, installation device fixes on the back cushion, drives massage pad vibration through the vibrating motor vibration, massages patient's waist, massages in hip bath, and the effect is better, has solved hip bath chair's function singleness, does not possess the problem of massaging in hip bath.
Drawings

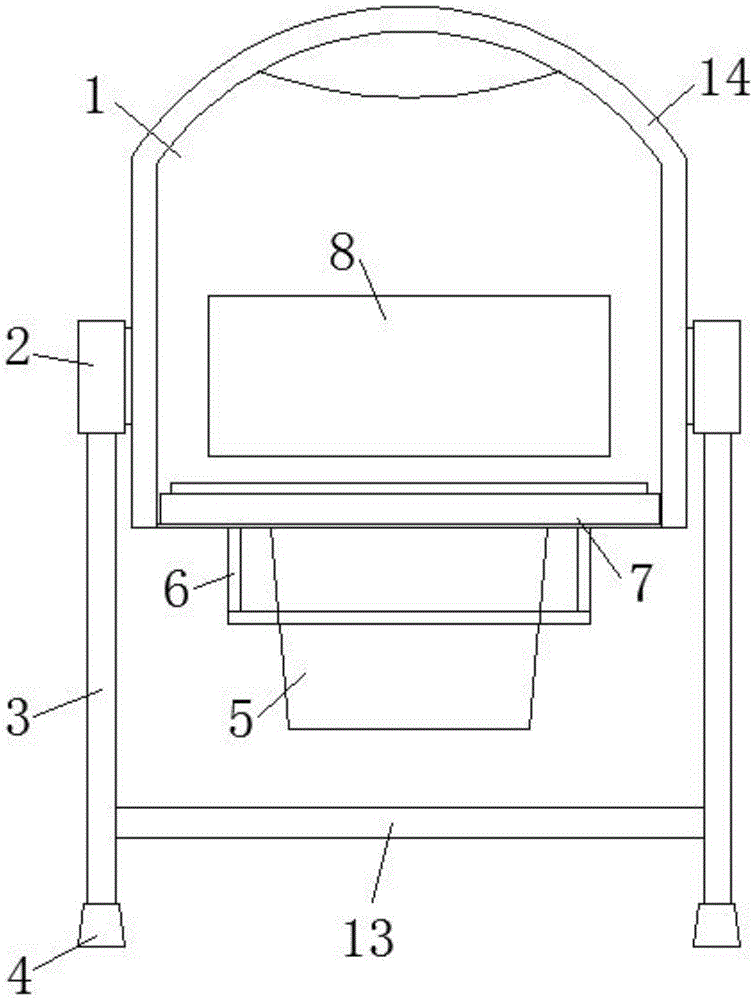

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a side view of the present invention;
FIG. 3 is a top view of the hip bath board of the present invention;
FIG. 4 is a schematic structural view of the bidet of the present invention;
FIG. 5 is a view showing an internal structure of the massage device of the present invention;
in the figure: 1-back cushion; 2-armrest pad; 3-supporting the chair frame; 4-a non-slip mat; 5-bidet; 6-auxiliary fixing frame; 7-sitting bath board; 8-a massage device; 9-a spongy cushion; 10-a fixed groove; 11-snap ring; 12-a vibration motor; 13-reinforcing rods; 14-fixing the chair frame; 15-handrail frame.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides the following technical solutions: a hip bath chair for chair type gynecological hip bath nursing comprises a hip bath chair, a supporting chair frame 3, a hip bath board 7, a fixed chair frame 14 and a handrail frame 15, wherein the supporting chair frame 3, the hip bath board 7, the fixed chair frame 14 and the handrail frame 15 form the hip bath chair, the fixed chair frame 14 is installed on one side of the hip bath board 7, one side of the handrail frame 15 is fixedly connected with the fixed chair frame 14, the bottom of the handrail frame 15 is fixedly connected with the supporting chair frame 3, a fixed groove 10 is formed in the middle position of the hip bath board 7, a sponge cushion 9 is paved on the hip bath board 7, a groove corresponding to the fixed groove 10 is formed in the sponge cushion 9 so as to facilitate fumigation, a bidet 5 is placed in the fixed groove 10, a back cushion 1 is installed on the fixed chair frame 14, and a massage device 8 is installed on the back cushion 1.
When carrying out fumigation and washing hip bath, mix liquid medicine and put into hip bath 5 in, then put into the fixed slot 10 on the hip bath board 7 to hip bath 5 in, lay sponge mat 9 on hip bath board 7 after putting, it is enough comfortable enough to guarantee that patient sits on the chair, patient can put the hand on handrail pad 2 of handrail frame 15, and lean on cushion 1, start vibrating motor 12, drive the vibration of massage pad through vibrating motor 12 vibration, massage patient's waist, massage when hip bath, it is more comfortable.
Further, a vibration motor 12 and a massage cushion are provided inside the massage device 8, and the massage cushion is wrapped outside the vibration motor 12. The vibration motor 12 is electrically connected with an external power supply, and the model of the vibration motor 12 is R260.
Further, the two armrest frames 15 and the two supporting chair frames 3 are arranged, the two armrest frames 15 are respectively located at the top ends of the two supporting chair frames 3 and at the two sides of the back cushion 1, and the two armrest frames 15 are respectively provided with the armrest cushion 2.
Further, a reinforcing rod 13 is arranged between the two supporting chair frames 3, and the bottoms of the two supporting chair frames 3 are all sleeved with anti-slip pads 4. The reinforcing rod 13 makes the supporting chair frame 3 more stably placed, and the non-slip mat 4 plays a role in preventing the supporting chair frame 3 from sliding.
Further, the bidet 5 is a circular truncated cone structure, and a snap ring 11 is arranged at the edge of the top end of the bidet 5, and the snap ring 11 is snapped on the fixing groove 10.
Furthermore, an auxiliary fixing frame 6 is arranged at the bottom of the hip bath board 7, a fixing board is arranged on the auxiliary fixing frame 6, and a groove matched with the hip bath 5 is formed in the fixing board. The auxiliary fixing frame 6 is used for fixing the bidet 5, so that the bidet can be placed more stably.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a chair formula gynaecology is hip bath nursing with hip bath chair which characterized in that: including hip bath chair and constitute support chair frame (3), hip bath board (7), fixed chair frame (14) and handrail frame (15) of hip bath chair, hip bath chair comprises support chair frame (3), hip bath board (7), fixed chair frame (14) and handrail frame (15), one side at hip bath board (7) is installed in fixed chair frame (14), one side and fixed chair frame (14) fixed connection of handrail frame (15), and the bottom and the support chair frame (3) fixed connection of handrail frame (15), fixed slot (10) have been seted up in the intermediate position department of hip bath board (7), and sit bath board (7) upper berth and be equipped with foam-rubber cushion (9), bidet (5) have been placed in fixed slot (10), install back cushion (1) on fixed chair frame (14), install massage device (8) on back cushion (1).
2. The chair-type hip bath chair for gynecological hip bath nursing according to claim 1, characterized in that: the massage device (8) is internally provided with a vibration motor (12) and a massage cushion, and the massage cushion is wrapped on the outer side of the vibration motor (12).
3. The chair-type hip bath chair for gynecological hip bath nursing according to claim 1, characterized in that: handrail frame (15) and support chair frame (3) all are provided with two, and two handrail frames (15) are located the top of two support chair frames (3) and the both sides of cushion (1) respectively, two all be provided with handrail pad (2) on handrail frame (15).
4. The chair-type hip bath chair for gynecological hip bath nursing according to claim 3, characterized in that: two be provided with stiffener (13) between support chair frame (3), and the bottom of two support chair frames (3) all overlaps and is equipped with slipmat (4).
5. The chair-type hip bath chair for gynecological hip bath nursing according to claim 1, characterized in that: the bidet (5) is of a circular truncated cone structure, a clamping ring (11) is arranged at the edge of the top end of the bidet (5), and the clamping ring (11) is clamped on the fixing groove (10).
6. The chair-type hip bath chair for gynecological hip bath nursing according to claim 1, characterized in that: an auxiliary fixing frame (6) is installed at the bottom of the hip bath board (7), a fixing plate is arranged on the auxiliary fixing frame (6), and a groove matched with the hip bath tub (5) is formed in the fixing plate.
