Abstract

The utility model discloses a kidney warming plaster with heating function, which belongs to the kidney warming field, and comprises a breathable gauze, wherein the front side of the breathable gauze is provided with a glue layer, the left front side of the glue layer is provided with a dividing strip, the front side central position of the breathable gauze is provided with a heat conduction ring, the inside of the heat conduction ring is provided with a soaking sponge, the inner side of the heat conduction ring is provided with a placement groove, the breathable gauze is connected with a second oily paper through the rear side stitching of an extrusion positioning line, the extrusion positioning line is arranged at the periphery of the rear side of the breathable gauze, the inside of the extrusion positioning line is fixedly provided with a heating bag, the heating bag comprises a heat insulation material, the inner side of the heat insulation material is provided with iron powder, the front end of the heat insulation material is connected and installed with anti-scald fibers, the rear side of the central position of the anti-scald fibers is provided with a heat conduction groove, the inside of the, thereby bringing convenience to full play of drug effect.

Description

Kidney warming patch with heating function
Technical Field
The utility model relates to a warm kidney field, more specifically say, relate to a warm kidney subsides with heating function.
Background
Modern people often feel various discomforts under the same pressure of life and work, various functions of the body are obviously accelerated along with the increase of age, particularly people who often have remuneration have higher pressure to the body, and the kidney is warmed, namely the warm-keeping medicine tonifies the kidney and the yang, so that the medicine is suitable for kidney yin deficiency and life gate fire failure;
waist soreness and lumbago of chronic renal failure patients are very common clinically, and are thought to be caused by deficiency of the kidney and qi stagnation and blood stasis in traditional Chinese medicine.
According to ancient and classical medicine of China, chronic renal failure patients are caused by kidney deficiency due to long course of disease, and vital essence of the kidney cannot nourish the tendons and vessels, so that the operation of the patients is not smooth; blood stasis is retained in the waist of patients with chronic renal failure and causes pain. Shenshu point, belonging to the bladder meridian of foot Taiyang, also known as Shenyu point: the kidney cold-damp water is transported out of the bladder channel by the high lid; shenque point, also known as umbilicus, Daoshu, Qihe and Lugu, belongs to the channel point of ren channel, and Shenque point is connected and communicated with the important channels, viscera and six fu-organs of human body, so that it can play a unique therapeutic role through its particularity, so it is called as "umbilicus-dredging all-pulse"; the asarum has the following effects: dispelling pathogenic wind, dispelling cold, promoting diuresis, inducing resuscitation, dispelling pathogenic wind and cold, and relieving pain; the cinnamon has the following effects: dilating blood vessel, promoting blood circulation, tranquilizing, and relieving pain.
The acupoint application belongs to the category of "Tian moxibustion" in acupuncture therapy, also called as application moxibustion method and medicinal moxibustion method; the traditional Chinese medicine powder with specific curative effect is blended into paste and then is pasted on specific acupuncture points, the medicine can penetrate through skin cuticle, hair follicle, sweat gland and the like, directly reaches the focus from outside to inside and from outside to inside through meridians, invigorates vital qi and resists the outward movement of evil; on the other hand, the acupuncture point stimulation has the similar curative effect as acupuncture, the acupuncture point stimulation can help to adjust the function of vegetative nerves, play a role in inhibiting sympathetic nerve excitability and exciting parasympathetic nerve excitability, and the acupuncture point stimulation can help to improve and recover the regulation effect of cerebral cortex and subcortical center on subcortical vasomotor center.
The waist soreness of most chronic renal failure patients is clinically relieved by western medicines, the toxic and side effects are large, the drug resistance is easy to generate, the kidney burden is increased most importantly, and the traditional Chinese medicine treatment means is more and more popular and valued. The traditional Chinese medicine operation has no side effect, the patient feels comfortable and painless, the price is low, and the patient is willing to accept the traditional Chinese medicine operation. The method can give full play to the characteristic advantages of traditional Chinese medicine, improve the nursing quality, and provide effective attempts for timely and effective high-quality nursing for patients; the traditional Chinese medicine nursing technology is nursing work under the guidance of the basic theory of traditional Chinese medicine, so that the nursing of the kidney is very critical, and the drug effect of the medicine is transmitted to the proper position of the body by adopting an external application mode at present to achieve the effect of warming the kidney;
however, the existing kidney warming patch does not have a heating function and is difficult to fully exert the drug effect.
SUMMERY OF THE UTILITY MODEL
1. Technical problem to be solved
To the problem that exists among the prior art, the utility model aims to provide a warm kidney subsides with heating function, it can realize having heating function to convenient full play drug effect.
2. Technical scheme
In order to solve the above problems, the utility model adopts the following technical proposal.
A kidney warming patch with a heating function comprises breathable gauze, wherein a glue layer is arranged on the front side of the breathable gauze, a dividing strip is arranged on the left front side of the glue layer, a heat conduction ring is arranged at the front side center position of the breathable gauze, soaking sponge is arranged inside the heat conduction ring, a placement groove is formed in the inner side of the heat conduction ring, a kidney warming piece is installed inside the placement groove, first oily paper is arranged on the front side of the kidney warming piece, the breathable gauze is connected with second oily paper through the rear side of an extrusion positioning line in a sewing mode, the extrusion positioning line is arranged on the periphery of the rear side of the breathable gauze, a heating bag is fixedly installed inside the extrusion positioning line and comprises a heat insulation material, iron powder is arranged on the inner side of the heat insulation material, anti-scald fibers are installed at the front end of the heat insulation material in a connecting mode, a heat conduction groove is formed in the rear side of the center position of the anti-scald fibers, vermiculite particles are arranged inside the heat conduction groove.
Furthermore, the boundary strip is bonded on the breathable gauze through a glue layer, and the size of the glue layer is matched with that of the first oil-coated paper, so that the kidney warming patch is conveniently connected with the skin.
Furthermore, the inside of heat conduction ring is porous structure, and the soaking sponge is filled in the inside of heat conduction ring, makes things convenient for the heat conduction.
Furthermore, the inside material of thermal-insulated material is fire-resistant cotton, the heating package sets up directly behind warm kidney piece, can effectual isolated heat to the influence of skin.
Furthermore, the heat conduction groove is annularly arranged, and the vermiculite particles are uniformly bonded in the heat conduction groove, so that heat preservation is facilitated.
3. Advantageous effects
Compared with the prior art, the utility model has the advantages of
(1) The scheme can realize the heating function, thereby conveniently and fully playing the drug effect.
(2) The boundary strip is bonded on the breathable gauze through the glue layer, and the size of the glue layer is matched with that of the first oil-coated paper, so that the kidney warming patch is conveniently connected with the skin.
(3) The inside of heat conduction ring is porous structure, and the soaking sponge is filled in the inside of heat conduction ring, makes things convenient for the heat conduction.
(4) The inside material of thermal-insulated material is fire-resistant cotton, the heating package sets up directly after warming kidney piece, can effectual isolated heat to the influence of skin.
(5) The heat conduction groove is annularly arranged, and the vermiculite particles are uniformly bonded in the heat conduction groove, so that heat preservation is facilitated.
Drawings

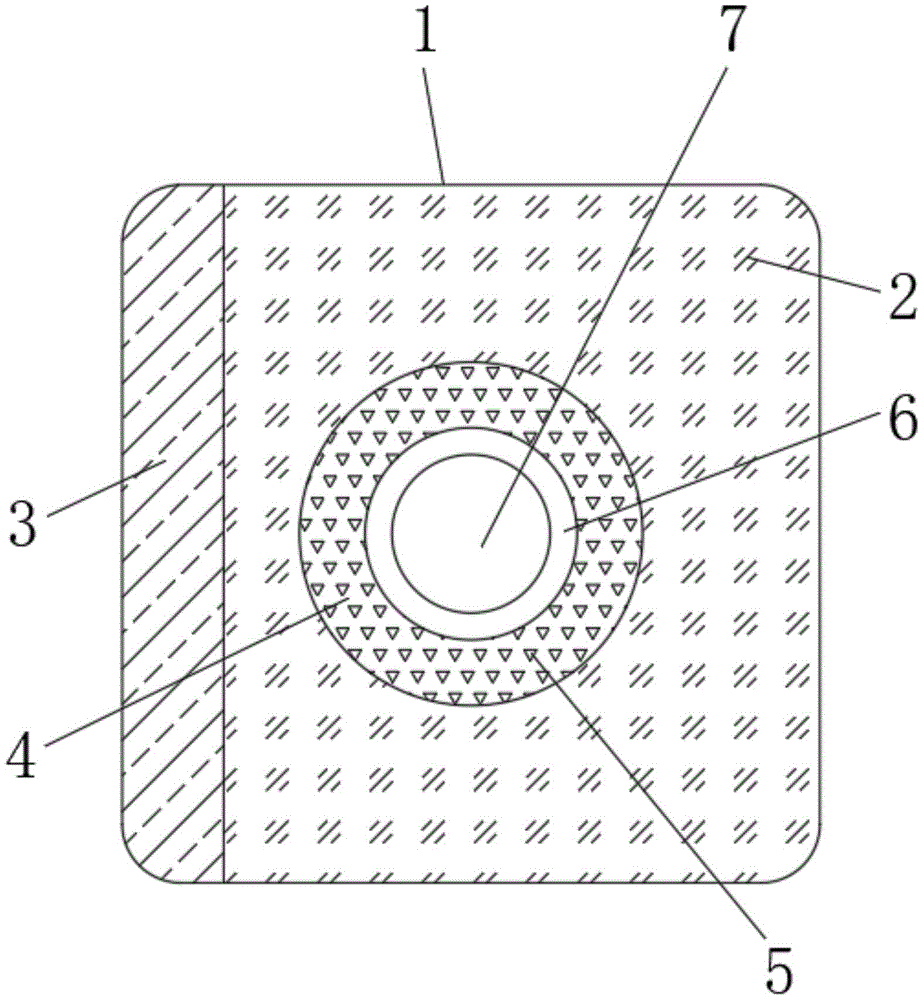

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;
fig. 2 is a schematic side view of the cross-sectional structure of the present invention;
fig. 3 is a schematic view of a rear view cross-sectional structure of the present invention.
The reference numbers in the figures illustrate:
1. breathable gauze; 2. a glue layer; 3. a dividing strip; 4. a heat conducting ring; 5. soaking sponge; 6. a placing groove; 7. warming kidney tablets; 8. a first glossy paper; 9. heating the bag; 10. a second glossy paper; 11. a heat insulation material; 12. iron powder; 13. a heat conducting groove; 14. vermiculite particles; 15. anti-scald fibers; 16. and extruding the positioning line.
Detailed Description
The technical solution in the embodiment of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiment of the present invention; obviously, the described embodiments are only a part of the embodiments of the present invention, and not all embodiments, and all other embodiments obtained by those skilled in the art without any inventive work are within the scope of the present invention based on the embodiments of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "top/bottom", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "provided", "sleeved/connected", "connected", and the like are to be understood in a broad sense, such as "connected", which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Example 1:
referring to fig. 1-3, a kidney warming patch with a heating function comprises an air permeable gauze 1, a glue layer 2 is arranged on the front side of the air permeable gauze 1, a dividing strip 3 is arranged on the left front side of the glue layer 2, a heat conducting ring 4 is arranged at the center position of the front side of the air permeable gauze 1, a soaking sponge 5 is arranged inside the heat conducting ring 4, a placing groove 6 is arranged on the inner side of the heat conducting ring 4, a kidney warming sheet 7 is arranged inside the placing groove 6, a first oil-coated paper 8 is arranged on the front side of the kidney warming sheet 7, a second oil-coated paper 10 is sewn on the rear side of the air permeable gauze 1 through an extrusion positioning line 16, the extrusion positioning line 16 is arranged on the periphery of the rear side of the air permeable gauze 1, a heating bag 9 is fixedly arranged inside the extrusion positioning line 16, the heating bag 9 comprises a heat insulation material 11, an iron powder 12 is arranged on the inner side of the heat insulation material 11, the rear side of the central position of the anti-scalding fiber 15 is provided with a heat conducting groove 13, and vermiculite particles 14 are arranged inside the heat conducting groove 13.
Referring to fig. 1-2, the dividing strip 3 is adhered to the breathable gauze 1 through the glue layer 2, and the size of the glue layer 2 is matched with that of the first oil-coated paper 8, so as to conveniently ensure that the kidney warming patch is connected with the skin. The inside of heat conduction ring 4 is porous structure, and soaking sponge 5 fills in the inside of heat conduction ring 4, makes things convenient for the heat conduction.
Referring to fig. 1-3, the heat insulation material 11 is made of refractory cotton, and the heating bag 9 is disposed right behind the kidney warming sheet 7 to effectively isolate the influence of heat on the skin. The heat conducting groove 13 is annularly arranged, and the vermiculite particles 14 are uniformly bonded inside the heat conducting groove 13, so that heat preservation is facilitated.
Referring to fig. 1-2, in use, a user firstly presses the dividing strip 3 with fingers, tears off the first oil-surface paper 8, sticks the first oil-surface paper to an affected part through the glue layer 2, and tears off the dividing strip 3 to facilitate the skin to be closely attached;
then tearing off the second oily paper 10, extruding the second oily paper 10 at the rear side of the breathable gauze 1 through an extrusion positioning line 16, conveniently ensuring that the internal seal of the heating bag 9 is not opened, directly reacting air contacted with the heating bag 9 with the iron powder 12 in the heating bag, guiding heat generated by heat release to the kidney warming sheet 7 in the accommodating groove 6 through the vermiculite particles 14 arranged in the heat conducting groove 13, so that the kidney warming sheet 7 is heated to give full play to the medicine property, the heat conducting ring 4 is arranged on the outer side of the kidney warming sheet 7, the soaking sponge 5 is arranged inside the heat conducting ring 4, the kidney warming sheet is convenient and mild to contact with the skin, the heat insulating material 11 is made of refractory cotton, the skin can be effectively prevented from being directly burnt by the internal temperature, the protection effect can be effectively played, a series of operations of the kidney warming patch with the heating function can be completed, the heating function can be realized, and the drug effect can be conveniently and fully exerted.
The above is only the preferred embodiment of the present invention; the scope of the present invention is not limited thereto. Any person skilled in the art should also be able to cover the technical scope of the present invention by replacing or changing the technical solution and the improvement concept of the present invention with equivalents and modifications within the technical scope of the present invention.

Claims (5)

1. The utility model provides a warm kidney subsides with heating function, includes ventilative gauze (1), its characterized in that: the breathable gauze is characterized in that a glue layer (2) is arranged on the front side of the breathable gauze (1), a dividing strip (3) is arranged on the left front side of the glue layer (2), a heat conduction ring (4) is arranged at the center of the front side of the breathable gauze (1), soaking sponge (5) is arranged in the heat conduction ring (4), a placement groove (6) is formed in the inner side of the heat conduction ring (4), a kidney warming sheet (7) is arranged in the placement groove (6), first oil-coated paper (8) is arranged on the front side of the kidney warming sheet (7), second oil-coated paper (10) is connected to the rear side of the breathable gauze (1) through an extrusion positioning line (16) in a stitching mode, the extrusion positioning line (16) is arranged on the periphery of the rear side of the breathable gauze (1), a heating bag (9) is fixedly arranged in the extrusion positioning line (16), and the heating bag (9) comprises a heat insulation material (11), the inboard of thermal-insulated material (11) is provided with iron powder (12), the front end connection of thermal-insulated material (11) is installed and is prevented scalding fibre (15), the central point rear side of preventing scalding fibre (15) is provided with heat conduction groove (13), the inside of heat conduction groove (13) is provided with vermiculite granule (14).
2. The kidney warming patch with the heating function as claimed in claim 1, wherein: the dividing strip (3) is bonded on the breathable gauze (1) through the glue layer (2), and the size of the glue layer (2) is matched with that of the first oil-surface paper (8).
3. The kidney warming patch with the heating function as claimed in claim 1, wherein: the heat conduction ring (4) is of a porous structure, and soaking sponge (5) is filled in the heat conduction ring (4).
4. The kidney warming patch with the heating function as claimed in claim 1, wherein: the heat insulation material (11) is made of refractory cotton, and the heating bag (9) is arranged right behind the kidney warming sheet (7).
5. The kidney warming patch with the heating function as claimed in claim 1, wherein: the heat conduction groove (13) is annularly arranged, and the vermiculite particles (14) are uniformly bonded in the heat conduction groove (13).
