Abstract
本实用新型公开了一种多功能移动护理车，属于医疗器械技术领域。它包括长条形的台板，台板的两端均设置有竖直方向设置的支撑板，两个支撑板均通过升降机构与台板连接，两个支撑板相互远离的一侧均固定连接有多个置物架，多个置物架上下均匀分布，两个支撑板相互远离的一侧底端还固定连接有多个用于放置垃圾桶的支架，两个支撑板的底部两端均固定连接有行走轮。本实用新型通过台板和支撑板的设置，在使用过程中，通过调节台板的高度，使得台板横架在病床的上方，支撑板位于病床的两侧，此时该护理车不仅有效地减少了占地面积，而且台板还能够支撑患者肢体，其上的医疗物品也处于护士的顺手位置，便于护士取用。
The utility model discloses a multifunctional mobile nursing car, which belongs to the technical field of medical equipment. It includes a long plate, both ends of the plate are provided with support plates arranged in a vertical direction, the two support plates are connected with the plate through a lifting mechanism, and the sides of the two support plates away from each other are fixedly connected There are multiple racks, and the multiple racks are evenly distributed up and down. The bottom ends of the two support plates are also fixedly connected with a plurality of brackets for placing trash cans. The bottom ends of the two support plates are fixedly connected. There are walking wheels. The utility model adopts the setting of the table board and the support board, and adjusts the height of the table board during use, so that the table board is horizontally placed above the sick bed, and the support boards are located on both sides of the sick bed. At this time, the nursing car not only effectively The floor area is reduced, and the platen can also support the limbs of the patient, and the medical items on it are also in the convenient position of the nurse, which is convenient for the nurse to take.
Description
Technical Field
The utility model relates to a multi-functional removal nursing car belongs to medical instrument technical field.
Background
The nurse of hospital can use the nursing car at the in-process of nursing, and present nursing car only has the simple function of transporting medical article, and when using, need to nurse one side of car propelling movement to the sick bed, and the medical article of taking on the nursing car again uses, and the area of land of hospital is nervous earlier on, stops nursing car and uses in sick bed one side, not only can occupy this passageway that is not just little, and the hindrance personnel are current, and the nurse takes medical article inconvenient moreover.
SUMMERY OF THE UTILITY MODEL
The utility model discloses the technical problem that will solve lies in: the utility model provides a multi-functional removal nursing car, it has been solved and has stopped nursing car and use in sick bed one side, not only can occupy this passageway that is not just little, hinders personnel current, and the nurse takes medical article also inconvenient problem moreover.
The utility model discloses the technical problem that will solve takes following technical scheme to realize:
the utility model provides a multi-functional removal nursing car, includes the platen of rectangular shape, the both ends of platen all are provided with the backup pad that vertical direction set up, two the backup pad all is connected with the platen through elevating system, two a plurality of supporter of the equal fixedly connected with in one side that the backup pad was kept away from each other, it is a plurality of evenly distributed about the supporter, two one side bottom that the backup pad was kept away from each other is a plurality of supports that are used for placing the garbage bin of fixedly connected with still, two the equal fixedly connected with walking wheel in bottom both ends of backup pad.
As a preferred example, the lifting mechanism comprises two screws, two shells, a plurality of limiting rods and a transmission mechanism for controlling the rotation of the two screws, the two shells are respectively and fixedly connected with two ends of the bottom of the bedplate, the upper ends of the two screws are respectively and rotatably connected with the two shells, the bottom ends of the two screws are respectively in threaded sleeve joint with the supporting plate, the tops of the limiting rods are respectively and fixedly connected with the bottom of the bedplate, and the bottoms of the limiting rods are respectively in sliding sleeve joint with the top of the supporting plate.
As a preferred example, the transmission mechanism includes a transmission rod and two bevel gear sets, the two bevel gear sets are respectively located in the two housings, one bevel gear of the two bevel gear sets is respectively and fixedly sleeved with the two screws, and the other bevel gear is respectively and fixedly sleeved with two ends of the transmission rod.
As a preferred example, the transmission rod is rotatably connected with the two shells, and one end of the transmission rod is fixedly connected with a rotating handle.
As a preferred example, a drawer is fixedly connected to the bottom of the bedplate, and an inner grid of the drawer is arranged.
As a preferable example, a hand washing basin is embedded on the bedplate, and a valve is arranged at the bottom of the hand washing basin.
As a preferable example, a hanging rack is fixedly connected to the top of the bedplate, and the hanging rack is arranged in an L shape.
As a preferable example, a plurality of hooks are fixedly connected to the bottom of the horizontal rod of the hanging rack.
The utility model has the advantages that: the utility model discloses a setting of platen and backup pad, in the use, through the height of adjusting the platen for the platen crossbearer is in the top of sick bed, and the backup pad is located the both sides of sick bed, and this nursing car has not only reduced area effectively this moment, and the platen can also support patient's limbs moreover, and medical article on it also is in nurse's convenient position, and the nurse of being convenient for takes.
Drawings
Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a left side view of the structure of FIG. 1;

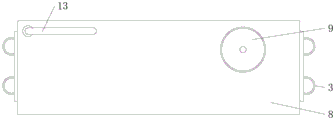

fig. 3 is a schematic top view of the structure of fig. 1.
In the figure: the hand washing machine comprises a travelling wheel 1, a supporting plate 2, a support 3, a storage rack 4, a screw rod 5, a shell 6, a bevel gear set 7, a table plate 8, a hand washing basin 9, a transmission rod 10, a drawer 11, a hook 12, a hanging rack 13, a rotary handle 14 and a limiting rod 15.
Detailed Description
In order to make the technical means, the creation features, the achievement purposes and the functions of the present invention easy to understand and understand, the present invention is further explained by combining the following specific drawings.
As shown in fig. 1-3, a multi-functional removal nursing car, platen 8 including rectangular shape, platen 8's both ends all are provided with backup pad 2 that vertical direction set up, two backup pad 2 all are connected with platen 8 through elevating system, the equal a plurality of supporter of fixedly connected with 4 in one side that two backup pad 2 kept away from each other, evenly distributed about a plurality of supporter 4, a plurality of supports 3 that are used for placing the garbage bin of fixedly connected with are gone back to one side bottom that two backup pad 2 kept away from each other, the equal fixedly connected with walking wheel 1 in bottom both ends of two backup pad 2.
Adopt above-mentioned scheme, in the use, through the height of adjusting platen 8 for 8 crossbearers of platen are in the top of sick bed, and backup pad 2 is located the both sides of sick bed, and this nursing car has not only reduced area effectively this moment, and platen 8 can also support patient's limbs moreover, and medical article on it also is in nurse's handy position, and the nurse of being convenient for takes.
The lifting mechanism comprises two screw rods 5, two shells 6, a plurality of limiting rods 15 and a transmission mechanism for controlling the rotation of the two screw rods 5, the two shells 6 are respectively and fixedly connected with two ends of the bottom of the bedplate 8, the upper ends of the two screw rods 5 are respectively and rotatably connected with the two shells 6, the bottom ends of the two screw rods are respectively in threaded sleeve joint with the supporting plate 2, the tops of the limiting rods 15 are respectively and fixedly connected with the bottom of the bedplate 8, and the bottoms of the limiting rods 15 are respectively in sliding sleeve joint with the top of the supporting plate 2; the transmission mechanism comprises a transmission rod 10 and two bevel gear sets 7, the two bevel gear sets 7 are respectively positioned in the two shells 6, one bevel gear of the two bevel gear sets 7 is respectively fixedly sleeved with the two screw rods 5, and the other bevel gear is respectively fixedly sleeved with two ends of the transmission rod 10.
By adopting the scheme, the lifting mechanism is used for adjusting the height of the bedplate 8, and the transmission mechanism enables the two ends of the bedplate 8 to be lifted simultaneously, so that the lifting stability of the bedplate 8 is ensured.
The transmission rod 10 is rotatably connected to the two housings 6 and has a rotary handle 14 fixedly connected to one end thereof.
By adopting the scheme, the transmission rod 10 is convenient to rotate.
The bottom of the bedplate 8 is fixedly connected with a drawer 11, and the inner part of the drawer 11 is provided with grids.
By adopting the scheme, the drawer 11 is divided into the medicine grids for placing the medicines and the like which need certain storage conditions.
A hand washing basin 9 is embedded on the bedplate 8, and a valve is arranged at the bottom of the hand washing basin 9.
By adopting the scheme, the hand basin 9 is convenient for medical personnel to disinfect or clean articles or wounds of patients, and sewage is led to one of the garbage cans through the bottom valve and the hose, so that the sewage is convenient to collect.
The top of the bedplate 8 is fixedly connected with a hanging rack 13, and the hanging rack 13 is arranged in an L shape; the bottom of the horizontal rod of the hanging rack 13 is fixedly connected with a plurality of hooks 12.
Adopt above-mentioned scheme for place the medical article that can articulate such as transfusion bottle.
The width of the hospital bed is generally 100-120 cm, the length of the bedplate 8 is set to be 120-140 cm, and the width is set to be 30-50 cm.
The working principle is as follows: when using, according to the height of sick bed, rotate transfer line 10 through rotatory handle 14, transfer line 10 rotates and drives two screw rods 5 synchronous rotations through bevel gear 7, screw rod 5 is at 2 internal rotations of backup pad, it goes up and down to drive platen 8, and remove to suitable height, remove this nursing car this moment, the nursing car is from the tailstock sleeve go into on the sick bed, platen 8 is located the top of sick bed this moment, two backup pads 2 are located the both sides of sick bed respectively, medical article are categorised to be placed on supporter 4, various garbage bins are fixed on support 3.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It should be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that various changes and modifications may be made without departing from the spirit and scope of the invention, and such changes and modifications fall within the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.
