本实用新型提出一种多功能充电宝，所述多功能充电宝包括：壳体、无线充电线圈，所述壳体包括：上盖、中框和下盖，所述中框包括：固定板，所述固定板设有凹槽，所述无线充电线圈固定安装在所述凹槽内，所述上盖包括：第一卡板，所述第一卡板上设有卡扣，所述下盖包括：第二卡板，所述第二卡板上设有卡槽，所述卡扣与所述卡槽能够卡合，使所述上盖与所述中框、所述下盖形成固定连接，所述上盖与所述固定板形成密闭空间，所述中框上设有脚架，所述中框通过所述脚架与所述固定板固定连接，在内部元件松动脱落的情况下，固定板与壳体形成独立的空间，防止脱落的元件损坏无线充电线圈，其次第一板与第二板通过卡合使多功能充电宝安装或拆卸更加方便。
The utility model provides a multifunctional charging treasure, the multifunctional charging treasure comprises: a casing and a wireless charging coil; the casing comprises: an upper cover, a middle frame and a lower cover; the middle frame comprises: a fixing plate, The fixing plate is provided with a groove, and the wireless charging coil is fixedly installed in the groove. The upper cover includes: a first card plate with a buckle, and the lower cover It includes: a second card plate, the second card plate is provided with a card slot, the buckle can be engaged with the card slot, so that the upper cover is fixedly connected with the middle frame and the lower cover , the upper cover and the fixing plate form a closed space, the middle frame is provided with a tripod, the middle frame is fixedly connected with the fixing plate through the tripod, and in the case of the internal components loose and fall off, The fixed plate and the shell form an independent space to prevent the falling off components from damaging the wireless charging coil. Secondly, the first plate and the second plate are engaged to make the installation or disassembly of the multifunctional power bank more convenient.
Description
Technical Field
The utility model belongs to the technical field of the treasured that charges and specifically relates to a multi-functional treasured that charges.
Background
Mobile terminal equipment is along with the change of times, become the indispensable product in masses 'life, the frequency of using in the mobile terminal equipment daily life is more frequent, the electric quantity that leads to mobile terminal equipment is often not enough, the treasured that charges is because storage electric quantity is big, often be used for charging for mobile terminal, along with the birth of wireless cell-phone that charges, the treasured that charges does not set up wireless charging coil, make the treasured that charges unable for wireless cell-phone that charges, secondly because the power consumption voltage of each country is different, the treasured that charges often can't use because the voltage is different when using across the country.
SUMMERY OF THE UTILITY MODEL
In order to solve the problem, the utility model provides a multi-functional treasured that charges.
The utility model discloses a following technical scheme realizes:
the utility model provides a multi-functional treasured that charges, multi-functional treasured that charges includes: casing, wireless charging coil, the casing includes: upper cover, center and lower cover, the center includes: the fixed plate, the fixed plate is equipped with the recess, wireless charging coil fixed mounting be in the recess, the upper cover includes: first cardboard, be equipped with the buckle on the first cardboard, the lower cover includes: the clamping groove is formed in the second clamping plate, the buckle and the clamping groove can be clamped, the upper cover is fixedly connected with the middle frame and the lower cover, the upper cover and the fixing plate form a closed space, the middle frame is provided with a foot rest, and the middle frame is fixedly connected with the fixing plate through the foot rest.
Further, multi-functional treasured that charges still includes: the foot inserts, the center still includes: the foot slot, the foot is inserted movable mounting and is in the foot slot.
Further, multi-functional treasured that charges still includes: the upper cover is provided with a groove, the protruding block is movably contained in the groove, and the protruding block partially protrudes out of the groove and extends out of the upper cover.
Further, multi-functional treasured that charges still includes: the hanging rope penetrates through the hole and is detachably mounted on the middle frame, and the hanging rope is detachably mounted on the middle frame.
Further, multi-functional treasured that charges still includes: the wireless charging coil comprises a circuit board and a power supply, wherein the power supply is fixedly installed in the shell, the circuit board is fixedly installed in the shell, the power supply is electrically connected with the circuit board, the pin is electrically connected with the circuit board, and the wireless charging coil is electrically connected with the circuit board.
Further, the middle frame further comprises: the mounting panel, be equipped with the mounting hole on the circuit board, the mounting panel runs through the mounting hole.
Further, multi-functional treasured that charges still includes: the first interface is electrically connected with the circuit board, and the first interface is fixedly installed on the circuit board.
Further, multi-functional treasured that charges still includes: and the second interface is electrically connected with the circuit board and fixedly arranged on the circuit board.
Further, multi-functional treasured that charges still includes: the switch and the indicating lamp are respectively electrically connected with the circuit board, and are electrically connected with the circuit board.
The utility model has the advantages that:
the utility model provides a pair of precious wireless charging coil of multi-functional charging can charge for wireless cell-phone, makes wireless cell-phone that charges under the not enough state of electric quantity, and the precious ability of multi-functional charging is wireless cell-phone charging, and it is more convenient to make the user.
The utility model provides a pair of multi-functional precious wireless charging coil that charges fixes on the fixed plate, and the installation of the wireless charging coil of being convenient for under the not hard up condition that drops of internal component, fixed plate and casing form independent space, and the component that prevents to drop damages wireless charging coil, and secondly first board makes the installation or dismantles more convenient through the block with the second board.
The utility model provides a pair of multi-functional precious foot of charging is inserted and can be adapted to different jacks and the voltage of different countries through outside conversion head.
Drawings

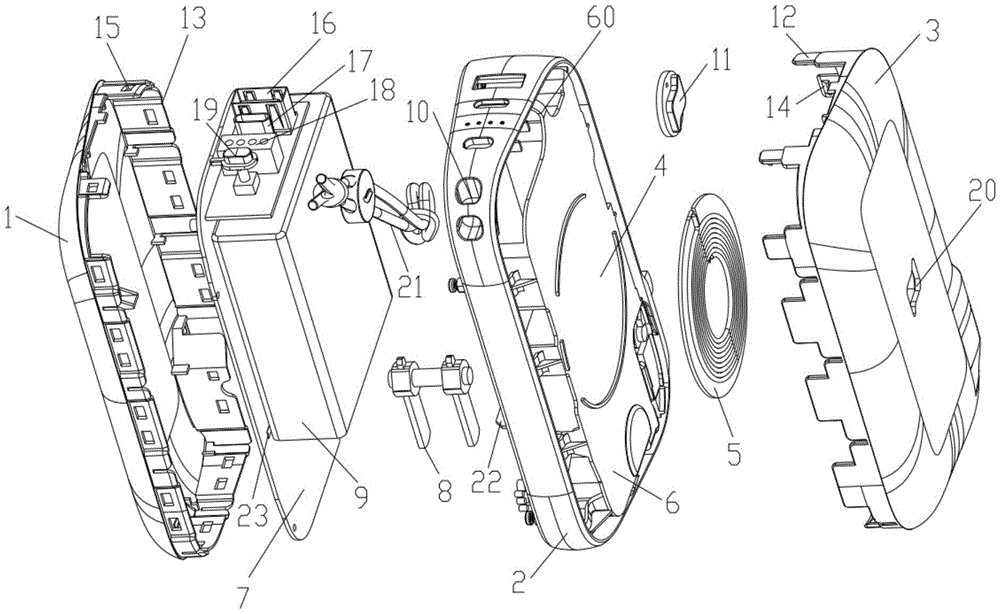

Fig. 1 is an exploded view of the multifunctional charger of the present invention;
fig. 2 is a perspective view of the middle frame of the multifunctional charger of the present invention;
fig. 3 is the utility model discloses a multi-functional precious stereogram that charges.
Detailed Description
For a more clear and complete description of the technical solution of the present invention, the following description is made with reference to the accompanying drawings.
Referring to fig. 1 to 3, the present invention provides a multifunctional power bank, which includes: casing 60, wireless charging coil 5, casing 60 includes: upper cover 3, center 2 and lower cover 1, center 2 includes: fixed plate 6, fixed plate 6 is equipped with recess 4, 5 fixed mounting of wireless charging coil are in the recess 4, upper cover 3 includes: a first card board 12, a buckle 14 is arranged on the first card board 12, and the lower cover 1 comprises: the second clamping plate 13 is provided with a clamping groove 15, the buckle 14 and the clamping groove 15 can be clamped, so that the upper cover 3, the middle frame 2 and the lower cover 1 form a fixed connection, the upper cover 3 and the fixing plate 6 form a closed space, the middle frame 2 is provided with a foot stand 60, and the middle frame 2 is fixedly connected with the fixing plate 6 through the foot stand 60.
In the present embodiment, the middle frame 2 includes: fixed plate 6, fixed plate 6 is equipped with recess 4, wireless charging coil 5 fixed mounting in the recess 4, make wireless charging coil 5 change in the installation, wireless charging coil 5 leads to the glue bonding on fixed plate 6, makes wireless charging coil 5 with fixed plate 6 forms fixed connection, fixed plate 6 with casing 60 forms airtight space can prevent that other components that become flexible in the casing 60 from damaging wireless charging coil 5, upper cover 3 includes: a first card board 12, a buckle 14 is arranged on the first card board 12, and the lower cover 1 comprises: the multifunctional charger comprises a second clamping plate 13, wherein a clamping groove 15 is formed in the second clamping plate 13, a buckle 14 and the clamping groove 15 can be clamped, so that the multifunctional charger is more convenient to install, the multifunctional charger can be installed without the help of an external tool, the upper cover 3 is fixedly connected with the middle frame 2 and the lower cover 1 to protect elements in the shell 60 from being damaged, the middle frame 2 is fixedly connected with the fixing plate 6 through a foot stand 60, and the first clamping plate 12 penetrates through a closed space between the fixing plate 6 and the middle frame 2 and is clamped with the second clamping plate 13.
Further, multi-functional treasured that charges still includes: the pin inserts 8, center 2 still includes: the pin slot 30, the pin 8 is movably arranged in the pin slot 30.
In this embodiment, the pin 8 movable mounting is in the pin slot 30, the pin 8 can be connected with external socket and charge for multi-functional treasured that charges, secondly the pin 8 can adapt to different jacks and the voltage of different countries through the external conversion head, even cross country use multi-functional treasured that charges still can normal use.
Further, multi-functional treasured that charges still includes: the upper cover 3 is provided with a groove 20, the protruding block 11 is movably contained in the groove 20, and the protruding block 11 partially protrudes out of the groove 20 and extends out of the upper cover 3.
In this embodiment, the protruding block 11 is movably accommodated in the groove 20, and the protruding block 11 is a decoration, so that the multifunctional charger is more attractive.
Further, multi-functional treasured that charges still includes: the hanging rope 21, the center 2 still is equipped with hole 10, hang rope 21 and run through hole 10 and detachable install on the center 2.
In this embodiment, the hanging rope 21 penetrates through the hole 10 and is fixedly connected to the middle frame 2, and the hanging rope 21 facilitates carrying and hanging of the multifunctional charger baby.
Further, multi-functional treasured that charges still includes: circuit board 7, power 9 fixed mounting be in the casing 60, circuit board 7 fixed mounting be in the casing 60, power 9 with circuit board 7 electricity is connected, pin 8 with circuit board 7 electricity is connected, wireless charging coil 5 with circuit board 7 electricity is connected.
In this embodiment, the circuit board 7 is fixedly installed in the housing 60, the power supply 9 is electrically connected to the circuit board 7, the pin socket 8 is electrically connected to the circuit board 7, the wireless charging coil 5 can charge an external wireless charging mobile device, and the pin socket 8 can charge the power supply 9 through an external circuit.
Further, the middle frame 2 further comprises: and the mounting plate 22 is provided with a mounting hole 23 on the circuit board 7, and the mounting plate 22 penetrates through the mounting hole 23.
In the present embodiment, the circuit board 7 is provided with a mounting hole 23, the mounting plate 22 penetrates through the mounting hole 23, and the mounting hole 23 facilitates the mounting of the circuit board 7.
Further, multi-functional treasured that charges still includes: a first interface 16, wherein the first interface 16 is electrically connected to the circuit board 7, and the first interface 16 is fixedly mounted on the circuit board 7.
In this embodiment, the first interface 16 is a USB female socket, and can be used to charge an external mobile device through an external data line, and the pin 8 is electrically connected to an external circuit, and can be used to charge a mobile computer through the connection of the first interface 16 and an external charging line.
Further, multi-functional treasured that charges still includes: and the second interface 17 is electrically connected with the circuit board 7, and the second interface 17 is fixedly installed on the circuit board 7.
In this embodiment, the second interface 17 is a Type interface, and can charge the power supply 9 through a corresponding data line.
Further, multi-functional treasured that charges still includes: the switch 19 and the indicator light 18 are respectively electrically connected with the circuit board 7, and both the switch 19 and the indicator light 18 are electrically connected with the circuit board 7.
In this embodiment, the switch 19 controls the charging and discharging of the multifunctional power bank, and the indicator lights 18 are electrically connected to the circuit board 7 respectively and are used for displaying the electric quantity of the multifunctional power bank.
Of course, the present invention can also have other various embodiments, and based on the embodiments, those skilled in the art can obtain other embodiments without any creative work, and all of them belong to the protection scope of the present invention.
