Abstract
The utility model discloses an elevator prevention of seepage sill, including sill body and two ponding boxes, the top of sill is provided with a sill groove, two ponding boxes set firmly respectively in the below at the both ends of sill body, the ponding box with sill groove intercommunication, the ponding box is used for accepting at least the follow the water that flows in the sill inslot, be provided with on the ponding box and be used for the water discharge's the drain pipe in it. The utility model provides an elevator prevention of seepage water sill can collect the water of ground ridge inslot through the ponding box to discharge water outside the elevator effectively through the drain pipe, avoided elevator well electricity to drench and break down because of water.
Description
Technical Field
The utility model relates to an elevator especially relates to an elevator prevention of seepage sill.
Background
With the development of economy and the acceleration of urbanization process, more and more high-rise buildings are pulled out of the ground, and the elevator becomes an indispensable carrying tool for the high-rise buildings. The sill that present over-and-under type elevator adopted installs in the place with the floor parallel and level, provides the guide effect to the layer door when elevator layer door is closed.
The sill of elevator can't all carry out prevention of seepage water at present, and in fire elevator's requirement, the elevator well all must adopt waterproof electricity, because during the conflagration, the fire-fighting water will certainly flow in the elevator well through the lift-cabin door sill. Although the elevator shaft electricity can be designed and installed in a waterproof manner, aging or poor waterproofing cannot be avoided; when a building is in fire, the fire elevator also needs to convey firefighters and evacuate trapped people, and once the electric leakage of the elevator shaft causes circuit breaking, the elevator cannot run.
Therefore, how to provide an elevator sill capable of preventing water seepage is an urgent technical problem to be solved.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an elevator prevention of seepage water sill to overcome prior art not enough.
In order to achieve the above purpose, the technical scheme of the utility model is as follows:
the utility model discloses an elevator prevention of seepage sill, including sill body and two ponding boxes, the top of sill is provided with a sill groove, two ponding boxes set firmly respectively in the below at the both ends of sill body, the ponding box with sill groove intercommunication, the ponding box is used for accepting at least the follow the water that flows in the sill inslot, be provided with on the ponding box and be used for the water discharge's the drain pipe in it.
Preferably, the edge of the upper opening of the water collecting box exceeds the end point of the ridge groove by a set distance, and water in the ridge groove falls into the water collecting box from the end part of the ridge groove.
Further preferably, the upper end of the water collecting box is fixedly connected with the sill body through a bolt.
Preferably, a side surface and a bottom end part of the water collecting box are respectively provided with a drain pipe, and the drain pipes are used for communicating with a pipeline in the wall body to drain water out of the elevator door opening for a certain distance.
Preferably, the drain pipe is connected with the water accumulation box in a sealing mode.
Preferably, the lower part of the sill body is fixedly arranged on a sill support, and the sill support is fixed on the wall of the elevator hoistway.
Further preferably, the sill support is fixed to the hoistway wall by an expansion bolt.
Preferably, the water accumulation box is at least used for receiving ash.
Compared with the prior art, the utility model has the advantages of:
the utility model provides an elevator prevention of seepage water sill can collect the water of ground ridge inslot through the ponding box to discharge water outside the elevator effectively through the drain pipe, avoided elevator well electricity to drench and break down because of water.
The drainage system-the water accumulation box and the drainage pipe in the utility model has simple and reasonable structure, convenient installation and disassembly; in addition, the ponding box still has the effect of connecing the ash, can pour the dust when the elevator is examined and repaired regularly, avoids scattering more dust in the well.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly described below.

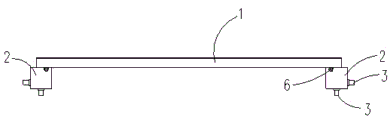

Fig. 1 is a front view of an elevator impermeable sill disclosed in an embodiment of the present invention;
fig. 2 is a top view of an elevator impermeable sill disclosed in an embodiment of the present invention;
fig. 3 is a side sectional view of an elevator anti-seepage sill disclosed in an embodiment of the present invention.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
Referring to fig. 1-3, the embodiment of the utility model discloses elevator prevention of seepage water sill is disclosed, including sill body 1 and two ponding boxes 2, the top of sill is provided with a sill groove 11, two ponding boxes 2 set firmly respectively in the below at sill body 1's both ends, ponding box 2 and sill groove 11 intercommunication, ponding box 2 is used for accepting the water that flows from sill groove 11 at least, is provided with on ponding box 2 to be used for the water exhaust's of its interior drain pipe 3.
Preferably, the edge of the upper opening of the water accumulating box 2 exceeds the end point of the sill groove 11 by a set distance, and the water in the sill groove 11 falls into the water accumulating box 2 from the end part of the sill groove. The set distance is set according to actual needs, and the water in the ground ridge groove 11 can enter the water accumulation box 2 completely, and meanwhile, the volume of accumulated water is also considered.
Further preferably, the upper end of the water accumulation box 2 is fixedly connected with the sill body 1 through a bolt 6.
Preferably, a drainage pipe 3 is respectively arranged at one side surface and the bottom end part of the water accumulation box 2, and the drainage pipe 3 is used for communicating with a pipeline in a wall body to drain water out of the elevator door by a certain distance (more than 1 meter).
Preferably, the water discharge pipe 3 is hermetically connected with the water accumulation box 2. The drain pipe 3 is hermetically connected with the water accumulation box 2 to prevent the water in the water accumulation box 2 from flowing out.
Preferably, the lower part of the sill body 1 is fixedly arranged on the sill support 4, and the sill support 4 is fixed on the wall of the elevator hoistway. Further preferably, the sill-support 4 is fixed to the hoistway wall by means of expansion bolts 5. In fact, the sill support 4 may be provided in plurality, for example three, which are fixedly connected to the middle portion of the sill body 1 and located inside the two water collecting boxes 2.
Preferably, the water accumulation box 2 is also used at least for receiving ash.
Through the technical scheme, the anti-seepage sill of the elevator provided by the embodiment of the utility model can collect water in the sill groove 11 through the water collecting box 2 and effectively discharge the water to the outside of the elevator through the drain pipe 3, thereby avoiding the electric failure of the elevator well due to water drenching;
the drainage system in the embodiment of the utility model, namely the accumulated water box 2 and the drainage pipe 3, has simple and reasonable structure and convenient installation and disassembly; in addition, ponding box 2 still has the effect of connecing the ash, can pour the dust when the elevator is examined and repaired regularly, avoids scattering more dust in the well.
Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the invention. Thus, the present invention is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.
Claims (8)
1. The utility model provides an elevator prevention of seepage water sill which characterized in that: including sill body and two ponding boxes, the top of sill is provided with a sill groove, two ponding boxes set firmly respectively in the below at the both ends of sill body, the ponding box with sill groove intercommunication, the ponding box is used for accepting at least and follows the water that flows out in the sill groove, be provided with on the ponding box and be used for its interior water exhaust drain pipe.
2. The anti-seepage sill for the elevator as claimed in claim 1, characterized in that: the edge of the upper opening of the water accumulating box exceeds the end point of the ridge groove by a set distance, and water in the ridge groove falls into the water accumulating box from the end part of the ridge groove.
3. The anti-seepage sill for the elevator as claimed in claim 1, characterized in that: the upper end part of the water accumulation box is fixedly connected with the sill body through bolts.
4. The anti-seepage sill for the elevator as claimed in claim 1, characterized in that: one side surface and the bottom end part of the water accumulation box are respectively provided with a drain pipe which is used for communicating with a pipeline in the wall body and draining water out of the elevator door opening for a certain distance.
5. The anti-seepage sill for the elevator as claimed in claim 4, characterized in that: the drain pipe is connected with the water accumulation box in a sealing mode.
6. The anti-seepage sill for the elevator as claimed in claim 1, characterized in that: the lower part of the sill body is fixedly arranged on a sill support, and the sill support is fixed on the wall of the elevator hoistway.
7. The anti-seepage sill for the elevator as claimed in claim 6, characterized in that: the sill support is fixed on the wall of the elevator shaft through expansion bolts.
8. The anti-seepage sill for the elevator as claimed in claim 1, characterized in that: the water accumulation box is at least used for receiving ash.
