Abstract
本实用新型涉及医疗器械技术领域，特别设计一种外周血干细胞标本盒。本实用新型的外周血干细胞标本盒包括盒体和盒盖，所述盒体上部敞口，所述盒盖设置于所述盒体上部敞口处，用于打开或关闭所述盒体，所述盒体内设有外周血涂片标本区、全血细胞计数标本区和白血病免疫分型单抗标本区，所述盒体或盒盖上设有用于放置三类标本化验单的存放空间。优点：结构设计简单、合理，各个标本在盒体内能够有序的存放，转运过程不会散乱，不易造成标本的破碎及丢失，利于临床医护人员对标本的管理，同时方便化验单的对应存放。
The utility model relates to the technical field of medical devices, in particular to a peripheral blood stem cell specimen box. The peripheral blood stem cell specimen box of the present invention comprises a box body and a box cover, the upper part of the box body is open, and the box cover is arranged at the upper opening of the box body and is used to open or close the box body, so The box body is provided with a peripheral blood smear sample area, a complete blood count sample area and a leukemia immunophenotyping monoclonal antibody sample area, and the box body or the box cover is provided with storage spaces for placing three types of specimen test sheets. Advantages: The structure design is simple and reasonable, each specimen can be stored in an orderly manner in the box, the transfer process will not be scattered, and it is not easy to cause the fragmentation and loss of the specimen, which is conducive to the management of the specimen by the clinical medical staff, and facilitates the corresponding storage of the test sheet.
Description
Technical Field
The utility model relates to the technical field of medical equipment, a peripheral blood stem cell specimen-box of special design.
Background
Hematopoietic stem cell transplantation is currently the most effective method for treating hematological malignancies. Peripheral blood stem cells have the advantages of fast hematopoietic recovery, early immune function reconstruction and the like, and are widely applied clinically at present. Infusion of peripheral blood stem cells is critical to ensure successful hematopoietic stem cell transplantation. The collected peripheral blood stem cells are divided into 3 blood samples for counting the collected cells, and finally the circulating blood volume of the next day and the effective implantation of the cells are determined. For a long time, peripheral blood stem cell samples are all placed in the medicine wrapping paper box, and the transportation is accomplished to the airtight not tight condition of unordered placing and carton, easily causes the breakage of sample and loses, is unfavorable for clinical nurse to the management of peripheral blood stem cell sample.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the technical problem that a peripheral blood stem cell specimen-box is provided, the effectual defect of overcoming prior art.
The utility model provides an above-mentioned technical problem's technical scheme as follows:
the utility model provides a peripheral blood stem cell specimen-box, includes box body and lid, and above-mentioned box body upper portion is uncovered, and above-mentioned lid sets up in the uncovered department in above-mentioned box body upper portion for open or close above-mentioned box body, be equipped with peripheral blood smear sample district, whole blood cell count sample district and leukemia immunity typing single antibody sample district in above-mentioned box body, be equipped with the parking space that is used for placing three types of sample laboratory test orders on above-mentioned box body or the lid.
On the basis of the technical scheme, the utility model discloses can also do following improvement.
Furthermore, the box body is in a cuboid shape, and the corresponding box cover is also in a cuboid shape matched with the box body.
Furthermore, one end of the box cover is hinged with the upper part of one end of the box body, and the other end of the box cover is provided with a locking component which is used for being connected with the other end of the box body after the box cover covers the box body.
Furthermore, the locking component is a hasp, and a hasp seat is arranged at the other end of the corresponding box body.
Furthermore, two partition plates which vertically extend along the width direction of the box body are arranged in the box body along the length direction of the box body at intervals, and the peripheral blood smear sample area, the whole blood cell counting sample area and the leukemia immunity typing single-antibody sample area are limited in the box body through the partition plates.
Furthermore, a clamping groove component used for placing smear samples in a slicing mode is arranged in the peripheral blood smear sample area.
Further, the clamping groove assembly comprises a plurality of pairs of clamping grooves, each pair of clamping grooves are respectively arranged on the side walls of the two sides corresponding to the long edges of the box body, notches are respectively arranged on one side and the upper portion of each pair of clamping grooves, which are close to each other, and the plurality of pairs of clamping grooves are continuously or alternately arranged in a row along the length direction of the box body.
Furthermore, the upper part of the box cover is provided with three rectangular sheet-shaped interlayer cavities which are in one-to-one correspondence with the peripheral blood smear sample area, the whole blood cell counting sample area and the leukemia immunity typing single sample area, the interlayer cavities respectively extend to one side end of the box body, and each interlayer cavity respectively forms one storage space.
Further, the bottom wall of the box body is provided with three storage rooms which are in one-to-one correspondence with the peripheral blood smear sample area, the whole blood cell counting sample area and the leukemia immunity typing single sample area, the three storage rooms horizontally extend to the same side of the box body respectively, a drawer capable of being pulled and pulled by one side of the box body is installed in each storage room, the drawer is used for storing the specimen laboratory sheet, and the internal spaces of the three drawers form the storage spaces respectively.
Furthermore, the upper end of the side wall of one side of the box body extends downwards to form three slots which are in one-to-one correspondence with the peripheral blood smear sample area, the whole blood cell counting sample area and the leukemia immunity typing single-antibody sample area, and each slot forms one storage space.
The utility model has the advantages that: structural design is simple, reasonable, and each sample can be orderly deposited in the box body, and the transportation process can not be in disorder, is difficult for causing the breakage of sample and losing, does benefit to clinical medical personnel to the management of sample, makes things convenient for the correspondence of laboratory test report to deposit simultaneously.
Drawings
FIG. 1 is a schematic structural view of a peripheral blood stem cell cartridge according to the present invention;

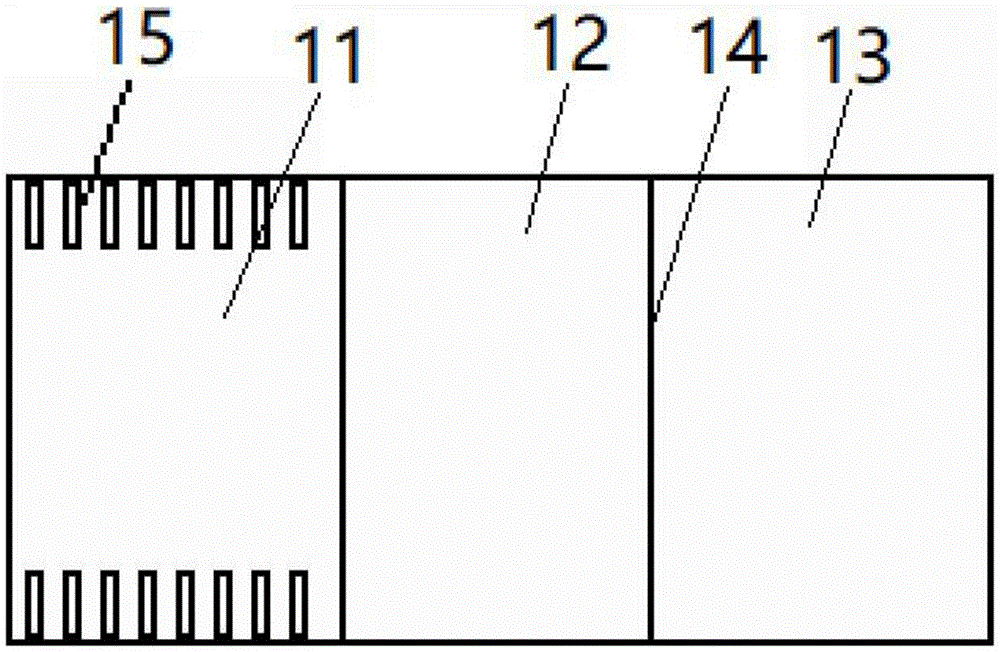

FIG. 2 is a schematic top view of the peripheral blood stem cell specimen box of the present invention with the lid removed;
FIG. 3 is a schematic diagram of a peripheral blood stem cell cartridge according to some embodiments of the present invention;
FIG. 4 is a schematic diagram of another embodiment of a peripheral blood stem cell cartridge according to the present invention;
FIG. 5 is a schematic structural view of some other embodiments of the peripheral blood stem cell cartridge of the present invention.
In the drawings, the components represented by the respective reference numerals are listed below:
1. a box body; 2. a box cover; 11. a peripheral blood smear sample zone; 12. a whole blood cell count sample region; 13. a leukemia immunotyping monoclonal antibody targeting region; 14. a partition plate; 15. a card slot assembly; 16. an interlayer cavity; 17. a drawer; 18. and (4) a slot.
Detailed Description
The principles and features of the present invention are described below in conjunction with the following drawings, the examples given are only intended to illustrate the present invention and are not intended to limit the scope of the present invention.
Example (b): as shown in fig. 1 and 2, the peripheral blood stem cell specimen box of this embodiment includes a box body 1 and a box cover 2, the upper portion of the box body 1 is open, the box cover 2 is disposed at the open upper portion of the box body 1 and is used for opening or closing the box body 1, a peripheral blood smear sample region 11, a whole blood cell count sample region 12 and a leukemia immune typing monoclonal antibody sample region 13 are disposed in the box body 1, and a storage space for storing three types of specimen laboratory sheets is disposed on the box body 1 or the box cover 2.
In the use, put corresponding sample respectively in this district 11 of peripheral blood smear mark, whole blood cell count mark district 12 and leukemia immunity typing monoclonal antibody mark district 13, closely cover tightly through lid 2, do benefit to the transportation of sample, structural design is simple, reasonable, each sample can be orderly deposit in the box body, the transportation can not be in disorder, be difficult for causing the breakage of sample and losing, do benefit to the management of clinical medical personnel to the sample, the correspondence of convenient laboratory test report is deposited simultaneously.
In a preferred embodiment, the case body 1 has a rectangular parallelepiped shape, and the lid 2 also has a rectangular parallelepiped shape corresponding to the case body 1.
The box body 1 has beautiful and simple appearance.
In a preferred embodiment, one end of the box cover 2 is hinged to an upper portion of one end of the box body 1, and the other end thereof is provided with a locking assembly for connecting with the other end of the box body 1 after the box cover 1.
In this embodiment, lid 2 adopts articulated mode to be connected with box body 1, and it only needs upset and unblock operation to uncap, and is very convenient.
More specifically, above-mentioned locking Assembly is the hasp, and corresponding 1 other end of above-mentioned box body is equipped with the hasp seat, that is to say that lid 2 adopts conventional hasp and 1 locking cooperation of box body, and the operation is simpler, convenient, is difficult for taking off the lid behind the lid, ensures the good transportation of sample.
In a preferred embodiment, two partition plates 14 extending vertically in the width direction are provided at intervals in the longitudinal direction of the case 1, and the peripheral blood smear sample region 11, the blood cell count sample region 12, and the leukemia immunophenotyping monoclonal antibody sample region 13 are defined in the case 1 by the partition plates 14.
In this embodiment, the partition 14 may be of a fixed type structure or a movable type structure, and specifically, the partition 14 may slide along the length direction of the box 1, so as to adjust the capacity and range of each region.
In a preferred embodiment, a slot assembly 15 for placing the smear sample in a slicing manner is provided in the peripheral blood smear sample area 11.
In this embodiment, the block that makes blood smear sample can be stable through draw-in groove subassembly 15 is placed, avoids the sample to easily receive the problem that external force scatters the influence and detects in the transportation.
Specifically, the card slot assembly 15 includes a plurality of pairs of card slots, each pair of card slots is respectively disposed on the two side walls corresponding to the long sides of the box body 1, each pair of card slots is provided with notches on one side and the upper portion, which are close to each other, and the plurality of pairs of card slots are arranged in a row continuously or at intervals along the length direction of the box body 1.
In this embodiment, each pair of draw-in grooves is placed a slice blood smear, places comparatively stably, and is orderly, the medical personnel of being convenient for manage.
The storage space for storing the laboratory test reports at least has the following three structures:
1) as shown in fig. 3, three rectangular sheet-shaped sandwich cavities 16 corresponding to the peripheral blood smear sample region 11, the blood cell count sample region 12 and the leukemia immunity type monoclonal antibody sample region 13 one by one are formed at the upper part of the box cover 2, the sandwich cavities 16 extend to one side end of the box body 1, and each of the sandwich cavities 16 forms one storage space.
In this mode, through accomodating the deposit in inserting the intermediate layer cavity 16 on the lid 2 with laboratory sheet level respectively, it is more convenient to operate, relatively saves space.
2) As shown in fig. 4, the bottom wall of the box body 1 is provided with three storage rooms corresponding to the peripheral blood smear sample area 11, the whole blood cell count sample area 12 and the leukemia immunity type monoclonal antibody sample area 13 one by one, the three storage rooms horizontally extend to the same side of the box body 1 respectively, a drawer 17 capable of being pulled from one side of the box body 1 is installed in each storage room, the drawer 17 is used for storing the specimen laboratory test reports, and the storage spaces are respectively formed by the internal spaces of the three drawers 17.
In this mode, set up other storing space in 1 bottom of box body, deposit and take of laboratory test report through the mode of pull, the design is more reasonable, and the operation is also more convenient.
3) As shown in fig. 5, three slots 18 are respectively formed at the upper end of one side wall of the case body 1 in a downward extending manner, the three slots 18 are in one-to-one correspondence with the peripheral blood smear sample region 11, the whole blood cell count sample region 12 and the leukemia immunity type monoclonal sample region 13, and each slot 18 constitutes one storage space.
In the mode, the laboratory sheet is vertically inserted into the side wall of one side of the box body 1 for storage, the operation is more convenient, and the laboratory sheet is not easy to fall off and fall out.
The above description is only for the preferred embodiment of the present invention, and is not intended to limit the present invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included within the protection scope of the present invention.
