Inflatable adjusting auxiliary medical bed

Technical Field

The utility model relates to the field of medical equipment, concretely relates to medical treatment is supplementary with bed, especially relates to an inflatable adjusts supplementary medical treatment bed.

Background

At present, the medical bed which is clinically practical is used for patients to lie on the back for rest, can only help to raise and raise the backrest part or the legs, can not complete corresponding treatment items on the bed when the patients lie in bed partially and can not leave the bed and need lower limb fumigation, lower limb foot soaking and other treatments, can reduce the treatment effect if the treatment items are cancelled, and if the patients are transferred to special treatment equipment, a large amount of energy needs to be consumed, and the risk of injury of the patients also exists.

Therefore, the function of the angle adjustment of the existing medical bed for assisting the treatment is not complete, so that there is a technical problem to be solved urgently, research and optimization are needed to obtain a more reasonable technical scheme, and the defects in the prior art are solved.

SUMMERY OF THE UTILITY MODEL

In order to overcome the defects of the prior art mentioned in the above, the utility model provides an inflatable adjustable auxiliary medical bed, which aims to assist a patient to sit on a sickbed and make feet droop by arranging a structure for assisting the patient to keep sitting posture, so that the patient can receive the treatment of the feet, the treatment effect of the patient is enhanced on the premise of not changing the structure of the existing sickbed, and the health of the patient is promoted.

In order to achieve the above object, the utility model discloses the technical scheme who specifically adopts is:

an inflatable adjusting auxiliary medical bed comprises a hip and leg supporting part and a back supporting part, wherein the hip and leg supporting part is rotatably connected with the back supporting part, and the hip and leg supporting part and the back supporting part are both provided with inflatable cushions; the hip and leg supporting part is connected with an adjusting device below, and the adjusting device comprises a support, a lifting device arranged on the support and a rotating device arranged at the top of the lifting device.

The auxiliary medical bed supports the buttocks and the thighs of a patient through the buttocks and leg supporting parts, and the shanks of the patient can hang down freely, so that the feet can be used conveniently for medicine and other auxiliary treatments; the back support part can help the patient to keep sitting posture, and the comfort of the patient is improved; the adjusting device can adjust the height and the direction of the sitting posture of the patient, and is convenient for adjusting the body posture of the patient in a small space. When the auxiliary medical bed is used specifically, the auxiliary medical bed can be combined with a common sickbed for use, so that the patient can realize sitting posture treatment on the premise of not leaving the sickbed.

Further, the hip-leg support structure disclosed in the above technical solution is optimized, and the following concrete feasible solutions are provided: the hip and leg supporting part and the back supporting part respectively comprise a hip and leg support and a back support, the hip and leg support is hinged with the back support, and a pitching adjusting structure used for adjusting the rotating connection angle is arranged at the hinged position.

Furthermore, the back support and/or the hip support are telescopic supports for facilitating the use of patients with different body types. When so arranged, the stent can be lengthened or shortened to adapt to the body of the patient.

Further, when the back support part is adjusted in pitch, the back support part is adjusted in pitch through the pitch adjusting structure, and the pitch adjusting structure is not uniquely determined, and one of the possible solutions is as follows: the pitching adjusting structure comprises an articulated shaft, the articulated shaft is arranged on the hip leg support in a rotating mode, the pitching adjusting structure further comprises a transmission gear set arranged on the hip leg support in a rotating mode, the articulated shaft is in transmission fit with the transmission gear set, and the transmission gear set is meshed with a fixed gear arranged on the back support.

Furthermore, in order to facilitate the pitching adjustment, the hinged shaft is provided with a pitching adjusting handle. When the pitching adjusting handle is rotated, the hinged shaft can be driven to rotate, so that the back supporting part is driven to realize pitching adjustment.

Furthermore, after the back supporting part is adjusted to a certain angle, the back supporting part is locked when the angle needs to be kept, the pitching adjusting structure further comprises a pitching locking assembly, the pitching locking assembly comprises a locking wheel arranged on the hinge shaft, a pitching locking pull ring and a pitching locking hook or a pitching locking hanging shaft matched with the pitching locking pull ring, the pitching locking pull ring is arranged on the hip leg support, and the pitching locking hook or the pitching locking hanging shaft is arranged on the locking wheel; or the pitching locking pull ring is arranged on the locking wheel, and the pitching locking hook or the pitching locking hanging shaft is arranged on the hip leg support.

Further, the lifting is used for raising or lowering the hip-leg support part, the structure of which is not uniquely determined, and the following scheme can be adopted: the lifting device comprises an outer layer connecting sleeve and an inner layer sleeve, the inner layer sleeve and the outer layer sleeve are arranged in a sliding mode, and a driver used for pushing the inner layer sleeve to lift is arranged below the inner layer sleeve.

Still further, the driver be hydraulic drive pole, when adopting hydraulic drive pole, set up hydraulic pressure adjustment handle and be used for adjusting the extension and the shrink of hydraulic drive pole to realize the telescopic lift of inlayer. In addition, the driver may take a variety of other possible configurations.

Further, the rotating device is used for steering the hip-leg supporting part, and the following scheme can be adopted: the rotating device comprises a rotary table arranged on the lifting device, a horizontal pushing bearing is arranged between the rotary table and the lifting device, and the rotary table is connected with the hip and leg supporting part.

Furthermore, after the rotating device rotates to a certain angle, if the angle needs to be kept, locking is needed, a rotating locking structure is arranged between the rotating device and the lifting device, the rotating locking structure comprises a rotating locking pull ring and a rotating locking hook or a rotating locking hanging shaft matched with the rotating locking pull ring, the rotating locking pull ring is arranged on the rotating device, and the rotating locking hook or the rotating locking hanging shaft is arranged on the lifting device; or the rotation locking pull ring is arranged on the lifting device, and the rotation locking hook or the rotation locking hanging shaft is arranged on the rotating device.

Compared with the prior art, the utility model discloses the beneficial effect who has is:

the utility model discloses a buttock supporting part and back supporting part support patient's health, help patient keep the position of sitting under the condition of not leaving the bed to can make both legs hang down naturally and carry out the treatment of foot, strengthen the effect of patient's treatment of foot, improve the efficiency of treatment, help reduces patient's misery and risk in the treatment, also alleviateed medical personnel's burden.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only show some embodiments of the present invention, and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to these drawings without creative efforts.

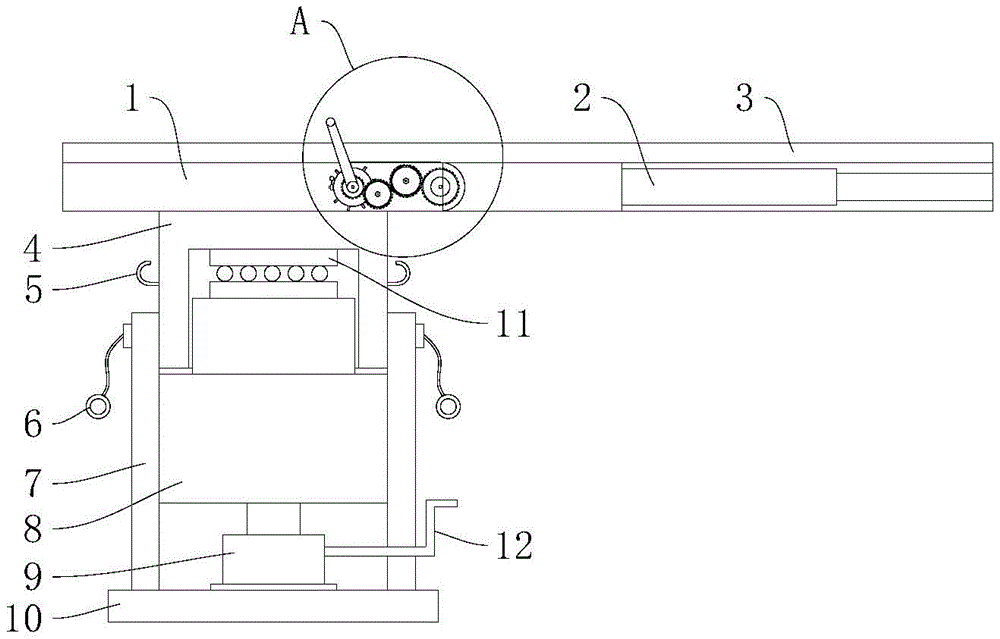

Fig. 1 is a schematic view of the overall structure of the back support portion of the present invention when it is laid flat.

Fig. 2 is a schematic view of the back mounting part of the present invention when it is tilted up.

Fig. 3 is an enlarged view of a portion of a structure at a in fig. 1.

The reference numbers in the figures correspond to the meanings given below: 1. a hip-leg support; 2. a back support; 3. an inflatable cushion; 4. a turntable; 5. rotating the locking hook; 6. rotating the locking pull ring; 7. an outer sleeve; 8. an inner sleeve; 9. a driver; 10. a base; 11. a horizontal push bearing; 12. a hydraulic adjustment handle; 13. a pitch adjustment handle; 14. locking wheels; 15. a pitching locking pull ring; 16. hinging a shaft; 17. a pitching locking hanging shaft; 18. a shaft gear; 19. a drive gear set; 20. and fixing the gear.

Detailed Description

The present invention will be further explained with reference to the drawings and the embodiments.

It should be noted that the description of the embodiments is provided to help understanding of the present invention, but the present invention is not limited thereto. Specific structural and functional details disclosed herein are merely illustrative of example embodiments of the invention. The present invention may, however, be embodied in many alternate forms and should not be construed as limited to the embodiments set forth herein.

Examples

The embodiment provides an auxiliary medical bed for patients who lie in bed and need to be rested, in particular for patients who need to adjust sitting postures frequently to carry out foot nursing treatment, and the auxiliary medical bed helps the patients to keep the sitting postures in a state of not leaving the bed, adjusts the sitting postures as required, and is greatly convenient for the rehabilitation treatment of the patients.

Specifically, as shown in fig. 1 and fig. 2, the present embodiment discloses an inflatable adjustable auxiliary hospital bed, which includes a hip-leg supporting portion 1 and a back supporting portion 2, wherein the hip-leg supporting portion 1 is rotatably connected with the back supporting portion 2, and the hip-leg supporting portion 1 and the back supporting portion 2 are both provided with an inflatable cushion 3; the hip and leg supporting part 1 is connected with an adjusting device below, and the adjusting device comprises a support, a lifting device arranged on the support and a rotating device arranged at the top of the lifting device.

The auxiliary medical bed disclosed above supports the buttocks and thighs of a patient through the buttocks and leg supporting part 1, and the shanks can hang down freely, so that the medication and other auxiliary treatment of feet are facilitated; the back support part 2 can help the patient to keep sitting posture, and the comfort of the patient is improved; the adjusting device can adjust the height and the direction of the sitting posture of the patient, and is convenient for adjusting the body posture of the patient in a small space. When the auxiliary medical bed is used specifically, the auxiliary medical bed can be combined with a common sickbed for use, so that the patient can realize sitting posture treatment on the premise of not leaving the sickbed.

The structure of the hip-leg support part 1 disclosed in the above technical solution is optimized, and the following concrete feasible solutions are provided: the hip and leg supporting parts 1 and the back supporting parts 2 respectively comprise a hip and leg support and a back support, the hip and leg supports are hinged with the back support, and a pitching adjusting structure used for adjusting the rotating connection angle is arranged at the hinged position.

Preferably, the hip-leg support and the back support in the embodiment are made of alloy steel materials.

In order to facilitate the use of patients with different body types, the back support and/or the hip support are telescopic supports. When so arranged, the stent can be lengthened or shortened to adapt to the body of the patient.

Preferably, the back support and the hip leg support are both telescopic supports, wherein the back support is a three-stage telescopic support, and the hip leg support is a two-stage telescopic support.

When performing pitching adjustment of the back support part 2, the pitching adjustment is performed by a pitching adjustment structure, which is not uniquely determined, and one of the possible solutions is as follows: as shown in fig. 3, the pitch adjusting structure includes a hinge shaft 16, the hinge shaft 16 is rotatably disposed on the hip leg support, and further includes a transmission gear set 19 rotatably disposed on the hip leg support, the hinge shaft 16 is in transmission fit with the transmission gear set 19, and the transmission gear set 19 is meshed with a fixed gear 20 disposed on the back support.

Preferably, in the present embodiment, the hinge shaft 16 is provided with a shaft gear 18, and the additional transmission gear set 19 includes two transmission gears.

In order to facilitate the pitch adjustment, the hinged shaft 16 is provided with a pitch adjusting handle 13. When the pitch adjustment handle 13 is rotated, the hinge shaft 16 is rotated, thereby driving the back support part 2 to perform pitch adjustment.

After the back support part 2 is adjusted to a certain angle, when the angle needs to be kept, the back support part 2 is locked, the pitching adjusting structure further comprises a pitching locking component, the pitching locking component comprises a locking wheel 14 arranged on a hinge shaft 16, a pitching locking pull ring 15 and a pitching locking hook or a pitching locking hanging shaft 17 matched with the pitching locking pull ring 15, the pitching locking pull ring 15 is arranged on the hip leg support, and the pitching locking hook or the pitching locking hanging shaft 17 is arranged on the locking wheel 14; or the pitching locking pull ring 15 is arranged on the locking wheel 14, and the pitching locking hook or the pitching locking hanging shaft 17 is arranged on the hip-leg support.

The lifting is used for raising or lowering the hip-leg support 1, and the structure thereof is not limited, and the following scheme can be specifically adopted: the lifting device comprises an outer layer connecting sleeve and an inner layer sleeve 8, the inner layer sleeve 8 and the outer layer sleeve 7 are arranged in a sliding mode, and a driver 9 used for pushing the inner layer sleeve to lift is arranged below the inner layer sleeve 8.

The driver 9 is a hydraulic driving rod, and when the hydraulic driving rod is adopted, a hydraulic adjusting handle 12 is arranged to adjust the extension and contraction of the hydraulic driving rod so as to realize the lifting of the inner sleeve 8. In addition to this, the driver 9 can also take a number of other possible configurations.

The rotating device is used for steering the hip-leg supporting part 1, and the following scheme can be adopted: the rotating device comprises a rotary table 4 arranged on the lifting device, a horizontal pushing bearing 11 is arranged between the rotary table 4 and the lifting device, and the rotary table 4 is connected with the hip and leg supporting part 1.

After the rotating device rotates to a certain angle, if the angle needs to be kept, locking is needed, a rotating locking structure is arranged between the rotating device and the lifting device, the rotating locking structure comprises a rotating locking pull ring 6 and a rotating locking hook 5 or a rotating locking hanging shaft matched with the rotating locking pull ring 6, the rotating locking pull ring 6 is arranged on the rotating device, and the rotating locking hook 5 or the rotating locking hanging shaft is arranged on the lifting device; or the rotation locking pull ring 6 is arranged on the lifting device, and the rotation locking hook 5 or the rotation locking hanging shaft is arranged on the rotation device.

The above embodiments are just examples of the present invention, but the present invention is not limited to the above alternative embodiments, and those skilled in the art can obtain other various embodiments by arbitrarily combining the above embodiments, and any one can obtain other various embodiments by the teaching of the present invention. The above detailed description should not be taken as limiting the scope of the invention, which is defined in the following claims, and which can be used to interpret the claims.

Claims

1. The utility model provides an auxiliary medical bed is adjusted to inflatable which characterized in that: the hip-leg support comprises a hip-leg support part (1) and a back support part (2), wherein the hip-leg support part (1) is rotationally connected with the back support part (2), and the hip-leg support part (1) and the back support part (2) are both provided with inflatable cushions (3); the hip and leg supporting part (1) is connected with an adjusting device below, and the adjusting device comprises a support, a lifting device arranged on the support and a rotating device arranged at the top of the lifting device.

2. The inflatable adjustable hospital bed of claim 1, wherein: the hip and leg supporting part (1) and the back supporting part (2) respectively comprise a hip and leg support and a back support, the hip and leg support is hinged with the back support, and a pitching adjusting structure used for adjusting the rotating connection angle is arranged at the hinged position.

3. The inflatable adjustable hospital bed of claim 2, wherein: the back support and/or the hip support are telescopic supports.

4. The inflatable adjustable hospital bed of claim 2, wherein: the pitching adjusting structure comprises an articulated shaft (16), the articulated shaft (16) is rotatably arranged on the hip leg support, the pitching adjusting structure further comprises a transmission gear set (19) rotatably arranged on the hip leg support, the articulated shaft (16) is in transmission fit with the transmission gear set (19), and the transmission gear set (19) is meshed with a fixed gear (20) arranged on the back support.

5. The inflatable adjustable hospital bed of claim 4, wherein: and a pitch adjusting handle (13) is arranged on the hinged shaft (16).

6. The inflatable adjustable hospital bed according to claim 4 or 5, wherein: the pitching adjusting structure further comprises a pitching locking assembly, the pitching locking assembly comprises a locking wheel (14) arranged on the hinge shaft (16), a pitching locking pull ring (15) and a pitching locking hook or a pitching locking hanging shaft (17) matched with the pitching locking pull ring (15), the pitching locking pull ring (15) is arranged on the hip leg support, and the pitching locking hook or the pitching locking hanging shaft (17) is arranged on the locking wheel (14); or the pitching locking pull ring (15) is arranged on the locking wheel (14) and the pitching locking hook or the pitching locking hanging shaft (17) is arranged on the hip-leg support.

7. The inflatable adjustable hospital bed of claim 1, wherein: the lifting device comprises an outer layer connecting sleeve and an inner layer sleeve (8), the inner layer sleeve (8) and the outer layer sleeve (7) are arranged in a sliding mode, and a driver (9) used for pushing the inner layer sleeve to lift is arranged below the inner layer sleeve (8).

8. The inflatable adjustable hospital bed of claim 7, wherein: the driver (9) is a hydraulic driving rod.

9. The inflatable, adjustable cotherapy bed of claim 1, 7 or 8, wherein: the rotating device comprises a rotating platform (4) arranged on the lifting device, a horizontal pushing bearing (11) is arranged between the rotating platform (4) and the lifting device, and the rotating platform (4) is connected with the hip and leg supporting part (1).

10. The inflatable adjustable hospital bed of claim 9, wherein: a rotation locking structure is arranged between the rotating device and the lifting device, the rotation locking structure comprises a rotation locking pull ring (6) and a rotation locking hook (5) or a rotation locking hanging shaft matched with the rotation locking pull ring (6), the rotation locking pull ring (6) is arranged on the rotating device, and the rotation locking hook (5) or the rotation locking hanging shaft is arranged on the lifting device; or the rotating locking pull ring (6) is arranged on the lifting device, and the rotating locking hook (5) or the rotating locking hanging shaft is arranged on the rotating device.
