Abstract
本实用新型公开了一种可降低室温影响的自制冷却装置，属于制冷领域，包括外箱，所述外箱内壁的右侧固定连接有冷却箱，所述冷却箱内壁的右侧固定连接有进风管，所述进风管的右侧延伸至外箱的右侧，所述进风管的右侧固定连接有进风风扇，所述进风管的左侧固定连接有气管，所述冷却箱的左侧固定连接有洗气箱。该实用新型，通过冷却箱内部通过制冷块对水进行制冷，对气管的外部进行散热降温，使气管内部的空气降温冷却，冷却后的空气通过气管的左侧注入洗气箱的内部，洗气箱空气完全与水接触，可以使空气降温更快，外箱进行保温阻隔了与外界的热交换，直接在外箱的内部进行制冷，从而降低了外界高温对冷却装置的影响。
The utility model discloses a self-made cooling device capable of reducing the influence of room temperature, belonging to the field of refrigeration. The air duct, the right side of the air inlet duct extends to the right side of the outer box, the air inlet fan is fixedly connected to the right side of the air inlet duct, the air duct is fixedly connected to the left side of the air inlet duct, the cooling A scrubber box is fixedly connected to the left side of the box. In the utility model, the water is refrigerated by the refrigeration block inside the cooling box, the heat dissipation and cooling are carried out on the outside of the air pipe, the air inside the air pipe is cooled and cooled, and the cooled air is injected into the inside of the air scrubbing box through the left side of the air pipe, and the air is washed. The air of the box is completely in contact with the water, which can make the air cool faster. The outer box is insulated to block the heat exchange with the outside world, and the cooling is directly performed inside the outer box, thereby reducing the impact of the external high temperature on the cooling device.
Description
Technical Field
The utility model relates to a refrigeration technology field, more specifically say, relate to a can reduce self-control cooling device of room temperature influence.
Background
In the process of product processing, the operation of machine equipment can produce high temperature, and the production of product needs to control ambient temperature and can not be too high, then needs to use cooling device to cool off the air temperature, makes under the equipment constantly produces the operating mode of high temperature, can keep the product to produce in appropriate temperature range.
At present, the traditional cooling device adopts a mode of accelerating the circulation of air inside the environment to dissipate heat, when the indoor temperature is too high, the traditional heat dissipation mode is greatly influenced by the ambient temperature and cannot effectively dissipate heat, and therefore, a self-made cooling device capable of reducing the influence of the room temperature is provided.
SUMMERY OF THE UTILITY MODEL
1. Technical problem to be solved
To the problem that exists among the prior art, the utility model aims to provide a can reduce self-control cooling device of room temperature influence possesses the little advantage of receiving the indoor temperature influence, and it is great that traditional radiating mode receives ambient temperature to influence to have solved, can't carry out effective radiating problem.
2. Technical scheme
In order to solve the above problems, the utility model adopts the following technical proposal.
A self-made cooling device capable of reducing the influence of room temperature comprises an outer box, wherein a cooling box is fixedly connected to the right side of the inner wall of the outer box, an air inlet pipe is fixedly connected to the right side of the inner wall of the cooling box, the right side of the air inlet pipe extends to the right side of the outer box, an air inlet fan is fixedly connected to the right side of the air inlet pipe, an air pipe is fixedly connected to the left side of the air inlet pipe, a gas washing box is fixedly connected to the left side of the cooling box, the left side of the air pipe extends to the inner bottom wall of the gas washing box, a water inlet pipe is fixedly connected to the right side of the inner wall of the gas washing box, the right side of the water inlet pipe penetrates and extends to the left side of the inner wall of the cooling box, a filtering assembly is fixedly connected to the inner wall of the gas washing box, a blow-off pipe is fixedly connected to the inner bottom, the interior roof fixedly connected with exhaust pipe of air washing case, the bottom fixedly connected with dehumidification component of exhaust pipe, the top that the exhaust pipe was run through to the top of dehumidification component extends to the interior roof of outer container, the left side of exhaust pipe runs through and extends to the left side of outer container, the left side fixedly connected with exhaust fan of exhaust pipe.
Preferably, the back of the inner bottom wall of the cooling box and the back of the inner wall of the gas washing box are fixedly connected with refrigeration blocks, the gas pipe is arranged in the cooling box in a snake shape, and the outer box is made of heat-insulating materials.
Preferably, the dehumidifying component comprises a moisture absorption sponge, a draining board and a squeezing component, wherein the outer side of the draining board is fixedly connected to the inner wall of the exhaust pipe, the top of the bottom draining board of the moisture absorption sponge is contacted with the top of the squeezing component, the squeezing component is connected to the inside of the exhaust pipe in a sliding mode and is contacted with the top of the moisture absorption sponge, and the top of the squeezing component penetrates through and extends to the inner top wall of the outer box.
Preferably, the extrusion subassembly includes the stripper plate, the top fixedly connected with stripper bar of stripper plate, stripper plate and stripper bar sliding connection are in the inside of exhaust pipe, the top of stripper bar runs through and extends to the top and the fixedly connected with electron push rod of exhaust pipe, electron push rod's top and the interior roof fixed connection of outer container.
Preferably, evenly distributed's aperture is all seted up at the top of waterlogging caused by excessive rainfall board and stripper plate, the equal fixedly connected with check valve in left side of moisturizing pipe and blow off pipe, the interior roof fixedly connected with moisture detector of exhaust pipe.
Preferably, the equal fixedly connected with sealing washer in junction of exhaust pipe, blow off pipe and moisturizing pipe and outer container and washing-gas box, the air-supply line is with the outer container and the junction fixedly connected with sealing washer of cooler bin, equal fixedly connected with sealing washer in junction of trachea and inlet tube and cooler bin and washing-gas box.
3. Advantageous effects
Compared with the prior art, the utility model has the advantages of:
(1) the self-made cooling device capable of reducing the influence of room temperature can suck air outside an outer box into a cooling box through the arrangement of an air inlet pipe and an air inlet fan, the cooling box can refrigerate water through a refrigerating block inside the cooling box, the air outside an air pipe is cooled through heat dissipation, the air inside the air pipe is cooled, the cooled air is injected into a gas washing box through the left side of the air pipe, the gas washing box is refrigerated through the refrigerating block inside the gas washing box, the air is completely contacted with the water, the air can be cooled more quickly, a filtering assembly can filter the water mixed with the gas, the gas is cleaned, an air exhaust fan inside an exhaust pipe can exhaust the cleaned and cooled air to the outside of the outer box, the refrigerating effect is achieved, a drain pipe can exhaust filtered impurities, a water replenishing pipe can replenish water into the gas washing box, a water inlet pipe can replenish water into the cooling box, a dehumidifying component can dehumidify the cleaned air inside the exhaust pipe, make the gaseous drier after the exhaust cooling to the protection electrical equipment, the outer container keeps warm and has obstructed the heat exchange with the external world, directly refrigerates in the inside of outer container, thereby has reduced the influence of external high temperature to cooling device.
(2) This can reduce self-control cooling device of room temperature influence can refrigerate the water of cooler bin and gas washing incasement portion through setting up the refrigeration piece, sets up the snakelike area of contact that can increase air and cooling water of arranging of trachea, makes the cooling effect better, sets up the outer container and can make the inside cooling effect of outer container not influenced by the outside high temperature of outer container for insulation material.
(3) This can reduce self-control cooling device of room temperature influence, can absorb the moisture in the air of washing from the gas washing case cleaning through setting up the moisture absorption sponge, play the dehumidification effect, can make the dehumidification effect descend after the moisture absorption sponge absorbs full moisture, it can press down to the moisture absorption sponge to set up the extrusion subassembly, press and extrude the inside moisture of moisture absorption sponge on the drain board, discharge the gas washing incasement through the drain board again, make the moisture absorption sponge circulated use, reach the effect that lasts the dehumidification, make exhaust pipe exhaust air drier, can not cause the damage to electrical equipment.
(4) This can reduce self-control cooling device of room temperature influence can promote the stripper bar through setting up the electron push rod and slide from top to bottom to can support the stripper plate and extrude the moisture in the moisture absorption sponge, thereby make the moisture absorption sponge can continue to absorb water and reach the dehumidification effect.
(5) This can reduce self-control cooling device of room temperature influence, it has evenly distributed's aperture to open on through setting up waterlogging caused by excessive rainfall board and stripper plate, make the air after the refrigeration can see through waterlogging caused by excessive rainfall board and stripper plate, discharge from the exhaust pipe, and the water of stripper plate extrusion moisture absorption sponge can flow to the scrubbing tank in through the aperture, make the moisture absorption sponge can recycle, set up the humidity that moisture detector can detect the exhaust air, can send signal start extrusion subassembly to extrude the dehumidification to the moisture absorption sponge when humidity reaches certain standard, play the monitoring role, set up the switch that the check valve can control supplementary water and sewage, the velocity of flow and flow direction.
(6) This can reduce self-control cooling device of room temperature influence through set up the sealing washer in each junction, can guarantee the leakproofness of outer container, cooler bin and gas washing case, makes the water of cooler bin and gas washing case can not leak, avoids causing the damage to the device to increase of service life, and make outside high temperature can not follow the inside that the junction got into the outer container, influence the inside cooling effect.
Drawings

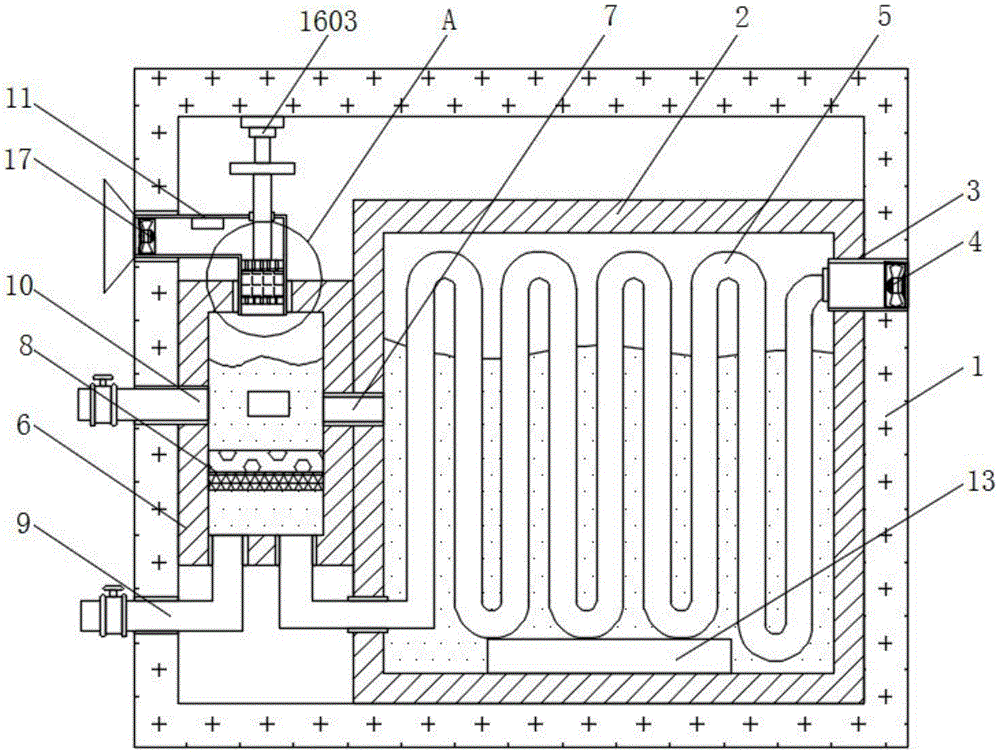

FIG. 1 is a schematic cross-sectional view of the structure of the present invention;
FIG. 2 is an enlarged view of the point A in FIG. 1 according to the present invention;
fig. 3 is a schematic structural view of the extrusion assembly of the present invention.
The reference numbers in the figures illustrate:
1. an outer box; 2. a cooling tank; 3. an air inlet pipe; 4. an air intake fan; 5. an air tube; 6. a gas washing tank; 7. a water inlet pipe; 8. a filter assembly; 9. a blow-off pipe; 10. a water replenishing pipe; 11. an exhaust duct; 12. a dehumidifying component; 13. a refrigeration block; 14. a moisture-absorbing sponge; 15. a draining board; 16. an extrusion assembly; 1601. a pressing plate; 1602. an extrusion stem; 1603. an electronic push rod; 17. an exhaust fan.
Detailed Description
The technical solution in the embodiment of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiment of the present invention; obviously, the described embodiments are only a part of the embodiments of the present invention, and not all embodiments, and all other embodiments obtained by those skilled in the art without any inventive work are within the scope of the present invention based on the embodiments of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "top/bottom", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "provided", "sleeved/connected", "connected", and the like are to be understood in a broad sense, such as "connected", which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-3, a self-made cooling device capable of reducing the influence of room temperature comprises an outer box 1, a cooling box 2 is fixedly connected to the right side of the inner wall of the outer box 1, an air inlet pipe 3 is fixedly connected to the right side of the inner wall of the cooling box 2, the right side of the air inlet pipe 3 extends to the right side of the outer box 1, an air inlet fan 4 is fixedly connected to the right side of the air inlet pipe 3, an air pipe 5 is fixedly connected to the left side of the air inlet pipe 3, a gas washing box 6 is fixedly connected to the left side of the cooling box 2, the left side of the air pipe 5 extends to the inner bottom wall of the gas washing box 6, a water inlet pipe 7 is fixedly connected to the right side of the inner wall of the gas washing box 6, the right side of the water inlet pipe 7 penetrates and extends to the left side of the inner wall of the cooling box 2, a filtering assembly 8 is fixedly connected to the inner wall of the gas washing box 6, a sewage discharge pipe 9 is, an exhaust pipe 11 is fixedly connected to the inner top wall of the air washing box 6, a dehumidifying component 12 is fixedly connected to the bottom of the exhaust pipe 11, the top of the dehumidifying component 12 penetrates through the top of the exhaust pipe 11 and extends to the inner top wall of the outer box 1, the left side of the exhaust pipe 11 penetrates through and extends to the left side of the outer box 1, an exhaust fan 17 is fixedly connected to the left side of the exhaust pipe 11, air outside the outer box 1 can be pumped into the cooling box 2 through the arrangement of an air inlet pipe 3 and an air inlet fan 4, water is refrigerated inside the cooling box 2 through a refrigerating block 13, heat dissipation and cooling are carried out on the outside of the air pipe 5, the air inside the air pipe 5 is cooled, the cooled air is injected into the air washing box 6 through the left side of the air pipe 5, the inside of the air washing box 6 is refrigerated through the refrigerating block 13, the air is completely contacted with water, the air can be cooled more quickly, and the water mixed with gas can be, thereby it is gaseous clean, the inside air exhaust fan 17 of exhaust pipe 11 can arrange the air after the abluent cooling to the outside of outer container 1, reach refrigeration effect, blow off pipe 9 can discharge the impurity of crossing off the filtration, moisturizing pipe 10 can be to the make-up water in the gas box 6, inlet tube 7 can be to the inside make-up water of cooling tank 2, exhaust pipe 11's inside has dehumidification component 12 can dehumidify the air of washing, make the gas after the exhaust cooling drier, thereby protect electrical equipment, outer container 1 keeps warm the separation with external heat exchange, directly refrigerate in the inside of outer container 1, thereby the influence of external high temperature to cooling device has been reduced.
Further, the equal fixedly connected with in the back of the interior diapire of cooler bin 2 and the 6 inner walls of gas washing case refrigerates piece 13, trachea 5 is snakelike arranging in the inside of cooler bin 2, outer container 1 is insulation material, can refrigerate the inside water of cooler bin 2 and gas washing case 6 through setting up refrigeration piece 13, set up the area of contact that the snakelike arranging of trachea 5 can increase air and cooling water, it is better to make the cooling effect, it can make the inside cooling effect of outer container 1 not influenced by the outside high temperature of outer container 1 for insulation material to set up outer container 1.
Further, the dehumidifying component 12 comprises a moisture absorbing sponge 14, a draining plate 15 and a squeezing component 16, the outer side of the draining plate 15 is fixedly connected to the inner wall of the exhaust pipe 11, the top of the bottom draining plate 15 of the moisture absorbing sponge 14 contacts, the squeezing component 16 is slidably connected inside the exhaust pipe 11 and contacts with the top of the moisture absorbing sponge 14, the top of the squeezing component 16 penetrates through and extends to the inner top wall of the outer box 1, the moisture absorbing sponge 14 can absorb the moisture in the air cleaned from the air washing box 6 to achieve the dehumidifying effect, the dehumidifying effect is reduced after the moisture absorbing sponge 14 absorbs the moisture, the squeezing component 16 can press the moisture absorbing sponge 14 downwards, the moisture in the moisture absorbing sponge 14 is squeezed out by pressing on the draining plate 15 and is discharged into the air washing box 6 again through the draining plate 15, so that the moisture absorbing sponge 14 can be recycled to achieve the continuous dehumidifying effect, the air exhausted by the exhaust pipe 11 is drier, and the electric equipment cannot be damaged.
Further, the pressing assembly 16 includes the stripper plate 1601, the top fixedly connected with stripper rod 1602 of stripper plate 1601, stripper plate 1601 and stripper rod 1602 sliding connection are in the inside of exhaust pipe 11, the top of stripper rod 1602 runs through and extends to the top of exhaust pipe 11 and fixedly connected with electronic push rod 1603, the top of electronic push rod 1603 and the interior roof fixed connection of outer container 1, can promote the stripper rod 1602 through setting up electronic push rod 1603 and slide from top to bottom, thereby can support the stripper plate 1601 and extrude moisture in the moisture absorption sponge 14, make the moisture absorption sponge 14 can continue to absorb water and reach the dehumidification effect.
Further, evenly distributed's aperture has all been seted up at the top of draining board 15 and stripper plate 1601, the equal fixedly connected with check valve in left side of moisturizing pipe 10 and blow off pipe 9, the interior roof fixedly connected with moisture detector of exhaust pipe 11, open evenly distributed's aperture on through setting up draining board 15 and stripper plate 1601, make the air after the refrigeration can see through draining board 15 and stripper plate 1601, discharge from exhaust pipe 11, and the water that stripper plate 1601 extrudes moisture absorption sponge 14 can flow to in the gas-washing tank 6 through the aperture, make moisture absorption sponge 14 can recycle, set up the humidity that moisture detector can detect the air of exhaust, can send signal start extrusion subassembly 16 to extrude dehumidification moisture absorption sponge 14 when humidity reaches certain standard, play the monitoring role, set up the switch that the check valve can control make-up water and sewage, the velocity of flow and the flow direction.
Further, exhaust pipe 11, blow off pipe 9 and moisturizing pipe 10 and the equal fixedly connected with sealing washer in junction of outer container 1 and gas washing case 6, the intake stack 3 and the junction fixedly connected with sealing washer of outer container 1 and cooling box 2, trachea 5 and inlet tube 7 and the equal fixedly connected with sealing washer in junction of cooling box 2 and gas washing case 6, through setting up the sealing washer in each junction, can guarantee outer container 1, the leakproofness of cooling box 2 and gas washing case 6, make the water of cooling box 2 and gas washing case 6 can not leak, avoid causing the damage to the device, thereby increase of service life, and make outside high temperature can not follow the inside that the junction got into outer container 1, influence the inside cooling effect.
The working principle is as follows: the cooling device firstly pumps outside air into a cooling box 2 through an air inlet fan 4 through an air inlet pipe 3, the outside air is distributed in the cooling box 2 in a snake shape through an air pipe 5, the contact time between the air inside the air pipe 5 and water inside the cooling box 2 is prolonged, the cooled air is injected into a gas washing box 6 through the left side of the air pipe 5, the inside of the gas washing box 6 is refrigerated through a refrigerating block 13, so that the air is completely contacted with the water, the air can be cooled more quickly, a filtering component 8 can filter the water mixed with the gas, so as to clean the gas, an electronic push rod 1603 inside an exhaust pipe 11 can push an extrusion rod 1602 to slide up and down, so that the extrusion plate can be supported to press downwards the moisture absorption sponge 14, the moisture absorption sponge 14 is extruded on a moisture absorption plate 15, the moisture absorption sponge 14 is discharged into the gas washing box 6 through the moisture absorption plate 15 again, and the sponge 14 can be recycled, reach the effect that lasts the dehumidification, exhaust fan 17 can arrange the outside to outer container 1 with the air after the cooling of cleaning, reaches the refrigeration effect, and blow off pipe 9 can discharge the impurity of crossing off, and moisturizing pipe 10 can be to make up water in the gas-washing case 6, and inlet tube 7 can be to the inside make up water of cooling tank 2 to reach water level balance, it is great that traditional radiating mode receives ambient temperature to influence, can't carry out effective radiating problem.
The above description is only the preferred embodiment of the present invention; the scope of the present invention is not limited thereto. Any person skilled in the art should also be able to cover the technical scope of the present invention by replacing or changing the technical solution and the improvement concept of the present invention with equivalents and modifications within the technical scope of the present invention.
