本实用新型公开的一种可展开变形的三角形包装盒，为由一块总面板折叠而成的八个成闭环连接且尺寸相同的三棱柱盒体，每个三棱柱盒体的上、下底面的形状均为等腰直角三角形，三个侧面的形状均为矩形。本实用新型一种可展开变形的三角形包装盒，能够以独特和新颖的装潢设计展示各类物品，并且能够很好的保护物品。
The utility model discloses an expandable and deformable triangular packing box, which is formed by folding a general panel into eight triangular prism boxes that are connected in a closed loop and have the same size. The upper and lower bottom surfaces of each triangular prism box are The shapes are all isosceles right triangles, and the shapes of the three sides are all rectangles. The utility model is an expandable and deformable triangular packing box, which can display various items with unique and novel decoration design and can well protect the items.
Description
Technical Field
The utility model belongs to the technical field of packaging container, concretely relates to triangle-shaped packing carton that can expand and warp.
Background
In the modern times, due to the high-speed development of industrial science and technology in China, the national economy is continuously improved, the requirement on packaging is higher and higher, the requirement on the quality and the design style of the packaging box is also improved while the demand on the packaging box is gradually increased, and the packaging box is attractive and elegant and is pressure-resistant and practical. For the package: firstly, the safety of products such as transportation is ensured; and secondly, the product grade is improved. With the arrival of the internet, the living of people changes day by day, the consumption concept and the living concept of people are continuously impacted, meanwhile, the convenience is brought to the living of people, in the process, the packing box plays an important role, and the packing box needs to influence the emotion of the consumers when the consumers meet for the first time through own structures and images to catch the interest of the consumers. The packaging box is designed to serve consumers, so that the packaging makes material storage and transportation among various industries and daily consumption of people safer and more convenient, and is also beneficial to promoting the rapid development of society. A large amount of irregular storage spaces can not be utilized in real life, a large amount of space is wasted, and the special packaging structure can better meet the requirements for placing different spaces.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a triangle-shaped packing carton that can expand the deformation, protection article that the colleague in can make full use of space can be fine.
The utility model discloses the technical scheme who adopts is, a triangle-shaped packing carton that can expand and warp, for eight one-tenth closed loop that form by a total panel is folded and is connected and the triangular prism box body that the size is the same, the shape of the upper and lower bottom surface of every triangular prism box body is isosceles right triangle, and the shape of three side is the rectangle.
The utility model is also characterized in that,
the total panel is formed by connecting four sub-panels which can be folded into a double triangular prism box body in a closed loop mode.
Each sub-panel is formed by connecting a first sub-panel and a second sub-panel, the first sub-panel and the second sub-panel are identical in structure, and the first sub-panel and the second sub-panel are in mirror symmetry; the first sub-panel comprises a first side panel, a first upper bottom plate, a second side panel, a second lower bottom plate and a third side panel which are sequentially connected, a first side edge of the first side panel is connected with a right-angle edge of the first upper bottom plate, the other right-angle edge of the first upper bottom plate is connected with a first side edge of the second side panel, a side edge of the second side panel, which is opposite to the first side edge, is a second side edge, the second side edge of the second side panel is connected with a right-angle edge of the second lower bottom plate, the other right-angle edge of the second lower bottom plate is connected with a first flap, a bevel edge of the second lower bottom plate is connected with a first side edge of the third side panel, a second side edge, which is opposite to the first side edge, of the third side panel, and a straight line where the second side edge of the third side panel is located; the second side edge of the third side panel is connected with the second side edge of the third side panel in the second sub-panel; the first side panel is provided with a first side edge, a second side edge and a third side edge, wherein the first side edge is opposite to the first side edge of the first side panel; the bevel edge of the first upper bottom plate is connected with a third flap; the two sides between the first side and the second side of the third side panel are respectively a third side and a fourth side, the third side of the third side panel is connected with a fourth flap, and the fourth side of the third side panel is connected with a fifth flap;
the second side edge of the first side panel in the second subpanel is connected with the second side edge of the first side panel in the first subpanel in the adjacent subpanel; the second side edge of the first side panel in a first sub-panel is connected to the second side edge of the first side panel in a second sub-panel in an adjacent sub-panel.
The first flap, the second flap, the third flap, the fourth flap and the fifth flap are all isosceles trapezoids in shape.
The total panel is paperboard.
The utility model has the advantages that:
(1) the utility model discloses a packing carton makes each independent folding forming widget connect through common connecting wire, and the shaping is a complete box type at last. The packaging material is selected from paperboard.
(2) The utility model discloses a packing carton is a closed symmetrical figure, mutual independence between the widget, can be with the help of several kinds of inequality and confined spatial structure of rotation and removal after the shaping.
(3) The utility model discloses a packing carton, the structure is unique novel, and the shape after taking shape can alternate, makes the packing more interesting, in addition, the utility model discloses a packing carton expansion diagram can expand on a cardboard, and the high-end graceful of back outward appearance takes shape to protection contained goods that can be fine.
Drawings

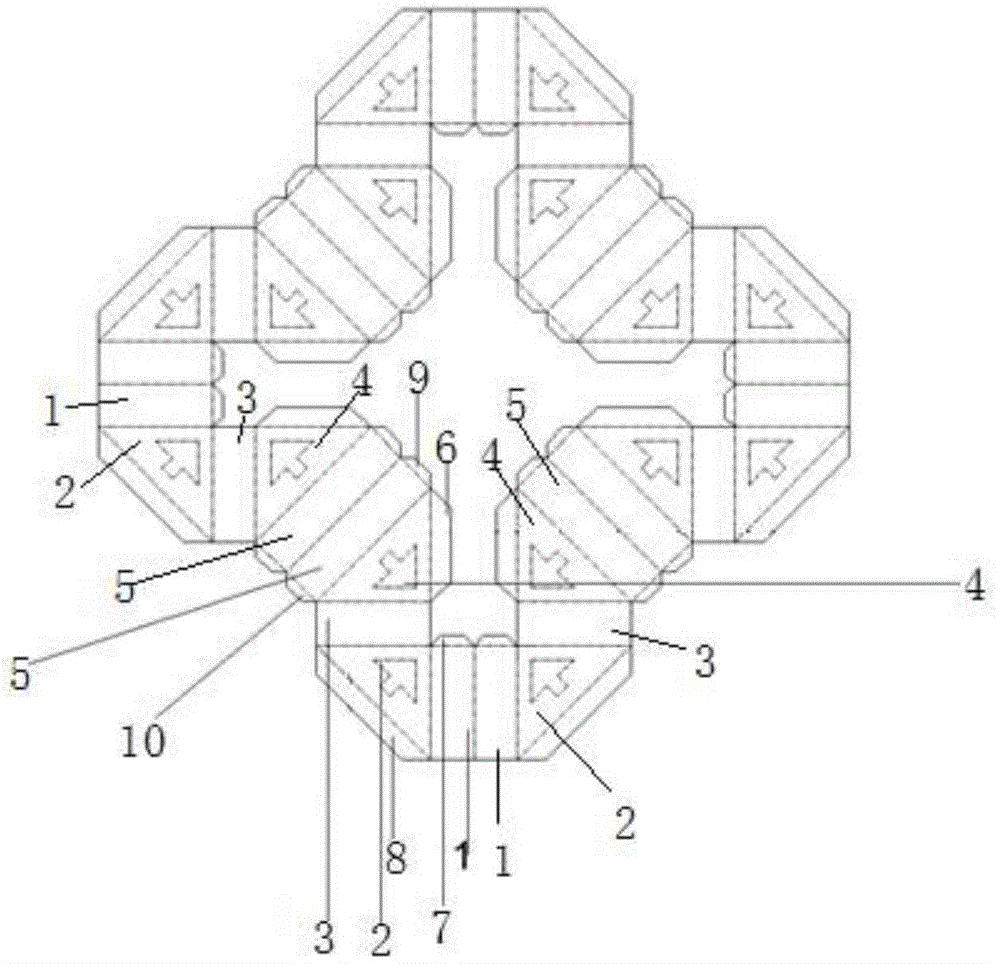

Fig. 1 is a schematic plane development structure diagram of a triangular packing box of the present invention;
fig. 2 is a schematic view of a three-dimensional structure 1 of a triangular packing box of the present invention capable of being unfolded and deformed;
fig. 3 is a schematic view of a three-dimensional structure 2 of a triangular packing box of the present invention;
fig. 4 is a schematic view of a three-dimensional structure 3 of a triangular packing box of the present invention;
fig. 5 is a schematic view of a three-dimensional structure 4 of a triangular packing box of the present invention;
fig. 6 is a schematic view of a three-dimensional structure 5 of a triangular packing box of the present invention;
fig. 7 is a schematic view of a three-dimensional structure 6 of the triangular packing box of the present invention.
In the figure, 1 is a first side panel, 2 is a first upper bottom plate, 3 is a second side panel, 4 is a second lower bottom plate, 5 is a third side panel, 6 is a first flap, 7 is a second flap, 8 is a third flap, 9 is a fourth flap, and 10 is a fifth flap.
Detailed Description
The present invention will be described in detail with reference to the accompanying drawings and specific embodiments.
The utility model relates to a triangle-shaped packing carton that can expand warp, as shown in fig. 1-7, for eight one-tenth closed loop that form by a total panel is connected and the triangular prism box body that the size is the same, the shape of the upper and lower bottom surface of every triangular prism box body is isosceles right triangle, and the shape of three side is the rectangle.
The total panel is formed by connecting four sub-panels which can be folded into a double triangular prism box body in a closed loop mode.
Each sub-panel is formed by connecting a first sub-panel and a second sub-panel, the first sub-panel and the second sub-panel are identical in structure, and the first sub-panel and the second sub-panel are in mirror symmetry; the first sub-panel comprises a first side panel 1, a first upper bottom plate 2, a second side panel 3, a second lower bottom plate 4 and a third side panel 5 which are sequentially connected, a first side edge of the first side panel 1 is connected with a right-angle edge of the first upper bottom plate 2, the other right-angle edge of the first upper bottom plate 2 is connected with a first side edge of the second side panel 3, a side edge of the second side panel 3 opposite to the first side edge is a second side edge, the second side edge of the second side panel is connected with a right-angle edge of the second lower bottom plate 4, the other right-angle edge of the second lower bottom plate 4 is connected with a first flap 6, a bevel edge of the second lower bottom plate 4 is connected with a first side edge of the third side panel 5, a second side edge is opposite to the first side edge of the third side panel 5, and the first sub-panel and the second sub-panel are in mirror symmetry by taking a straight line where the; the second side edge of the third side panel 5 is connected to the second side edge of the third side panel 5 in the second subpanel; the first side panel 1 is opposite to the first side edge thereof and is a second side edge, one side edge between the first side edge and the second side edge of the first side panel 1 is a third side edge, the third side edge of the first side panel 1 is arranged close to the second side panel 3, and the third side edge of the first side panel 1 is connected with a second flap 7; the bevel edge of the first upper bottom plate 2 is connected with a third flap 8; two side edges between the first side edge and the second side edge of the third side panel 5 are respectively a third side edge and a fourth side edge, the third side edge of the third side panel 5 is connected with a fourth flap 9, and the fourth side edge of the third side panel 5 is connected with a fifth flap 10;
the second side edge of the first side panel 1 in the second sub-panel is connected with the second side edge of the first side panel 1 in the first sub-panel in the adjacent sub-panel; the second side edge of a first side panel 1 in a first sub-panel is connected to the second side edge of the first side panel 1 of a second sub-panel in its adjacent sub-panel.
The first flap 6, the second flap 7, the third flap 8, the fourth flap 9 and the fifth flap 10 are all isosceles trapezoids in shape.
The total panel is paperboard.
The transformation method is as follows:
in the forming process, the overall panel as shown in fig. 1 is first produced. Then, the first side panel 1, the first upper bottom plate 2, the second side panel 3, the second lower bottom plate 4 and the third side panel 5 are folded into a triangular prism according to a crease line (a dotted line in fig. 1 is the crease line), and then the first flap 6, the second flap 7, the third flap 8, the fourth flap 9 and the fifth flap 10 are pasted according to requirements, so that the operation is completed, and the rest seven triangular prisms are sequentially formed according to the forming mode, and the three-dimensional structure 1 in fig. 2 is obtained.
In the formation of the paper cassette, eight triangular prisms each having the same shape and size are first formed, and then eight triangular prisms are rotated by 45 ° in the axial direction of the junction to be a lower three-dimensional structure 2, as shown in fig. 3.
The triangular prisms in the three-dimensional structure 2 are further rotated upward by 45 degrees, so that the patterns formed by two triangular prisms are perpendicular to each other, and the three-dimensional structure 3 is shown in fig. 4.
The figure in the three-dimensional structure 3 is rotated to form the three-dimensional structure 4, as shown in fig. 5.
The original three-dimensional structure 1 of the triangular paper box is rotated upward by 90 ° by two large triangular prisms composed of four triangular prisms, to obtain a three-dimensional structure 5, as shown in fig. 6.
The triangular prisms in the three-dimensional structure 1 of the triangular paper box at the beginning are all turned downwards, the head triangular prism and the tail triangular prism form two quadrangular prisms, and the middle triangular prism continuously rotates to form the following three-dimensional structure 6, which is shown in figure 7.
The use method is as follows:
when the packing carton is using, make each part shaping complete box body through pasting, according to actual need again, select one of them spatial structure to fix, the opening through tear alright use. The triangle is selected to make the whole body simpler and more exquisite, increase the stability of transportation and reduce the waste of paper resources.
When the packaging box is not used, the packaging box is unfolded as shown in figure 1, the packaging box is folded according to the forming, and a symmetrical mode is selected according to the requirement, so that the packaging box is compressed into a structure which occupies the most appropriate space for storage and transportation.
Claims (5)
1. The utility model provides a triangle-shaped packing carton that can expand and warp which characterized in that is eight closed loop connections and the triangular prism box body that the size is the same that form by a total panel is folded, and the shape of the upper and lower bottom surface of every triangular prism box body is isosceles right triangle, and the shape of three side is the rectangle.
2. An expandable triangular package according to claim 1, wherein the overall panel is composed of four sub-panels connected in a closed loop so as to be foldable into a double triangular prism case.
3. An expandable and deformable triangular packaging box according to claim 2, wherein each of the sub-panels is formed by connecting a first sub-panel and a second sub-panel, the first sub-panel and the second sub-panel are identical in structure, and the first sub-panel and the second sub-panel are in mirror symmetry; the first sub-panel comprises a first side panel (1), a first upper bottom plate (2), a second side panel (3), a second lower bottom plate (4) and a third side panel (5) which are sequentially connected, wherein a first side edge of the first side panel (1) is connected with a right-angle edge of the first upper bottom plate (2), another right-angle edge of the first upper bottom plate (2) is connected with a first side edge of the second side panel (3), a side edge, opposite to the first side edge, of the second side panel (3) is a second side edge, the second side edge of the second side panel is connected with a right-angle edge of the second lower bottom plate (4), another right-angle edge of the second lower bottom plate (4) is connected with a first flap (6), a bevel edge of the second lower bottom plate (4) is connected with a first side edge of the third side panel (5), a second side edge is opposite to the first side edge of the third side panel (5), and the first sub-panel and the second sub-panel are in mirror symmetry by taking a straight line where the second side edge of the; the second side edge of the third side panel (5) is connected with the second side edge of the third side panel (5) in the second sub-panel; the second side edge is opposite to the first side edge in the first side panel (1), one side edge between the first side edge and the second side edge of the first side panel (1) is a third side edge, the third side edge of the first side panel (1) is arranged close to the second side panel (3), and the third side edge of the first side panel (1) is connected with a second flap (7); the bevel edge of the first upper bottom plate (2) is connected with a third flap (8); two side edges between the first side edge and the second side edge of the third side panel (5) are respectively a third side edge and a fourth side edge, the third side edge of the third side panel (5) is connected with a fourth flap (9), and the fourth side edge of the third side panel (5) is connected with a fifth flap (10);
the second side edge of the first side panel (1) in the second sub-panel is connected with the second side edge of the first side panel (1) in the first sub-panel in the adjacent sub-panel; the second side edge of a first side panel (1) of a first sub-panel is connected to the second side edge of a first side panel (1) of a second sub-panel of its adjacent sub-panels.
4. An expandable and deformable triangular packaging box according to claim 3, characterized in that the first flap (6), the second flap (7), the third flap (8), the fourth flap (9) and the fifth flap (10) are all isosceles trapezoids in shape.
5. An expandable and deformable triangular package according to claim 1, wherein the overall panel is cardboard.
