Abstract
The utility model discloses a soil sampling device for depth-adjustable rock soil detection, which comprises a base, a stand column, a slide block, a mounting plate, a two-phase motor, a drill rod connector, a drill rod and an alloy drill bit, wherein the other side of the stand column is provided with an A bearing groove, the inner side wall of the A bearing groove is movably connected with an A bearing, the inner side of the A bearing is movably connected with a driving flywheel, one side of a vertical bevel gear is meshed with a horizontal bevel gear, and the inner side of the horizontal bevel gear is fixedly connected with a screw rod. The device is more stable in operation.
Description
Technical Field
The utility model relates to a geology sampling equipment technical field specifically is an adjustable ground of degree of depth detects and uses device of fetching earth.
Background
The geological sampling refers to the collection and analysis research work of samples or specimens on geologic bodies or other related natural products according to certain requirements, and aims to provide necessary data or information for solving the problems of geology, mineral products, engineering technology and the like through the analysis research of the samples or the specimens.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides an adjustable ground of degree of depth detects with device of fetching earth has solved the problem that proposes in the above-mentioned background art.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the soil sampling device for the depth-adjustable rock soil detection comprises a base, wherein an upright post is fixedly connected to one side of the upper surface of the base, a groove is formed in one side of the upright post, a sliding block is movably connected to the inner side wall of the groove, a mounting plate is fixedly connected to the surface of the sliding block, a two-phase motor is arranged on the upper surface of the mounting plate, a drill rod connector is fixedly connected to the output end of the two-phase motor, a drill rod is fixedly connected to one end of the drill rod connector, an alloy drill bit is fixedly connected to one end of the drill rod, an A bearing groove is formed in the other side of the upright post, an A bearing is movably connected to the inner side wall of the A bearing groove, a driving flywheel is movably connected to the inner side of the A bearing, a chain is movably connected to the side, the surface of the rotating shaft is fixedly connected with a vertical bevel gear, one side of the vertical bevel gear is meshed with a horizontal bevel gear, and the inner side of the horizontal bevel gear is fixedly connected with a screw.
Optionally, one side of the lower surface of the base is fixedly connected with a foot pad, and the other side of the lower surface of the base is fixedly connected with a roller.
Optionally, one end of the upright post is fixedly connected with an installation cover.
Optionally, one side of the mounting plate is fixedly connected with a guide block, and a threaded hole is formed in the upper surface of the guide block.
Optionally, a handle is fixedly connected to one side of the driving flywheel.
Optionally, both ends of the rotating shaft are movably connected with bearings B.
Optionally, the surface of the drill rod has a galvanised coating.
(III) advantageous effects
The utility model provides an adjustable ground of degree of depth detects and uses device that fetches earth possesses following beneficial effect:
the utility model has the main advantages of providing a soil sampling device with adjustable depth for rock soil detection, the equipment provides an exploration structure, the worker firstly transports the device to a sampling place, then starts a two-phase motor to start the two-phase motor to drive an alloy drill bit to start working, then the worker rotates a driving flywheel through a handle, further the driving flywheel drives a chain to rotate, further the chain drives a driven flywheel to set up rotation, further the driven flywheel drives a rotating shaft to rotate, further the rotating shaft drives a vertical bevel gear to rotate, further the vertical bevel gear drives a horizontal bevel gear to rotate, further the horizontal bevel gear drives a screw to rotate, further the screw drives a mounting plate to move, further the mounting plate drives the two-phase motor to move, finally the worker completes the sampling work, through the arrangement of a sliding block, the device is transported, the upright posts bear the weight of part of the exploration structure, the force borne by the screw is reduced, the bending caused by the overlarge stress of the screw is avoided, the reliability of the device in transportation is ensured, and the applicability of the device is improved.
For traditional adjustable ground of degree of depth detects with device of fetching earth, this equipment more can conveniently carry out supplementary use according to user's needs, for example, through the setting of screw rod, makes the staff when operating this device sample, avoids the alloy drill bit to appear the condition that the drill bit was played when meetting comparatively hard rock, makes this device more stable at the during operation.
Drawings

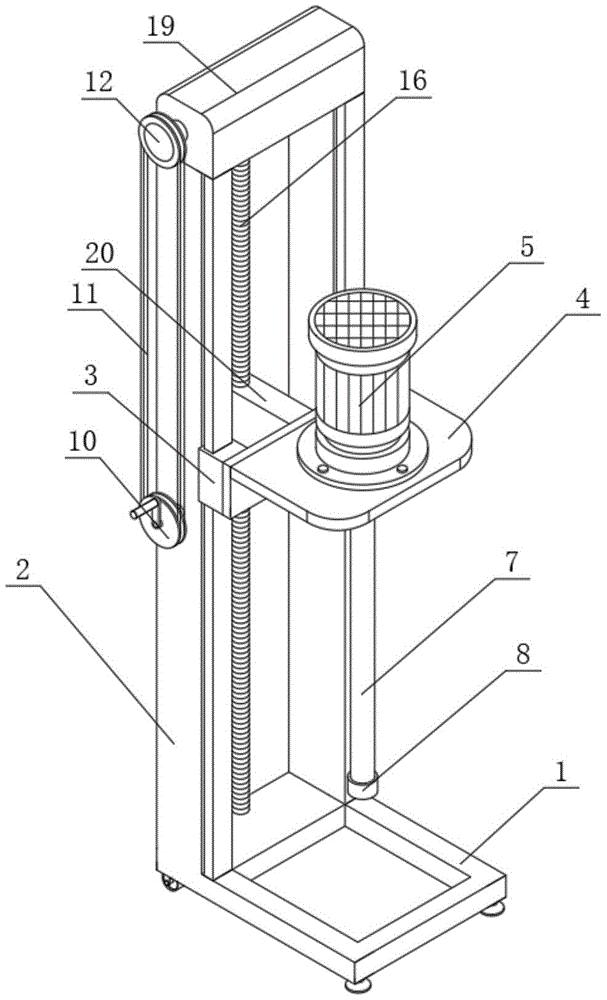

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic sectional view of the structure of the present invention;
fig. 3 is a schematic side view of the structure of the present invention.
In the figure: 1. a base; 2. a column; 3. a slider; 4. mounting a plate; 5. a two-phase motor; 6. a drill pipe connector; 7. a drill stem; 8. an alloy drill bit; 9. a, a bearing; 10. an active flywheel; 11. a chain; 12. a driven flywheel; 13. a rotating shaft; 14. a vertical bevel gear; 15. a horizontal bevel gear; 16. a screw; 17. a foot pad; 18. a roller; 19. mounting a cover; 20. a guide block; 21. a handle; 22. and B, a bearing.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 3, the present invention provides a technical solution: a soil sampling device for rock soil detection with adjustable depth comprises a base 1, wherein one side of the upper surface of the base 1 is fixedly connected with an upright post 2, one side of the upright post 2 is provided with a groove, the inner side wall of the groove is movably connected with a sliding block 3, the surface of the sliding block 3 is fixedly connected with a mounting plate 4, the upper surface of the mounting plate 4 is provided with a two-phase motor 5, the output end of the two-phase motor 5 is fixedly connected with a drill rod connector 6, one end of the drill rod connector 6 is fixedly connected with a drill rod 7, one end of the drill rod 7 is fixedly connected with an alloy drill bit 8, as the alloy drill bit 8 can generate a large amount of heat in the working process, a worker can pour water for the part of the drill rod 7 of the device at regular time in the using process, so that the water flows to the alloy drill bit 8 along the drill rod 7 to, the inner side of the bearing A9 is movably connected with a driving flywheel 10, the side wall of the driving flywheel 10 is movably connected with a chain 11, one end of the chain 11 is movably connected with a driven flywheel 12, the inner side of the driven flywheel 12 is movably connected with a rotating shaft 13, the surface of the rotating shaft 13 is fixedly connected with a vertical bevel gear 14, one side of the vertical bevel gear 14 is meshed with a horizontal bevel gear 15, the inner side of the horizontal bevel gear 15 is fixedly connected with a screw 16, one side of the lower surface of a base 1 is fixedly connected with a foot pad 17, the other side of the lower surface of the base 1 is fixedly connected with a roller 18, one end of a stand column 2 is fixedly connected with an installation cover 19, one side of an installation plate 4 is fixedly connected with a guide block 20, the upper surface of the guide block 20 is provided with a threaded hole, one side of the driving flywheel 10 is fixedly connected with a handle, then the two-phase motor 5 is started, so that the two-phase motor 5 starts to work, so that the alloy drill bit 8 is driven to start to work, then the worker rotates the driving flywheel 10 through the handle 21, so that the driving flywheel 10 drives the chain 11 to rotate, so that the chain 11 drives the driven flywheel 12 to open and rotate, so that the driven flywheel 12 drives the rotating shaft 13 to rotate, so that the rotating shaft 13 drives the vertical bevel gear 14 to rotate, so that the vertical bevel gear 14 drives the horizontal bevel gear 15 to rotate, so that the horizontal bevel gear 15 drives the screw 16 to rotate, so that the screw 16 drives the mounting plate 4 to move, so that the mounting plate 4 drives the two-phase motor 5 to move, and finally the worker finishes sampling work, so that the device can bear the weight of a part of exploration structure during transportation through the arrangement of the sliding block 3, the force borne by the screw 16 is reduced, and the bending caused by the, guaranteed the reliability of this device when the transportation, increased the suitability of this device, through the setting of screw rod 16, make the staff when operating this device sample, avoid alloy drill bit 8 the condition that appears the drill bit bullet when meetting comparatively hard rock, make this device more stable at the during operation.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
In summary, in the soil sampling device for rock soil detection with adjustable depth, when in use, a worker firstly transports the device to a sampling place, then starts the two-phase motor 5, so as to start the two-phase motor 5 to work, so as to drive the alloy drill bit 8 to work, then the worker rotates the driving flywheel 10 through the handle 21, so as to drive the chain 11 to rotate by the driving flywheel 10, so as to drive the driven flywheel 12 to rotate, so as to drive the rotating shaft 13 by the driven flywheel 12, so as to drive the rotating shaft 13 to rotate the vertical bevel gear 14, so as to drive the horizontal bevel gear 15 to rotate by the vertical bevel gear 14, so as to drive the screw 16 to rotate, so as to drive the mounting plate 4 to move, so as to drive the two-phase motor 5 to move by the mounting plate 4, and finally completes sampling work through the arrangement of the sliding block 3, make this device when the transportation, make the stand bear the weight of part exploration structure, alleviateed the power that screw rod 16 received, avoided the too big bending that leads to of screw rod 16 atress, guaranteed the reliability of this device when the transportation, increased the suitability of this device, through the setting of screw rod 16, make the staff when operating this device sample, avoid alloy drill bit 8 the condition that appears the drill bit bullet when meetting comparatively hard rock, make this device more stable at the during operation.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (7)
1. The utility model provides an adjustable ground of degree of depth detects with device that fetches earth, includes base (1), its characterized in that: an upright post (2) is fixedly connected to one side of the upper surface of the base (1), a groove is formed in one side of the upright post (2), a sliding block (3) is movably connected to the inner side wall of the groove, a mounting plate (4) is fixedly connected to the surface of the sliding block (3), a two-phase motor (5) is arranged on the upper surface of the mounting plate (4), a drill rod connector (6) is fixedly connected to the output end of the two-phase motor (5), a drill rod (7) is fixedly connected to one end of the drill rod connector (6), an alloy drill bit (8) is fixedly connected to one end of the drill rod (7), an A bearing groove is formed in the other side of the upright post (2), an A bearing (9) is movably connected to the inner side wall of the A bearing groove, a driving flywheel (10) is movably connected to the inner side wall of the A, one end swing joint of chain (11) has driven flywheel (12), the inboard swing joint of driven flywheel (12) has pivot (13), the fixed surface of pivot (13) is connected with vertical bevel gear (14), one side meshing of vertical bevel gear (14) has horizontal bevel gear (15), the inboard fixedly connected with screw rod (16) of horizontal bevel gear (15).
2. The soil sampling device for rock and soil detection with adjustable depth of claim 1, wherein the soil sampling device comprises: one side fixedly connected with callus on the sole (17) of base (1) lower surface, opposite side fixedly connected with gyro wheel (18) of base (1) lower surface.
3. The soil sampling device for rock and soil detection with adjustable depth of claim 1, wherein the soil sampling device comprises: one end of the upright post (2) is fixedly connected with an installation cover (19).
4. The soil sampling device for rock and soil detection with adjustable depth of claim 1, wherein the soil sampling device comprises: one side fixedly connected with guide block (20) of mounting panel (4), the upper surface of guide block (20) is seted up threaded hole.
5. The soil sampling device for rock and soil detection with adjustable depth of claim 1, wherein the soil sampling device comprises: one side of the driving flywheel (10) is fixedly connected with a handle (21).
6. The soil sampling device for rock and soil detection with adjustable depth of claim 1, wherein the soil sampling device comprises: both ends of the rotating shaft (13) are movably connected with B bearings (22).
7. The soil sampling device for rock and soil detection with adjustable depth of claim 1, wherein the soil sampling device comprises: the surface of the drill rod (7) is provided with a galvanized coating.
