CN213297396U

CN213297396U - Highway enclosure convenient to installation repeatedly usable

Info

Publication number: CN213297396U
Application number: CN202020648113.3U
Authority: CN
Inventors: 王楠; 陆兆祥
Original assignee: Henan University
Current assignee: Henan University
Priority date: 2020-04-26
Filing date: 2020-04-26
Publication date: 2021-05-28
Anticipated expiration: 2030-04-26

Abstract

The utility model discloses a road fence which is easy to install and reuse, comprising a base, the top of the base is provided with a groove, a fence board is inserted in the groove, the bottom of the fence board is provided with threaded holes, and one side of the top of the base is provided with There is a through hole, the through hole is connected with the threaded hole, the through hole is pierced with a bolt, the bolt is connected with the threaded hole, the side of the base is installed with a buffer spring, one side of the buffer spring is installed with an anti-collision plate, and the top of the wall plate is connected with the bolt. A sun visor is attached, and lifting rings are installed on both sides of the top of the base. The utility model provides a road fence that is easy to install and reuse, reduces losses and injuries in the event of a collision, installs a sunshade on the top of the fence board to prevent construction materials from being exposed to sunlight and rain, and is easily lifted and moved by a hoisting ring. Using a plurality of wall devices to form a long wall to isolate the road to be constructed, the whole set of devices has a simplified structure, is convenient to use, can be reused, and has high practical value.

Description

Highway enclosure convenient to installation repeatedly usable

Technical Field

The utility model relates to a highway construction technical field, in particular to highway enclosure convenient to installation repeatedly usable.

Background

The highway is constructed according to the national technical standard among connected cities, between cities and villages, between villages and between industrial and mining bases, is mainly used for driving automobiles and has certain technical standards and facilities, along with the continuous development of the society, the highway construction is particularly important, the construction of highway infrastructure is enhanced, the bearing capacity for the development of the economic society is enhanced, the bottleneck restriction of the economic development is relieved, and the overall promotion of related industries is driven.

In order to make traffic more convenient, old roads need to be widened or dismantled for reconstruction, new roads need to be built on two sides of a road to prevent influences on residents and pedestrians and vehicles in the city, the existing road enclosing wall is extremely inconvenient to build, time-consuming, poor in anti-collision performance and reuse rate, and a road enclosing wall convenient to install and capable of being used repeatedly is needed.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is overcome prior art's defect, but provide a be convenient for install repeatedly usable's highway enclosure, insert the hoarding at the recess at base top, both pass through bolted connection, be convenient for install and dismantle, install buffer spring and anticollision board in the base outside, reduce loss and injury when bumping, install the sunshading board on the top of hoarding, prevent that construction material from being exposed to the sun and drenching with rain, conveniently hoist through rings and remove, a stifled long enclosure is pieced into to usable a plurality of enclosure devices, the highway that will be under construction is kept apart, the whole equipment structure is simplified, high durability and convenient use, but repeatedly use, high practical value.

In order to solve the technical problem, the utility model provides a following technical scheme:

the utility model relates to a highway enclosure convenient to installation repeatedly usable, the on-line screen storage device comprises a base, the top of base is provided with the recess, the dado board has been inserted in the recess, the bottom of dado board is provided with the screw hole, top one side of base is provided with the through-hole, the through-hole communicates with each other with the screw hole, wear the bolt in the through-hole, the bolt is connected with the screw hole, buffer spring is installed to the avris of base, anticollision board is installed to one side of buffer spring, there is the sunshading board on the top of dado board through bolted connection, rings are installed to the top both sides of base, the sunshading board is provided with the voussoir with.

As an optimized technical scheme of the utility model, the inside packing of enclosing wall board has the sound of inhaling cotton.

As an optimized technical scheme of the utility model, the anticollision board has aluminum alloy plate and rubber layer to constitute, the surface on rubber layer scribbles fire retardant coating.

As an optimal technical scheme of the utility model, one side of enclosing wall board is provided with the warning sign, the blotter is installed to the opposite side of enclosing wall board.

As an optimal technical scheme of the utility model, the internally mounted of sunshading board has the battery, solar cell panel is installed at the top of sunshading board, battery and solar cell panel electric connection, the warning light is installed to the avris of sunshading board, battery and warning light electric connection.

Compared with the prior art, the beneficial effects of the utility model are as follows:

the utility model discloses the beneficial effect who reaches is: the utility model discloses a be convenient for install repeatedly usable's highway enclosure, insert the hoarding at the recess at base top, both pass through bolted connection, be convenient for install and dismantle, install buffer spring and crashproof board in the base outside, reduce loss and injury during the bump, install the sunshading board on the top of hoarding, prevent that construction material from being exposed to the sun and drenching, conveniently hoist the removal through rings, a stifled long enclosure is pieced into to usable a plurality of enclosure devices, the highway that will be under construction is kept apart, the whole equipment structure is simplified, high durability and convenient use, repeatedly usable, high practical value.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

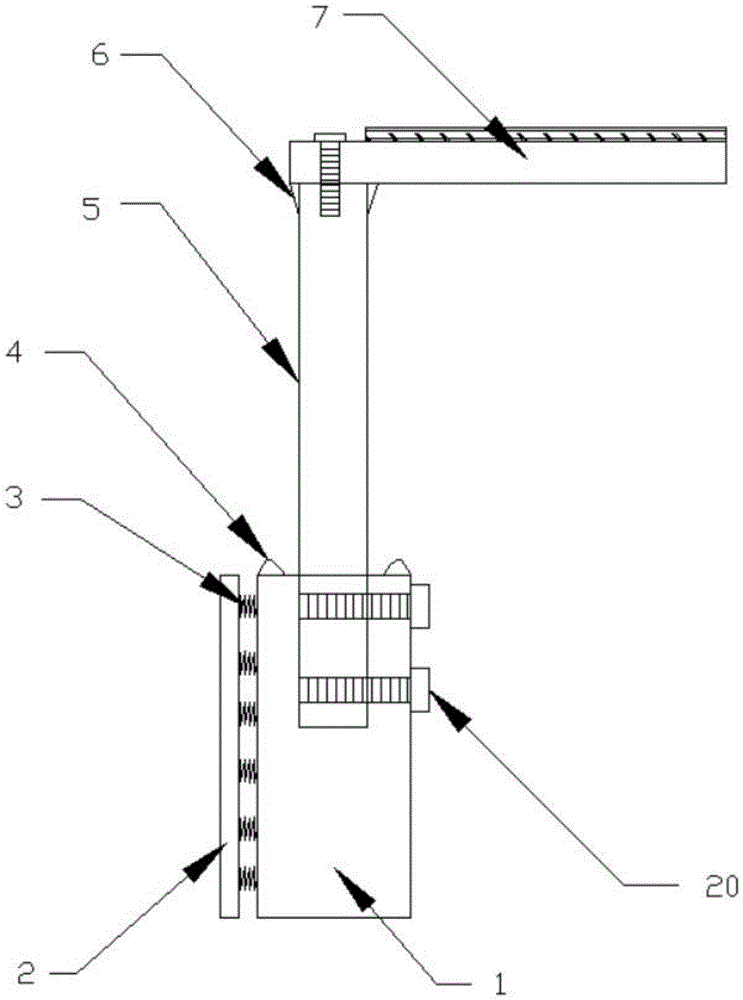

fig. 1 is a schematic view of the overall structure of the present invention;

fig. 2 is one of the partial structural schematic diagrams of the present invention;

fig. 3 is a second partial schematic structural view of the present invention;

fig. 4 is a third schematic view of a partial structure of the present invention;

FIG. 5 is a fourth schematic view of the present invention;

fig. 6 is a fifth schematic view of the present invention.

In the figure: 1. a base; 2. an anti-collision plate; 3. a buffer spring; 4. a hoisting ring; 5. a wall board; 6. a wedge block; 7. a sun visor; 8. sound-absorbing cotton; 9. a cushion pad; 10. a threaded hole; 11. flame retardant coating; 12. a rubber layer; 13. aluminum alloy plate; 14. a through hole; 15. a groove; 16. a warning board; 17. a warning light; 18. a solar panel; 19. a storage battery; 20. and (4) bolts.

Detailed Description

The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.

Example 1

As shown in fig. 1-6, the utility model provides a highway enclosure convenient to install repeatedly usable, including base 1, base 1's top is provided with recess 15, enclosing wall board 5 has been inserted in recess 15, enclosing wall board 5's bottom is provided with screw hole 10, base 1's top one side is provided with through-hole 14, through-hole 14 communicates with each other with screw hole 10, bolt 20 has been worn in through-hole 14, bolt 20 is connected with screw hole 10, buffer spring 3 is installed to base 1's avris, anticollision board 2 is installed to one side of buffer spring 3, enclosing wall board 5's top is connected with sunshading board 7 through bolt 20, rings 4 are installed to base 1's top both sides, sunshading board 7 is provided with voussoir 6 with the both sides of enclosing wall board 5 junction.

The inside packing of enclosing wall board 5 has the sound cotton 8 of inhaling, reduces the noise that the construction produced through inhaling sound cotton 8, reduces the influence to other people.

The anti-collision plate 2 is composed of an aluminum alloy plate 13 and a rubber layer 12, the surface of the rubber layer 12 is coated with a flame-retardant coating 11, the rubber layer 12 can be placed and scratched, the flame-retardant coating 11 prevents the rubber layer 12 from burning to cause loss.

One side of enclosing wall board 5 is provided with warning sign 16, and blotter 9 is installed to enclosing wall board 5's opposite side, and blotter 9 can prevent that there is the stone that splashes in the work progress to beat enclosing wall board 5 bad, prevents that the stone from rebounding the injury workman simultaneously.

The internally mounted of sunshading board 7 has battery 19, and solar cell panel 18 is installed at the top of sunshading board 7, battery 19 and solar cell panel 18 electric connection, and warning light 17 is installed to the avris of sunshading board 17, and battery 19 and warning light 17 electric connection, solar cell panel 18 can receive solar energy and charge for battery 19, and battery 19 is the power supply of warning light 17, and warning light 17 scintillation can arouse pedestrian and vehicle to notice.

Specifically, when the utility model is used, the base 1 is moved and fixed, then the wall panel 5 is inserted into the groove 15, the through hole 14 is communicated with the threaded hole 10, the bolt 20 is screwed with the threaded hole 10 through the through hole 14, the wall panel 5 and the base 1 are fixed, the sun shield 7 and the top end of the wall panel 5 are fixed by the bolt 10, the wedge block 6 is clamped at two sides of the wall panel, the shielding part of the sun shield 7 extends to one side of road construction, the warning sign is arranged on the warning board 16 to remind passers and vehicles to notice, the solar cell panel 18 charges the storage battery 19 by receiving light energy, the storage battery 19 supplies power to the warning lamp 17, the warning lamp 17 flashes to remind passers and vehicles to notice, construction materials can be placed under the sun shield 7 to prevent loss caused by sun exposure and rain, after construction, the wall is disassembled, the lifting ring 4 at the top of the base 1 is connected by using a lifting hook or a rope, and the base 1 is lifted and moved to a transport vehicle.

To sum up, the utility model discloses a be convenient for install repeatedly usable's highway enclosure is provided, at the recess 15 at 1 top of base insert the wainscot board, both connect through bolt 10, be convenient for install and dismantle, at base outside installation buffer spring 3 and crashproof board 2, reduce loss and injury when bumping, install sunshading board 7 on the top of wainscot board, prevent that construction material from being exposed to the sun and drenching, conveniently hoist through rings 4 and remove, a stifled long enclosure is pieced into to usable a plurality of enclosure devices, the highway that will be under construction is kept apart, the whole equipment structure is simplified, high durability and convenient use, repeatedly usable, high practical value.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. A highway fence convenient for installing and reusing comprises a base (1) and is characterized in that, the top of the base (1) is provided with a groove (15), a wall board (5) is inserted in the groove (15), the bottom of the wall board (5) is provided with a threaded hole (10), one side of the top of the base (1) is provided with a through hole (14), the through hole (14) is communicated with the threaded hole (10), a bolt (20) penetrates through the through hole (14), the bolt (20) is connected with the threaded hole (10), the side of the base (1) is provided with a buffer spring (3), an anti-collision plate (2) is arranged on one side of the buffer spring (3), the top end of the wall board (5) is connected with a sun shield (7) through a bolt (20), rings (4) are installed on two sides of the top of the base (1), and wedge blocks (6) are arranged on two sides of the joint of the sun shield (7) and the wall board (5).

2. A road fence to facilitate installation of a reusable as claimed in claim 1 wherein the interior of the fence panel (5) is filled with sound absorbing wool (8).

3. A road fence facilitating installation of a reusable road fence as claimed in claim 1 wherein said fender panel (2) is comprised of an aluminum alloy panel (13) and a rubber layer (12), the surface of said rubber layer (12) being coated with a fire retardant coating (11).

4. A road fence to facilitate installation of a reusable as claimed in claim 1 wherein one side of the fence panel (5) is provided with a warning sign (16) and the other side of the fence panel (5) is provided with a cushioning pad (9).

5. A road enclosing wall convenient for installing and reusing as claimed in claim 1, wherein said sun visor (7) is internally installed with a storage battery (19), said sun visor (7) is installed with a solar cell panel (18) on top, said storage battery (19) is electrically connected with said solar cell panel (18), said warning light (17) is installed on the side of said sun visor (7), said storage battery (19) is electrically connected with said warning light (17).
