Abstract
本实用新型公开了一种污水处理用表面漂浮物清除装置，包括清除装置主体，所述清除装置主体的两侧内表面均固定连接有支撑架，所述清除装置主体的一侧外表面固定连接有进水管，所述清除装置主体的另一侧外表面固定连接有排水管，所述清除装置主体的上端四周均固定安装有对位柱，所述对位柱的上端设置有打捞清除机构，所述清除装置主体的两侧外表面均固定安装有固定块，所述固定块的下端外表面固定安装有电机。本实用新型所述的一种污水处理用表面漂浮物清除装置，设有打捞清除机构，能够对污水中一些较大的漂浮物进行打捞，可以减小后期漂浮物清理的难度，从而提高漂浮物清除的效果，有利于人们使用，带来更好的使用前景。
The utility model discloses a surface float removal device for sewage treatment, which comprises a cleaning device main body, a support frame is fixedly connected to the inner surfaces of both sides of the cleaning device main body, and an outer surface of one side of the cleaning device main body is fixedly connected There is a water inlet pipe, a drain pipe is fixedly connected to the outer surface of the other side of the main body of the cleaning device, an alignment column is fixedly installed around the upper end of the main body of the cleaning device, and the upper end of the alignment column is provided with a salvage and cleaning mechanism, A fixing block is fixedly installed on both outer surfaces of the cleaning device main body, and a motor is fixedly installed on the outer surface of the lower end of the fixing block. The utility model relates to a surface floating object removal device for sewage treatment, which is provided with a salvage and removal mechanism, which can salvage some larger floating objects in the sewage, which can reduce the difficulty of cleaning the floating objects in the later stage, thereby improving the floating objects. The clearing effect is beneficial to people's use and brings a better prospect of use.
Description
Technical Field
The utility model relates to a clearing device field, in particular to surface floater clearing device for sewage treatment.
Background
The sewage is generally discharged water from life or production, and floating objects in the sewage need to be cleaned firstly when the sewage is treated, so that the phenomenon of blockage when the sewage is treated is prevented, and therefore, the surface floating object removing device for the sewage treatment is provided.
The existing cleaning device has certain defects when in use, some large floaters possibly exist in sewage, the existing cleaning device is not convenient to salvage the sewage, the difficulty of later-stage treatment of the floaters is increased easily, certain adverse effects are achieved, certain influences are brought to the use process of people, and therefore the surface floaters cleaning device for sewage treatment is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a sewage treatment is with surperficial floater clearing device can effectively solve the problem in the background art.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a surface floater removing device for sewage treatment comprises a removing device main body, wherein the inner surfaces of two sides of the removing device main body are fixedly connected with supporting frames, the outer surface of one side of the cleaning device main body is fixedly connected with a water inlet pipe, the outer surface of the other side of the cleaning device main body is fixedly connected with a water outlet pipe, the periphery of the upper end of the clearing device main body is fixedly provided with a positioning column, the upper end of the positioning column is provided with a salvaging clearing mechanism, the outer surfaces of both sides of the main body of the clearing device are fixedly provided with fixed blocks, the outer surface of the lower end of each fixed block is fixedly provided with a motor, the outer surface of the upper end of the fixed block is fixedly provided with a loop bar, the outer surface of the upper end of the loop bar is provided with a movable frame, the outer fixed surface of one end of adjustable shelf installs the isolation frame, the middle part internal surface of isolation frame is provided with the filter screen, the upper end middle part fixed mounting of filter screen has the pull ring.
Preferably, the salvaging and clearing mechanism comprises a rocker, a connecting rod, a salvaging rack and a clamping rod, the rocker is arranged on the outer surface of the upper end of the salvaging and clearing mechanism, the connecting rod is arranged in the middle of the lower end of the salvaging and clearing mechanism, the salvaging rack is fixedly arranged on the outer surface of the lower end of the connecting rod, and the clamping rod is fixedly connected to the periphery of the lower end of the salvaging and clearing mechanism.
Preferably, a linkage rod is arranged between the rocker and the connecting rod, the outer surface of the lower end of the rocker is movably connected with the outer surface of the upper end of the connecting rod through the linkage rod, and the periphery of the lower end of the salvaging and clearing mechanism is detachably connected with the middle part of the alignment column through a clamping rod.
Preferably, an assembly shaft is arranged between the fishing frame and the connecting rod, and the middle part of the upper end of the fishing frame is detachably connected with the outer surface of the lower end of the connecting rod through the assembly shaft.
Preferably, an electric push rod is arranged between the motor and the movable frame, and the outer surface of the upper end of the motor is fixedly connected with the outer surface of the other end of the movable frame through the electric push rod.
Preferably, an installation shaft is arranged between the isolation frame and the movable frame, and both sides of the upper end of the isolation frame are fixedly connected with the outer surface of one end of the movable frame through the installation shaft.
Compared with the prior art, the utility model discloses following beneficial effect has: this a surface floater clearing device for sewage treatment, salvage clearance mechanism through setting up, can be with salvage the kelly card on the clearance mechanism on the counterpoint post, then wave the rocker on the clearance mechanism of salvage, thereby it rotates to drive the salvage frame on the connecting rod, can make some great alga floaters twine on the salvage frame in the sewage, then take down the kelly on the clearance mechanism of will salvage from the counterpoint post, be convenient for handle the floater on the salvage frame, can reduce the degree of difficulty that the later stage was clear away to floater in the sewage, thereby improve the effect of clearing away the floater in the sewage, be favorable to people to use, whole surface floater clearing device for sewage treatment simple structure, and convenient for operation, the effect of use is better for traditional mode.
Drawings

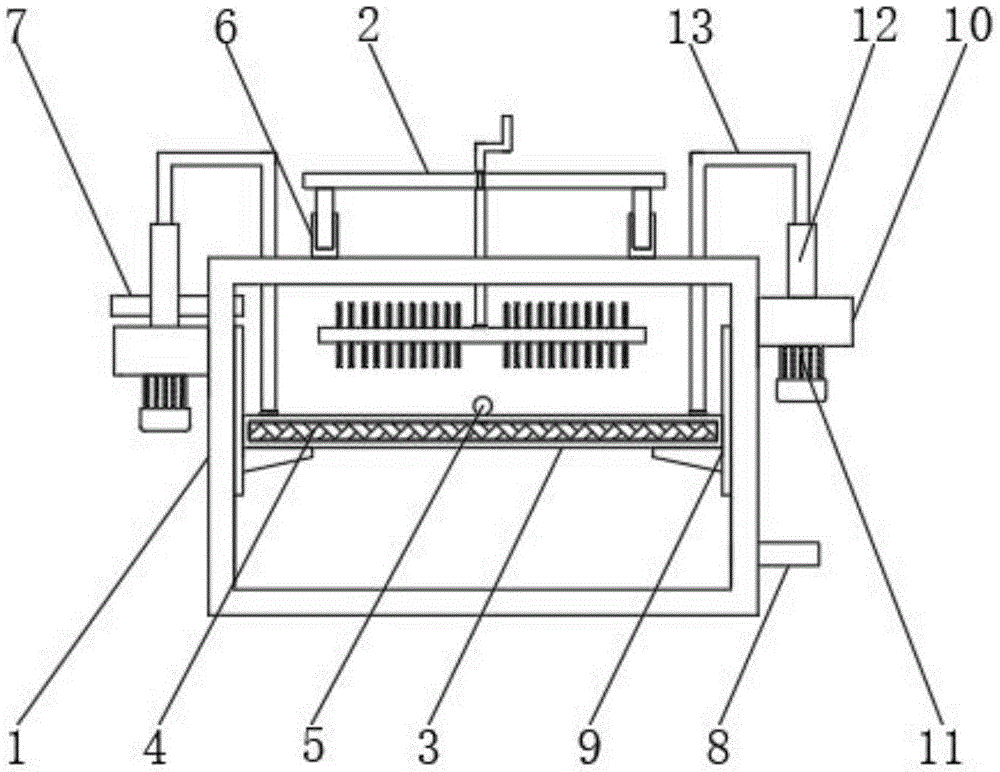

Fig. 1 is the overall structure schematic diagram of the surface floating object removing device for sewage treatment of the utility model.
Fig. 2 is the structure schematic diagram of the salvaging and clearing mechanism 2 in fig. 1 of the surface floating object clearing device for sewage treatment of the utility model.
Fig. 3 is a top view of the isolation frame in fig. 1 of the surface floating material removing device for sewage treatment of the present invention.
In the figure: 1. a cleaning device main body; 2. a salvaging and clearing mechanism; 201. a rocker; 202. a connecting rod; 203. fishing the rack; 204. a clamping rod; 3. an isolation frame; 4. a filter screen; 5. a pull ring; 6. aligning columns; 7. a water inlet pipe; 8. a drain pipe; 9. a support frame; 10. a fixed block; 11. a motor; 12. a loop bar; 13. a movable frame.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
As shown in fig. 1-3, a surface floating object removing device for sewage treatment comprises a removing device main body 1, wherein the inner surfaces of two sides of the removing device main body 1 are fixedly connected with a support frame 9, the outer surface of one side of the removing device main body 1 is fixedly connected with a water inlet pipe 7, the outer surface of the other side of the removing device main body 1 is fixedly connected with a water outlet pipe 8, the periphery of the upper end of the removing device main body 1 is fixedly provided with a positioning column 6, the upper end of the positioning column 6 is provided with a salvaging removing mechanism 2, the outer surfaces of two sides of the removing device main body 1 are fixedly provided with a fixed block 10, the outer surface of the lower end of the fixed block 10 is fixedly provided with a motor 11, the outer surface of the upper end of the fixed block 10 is fixedly provided with a loop bar 12, the outer surface of the upper end of, the middle part of the upper end of the filter screen 4 is fixedly provided with a pull ring 5.
Furthermore, the salvaging and clearing mechanism 2 comprises a rocker 201, a connecting rod 202, a salvaging rack 203 and a clamping rod 204, the outer surface of the upper end of the salvaging and clearing mechanism 2 is provided with the rocker 201, the middle part of the lower end of the salvaging and clearing mechanism 2 is provided with the connecting rod 202, the outer surface of the lower end of the connecting rod 202 is fixedly provided with the salvaging rack 203, the periphery of the lower end of the salvaging and clearing mechanism 2 is fixedly connected with the clamping rod 204, the clamping rod 204 on the salvaging and clearing mechanism 2 can be clamped on the alignment column 6, then the rocker 201 on the salvaging and clearing mechanism 2 is shaken, so that the salvaging rack 203 on the connecting rod 202 is driven to rotate, some larger algae floaters in the sewage can be wound on the salvaging rack 203, then the clamping rod 204 on the salvaging and clearing mechanism 2 is taken down from the alignment column 6, the floaters on the salvaging rack 203 can be conveniently treated, is beneficial to people to use.
Further, a linkage rod is arranged between the rocker 201 and the connecting rod 202, the outer surface of the lower end of the rocker 201 is movably connected with the outer surface of the upper end of the connecting rod 202 through the linkage rod, and the periphery of the lower end of the salvaging and clearing mechanism 2 is detachably connected with the middle part of the alignment column 6 through a clamping rod 204.
Further, an assembly shaft is arranged between the fishing frame 203 and the connecting rod 202, and the middle part of the upper end of the fishing frame 203 is detachably connected with the outer surface of the lower end of the connecting rod 202 through the assembly shaft.
Further, an electric push rod is arranged between the motor 11 and the movable frame 13, and the outer surface of the upper end of the motor 11 is fixedly connected with the outer surface of the other end of the movable frame 13 through the electric push rod.
Furthermore, an installation shaft is arranged between the isolation frame 3 and the movable frame 13, and both sides of the upper end of the isolation frame 3 are fixedly connected with the outer surface of one end of the movable frame 13 through the installation shaft.
The utility model discloses theory of operation and use flow: when the device is used, in order to conveniently remove larger algae floaters in sewage, the clamping rod 204 on the salvage mechanism 2 can be clamped on the alignment column 6, then the rocker 201 on the salvage mechanism 2 is shaken to drive the salvage frame 203 on the connecting rod 202 to rotate, so that some larger algae floaters in the sewage can be wound on the salvage frame 203, then the clamping rod 204 on the salvage mechanism 2 is taken down from the alignment column 6 to facilitate the treatment of the floaters on the salvage frame 203, the difficulty of later-stage removal of the floaters in the sewage can be reduced, the effect of removing the floaters in the sewage is improved, the device is beneficial to people to use, after some larger floaters are removed, the salvage mechanism 2 can be detached from the alignment column 6, then the motor 11 on the fixing block 10 is enabled to work, and the electric push rod inside the loop rod 12 is pushed by the motor 11, thereby upwards promote adjustable shelf 13, can drive isolation frame 3 through adjustable shelf 13 upwards, after isolation frame 3 is pulled out clearing device main part 1 outside, can pull out through pull ring 5 filter screen 4 in will isolating frame 3 to clear away filterable floater on filter screen 4, the later stage of being convenient for is to the processing of sewage, and the sewage after the filtration can be discharged through drain pipe 8.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides a surface floater clearing device for sewage treatment, includes clearing device main part (1), its characterized in that: the cleaning device is characterized in that supporting frames (9) are fixedly connected to the inner surfaces of two sides of the cleaning device main body (1), a water inlet pipe (7) is fixedly connected to the outer surface of one side of the cleaning device main body (1), a water outlet pipe (8) is fixedly connected to the outer surface of the other side of the cleaning device main body (1), aligning columns (6) are fixedly mounted on the periphery of the upper end of the cleaning device main body (1), a fishing and cleaning mechanism (2) is arranged at the upper end of each aligning column (6), fixed blocks (10) are fixedly mounted on the outer surfaces of two sides of the cleaning device main body (1), a motor (11) is fixedly mounted on the outer surface of the lower end of each fixed block (10), sleeve rods (12) are fixedly mounted on the outer surface of the upper end of each sleeve rod (12), movable frames (13) are arranged on the outer surfaces of one ends, a filter screen (4) is arranged on the inner surface of the middle of the isolation frame (3), and a pull ring (5) is fixedly mounted in the middle of the upper end of the filter screen (4).
2. The surface floating material removing apparatus for sewage treatment as claimed in claim 1, wherein: salvage clearance mechanism (2) including rocker (201), connecting rod (202), salvage frame (203) and kelly (204), the upper end surface of salvage clearance mechanism (2) is provided with rocker (201), the lower extreme middle part of salvage clearance mechanism (2) is provided with connecting rod (202), the lower extreme fixed surface of connecting rod (202) installs salvage frame (203), the lower extreme of salvage clearance mechanism (2) all fixedly connected with kelly (204) all around.
3. A surface floating material removing apparatus for sewage treatment according to claim 2, wherein: a linkage rod is arranged between the rocker (201) and the connecting rod (202), the outer surface of the lower end of the rocker (201) is movably connected with the outer surface of the upper end of the connecting rod (202) through the linkage rod, and the periphery of the lower end of the salvaging and clearing mechanism (2) is detachably connected with the middle part of the alignment column (6) through a clamping rod (204).
4. A surface floating material removing apparatus for sewage treatment according to claim 2, wherein: an assembly shaft is arranged between the fishing frame (203) and the connecting rod (202), and the middle part of the upper end of the fishing frame (203) is detachably connected with the outer surface of the lower end of the connecting rod (202) through the assembly shaft.
5. The surface floating material removing apparatus for sewage treatment as claimed in claim 1, wherein: an electric push rod is arranged between the motor (11) and the movable frame (13), and the outer surface of the upper end of the motor (11) is fixedly connected with the outer surface of the other end of the movable frame (13) through the electric push rod.
6. The surface floating material removing apparatus for sewage treatment as claimed in claim 1, wherein: an installation shaft is arranged between the isolation frame (3) and the movable frame (13), and both sides of the upper end of the isolation frame (3) are fixedly connected with the outer surface of one end of the movable frame (13) through the installation shaft.
