CN213293565U

CN213293565U - Simple and easy garbage bin of gradable for dormitory

Info

Publication number: CN213293565U
Application number: CN202021529335.XU
Authority: CN
Inventors: 施杨; 任新宇; 束庭涟; 黄斯斯; 刘玉萱; 续晓楠
Original assignee: Nanjing Forestry University
Current assignee: Nanjing Forestry University
Priority date: 2020-07-27
Filing date: 2020-07-27
Publication date: 2021-05-28
Anticipated expiration: 2030-07-27

Abstract

The utility model discloses a sortable simple trash can for dormitory, comprising a base, a trash can body is fixed on the top outer wall of the base, a bottom plate is arranged on the top outer wall of the base, and a pressure sensor is arranged on the bottom of the bottom plate, so The peripheral outer wall of the base is provided with an alarm device, and the peripheral outer wall of the trash can body is provided with a controller. The utility model adopts the controller, the bottom plate and the alarm device. When the weight of the garbage reaches the set limit, the alarm device emits an alarm sound to remind people to take out the garbage, so as to prevent people from forgetting to take out the garbage and cause the garbage pile to overflow. Or the garbage becomes smelly and insects, which ensures the cleanliness of the garbage room. The garbage bag is put into the garbage can through the fixed ring. The fixed ring can fix the garbage bag and prevent the garbage bag from falling off, which is convenient for people to use.

Description

Simple and easy garbage bin of gradable for dormitory

Technical Field

The utility model relates to a garbage bin technical field especially relates to a simple and easy garbage bin of gradable for dormitory.

Background

A trash can, also known as a waste bin or bin, is a container for holding trash. The garbage can is a container for storing dirt and dirt in people's life, and is also a refraction of social culture, most garbage cans are covered to prevent peculiar smell of garbage from dispersing, some garbage cans can be opened by feet, household garbage cans are placed in most kitchens to place kitchen wastes, some families are placed in main rooms, and the garbage cans in some playgrounds are specially designed into lovely characters.

The Chinese invention patent with the application number of 201710313487.2 discloses a classifiable trash can, which mainly comprises a side panel, a folding plate and a digging groove, and is characterized in that: the side board links to each other with the folded sheet, has the grooving on two blocks side boards in the middle, falls into the three with the garbage bin, and every part can both be folded, and its folding can be folding simultaneously or folding alone, and the garbage bag can be fixed in the grooving, and it is convenient to fold up, easily puts, and above-mentioned device structure is too simple, and people forget often and take away rubbish after throwing away rubbish, leads to rubbish rotten indoor, recruits the winged insect.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a simple and easy garbage can capable of being classified for dormitories.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a simple and easy garbage bin of gradable for dormitory, includes the base, the top outer wall of base is fixed with garbage bin body, and the top outer wall of base is provided with the bottom plate, the bottom of bottom plate is provided with pressure sensor, the circumference outer wall of base is provided with the alarm, and garbage bin body's circumference outer wall is provided with the controller.

Preferably, the outer wall of the bottom of the base is provided with a battery jar, and the inner wall of the battery jar is provided with a battery box.

Preferably, a fixed shaft is fixed on the outer wall of the top of the bottom plate, three partition plates which are symmetrically distributed are fixed on the outer wall of the circumference of the fixed shaft, and the outer wall of one side of each partition plate is fixed on the inner wall of the circumference of the garbage can body.

Preferably, five supporting feet are fixed on the outer wall of the bottom of the base and are distributed at equal intervals.

Preferably, the outer wall of the top of the garbage can body is inserted with a fixing ring.

Preferably, a hinge is fixed on the outer wall of the circumference of the fixing ring, a barrel cover is fixed at one end of the hinge, and a handle is fixed on the outer wall of the top of the barrel cover.

Preferably, an insect expelling box is fixed on the outer wall of the top of the barrel cover, an insect repellant is placed inside the insect expelling box, and a box cover is fixed on the top end of the insect expelling box.

Compared with the prior art, the utility model provides a simple and easy garbage bin of gradable for dormitory possesses following beneficial effect:

1. through the controller, the bottom plate, the alarm that set up, when the weight of rubbish reaches the limit value of settlement, the alarm sends the police dispatch newspaper sound, reminds people to fall rubbish, prevents that people from forgetting to fall rubbish, causes rubbish to pile to overflow or rubbish becomes the flavor of a living worm, has guaranteed the indoor cleanness of rubbish.

2. Through the retainer plate that sets up, put into the garbage bin with the disposal bag in, the disposal bag can be fixed to the retainer plate, prevents that the disposal bag from droing, and the people of being convenient for use.

3. Through the insect expelling box, the insect expelling agent is placed in the insect expelling box, so that the insects around the garbage can be expelled, and the garbage can is prevented from attracting mosquitoes and biting indoor people.

The part that does not relate to in the device all is the same with prior art or can adopt prior art to realize, the utility model has the advantages of simple and compact overall structure, the categorised input of rubbish regularly reminds people rubbish to empty, safe deinsectization.

Drawings

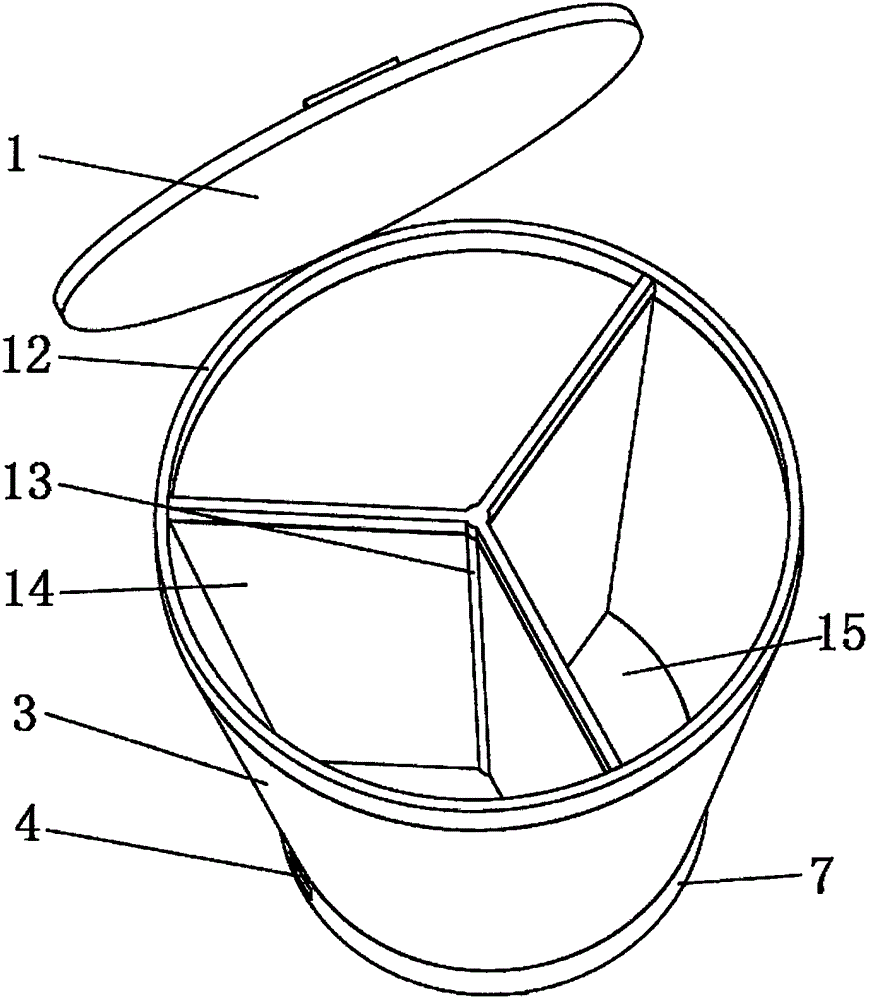

Fig. 1 is a schematic view of an internal structure of a classifiable simple trash can for a dormitory according to the present invention;

fig. 2 is a schematic bottom structure view of a classifiable simple trash can for dormitories according to the present invention;

fig. 3 is the utility model provides a simple and easy garbage bin of classifiable overall structure schematic diagram for dormitory.

In the figure: 1-a barrel cover, 2-a hinge, 3-a garbage barrel body, 4-an alarm, 5-a supporting leg, 6-a battery box, 7-a base, 8-a box cover, 9-a controller, 10-an insect-repelling box, 11-a handle, 12-a fixing ring, 13-a fixing shaft, 14-a partition plate and 15-a bottom plate.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Example 1

Referring to fig. 1-3, a sortable simple garbage bin for dormitory, including base 7, the top outer wall of base 7 is fixed with garbage bin body 3, and the top outer wall of base 7 is provided with bottom plate 15, the bottom of bottom plate 15 is provided with pressure sensor, the circumference outer wall of base 7 is provided with alarm 4, and the circumference outer wall of garbage bin body 3 is provided with controller 9, when the weight of rubbish reaches the limit value of settlement, alarm 4 sends the alarm sound, reminds people to fall rubbish, prevents that people from forgetting to fall rubbish, causes rubbish to pile up to overflow or rubbish taste-changing worm, has guaranteed the indoor cleanness of rubbish.

The utility model discloses in, the bottom outer wall of base 7 is opened there is the battery jar, and the battery case 6 is installed to the inner wall of battery jar.

The utility model discloses in, the top outer wall of bottom plate 15 has fixed axle 13 through the fix with screw, and the circumference outer wall of fixed axle 13 is fixed with the three division board 14 of symmetric distribution, and one side outer wall of division board 14 is fixed in the circumference inner wall of garbage bin body 3.

In the utility model, the bottom outer wall of the base 7 is fixed with five supporting legs 5 distributed at equal intervals.

The utility model discloses in, the top outer wall of garbage bin body 3 is pegged graft and is had retainer plate 12, puts into the garbage bin with the disposal bag in, and the disposal bag can be fixed to retainer plate 12, prevents that the disposal bag from droing, and the people of being convenient for use.

The utility model discloses in, the circumference outer wall of retainer plate 12 has hinge 2 through the fix with screw, and the one end of hinge 2 has bung 1 through the fix with screw, and bung 1's top outer wall has handle 11 through the fix with screw.

The working principle is as follows: when the garbage can is used, the garbage bag is placed into the garbage can, the garbage bag is fixed by the fixing ring 12 and thrown into the garbage bag, when the weight of the garbage reaches a set limit value, the alarm 4 gives an alarm sound to remind people of dumping the garbage, and the duration time of the alarm, the interval of the alarm and the like are set through the controller 9.

Example 2

Referring to fig. 3, a simple and easy garbage bin of classifiable for dormitory, this embodiment compares in embodiment 1, still includes that the top outer wall of bung 1 has insect repelling box 10 through the fix with screw, and the insect repellant has been placed to insect repelling box 10's inside, and the top of insect repelling box 10 is fixed with lid 8.

The working principle is as follows: when the garbage can is used, the insect repelling box 10 is placed with an insect repellent to repel mosquitoes attracted around the garbage can.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a simple and easy garbage bin of gradable for dormitory, includes base (7), the top outer wall of base (7) is fixed with garbage bin body (3), and the top outer wall of base (7) is provided with bottom plate (15), its characterized in that, the bottom of bottom plate (15) is provided with pressure sensor, the circumference outer wall of base (7) is provided with alarm (4), and the circumference outer wall of garbage bin body (3) is provided with controller (9), the top outer wall of bottom plate (15) is fixed with fixed axle (13), and the circumference outer wall of fixed axle (13) is fixed with three division board (14) of symmetric distribution, and one side outer wall of division board (14) is fixed in the circumference inner wall of garbage bin body (3).

2. The sortable simple trash can for dormitories of claim 1, wherein the bottom outer wall of the base (7) is provided with a battery jar, and the inner wall of the battery jar is provided with a battery box (6).

3. The sortable simple trash can for dormitories according to claim 1, wherein five support legs (5) are fixed to the bottom outer wall of the base (7) and are equidistantly distributed.

4. The simple classifiable trash can of claim 1, wherein a fixing ring (12) is inserted into the outer wall of the top of the trash can body (3).

5. The sortable simple garbage can for dormitories is characterized in that a hinge (2) is fixed on the outer circumferential wall of the fixing ring (12), a can cover (1) is fixed at one end of the hinge (2), and a handle (11) is fixed on the outer top wall of the can cover (1).

6. The sortable simple trash can for dormitories according to claim 5, wherein an insect-repellent box (10) is fixed to the outer wall of the top of the can cover (1), an insect repellent is placed inside the insect-repellent box (10), and a box cover (8) is fixed to the top end of the insect-repellent box (10).
