Abstract
本实用新型涉及一种节能降噪安全玻璃，应用在玻璃的领域，旨在解决因设置多个玻璃夹层而造成玻璃节能性差的问题，该玻璃该玻璃为单个夹层玻璃，所述夹层玻璃包括内层玻璃和外层玻璃，所述内层玻璃和外层玻璃通过密封组件连接，所述夹层玻璃内设有降噪空腔，所述降噪空腔内设有消音组件；通过内层玻璃和外层玻璃形成夹层玻璃，且在夹层玻璃内预留降噪空腔，并利用消音组件进行隔音降噪，实现该玻璃隔音降噪的同时，有利于节省玻璃资源，从而达到节能环保的目的。
The utility model relates to an energy-saving and noise-reducing safety glass, which is applied in the field of glass and aims at solving the problem of poor energy-saving performance of the glass due to the arrangement of multiple glass interlayers. layer glass and outer layer glass, the inner layer glass and the outer layer glass are connected by a sealing component, a noise reduction cavity is arranged in the laminated glass, and a noise reduction component is arranged in the noise reduction cavity; The outer layer of glass forms a laminated glass, and a noise reduction cavity is reserved in the laminated glass, and a noise reduction component is used for sound insulation and noise reduction. While realizing the sound insulation and noise reduction of the glass, it is conducive to saving glass resources, thereby achieving the purpose of energy saving and environmental protection.
Description
Technical Field
The utility model belongs to the technical field of glass's technique and specifically relates to an energy-conserving safety glass that makes an uproar that falls is related to.
Background
Along with the rapid development of social economy, urban noise pollution is more and more serious, and users have higher and higher requirements on the sound insulation performance of doors and windows.
The traditional Chinese utility model with the authorized bulletin number of CN202062748U discloses a glass structure with sound insulation and noise reduction functions, which comprises two parallel glass interlayers, wherein each glass interlayer comprises two pieces of parallel glass and a PVB adhesive film clamped between the two glass layers, a hollow layer is formed between the two parallel glass interlayers, and a supporting strip for fixedly connecting the glass interlayers is arranged in the hollow layer; the glass structure mainly utilizes two glass interlayers to weaken noise.
However, the above prior art solutions have the following drawbacks: the glass mechanism mainly utilizes the two parallel glass interlayers to achieve the purposes of sound insulation and noise reduction, and has poor energy saving performance.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide an energy-concerving and noise-reducing safety glass, the advantage is energy-concerving and environment-protective, and the sound insulation is good to prior art exists not enough.
The above utility model discloses an above-mentioned utility model purpose can realize through following technical scheme:
the energy-saving noise-reducing safety glass is single laminated glass, the laminated glass comprises inner layer glass and outer layer glass, the inner layer glass and the outer layer glass are connected through a sealing assembly, a noise-reducing cavity is arranged in the laminated glass, and a noise-reducing assembly is arranged in the noise-reducing cavity.
Through adopting above-mentioned technical scheme, form laminated glass through inlayer glass and outer glass, and reserve the cavity of making an uproar that falls in laminated glass to utilize the amortization subassembly to give sound insulation and fall the noise, when realizing that this glass gives sound insulation and falls the noise, be favorable to saving the glass resource, thereby reach energy-concerving and environment-protective purpose.
The utility model discloses further set up to: the sealing assembly comprises two sealing covered edges and two sound-absorbing boards, the two sealing covered edges are respectively arranged on two sides of the laminated glass, grooves matched with the side edges of the laminated glass in a concave-convex mode are formed in the side walls of the sealing covered edges along the height direction of the side walls, and the sound-absorbing boards are arranged on the inner side walls, close to the edges, of one side, close to the sealing covered edges, of the laminated glass.
By adopting the technical scheme, the grooves are arranged, so that workers can conveniently slide and install the sealing edge covering on two side edges of the laminated glass, the sound-absorbing plate has a good sound-insulating effect, is low in price and convenient to purchase and install, and the noise-reducing cavity is sealed by matching the sound-absorbing plate with the sealing edge covering, so that the sound-insulating and noise-reducing performance of the glass can be further improved; and is favorable for improving the waterproof performance of the glass.
The utility model discloses further set up to: the silencing component comprises a plurality of silencing rods and silencing pieces, the silencing rods are arranged on the side walls opposite to the two sealed wrapping edges through connecting pieces, and the silencing pieces are arrayed on the side walls of the silencing rods along the length direction of the silencing rods.
By adopting the technical scheme, when noise enters the noise reduction cavity through the sealing wrapping edge, the noise is reflected on the noise reduction sheet, and acoustic energy is converted into heat energy to be dissipated, so that the noise is weakened; through the connecting piece, make things convenient for the workman to install the amortization pole on the lateral wall of sealed borduring.
The utility model discloses further set up to: the connecting piece includes the connecting plate, the one end of connecting plate is passed through fixing bolt and is fixed on the inside wall of sealed borduring, the other end of connecting plate is connected with the installation sleeve, the cooperation of pegging graft of installation sleeve and amortization pole.
Through adopting above-mentioned technical scheme, through the cooperation of installation sleeve with fixing bolt, the workman of being convenient for installs and removes the sound pole to labour saving and time saving helps using manpower sparingly cost.
The utility model discloses further set up to: and PVC sound insulation layers are adhered to the two opposite side walls of the inner layer glass and the outer layer glass.
By adopting the technical scheme, the PVC sound insulation layer is formed by blow molding of the polyvinyl chloride, has good sound insulation performance, is nontoxic and harmless, is healthy and environment-friendly, and has low price; and the PVC sound insulation layer has high transparency, so that sound insulation and noise reduction are realized, and the normal observation of scenery outside the window by a user is facilitated.
The utility model discloses further set up to: and a thermoplastic CPE layer is adhered to the side wall of one side of the PVC sound-proof layer, which is far away from the inner layer glass or the outer layer glass.
By adopting the technical scheme, the thermoplastic CPE layer has excellent weather resistance and aging resistance, and the thermoplastic CPE layer is arranged, so that the weather resistance of the glass is improved, and good heat insulation and heat preservation effects can be achieved indoors; the thermoplastic CPE layer has good transparency, and a user can conveniently observe outdoor scenery normally; and the thermoplastic CPE is convenient to obtain, low in cost, energy-saving and environment-friendly.
The utility model discloses further set up to: and rubber shock absorption pads are adhered to the groove walls of the grooves.
By adopting the technical scheme, the rubber shock pad has the advantages of high temperature resistance, water resistance and shock absorption, and is beneficial to improving the sealing property of the glass; and the rubber shock pad is a material which is convenient to obtain in life, and the price is also lower.
The utility model discloses further set up to: the lateral wall of the rubber shock pad on the side departing from the groove is adhered with sound-absorbing cotton.
By adopting the technical scheme, the sound-absorbing cotton has countless micropores, so that the sound waves can be buffered and absorbed, the purposes of sound insulation and noise reduction are achieved, and the noise is prevented from entering a room from the sealed edge; and the sound-absorbing cotton is low in price and convenient to obtain.
To sum up, the utility model discloses a beneficial technological effect does:
1. through the matching of the inner layer glass, the outer layer glass, the sealing wrapping edge and the sound-absorbing board, the glass resource is saved, and the purposes of energy conservation and environmental protection are achieved; and is favorable for improving the sound insulation and noise reduction performance of the glass;
2. through the matching of the connecting plate, the mounting sleeve and the fixing bolt, the assembly and disassembly of the sound rod are facilitated for workers, and the labor is saved;
3. the PVC sound insulation layer is arranged, so that the PVC sound insulation layer is matched with the silencing sheet, the transmission of noise is further weakened, and the sound insulation and noise reduction performance of the glass is improved; the PVC sound insulation material is low in price, and the processing cost of the glass is saved;
4. the rubber pad and the sound-absorbing cotton are arranged on the groove wall of the groove, so that the noise generated by the glass due to opening and closing is reduced; and be favorable to blockking that external noise gets into indoor from sealed bordure, help further promoting this glass's the noise reduction nature that gives sound insulation.
Drawings
Fig. 1 is a schematic view of the overall structure of the present embodiment.

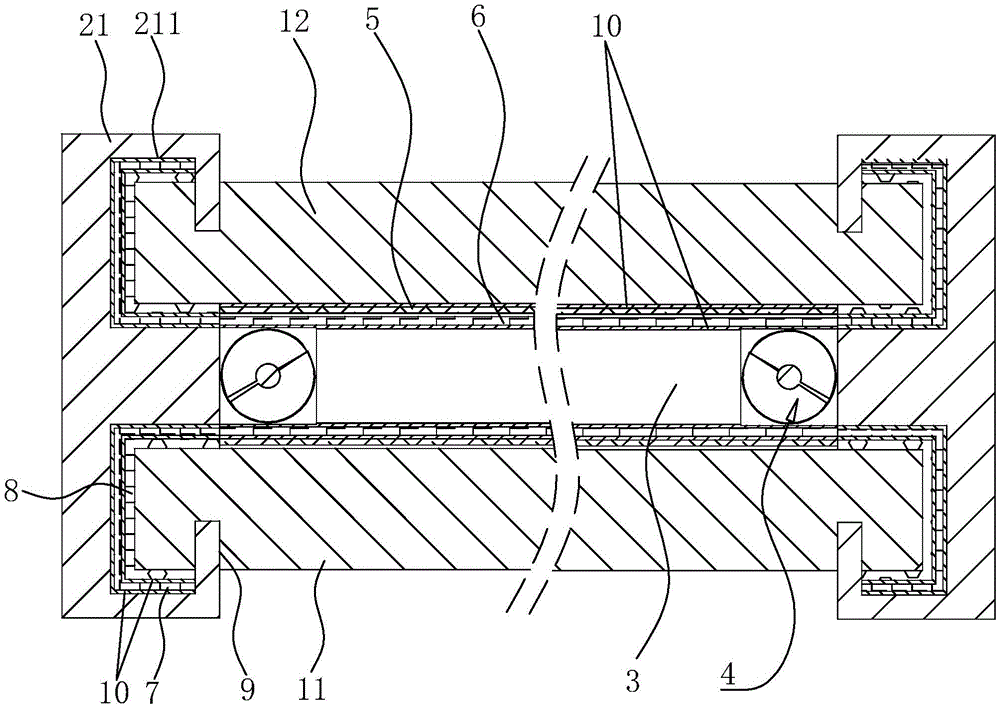

FIG. 2 is a schematic cross-sectional view showing the internal structure of the glass.
Fig. 3 is a schematic top view of the glass.
Fig. 4 is a schematic sectional structure diagram for showing the positional relationship between the noise reduction unit and the laminated glass.
In the figure, 1, laminated glass; 11. inner layer glass; 12. outer layer glass; 2. a seal assembly; 21. sealing the edge; 211. a groove; 22. a sound-absorbing panel; 3. a noise reduction cavity; 4. a noise reduction assembly; 41. a sound deadening rod; 42. a silencing sheet; 43. a connecting plate; 44. fixing the bolt; 45. installing a sleeve; 5. a PVC sound insulation layer; 6. a thermoplastic CPE layer; 7. a rubber shock pad; 8. sound-absorbing cotton; 9. a chute; 10. sound insulation damping glue; 13. and (4) transparent glass cement.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings.
Referring to fig. 1 and 2, for the energy-saving noise-reducing safety glass disclosed by the utility model, the problem of poor energy-saving performance of the glass caused by arranging a plurality of glass interlayers is solved, the glass is a single laminated glass 1, the laminated glass 1 comprises an inner layer glass 11 and an outer layer glass 12, the inner layer glass 11 and the outer layer glass 12 are connected through a sealing assembly 2, the sealing assembly 2 comprises two sealing edges 21 and two sound-absorbing boards 22, grooves 211 are arranged on the opposite side walls of the two sealing edges 21 along the height direction of the sealing edges 21, sliding grooves 9 are arranged on the outer side walls of the inner layer glass 11 and the outer layer glass 12, the two ends of each groove 211 penetrate through the two ends of the sealing edges 21, the laminated glass 1 is conveniently installed in the sealing edges 21 in a sliding manner through the grooves 211 and the sliding grooves 9, rubber shock-absorbing pads 7 are adhered on the groove walls of the grooves 211 through sound-absorbing damping glue 10, cotton 8 is adhered on the side wall of the rubber shock-absorbing pads 7, which deviates from one side, the sound-proof damping glue 10 is formed by coating sound-proof damping sealant of doctor brand, the sound-proof damping sealant has the characteristics of excellent aging resistance, moisture resistance and high temperature resistance, and the sound-proof damping glue 10 has good transparency, so that the transparency of the glass can be ensured.
Referring to fig. 1 and 2, through inlayer glass 11, outer glass 12 and seal assembly 2's cooperation, be favorable to saving the glass resource, and rubber shock pad 7, inhale sound cotton 8 and damping rubber 10 low price, be convenient for obtain, thereby reach energy-concerving and environment-protective purpose, when glass produces vibrations because of opening and shutting, utilize rubber shock pad 7, play shock attenuation protection's effect to glass, thereby weaken the noise that glass produced when opening and shutting, and absorb the noise through inhaling sound cotton 8, help promoting this glass's the performance of making an uproar that gives sound insulation and fall.
Referring to fig. 2, the inner side walls of the inner glass 11 and the outer glass 12 are adhered with a PVC sound insulation layer 5 through a sound insulation damping adhesive 10, the PVC sound insulation layer 5 can be formed by cutting a high-transmittance PVC sheet of a Xinyun brand, the PVC sound insulation material is low in price and convenient to obtain, the PVC sound insulation layer 5 has good sound insulation performance, and the PVC sound insulation layer 5 has good transparency, so that a user can normally observe scenery outside a window.
Referring to fig. 2, the relative inside wall spare of PVC puigging 5 has thermoplastic CPE layer 6 through 10 laminings of damping glue that give sound insulation, and thermoplastic CPE layer 6 is by transparent polyvinyl chloride extrusion moulding, and thermoplastic CPE material is convenient for purchase, and the low price, thermoplastic CPE layer 6 have good weatherability and ageing resistance, are favorable to promoting this glass's weatherability to play good thermal-insulated heat preservation effect indoor.
Referring to fig. 2 and 3, the sound-absorbing plate 22 is adhered to the inner side wall of the laminated glass 1 adjacent to the sealing edge 21 through the transparent glass adhesive 13, the sound-absorbing plate 22 can be made of polyester fiber sound-absorbing plates 22 of the eagle brand, the transparent glass adhesive 13 can be made of transparent durable weather-resistant adhesive of the Su-load brand, the transparent glass adhesive 13 has good transparency and adhesiveness, the sound-absorbing plate 22 can be tightly fixed in the laminated glass 1, the two sealing edge 21, the two sound-absorbing plates 22 and the inner side wall of the laminated glass 1 are enclosed to form a noise-reducing cavity 3, and the noise-reducing cavity 3 is internally provided with a noise-reducing component 4.
Referring to fig. 2 and 4, the silencing assembly 4 includes a plurality of silencing rods 41 and silencing pieces 42, in this application, the silencing rods 41 are one, the silencing rods 41 are arrayed on the opposite side walls of the two sealing edges 21 through connecting pieces, the length direction of the silencing rods 41 is the same as the height direction of the laminated glass 1, the plurality of silencing pieces 42 are arrayed on the side walls of the silencing rods 41 along the length direction of the silencing rods 41, and the silencing pieces 42 are spirally arranged; when noise enters the noise reduction cavity 3 from the sealing edge 21, the noise is reflected on the noise reduction sheet 42, and acoustic energy is converted into heat energy to be dissipated, so that the noise is weakened, and the sound insulation and noise reduction performance of the glass is improved.
Referring to fig. 4, the connecting member includes two connecting plates 43, the shape of the longitudinal section of the connecting plate 43 is L-shaped, one end of the connecting plate 43 is fixed on the inner side wall of the sealing edge 21 through a fixing bolt 44, the other end of the connecting plate 43 is connected with a mounting sleeve 45, and the openings of the two mounting sleeves 45 are respectively in insertion fit with the two ends of the silencing rod 41; after the worker inserts the mounting sleeves 45 into both ends of the silencing rod 41, the worker fixes the connecting plates 43 to the side walls of the sealing rim 21 by the fixing bolts 44, thereby fixing the silencing rod 41 to the side walls of the sealing rim 21.
The implementation principle of the embodiment is as follows: workers use sound-proof damping glue 10 to sequentially adhere a rubber shock pad 7 and sound-absorbing cotton 8 to the groove wall of the groove 211, fix a sound-absorbing rod 41 on the inner side wall of the sealing covered edge 21 through a fixing bolt 44, slidably install the laminated glass 1 in the sealing covered edge 21, and adhere sound-absorbing plates 22 to the inner side walls of the top end and the bottom end of the laminated glass 1 through transparent glass glue 13, so that the sealing performance of the noise-reducing cavity 3 is guaranteed, and the sound-proof and noise-reducing performances of the glass are improved; the utility model, through the cooperation of the inner glass 11, the outer glass 12, the silencing component 4 and the sealing component 2, is beneficial to saving resources while improving the sound insulation and noise reduction performance of the glass; the rubber shock pad 7, the sound absorption cotton 8 and the sound absorption plate 22 are low in price and convenient to obtain, and the sound insulation damping rubber 10 and the transparent glass rubber 13 have the advantages of being green and environment-friendly, so that the purposes of energy conservation and environment protection are achieved.
The embodiment of this specific implementation mode is the preferred embodiment of the present invention, not limit according to this the utility model discloses a protection scope, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.
Claims (8)
