CN213268659U - A central column dynamic water curtain transforming decoration structure - Google Patents

Abstract

The utility model relates to the field of decoration of a central column, and discloses a dynamic water curtain transforming decoration structure for a central column, which comprises a central column. There are lighting groups and atmosphere light groups arranged at intervals. There is a logo sticker under the curved water screen display screen. There is a massage area under the logo sticker. Touch controller and socket, there is a kick plate under the massage area. The dynamic water curtain transforming decoration structure of the central column of the utility model has a reasonable layout, is simple and generous, not only enhances the three-dimensional sense of the central column, but also enables the central column to have the effects of water curtain interaction, lighting, atmosphere adjustment, orientation marking guidance, massage and relaxation, etc. Rich in functions, it maximizes the role of the central column, makes up for the defect that the central column occupies a large amount of space, and provides a large ornamental value for the building.

Description

Dynamic water curtain transformation decorative structure of central upright post

Technical Field

The utility model relates to a central pillar decorates the field, specific theory relates to a dynamic water curtain transform decorative structure of central pillar.

Background

The central column is a rigid support body for supporting upper and lower floors of a building, can be designed into the central column with different sizes according to different stress degrees, and needs a large-scale column to support a high-rise building, but the larger the column is, the larger the occupied space is, so that the attractiveness is influenced, and space resources are wasted to a certain extent. Therefore, in order to exert the function of the central upright column to the maximum, the central upright column needs to be properly decorated, and along with the improvement of the living standard and aesthetic interest of people, the aesthetic requirements of people on home buildings and interior decoration are higher and higher, wherein the decoration requirements on the central upright column are not single for pursuing beauty, but for pursuing three-dimensional and multifunctional properties, and for pursuing a unique effect, the traditional upright column decoration only sticks some pictures on the central upright column for improving the ornamental performance, and the decoration structure can not meet the pursuit of people on high-quality life and has poor functionality, so the prior art needs to be improved.

SUMMERY OF THE UTILITY MODEL

To the deficiency among the prior art, the to-be-solved technical problem of the utility model lies in providing a dynamic water curtain transform decorative structure of central pillar.

In order to solve the technical problem, the utility model discloses a following scheme realizes: the utility model provides a dynamic water curtain transform decorative structure of central pillar, includes central pillar, the anchor ring outer wall of central pillar is equipped with arc water curtain display screen, the top of arc water curtain display screen is equipped with interval arrangement's lighting lamp group and atmosphere banks, the below of arc water curtain display screen is equipped with the sign sticker, the below of sign sticker is equipped with massage area, be equipped with the protruding grain of massage of even interval arrangement and the touch controller and the socket of arranging from top to bottom in the massage area, the below in massage area is equipped with the foot kickboard, arc water curtain display screen, lighting lamp group and atmosphere banks and touch controller electric connection.

Furthermore, the central upright post is of a cylindrical structure, a buffer base plate is arranged above the central upright post, and the buffer base plate inclines inwards from the periphery.

Further, the lighting lamp group is formed by connecting a plurality of white LED lamps in series, the atmosphere lamp group is formed by connecting a plurality of colored LED lamps in series, and the lighting lamp group and the atmosphere lamp group are connected in parallel.

Furthermore, the identification sticker is adhered to the outer surface of the central upright post through a strong adhesive, and is a floor identification sticker or a direction identification sticker.

Furthermore, the height of the massage area is 500mm, the distance between the lowest point of the massage convex particles and the bottommost end of the central upright post is 300-600 mm, and the massage convex particles are of a hemispherical structure.

Furthermore, the panels of the touch controller and the socket are both arc-shaped structures and are connected with the central upright post smoothly.

Furthermore, the bottom of the central upright post is provided with a placement groove, the foot kickplate is fixedly arranged in the placement groove, and the foot kickplate is made of stainless steel materials and has the height of 150 mm-200 mm.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses a dynamic water curtain transform decorative structure of central column is provided with arc water curtain display screen at the surface of central column, lighting lamp group, atmosphere banks, the sign sticker, the protruding grain of massage, structural layout is reasonable, it is succinct generous, the third dimension of central column has been strengthened, make the central column possess the water curtain interdynamic simultaneously, the illumination, the atmosphere is adjusted, the position sign guides and the massage relaxs the equal effect, the function is abundant, the defect that the central column occupies a large amount of spaces has been remedied, and great ornamental value is provided for the building.

Drawings

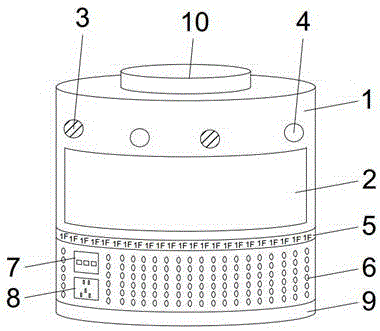

Fig. 1 is a schematic structural view of the dynamic water curtain transformation decoration structure of the central upright post of the utility model;

in the drawings: 1. the central column, 2, arc water curtain display screen, 3, lighting lamp group, 4, atmosphere banks, 5, sign sticker, 6, massage protruding grain, 7, touch control ware, 8, socket, 9, foot kickboard, 10, buffer backing plate.

Detailed Description

The technical solution of the present invention will be described clearly and completely with reference to the accompanying drawings, and obviously, the described embodiments are some, but not all embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; the two elements may be directly connected or indirectly connected through an intermediate medium, or may be communicated with each other inside the two elements, or may be wirelessly connected or wired connected. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to the attached drawing 1, the utility model provides a dynamic water curtain transform decorative structure of central column, including central column 1, the anchor ring outer wall of central column 1 is equipped with arc water curtain display screen 2, the top of arc water curtain display screen 2 is equipped with interval arrangement's lighting lamp group 3 and atmosphere banks 4, the below of arc water curtain display screen 2 is equipped with sign sticker 5, the below of sign sticker 5 is equipped with the massage district, be equipped with even interval arrangement's massage convex grain 6 and the touch-control ware 7 and the socket 8 of arranging from top to bottom in the massage district, the below in massage district is equipped with foot kickboard 9, arc water curtain display screen 2, lighting lamp group 3 and atmosphere banks 4 and touch-control ware 7 electric connection.

The central upright column 1 is of a cylindrical structure, a buffer base plate 10 is arranged above the central upright column, the buffer base plate 10 inclines inwards from the periphery, and the central upright column 1 provides stable support for upper and lower floors.

In the preferred embodiment, the lighting lamp group 3 is formed by connecting a plurality of white LED lamps in series, the lighting lamp group 3 is arranged along the circumferential direction of the center pillar 1, the atmosphere lamp group 4 is formed by connecting a plurality of color LED lamps in series, the atmosphere lamp group 4 is also arranged along the circumferential direction of the center pillar 1, and the lighting lamp group 3 and the atmosphere lamp group 4 are connected in parallel, so that the lighting lamp group 3 and the atmosphere lamp group 4 can be controlled independently.

Wherein, sign sticker 5 is through the sticky surface of pasting at central column 1 of powerful, and in this preferred embodiment, sign sticker 5 is floor sign sticker, if "1F" word closely arranges, forms the floor sign, reminds passerby and is being in the one deck this moment, compares traditional floor sign setting at ground or wall, and this design possesses easily observation, not fragile advantage.

In this preferred embodiment, the height in massage area is 500mm, the distance that the minimum of the protruding grain 6 of massage is 400mm from 1 bottommost end of central pillar, the high range that massage area is 400 ~ 900mm from ground promptly, the crowd that this high design can supply different heights carries out the massage of buttock, the protruding grain 6 of massage is the hemisphere structure, accord with the human engineering design, the massage is comfortable, user experience is stronger, and simultaneously, the protruding grain 6 of massage can provide certain protection for touch controller 7 and socket 8, the panel of touch controller 7 and socket 8 is the arc structure, and be connected in the same direction as the light with central pillar 1.

It should be noted that, the bottom of the central upright post 1 is provided with a placement groove, the kick plate 9 is fixedly installed in the placement groove, and the kick plate 9 is made of stainless steel material, the height of the kick plate is 150 mm-200 mm, the stainless steel material of the kick plate 9 has the characteristics of easy cleaning, high strength and the like, therefore, the installation of the kick plate 9 can prevent the central upright post 1 from being dirty by kicking or being damaged by foreign objects.

It can be understood that socket 8 can provide the interface for charging, when the user needs to have a rest, can stand by this stand massage on one side, carries out the cell-phone on one side and charges, has not only obtained relaxing on the body, has alleviated fatigue, has still carried out the replenishment of electric energy, has promoted user experience greatly.

When the water curtain transformation is required to be started and the scene interaction is enhanced, the arc-shaped water curtain display screen 2 is controlled to work through the touch controller 7, at the moment, the arc-shaped water curtain display screen 2 displays different water curtain scene change pictures, a simulated ecological scene is provided for a building, the dynamic sense of the building is enhanced, meanwhile, a leisure and entertainment atmosphere is provided for a user, meanwhile, the atmosphere lamp group 4 can be started to adjust the atmosphere, and the atmosphere effect of the atmosphere lamp group 4 is particularly better at night; when the illumination is started, the illumination lamp set 3 can be controlled through the touch controller 7, and the illumination effect is greatly improved by the illumination lamp with the uniform ring surface.

The utility model discloses a dynamic water curtain transform decorative structure of central column is rationally distributed, and is succinctly generous, the third dimension of central column has not only been strengthened, make the central column possess the water curtain interactive simultaneously, the illumination, the atmosphere is adjusted, the azimuth sign guides and the massage is relaxed etc. effect, the function is abundant, the effect of central column has been played to the maximize, the defect that the central column occupies a large amount of spaces has been remedied, great ornamental value is provided for the building, the dynamic water curtain transform decorative structure of this central column can use in decoration fields such as large-scale merchant surpasses.

Obviously, in the preferred embodiment, the above is only the preferred embodiment of the present invention, and the patent scope of the present invention is not limited thereby, and all the equivalent structures or equivalent processes that are made by using the contents of the specification and the drawings of the present invention can be directly or indirectly applied to other related technical fields, and all the same principles are included in the patent protection scope of the present invention.

Claims (7)

1. The utility model provides a dynamic water curtain transform decorative structure of central pillar, includes central pillar (1), its characterized in that: the anchor ring outer wall of central pillar (1) is equipped with arc water curtain display screen (2), the top of arc water curtain display screen (2) is equipped with interval arrangement's lighting lamp group (3) and atmosphere banks (4), the below of arc water curtain display screen (2) is equipped with sign sticker (5), the below of sign sticker (5) is equipped with the massage district, be equipped with even interval arrangement's massage protruding grain (6) and touch controller (7) and socket (8) of arranging from top to bottom in the massage district, the below in massage district is equipped with foot kickboard (9), arc water curtain display screen (2), lighting lamp group (3) and atmosphere banks (4) and touch controller (7) electric connection.

2. The dynamic water curtain of the central pillar changes the ornamental structure according to claim 1, characterized by: the central upright post (1) is of a cylindrical structure, a buffer base plate (10) is arranged above the central upright post, and the buffer base plate (10) inclines inwards from the periphery.

3. The dynamic water curtain of the central pillar changes the ornamental structure according to claim 1, characterized by: the lighting lamp group (3) is formed by connecting a plurality of white LED lamps in series, the atmosphere lamp group (4) is formed by connecting a plurality of colored LED lamps in series, and the lighting lamp group (3) and the atmosphere lamp group (4) are connected in parallel.

4. The dynamic water curtain of the central pillar changes the ornamental structure according to claim 1, characterized by: the identification sticker (5) is adhered to the outer surface of the central upright post (1) through a strong adhesive, and is a floor identification sticker or a direction identification sticker.

5. The dynamic water curtain of the central pillar changes the ornamental structure according to claim 1, characterized by: the height of the massage area is 500mm, the distance between the lowest point of the massage convex particles (6) and the lowest end of the central upright post (1) is 300 mm-600 mm, and the massage convex particles are of a hemispherical structure.

6. The dynamic water curtain of the central pillar changes the ornamental structure according to claim 1, characterized by: the panels of the touch controller (7) and the socket (8) are both arc-shaped structures and are in smooth connection with the central upright post (1).

7. The dynamic water curtain of the central pillar changes the ornamental structure according to claim 1, characterized by: the bottom of the central upright post (1) is provided with a placement groove, the foot kickplate (9) is fixedly arranged in the placement groove, the foot kickplate (9) is made of stainless steel materials, and the height of the foot kickplate is 150-200 mm.
