Abstract
本实用新型涉及一种具有点胶功能的激光切割机，包括设置在工作台上方的横梁，横梁上设置有移动座，移动座上设置有激光切割头和点胶枪，横梁上设置有驱动移动座的X轴驱动组件，X轴驱动组件包括X轴电机、X轴滚珠丝杆副、第一导轨和第二导轨，X轴电机和X轴滚珠丝杆副设置在横梁的上侧面，第一导轨、第二导轨分别设置在横梁的前侧面、下侧面，第一导轨、第二导轨分别设置有两个第一滑块、两个第二滑块，移动座固定在第一滑块、第二滑块以及X轴滚珠丝杆副的丝杆螺母之间。本实用新型通过设置在横梁的上侧面、前侧面、下侧面的X轴滚珠丝杆副、第一导轨、第二导轨，使得移动座移动时激光切割头和点胶枪不会抖动，保证激光切割时的精确度。
The utility model relates to a laser cutting machine with glue dispensing function, which comprises a beam arranged above a worktable, a movable seat is arranged on the beam, a laser cutting head and a glue dispensing gun are arranged on the movable seat, and a drive movable seat is arranged on the beam. The X-axis drive assembly of the seat, the X-axis drive assembly includes an X-axis motor, an X-axis ball screw pair, a first guide rail and a second guide rail, the X-axis motor and the X-axis ball screw pair are arranged on the upper side of the beam, the first The guide rail and the second guide rail are respectively arranged on the front side and the lower side of the beam, the first guide rail and the second guide rail are respectively provided with two first sliding blocks and two second sliding blocks, and the movable seat is fixed on the first sliding block and the second sliding block. Between the two sliders and the screw nut of the X-axis ball screw pair. In the utility model, the X-axis ball screw pair, the first guide rail and the second guide rail are arranged on the upper side, front side and lower side of the beam, so that the laser cutting head and the glue dispensing gun will not shake when the moving seat moves, and the laser cutting head and the glue dispensing gun will not shake. Precision when cutting.
Description
Technical Field
The utility model relates to a laser cutting technical field, in particular to laser cutting machine with glue function.
Background
In the clothing shoes processing industry, adopt laser cutting equipment to cut the cloth usually, the cloth after accomplishing the cutting is glued through the manual point of workman, production efficiency is lower, along with the continuous development of technique, the laser cutting machine who glues from moving point has appeared, laser cutting station top sets up adhesive deposite device and laser cutting head, the cloth is cutting the back, carry out from moving point through the machine, adhesive deposite device can be along with laser cutting head together removes, adhesive deposite device's weight is great, only set up a guide rail that supplies laser cutting head to remove on the traditional laser cutting machine, lead to laser cutting head to remove the process and can take place the shake, thereby laser cutting's precision has been influenced.
SUMMERY OF THE UTILITY MODEL
In order to solve the defects of the prior art, the utility model provides a laser cutting machine with function is glued to point.
In order to achieve the above purpose, the utility model provides a technical scheme does: the utility model provides a laser cutting machine with function is glued to point, is including setting up the crossbeam in the workstation top, be provided with on the crossbeam and remove the seat, it cuts the rifle to be provided with laser cutting head and point glue on the seat to remove, be provided with the X axle drive assembly that the seat was removed in the drive on the crossbeam, X axle drive assembly includes that X axle motor, X axle ball screw are vice, first guide rail and second guide rail, X axle motor and X axle ball screw are vice to be set up the last side at the crossbeam, first guide rail, second guide rail set up leading flank, the downside at the crossbeam respectively, first guide rail, second guide rail are provided with two first sliders, two second sliders respectively, it fixes between the vice screw-nut of first slider, second slider and X axle ball screw to remove the seat.
In the technical scheme, the movable seat comprises an installation plate and two connection blocks, the installation plate is fixed between the two first sliding blocks and the screw nuts of the X-axis ball screw pair through screws, and the connection blocks are fixed between the installation plate and the second sliding blocks.
In the technical scheme, the laser cutting head is fixed on the mounting plate, the mounting plate is provided with the connecting plate, and the connecting plate is provided with the lifting assembly for driving the dispensing gun to move up and down.
In the technical scheme, the lifting assembly comprises a lifting seat, a lifting motor, a lifting ball screw pair and two third guide rails, the two third guide rails are located on two sides of the lifting ball screw pair, third sliding blocks are arranged on the third guide rails, the lifting seat is fixed between the two third sliding blocks and screw nuts of the lifting ball screw pair, and the glue dispensing gun is fixed on the lifting seat.
In the technical scheme, the lifting seat is L-shaped, the short side of the lifting seat is parallel to the third guide rail, the long side of the lifting seat is fixedly connected with the two third sliding blocks and the screw nut of the lifting ball screw pair, and the short side of the lifting seat is fixedly connected with the dispensing gun.
In the above technical scheme, the connecting block is L-shaped.
The utility model has the advantages of, the utility model has the advantages of reasonable structure, novel in design, the practicality is strong, through setting up at the X axle ball screw of the last side of crossbeam, leading flank, downside vice, first guide rail, second guide rail, remove the seat and fix between the screw-nut that first slider, second slider and X axle ball screw are vice for laser cutting head and point gluey rifle can not shake when removing the seat and removing, accuracy when guaranteeing laser cutting, conveniently carry out the installation of point gluey rifle through L style of calligraphy lift seat, improve the packaging efficiency.
Drawings

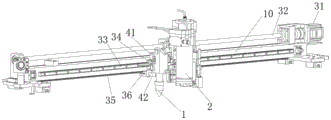

Fig. 1 is a schematic perspective view of the present invention.
Fig. 2 is a schematic view of a part of the structure of the present invention.
Fig. 3 is a schematic diagram of the partially exploded structure of the present invention.
In the figure: 1. a laser cutting head; 2. dispensing a glue gun; 31. an X-axis motor; 32. an X-axis ball screw pair; 33. a first guide rail; 34. a first slider; 35. a second guide rail; 36. a second slider; 41. mounting a plate; 42. connecting blocks; 5. a connecting plate; 6. a lifting assembly; 61. a lifting motor; 62. a lifting ball screw pair; 63. a third guide rail; 64. a third slider; 65. a lifting seat; 10. a cross beam; 100. a work bench.
Detailed Description
The embodiments of the present invention will be described with reference to the accompanying drawings.
As shown in fig. 1-3, a laser cutting machine with a dispensing function includes a beam 10 disposed above a worktable 100, the beam 10 is provided with a movable base, the movable base is provided with a laser cutting head 1 and a dispensing gun 2, the beam 10 is provided with an X-axis driving assembly for driving the movable base, the X-axis driving assembly includes an X-axis motor 31, an X-axis ball screw pair 32, a first guide rail 33 and a second guide rail 35, the X-axis motor 31 and the X-axis ball screw pair 32 are disposed on an upper side of the beam 10, the first guide rail 33 and the second guide rail 35 are respectively disposed on a front side and a lower side of the beam 10, the first guide rail 33 and the second guide rail 35 are respectively provided with two first sliders 34 and two second sliders 36, and the movable base is fixed between screw nuts of the first slider 34, the second slider 36 and the X-axis ball screw pair 32.
The movable base comprises a mounting plate 41 and two connecting blocks 42, the mounting plate 41 is fixed between the two first sliding blocks 34 and the screw nuts of the X-axis ball screw pair 32 through screws, and the connecting blocks 42 are fixed between the mounting plate 41 and the second sliding blocks 36.
The laser cutting head 1 is fixed on a mounting plate 41, a connecting plate 5 is arranged on the mounting plate 41, and a lifting assembly 6 for driving the dispensing gun 2 to move up and down is arranged on the connecting plate 5.
The lifting assembly 6 comprises a lifting seat 65, a lifting motor 61, a lifting ball screw pair 62 and two third guide rails 63, the two third guide rails 63 are positioned on two sides of the lifting ball screw pair 62, third sliding blocks 64 are arranged on the third guide rails 63, the lifting seat 65 is fixed between the two third sliding blocks 64 and screw nuts of the lifting ball screw pair 62, and the dispensing gun 2 is fixed on the lifting seat 65.
The lifting seat 65 is in an L shape, the short edge of the lifting seat 65 is parallel to the third guide rail 63, the long edge of the lifting seat 65 is fixedly connected with the two third sliders 64 and the screw nuts of the lifting ball screw pair 62, and the short edge of the lifting seat 65 is fixedly connected with the dispensing gun 2.
The connecting block 42 is L-shaped.
The utility model has the advantages of reasonable structure, novel design, the practicality is strong, through setting up at the last side of crossbeam 10, the leading flank, the X axle ball screw of downside is vice 32, first guide rail 33, second guide rail 35, it fixes between the screw-nut of first slider 34, second slider 36 and X axle ball screw is vice 32 to remove the seat, laser cutting head 1 and gluey rifle 2 can not shake when making to remove the seat and removing, accuracy when guaranteeing laser cutting, conveniently carry out the installation of gluey rifle 2 of point through L style of calligraphy lift seat 65, and the efficiency of assembly is improved.
The above is not intended to limit the technical scope of the present invention, and any modifications, equivalent changes and modifications to the above embodiments are all within the scope of the present invention.
Claims (6)
1. The utility model provides a laser cutting machine with function is glued to point, a serial communication port, including setting up the crossbeam in the workstation top, be provided with on the crossbeam and remove the seat, it glues rifle to be provided with laser cutting head and point on the removal seat, be provided with the X axle drive assembly that the seat was removed in the drive on the crossbeam, X axle drive assembly includes that X axle motor, X axle ball screw are vice, first guide rail and second guide rail, X axle motor and X axle ball screw are vice to be set up the last side at the crossbeam, first guide rail, second guide rail set up front surface, the downside at the crossbeam respectively, first guide rail, second guide rail are provided with two first sliders, two second sliders respectively, it fixes between the screw-nut that first slider, second slider and X axle ball screw are vice to remove the seat.
2. The laser cutting machine with the dispensing function according to claim 1, wherein the movable base comprises a mounting plate and two connecting blocks, the mounting plate is fixed between the two first sliders and the screw nut of the X-axis ball screw pair through screws, and the connecting blocks are fixed between the mounting plate and the second slider.
3. The laser cutting machine with the dispensing function according to claim 2, wherein the laser cutting head is fixed on a mounting plate, a connecting plate is arranged on the mounting plate, and a lifting assembly for driving the dispensing gun to move up and down is arranged on the connecting plate.
4. The laser cutting machine with the glue dispensing function according to claim 3, wherein the lifting assembly comprises a lifting base, a lifting motor, a lifting ball screw pair, and two third guide rails, the two third guide rails are located on two sides of the lifting ball screw pair, a third slider is arranged on the third guide rails, the lifting base is fixed between the two third sliders and a screw nut of the lifting ball screw pair, and the glue dispensing gun is fixed on the lifting base.
5. The laser cutting machine with the dispensing function according to claim 4, wherein the lifting seat is L-shaped, the short side of the lifting seat is parallel to the third guide rail, the long side of the lifting seat is fixedly connected with the two third sliders and the screw nut of the lifting ball screw pair, and the short side of the lifting seat is fixedly connected with the dispensing gun.
6. The laser cutting machine with the dispensing function according to claim 5, wherein the connecting block is L-shaped.
