Abstract
本实用新型公开了一种清洁方便的反应釜，包括釜体、釜盖橡胶条支撑架，所述釜体内侧通过螺栓固定有加热板，所述加热板内部通过螺栓固定有电加热管，所述釜体顶部通过螺栓固定有釜盖，所述釜盖顶部焊接有支撑架，所述支撑架顶部通过安装架安装有驱动电机，所述驱动电机底部输出轴通过连接套连接有传动杆，所述传动杆两侧底端焊接有搅拌杆，所述传动杆外侧套设有滑块，所述滑块底部两端通过螺纹槽连接有连接杆。本实用新型不影响对釜体内的物料进行搅拌，通过反复下压滑块使用圆形架外侧的清洁刷和橡胶条对釜体内部进行清洁，操作方便，清洁效果好，适合被广泛推广和使用。
The utility model discloses a clean and convenient reaction kettle, which comprises a kettle body and a rubber strip support frame for a kettle cover. A heating plate is fixed inside the kettle body by bolts, and an electric heating tube is fixed inside the heating plate through bolts. The top of the kettle body is fixed with a kettle cover by bolts, a support frame is welded on the top of the kettle cover, a drive motor is installed on the top of the support frame through a mounting frame, and the output shaft at the bottom of the drive motor is connected with a transmission rod through a connecting sleeve, so The bottom ends on both sides of the transmission rod are welded with stirring rods, the outer side of the transmission rod is sleeved with a sliding block, and the two ends of the bottom of the sliding block are connected with connecting rods through threaded grooves. The utility model does not affect the stirring of the materials in the kettle body, and the inside of the kettle body is cleaned by repeatedly pressing the slider down with the cleaning brushes and rubber strips on the outer side of the circular frame, with convenient operation and good cleaning effect, and is suitable for being widely popularized and used. .
Description
Technical Field
The utility model relates to a reation kettle technical field, in particular to clean convenient reation kettle.
Background
The broad understanding of the reaction kettle is that the reaction kettle is a container for physical or chemical reaction, and the heating, evaporation, cooling and low-speed mixing functions required by the process are realized through the structural design and parameter configuration of the container.
Patent number CN201921421989.8 discloses a chemical production is with convenient clear reation kettle, through circular telegram the electro-magnet for permanent magnet and electro-magnet produce great repulsion force, then the piston rod slides to the outside, thereby drives the cleaning plate and removes, contacts the internal wall of cauldron until clean hair, drives the (mixing) shaft through driving motor this moment and rotates, further makes the cleaning plate constantly do circular motion, does quick cleaning work to the internal wall of cauldron under the effect of clean hair.
The above-mentioned chemical production is with convenient clear reation kettle weak point lies in: 1. overall structure is simple, does not possess the heating function, 2, when stirring the internal material of cauldron, the cleaning brush can rub with the internal wall of cauldron, improves the loss of cleaning brush, for this reason, we provide a clean convenient reation kettle.
SUMMERY OF THE UTILITY MODEL
The main object of the utility model is to provide a clean convenient reation kettle can effectively solve the problem in the background art.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a clean convenient reation kettle, includes the cauldron body, cauldron lid rubber strip support frame, the internal side of cauldron has the hot plate through the bolt fastening, the hot plate is inside to be had electric heating pipe through the bolt fastening, cauldron body top has the cauldron lid through the bolt fastening, the welding of cauldron lid top has the support frame, driving motor is installed through the mounting bracket in the support frame top, driving motor bottom output shaft has the transfer line through the adapter sleeve connection, the welding of transfer line both sides bottom has the puddler, transfer line outside cover is equipped with the slider, slider bottom both ends are connected with the connecting rod through the thread groove, the connecting rod bottom has the round frame through the bolt fastening, the round frame outside cover is equipped with the rubber strip, rubber strip top and bottom all overlap and are equipped with the cleaning.
Further, a temperature controller is installed at one end of the kettle body through a mounting seat, the detection end of the temperature controller is located inside the kettle body, the current output end of the temperature controller is electrically connected with the current input end of the electric heating pipe through a power line, and magnesium oxide powder is filled between the electric heating pipe and the heating plate.
Furthermore, a compression spring is sleeved on the outer side of the transmission rod and located at the bottom of the sliding block, and handles are fixed to two sides of the sliding block through bolts.
Further, the welding of kettle cover top one end has the feed inlet, the support frame runs through the slider.
Further, the puddler is located the internal portion of cauldron, the transfer line runs through circular frame, the reservation groove has been seted up at circular frame top, the quantity of reservation groove is a plurality of.
Compared with the prior art, the utility model discloses following beneficial effect has:
1. through setting up temperature controller, driving motor and puddler, personnel use the power cord to be connected driving motor and temperature controller with external power supply, pour the material into the internal portion of cauldron from the feed inlet, personnel set up temperature controller's setting value, can control electric heating pipe heating and heating temperature, the magnesia powder plays insulating, the effect of heat conduction, can be with on the temperature conduction to the internal material of cauldron after the electric heating pipe heating, heat it, personnel open driving motor, can drive the puddler through the transfer line and rotate, stir the material, make things convenient for it to react.
2. Through setting up slider, round frame, cleaning brush and rubber strip, when needing to clean the internal portion of cauldron, the handle is held to the personnel, pushes down the slider repeatedly, and the slider moves down and drives the round frame through the connecting rod and move down, clears up the internal side of cauldron through the cleaning brush and the rubber strip in its outside when the round frame moves down, unclamps behind the handle, and compression spring promotes the slider and shifts up, carries out quick reset, makes things convenient for personnel to push down once more.
Drawings
Fig. 1 is a schematic view of the overall structure of a reaction kettle convenient to clean.
Fig. 2 is a schematic view of the internal structure of the reaction kettle convenient to clean.
Fig. 3 is a schematic view of the structure of the round frame of the reaction kettle convenient to clean.

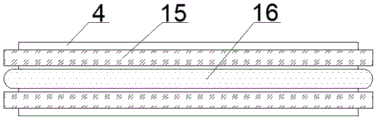

Fig. 4 is a schematic diagram of the rubber strip structure of the reaction kettle convenient to clean.
Fig. 5 is a schematic view of a heating plate structure of a reaction kettle convenient to clean.
In the figure: 1. a kettle body; 2. a kettle cover; 3. a support frame; 4. a circular frame; 5. heating plates; 6. a temperature controller; 7. a slider; 8. a drive motor; 9. a transmission rod; 10. a compression spring; 11. a connecting rod; 12. a feed inlet; 13. a stirring rod; 14. reserving a groove; 15. a cleaning brush; 16. a rubber strip; 17. an electric heating tube; 18. magnesium oxide powder; 19. a handle.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
As shown in figures 1-5, a reaction kettle convenient to clean comprises a kettle body 1, a kettle cover 2, a rubber strip 16, a support frame 3, a heating plate 5 is fixed on the inner side of the kettle body 1 through a bolt, an electric heating pipe 17 is fixed in the heating plate 5 through a bolt, a kettle cover 2 is fixed on the top of the kettle body 1 through bolts, a support frame 3 is welded on the top of the kettle cover 2, the top of the supporting frame 3 is provided with a driving motor 8 through a mounting frame, an output shaft at the bottom of the driving motor 8 is connected with a transmission rod 9 through a connecting sleeve, the bottom ends of the two sides of the transmission rod 9 are welded with stirring rods 13, the outer side of the transmission rod 9 is sleeved with a slide block 7, the two ends of the bottom of the sliding block 7 are connected with a connecting rod 11 through thread grooves, the bottom of the connecting rod 11 is fixed with a round frame 4 through bolts, the cover is equipped with rubber strip 16 in the circular frame 4 outside, 16 tops of rubber strip and bottom all are equipped with cleaning brush 15.
Wherein, temperature controller 6 is installed through the mount pad to cauldron body 1 one end, and temperature controller 6's sense terminal is located cauldron body 1 inside, temperature controller 6's current output end constitutes the electricity through the power cord and is connected with electric heating pipe 17's current input end, it has magnesium oxide powder 18 to fill between electric heating pipe 17 and the hot plate 5.
In this embodiment, as shown in fig. 5, a person sets a set value of the temperature controller 6 to control the heating temperature of the electric heating tube 17, and the magnesium oxide powder 18 plays roles of insulation and heat conduction.
The outer side of the transmission rod 9 is sleeved with a compression spring 10, the compression spring 10 is located at the bottom of the sliding block 7, and handles 19 are fixed on two sides of the sliding block 7 through bolts.
In this embodiment, as shown in fig. 1, the compression spring 10 can push the slider 7 to move upwards for resetting, and the handle 19 is convenient for a person to press down the slider 7.
Wherein, the welding of 2 top one ends of kettle cover has feed inlet 12, support frame 3 runs through slider 7.
As shown in figure 1 in this embodiment, in the feed inlet 12 made things convenient for personnel to pour the material into the cauldron body 1, the support frame 3 runs through slider 7, can improve slider 7's structural stability.
Wherein, puddler 13 is located the cauldron body 1 inside, transfer line 9 runs through circular frame 4, reserve groove 14 has been seted up at circular frame 4 top, reserve groove 14's quantity is a plurality of.
In this embodiment, as shown in fig. 2 and 3, the transmission rod 9 penetrates through the circular frame 4, so that the circular frame 4 does not influence the rotation of the transmission rod 9, and the plurality of preformed grooves 14 on the circular frame 4 do not influence the falling of the material into the bottom of the kettle 1.
It should be noted that, the utility model relates to a reaction kettle convenient for cleaning, when working, the personnel uses the power cord to connect the driving motor 8 and the temperature controller 6 with the external power supply, pour the material into the kettle body 1 from the feed inlet 12, the personnel sets the setting value of the temperature controller 6, can control the heating of the electric heating tube 17 and the heating temperature, the magnesia powder 18 plays the role of insulation and heat conduction, the temperature after the electric heating tube 17 is heated can be conducted to the material in the kettle body 1, and the material is heated, the personnel opens the driving motor 8, can drive the stirring rod 13 to rotate through the transmission rod 9, stir the material, and facilitate the reaction, when the interior of the kettle body 1 needs to be cleaned, the personnel holds the handle 19, repeatedly press the slide block 7 downwards, the slide block 7 moves downwards to drive the circular frame 4 to move downwards through the connecting rod 11, when the circular frame 4 moves downwards, the cleaning brush 15 and the rubber strip 16 outside the kettle body clean the interior of the kettle body 1, after the handle 19 is loosened, the compression spring 10 pushes the sliding block 7 to move upwards to reset quickly, so that the sliding block is convenient for a person to press down again.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (5)
1. The utility model provides a clean convenient reation kettle, includes the cauldron body (1), kettle cover (2), rubber strip (16), support frame (3), its characterized in that: a heating plate (5) is fixed on the inner side of the kettle body (1) through a bolt, an electric heating pipe (17) is fixed in the heating plate (5) through a bolt, a kettle cover (2) is fixed at the top of the kettle body (1) through bolts, a support frame (3) is welded at the top of the kettle cover (2), the top of the supporting frame (3) is provided with a driving motor (8) through a mounting frame, an output shaft at the bottom of the driving motor (8) is connected with a transmission rod (9) through a connecting sleeve, the bottom ends of the two sides of the transmission rod (9) are welded with stirring rods (13), the outer side of the transmission rod (9) is sleeved with a sliding block (7), two ends of the bottom of the sliding block (7) are connected with a connecting rod (11) through thread grooves, the bottom of the connecting rod (11) is fixed with a round frame (4) through a bolt, the outer side of the round frame (4) is sleeved with a rubber strip (16), the top and the bottom of the rubber strip (16) are both sleeved with cleaning brushes (15).
2. A conveniently cleaned reaction vessel according to claim 1, wherein: temperature controller (6) are installed through the mount pad to cauldron body (1) one end, and the sense terminal of temperature controller (6) is located cauldron body (1) inside, the current output end of temperature controller (6) constitutes the electricity through the power cord and is connected with the current input end of electric heating pipe (17) and is connected, it has magnesium oxide powder (18) to fill between electric heating pipe (17) and hot plate (5).
3. A conveniently cleaned reaction vessel according to claim 1, wherein: the outer side of the transmission rod (9) is sleeved with a compression spring (10), the compression spring (10) is located at the bottom of the sliding block (7), and handles (19) are fixed on two sides of the sliding block (7) through bolts.
4. A conveniently cleaned reaction vessel according to claim 1, wherein: the welding of kettle cover (2) top one end has feed inlet (12), slider (7) are run through in support frame (3).
5. A conveniently cleaned reaction vessel according to claim 1, wherein: puddler (13) are located the cauldron body (1) inside, transfer line (9) run through circular frame (4), reserve tank (14) have been seted up at circular frame (4) top, the quantity of reserve tank (14) is a plurality of.
