Can carry out show mechanism for architectural design of synchronous show to a plurality of works

Technical Field

The utility model relates to an architectural design technical field specifically is a show mechanism for architectural design that can carry out synchronous show to a plurality of works.

Background

Architectural Design (Architectural Design) refers to that before a building is built, a designer makes a general idea of problems existing or possibly occurring in the construction process and the use process in advance according to a construction task, plans a method and a scheme for solving the problems and expresses the problems by using a drawing and a file.

In some occasions that need show architectural design like match, exhibition etc. generally adopt ordinary show shelf to demonstrate the drawing, these show shelves most can only show a design works alone, can not realize the synchronous show of a plurality of works, and the size of most show shelves is fixed, can not adjust according to the size flexibility of drawing, and the universality is lower.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is to overcome current defect, provide one kind and can carry out the show mechanism for architectural design of synchronous show to a plurality of works, a plurality of show mechanisms can be through connecting plate interconnect, carry out synchronous show to a plurality of works, the show mode can be for one side show or multiaspect show, the show mode is various abundant, the exhibition of being convenient for, convenient to use, easy operation can effectively solve the problem in the background art.

In order to achieve the above object, the utility model provides a following technical scheme: a display mechanism for architectural design capable of synchronously displaying a plurality of works comprises a base, wherein a control switch is arranged on the lower surface of the base, the input end of the control switch is electrically connected with the output end of an external power supply, universal wheels are installed on the lower surface of the base through a wheel carrier, a U-shaped frame is arranged on the upper surface of the base, a rotating motor is installed on the side surface of the U-shaped frame, the input end of the rotating motor is electrically connected with the output end of the control switch, the output shaft of the rotating motor penetrates through the inner side surface of the U-shaped frame and is fixedly connected with a rotating shaft through a coupler, the rotating shaft is fixedly connected with one end of a drawing display soft board, the drawing display soft board is wound on the rotating shaft, a lifting mechanism is arranged on the U-shaped frame and is connected with a lifting frame, a top plate is fixedly arranged at the, the connecting plate is all installed through the bolt to the both ends lower surface of base, and the screw that corresponds with the bolt is all seted up at the upper surface both ends of connecting plate.

As a preferred technical scheme of the utility model, elevating system is including installing the elevator motor in the inside cavity of U-shaped frame, and elevator motor's input is connected with control switch's output electricity, the spout has been seted up to the upper surface of U-shaped frame, and it is provided with the slider to slide in the spout, elevator motor's output shaft penetrates in the spout and is connected with driving screw through the shaft coupling, and driving screw passes through threaded connection with the slider, the bottom and the slider fixed connection of crane, and the crane slides in the spout with one side that the slider is connected and sets up.

As an optimized technical scheme of the utility model, the fixed baffle that is provided with in both ends of pivot.

As an optimal technical scheme of the utility model, the drawing show soft board is transparent soft board.

As a preferred technical scheme of the utility model, the fixed mounting bracket that is provided with of side surface of base, the last surface mounting of mounting bracket has the lamp stand, and the week side surface of lamp stand evenly is provided with the lighting lamp house, installs the light in the lighting lamp house, and the input of light is connected with control switch's output electricity.

As an optimal technical scheme of the utility model, the inside both sides of drawing show soft board evenly imbed with the soft iron sheet of being no less than five groups.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses the demonstration mechanism for architectural design that can carry out synchronous show to a plurality of works of example, can conveniently receive and release drawing show soft board through rotating electrical machines and elevating system, thereby adjust the area that can demonstrate of drawing show soft board, be convenient for adjust according to the size flexibility of drawing, be applicable to the architectural design drawing of show equidimension not, the universality is improved, a plurality of demonstration mechanisms can be through connecting plate interconnect simultaneously, show in step to a plurality of works, the show mode can be for one side show or multiaspect show, the show mode is various abundant, the exhibition of being convenient for, high durability and convenient use, and the operation is simple.

Drawings

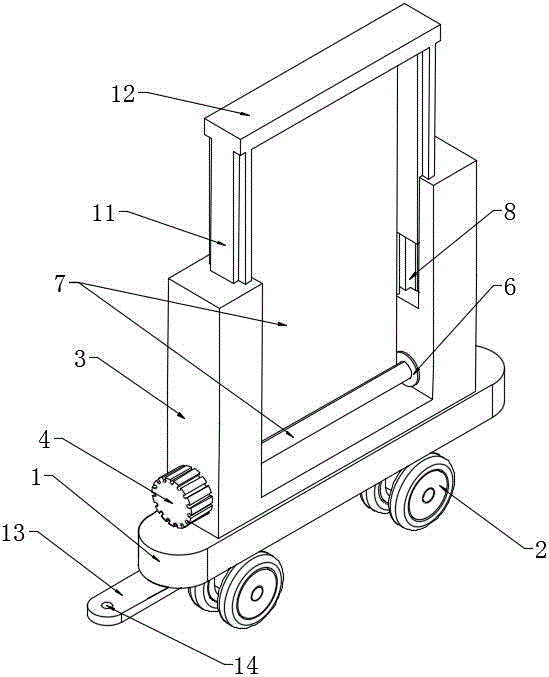

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a partial cross-sectional view of the flexible printed circuit board shown in the drawing removed according to the present invention;

FIG. 3 is a schematic side view of the embodiment of FIG. 1;

FIG. 4 is a schematic structural view of the flexible printed circuit board shown in the drawing of the present invention;

fig. 5 is a schematic structural diagram of a first embodiment of the present invention;

fig. 6 is a schematic structural diagram of a second embodiment of the present invention.

In the figure: the device comprises a base 1, universal wheels 2, a 3U-shaped frame, a 4-rotating motor, a 5-rotating shaft, a 6-baffle plate, a 7-drawing display soft plate, a 8-chute, a 9-slider, a 10-driving screw, a 11-lifting frame, a 12-top plate, a 13-connecting plate, 14-screw holes, a 15-control switch, a 16-soft iron sheet, a 17-mounting frame, an 18-lamp holder and a 19-lighting lamp box.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-6, the present invention provides a technical solution: a display mechanism for architectural design capable of synchronously displaying a plurality of works comprises a base 1, wherein a control switch 15 is arranged on the lower surface of the base 1, the input end of the control switch 15 is electrically connected with the output end of an external power supply, universal wheels 2 are arranged on the lower surface of the base 1 through wheel carriers, the display mechanism is convenient to move, a U-shaped frame 3 is arranged on the upper surface of the base 1, a rotating motor 4 is arranged on the side surface of the U-shaped frame 3, the input end of the rotating motor 4 is electrically connected with the output end of the control switch 15, the output shaft of the rotating motor 4 penetrates through the inner side surface of the U-shaped frame 3 and is fixedly connected with a rotating shaft 5 through a coupler, the rotating shaft 5 is fixedly connected with one end of a drawing display soft board 7, the drawing display soft board 7 is wound on the rotating shaft 5, a lifting mechanism is arranged on the U-shaped frame, the fixed lower surface that sets up at roof 12 of the other end of drawing show soft board 7, can receive and release drawing show soft board 7 conveniently through rotating electrical machines 4 and elevating system, thereby adjust the area that can demonstrate of drawing show soft board 7, be convenient for adjust in a flexible way according to the size of drawing, be applicable to the not architectural design drawing of show equidimension, the universality has been improved, connecting plate 13 is all installed through the bolt to base 1's both ends lower surface, screw 14 that corresponds with the bolt is all seted up at the upper surface both ends of connecting plate 13, a plurality of show mechanisms can pass through connecting plate 13 interconnect, show in step to a plurality of works, the show mode can be for one side show or multiaspect show, the show mode is various abundant, convenient for exhibition, high durability and convenient use, and simple operation.

The lifting mechanism comprises a lifting motor arranged in a cavity inside the U-shaped frame 3, the rotary motor 4 and the lifting motor used in the utility model are commonly used servo motors, the input end of the lifting motor is electrically connected with the output end of the control switch 15, the upper surface of the U-shaped frame 3 is provided with a chute 8, a slide block 9 is arranged in the chute 8 in a sliding way, the output shaft of the lifting motor penetrates into the chute 8 and is connected with a driving screw rod 10 through a shaft coupling, the driving screw rod 10 is connected with the slide block 9 through a thread, the bottom end of the lifting frame 11 is fixedly connected with the slide block 9, one side of the lifting frame 11 connected with the slide block 9 is arranged in the chute 8 in a sliding way, the lifting motor drives the slide block 9 to slide and lift in the chute 8 through the driving screw rod 10, the slide block 9 drives the lifting frame 11 and a top plate 12 to, the drawing of equidimension not demonstrates, convenient to use, it is simple to adjust.

The baffle 6 is fixedly arranged at the two ends of the rotating shaft 5 and used for limiting the drawing display soft board 7, and the drawing display soft board 7 is prevented from rubbing with the inner side of the U-shaped frame 3 to affect retraction.

The drawing show soft board 7 is a transparent soft board, and can paste the drawing paper to the rear side of the drawing show soft board 7, so that the printing surface is pasted with the drawing show soft board 7, the printing surface of the drawing is protected, and abrasion caused by friction is reduced.

Base 1's the fixed mounting bracket 17 that is provided with of side surface, the last surface mounting of mounting bracket 17 has lamp stand 18, the week side surface of lamp stand 18 evenly is provided with lighting lamp box 19, install the light in lighting lamp box 19, the input of light is connected with control switch 15's output electricity, be provided with respectively on the control switch 15 with rotating electrical machines 4, the switch that elevator motor and light correspond, the light through in the lighting lamp box 19 can be for the drawing show provides the illumination when light is darker, the exhibition of being convenient for, it is more convenient to use.

The fixed mounting bracket 17 that is provided with of side surface of base 1, the last surface mounting of mounting bracket 17 has lamp stand 18, and the week side surface of lamp stand 18 evenly is provided with lighting lamp box 19, installs the light in the lighting lamp box 19, and the input of light is connected with control switch 15's output electricity.

The soft iron sheets 16 of not less than five groups are uniformly embedded into two sides of the interior of the drawing display soft board 7, and the drawing display soft board 7 can be conveniently fixed with the drawing through the matching of the external magnetic blocks and the soft iron sheets 16, so that the operation is simple.

The utility model discloses among the rotating electrical machines 4 that use, elevator motor, control switch 15 and light etc. are the electronic component commonly used among the prior art, and its working method and circuit structure are the well-known technology, do not describe here any more.

When in use:

according to the mode of exhibition, a plurality of exhibition mechanisms are arranged into a straight line or an L shape or enclosed into a U shape or other shapes, then a control switch 15 is operated, a lifting motor is turned on, the lifting motor drives a sliding block 9, a lifting frame 11 and a top plate 12 to rise through a driving screw rod 10, the top plate 12 pulls a drawing exhibition soft plate 7 to unfold, and at the moment, a rotating shaft 5 is in a free state and rotates along with the drawing exhibition soft plate 7;

after the drawing display soft board 7 is unfolded to a corresponding degree, the lifting motor is turned off, the drawing to be displayed is pasted on the drawing display soft board 7, and the drawing is fixed well through the external magnetic block and the soft iron sheet 16 on the drawing display soft board 7, so that the drawing can be displayed;

when the light of the display environment is dark, the control switch 15 is operated, the illuminating lamp in the illuminating lamp box 19 is turned on, and the drawing can be illuminated from the rear side of the drawing, so that the display is clearer and the viewing is more convenient;

after the show, take off the drawing, operation control switch 15 opens elevator motor, and elevator motor drives slider 9 and crane 11 and roof 12 through drive screw 10 and descends, and drawing show soft board 7 piles up downwards this moment, opens rotating electrical machines 4, and rotating electrical machines 4 drives pivot 5 and rotates, carries out the rolling to drawing show soft board 7, has reduced display device's whole height after the rolling is accomplished, has reduced the volume, is convenient for transport, and it is more convenient to use.

The non-public part of the utility model is the prior art, and the concrete structure, the material and the working principle are not detailed. Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A display mechanism for architectural design that can simultaneously display multiple works, comprising a base (1), characterized in that: a control switch (15) is provided on the lower surface of the base (1), and the control switch (15) ) is electrically connected to the output end of the external power supply, the lower surface of the base (1) is provided with a universal wheel (2) through a wheel frame, and the upper surface of the base (1) is provided with a U-shaped frame ( 3), a rotating motor (4) is installed on the side surface of the U-shaped frame (3), the input end of the rotating motor (4) is electrically connected with the output end of the control switch (15), and the output shaft of the rotating motor (4) penetrates The inner surface of the U-shaped frame (3) is fixedly connected with the rotating shaft (5) through the coupling, and the rotating shaft (5) is fixedly connected with one end of the drawing display flexible board (7), which is wound around the drawing display flexible board (7). On the rotating shaft (5), the U-shaped frame (3) is provided with a lifting mechanism, the lifting mechanism is connected with the lifting frame (11), and the top of the lifting frame (11) is fixedly provided with a top plate (12), and the drawing shows the flexible board ( The other end of 7) is fixedly arranged on the lower surface of the top plate (12), the lower surfaces of both ends of the base (1) are installed with connecting plates (13) through bolts, and both ends of the upper surface of the connecting plate (13) are provided with There are screw holes (14) corresponding to the bolts.

2. The architectural design display mechanism capable of displaying multiple works synchronously according to claim 1, characterized in that: the lifting mechanism comprises a lifting motor installed in the inner cavity of the U-shaped frame (3), The input end of the motor is electrically connected to the output end of the control switch (15), the upper surface of the U-shaped frame (3) is provided with a chute (8), and a slider (9) is slidably arranged in the chute (8), The output shaft of the lift motor penetrates into the chute (8) and is connected with the drive screw (10) through the coupling, the drive screw (10) and the slider (9) are connected by thread, and the bottom of the lift frame (11) The end is fixedly connected with the sliding block (9), and the side of the lifting frame (11) connected with the sliding block (9) is slidably arranged in the chute (8).

3. The architectural design display mechanism capable of synchronously displaying multiple works according to claim 1, wherein baffle plates (6) are fixedly arranged at both ends of the rotating shaft (5).

4 . The architectural design display mechanism capable of synchronously displaying multiple works according to claim 1 , wherein the drawing display flexible board ( 7 ) is a transparent flexible board. 5 .

5. The architectural design display mechanism capable of displaying multiple works synchronously according to claim 4, characterized in that: a mounting frame (17) is fixedly arranged on the side surface of the base (1), and the mounting frame (17) A lamp holder (18) is installed on the upper surface of the lamp holder (18), and an illumination light box (19) is evenly arranged on the peripheral side surface of the lamp holder (18). 15) The output terminal is electrically connected.

6. The architectural design display mechanism capable of synchronously displaying multiple works according to claim 4, characterized in that: no less than five groups are evenly embedded on both sides of the interior of the drawing display soft board (7). Soft Iron Sheet (16).
