CN213214518U

CN213214518U - Agricultural seedling raising frame

Info

Publication number: CN213214518U
Application number: CN202021306451.5U
Authority: CN
Inventors: 韦小敏; 韦良英; 曾晓琴
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-07-07
Filing date: 2020-07-07
Publication date: 2021-05-18
Anticipated expiration: 2030-07-07

Abstract

The utility model discloses an agricultural seedling raising frame, which comprises a third plate body, a first sliding plate is welded on the lower surface of the third plate body, and a first guide rail is slidably connected to the outer side wall of the first sliding plate. A first plate body is welded on the upper surface of the first guide rail, a third guide rail is welded on one side of the third plate body, and a third sliding plate is slidably connected to the inner side wall of the third guide rail. A second guide rail is welded on one side, a second sliding plate is slidably connected to the inner side wall of the second guide rail, and a first fixing plate is welded on one side of the third plate body; the device can pull out the tray horizontally, so that the seedlings Fully get sunlight, increase the growth rate of seedlings, and reduce pests and diseases. The bottom of the device is equipped with a universal wheel, which is convenient to move, and can also reduce the size of the seedling rack, which is convenient for placement. Install fans to facilitate respiration of seedlings.

Description

Agricultural seedling raising frame

Technical Field

The utility model relates to a farming equipment technical field specifically is an agricultural is with nursery cabinet.

Background

It is well known that planting in a lot of agriculture all plants by seedling transplantation, and it is exactly to cultivate the seedling to grow seedlings to go to planting in the soil in preparation for transplanting, in-process people who grows seedlings for furthest's saving space, cultivate more seedlings, often adopt the frame of growing seedlings to cultivate, the frame of growing seedlings is cultivated the seedling and not only can practice thrift the space, makes things convenient for workman's unified management, can also increase the survival rate.

Chinese utility model CN109392527A discloses a seedling growing device for agricultural planting, including seedling growing frame, seedling growing tray and reservoir, seedling growing tray is installed through the axis of rotation in the relative both sides of seedling growing frame, and seedling growing tray includes the seedling growing groove that sets up in seedling growing tray inside, and seedling growing tray's bottom is provided with the infiltration otter board, is provided with the filtration gauze between infiltration otter board and the seedling growing groove, and its seedling growing device for agricultural planting, seedling growing tray inclination angle regulation, the seedling growing tray drainage of being convenient for avoids the mashed root of seedling, guarantees sufficient moisture supply seedling growing, promotes the interior liquid flow of reservoir and increases oxygen content, is convenient for supply the nutrient solution of seedling growing through irrigating, and the practicality is stronger, but still has certain problem;

present nursery cabinet is mostly the multilayer fixed, and this kind of nursery cabinet removes the difficulty, and the seedling of bottom can not obtain abundant illumination, waters, sprays the agricultural chemicals and will take out every tray, wastes time and energy. And seedlings grow slowly, when all the seedling raising frames are placed together, the propagation of agricultural diseases cannot be avoided, so that the agricultural seedling raising frame is provided.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides an agricultural is with frame of growing seedlings.

(II) technical scheme

In order to achieve the above object, the utility model provides a following technical scheme: a seedling raising frame for agriculture comprises a third plate body, wherein a first sliding plate is welded on the lower surface of the third plate body, a first guide rail is connected on the outer side wall of the first sliding plate in a sliding manner, a first limiting block is fixedly connected on the inner side wall of the first guide rail, a first plate body is welded on the upper surface of the first guide rail, a third guide rail is welded on one side of the third plate body, a third sliding plate is connected on the inner side wall of the third guide rail in a sliding manner, a third limiting block is fixedly connected on the inner side wall of the third guide rail, a second guide rail is welded on one side of the third plate body, a second sliding plate is connected on the inner side wall of the second guide rail in a sliding manner, a second limiting block is fixedly connected on the inner side wall of the second guide rail, a first fixing plate is welded on one side of the third plate body, connecting blocks are welded on the upper surfaces of the second sliding plate and the third, the first plate body with the fourth stopper has all been welded to the adjacent one side of third plate body, the first plate body with the adjacent one side of third plate body all articulates through the hinge has the second plate body, two the lower surface of second plate body pastes respectively in two the upper surface of fourth stopper.

Preferably, a through hole is formed in one side of the first plate body, a protective cover is welded to one side of the first plate body, a fan and an illuminating lamp are mounted on the inner side wall of the protective cover, and the illuminating lamp is mounted on the lower surface of the second plate body.

Preferably, a switch box is installed on one side of the first plate body, a first switch group is installed inside the switch box, an electrical output end of the first switch group is electrically connected with an electrical input end of the fan through a wire, a second switch group is installed inside the switch box, and an electrical output end of the second switch group is electrically connected with an electrical input end of the illuminating lamp through a wire.

Preferably, four universal wheels are symmetrically welded at four corners of the lower surface of the first guide rail.

Preferably, one side of the third plate body is connected with two draw hooks, two through first pivot symmetry rotation the one end of draw hook is all through lug fixedly connected with supporting shoe, two the front surface of supporting shoe is all rotated and is connected with the second pivot, two the equal fixedly connected with second fixed plate of second pivot lateral wall, two the top of second fixed plate all weld in the lower surface of first slide.

Preferably, the handles are fixedly connected to the upper surfaces of the two second plate bodies, and the lock catch is installed between the two second plate bodies.

Preferably, the inner side wall of the tray is provided with a grating.

Preferably, fourth guide rails are welded on the front surface and the rear surface of the third plate body and the first plate body, and the inner side walls of the two fourth guide rails are connected with the fourth plate body in a sliding mode.

(III) advantageous effects

Compared with the prior art, the utility model provides an agricultural is with frame of growing seedlings possesses following beneficial effect:

this agricultural is with nursery cabinet can transversely pull out the tray for the seedling fully obtains sunshine, accelerates the growth rate of seedling, reduces the plant diseases and insect pests, and this device bottom installation universal wheel conveniently removes, and the volume of nursery cabinet can be dwindled to the cooperation of three group's guide rails and slide, conveniently places, and this device seals the setting, can reduce the propagation of plant diseases and insect pests between the seedling, and the installation fan is favorable to the breathing of seedling, and the light not only is favorable to the growth condition of seedling in the viewing device, can also increase the illumination time of seedling.

Drawings

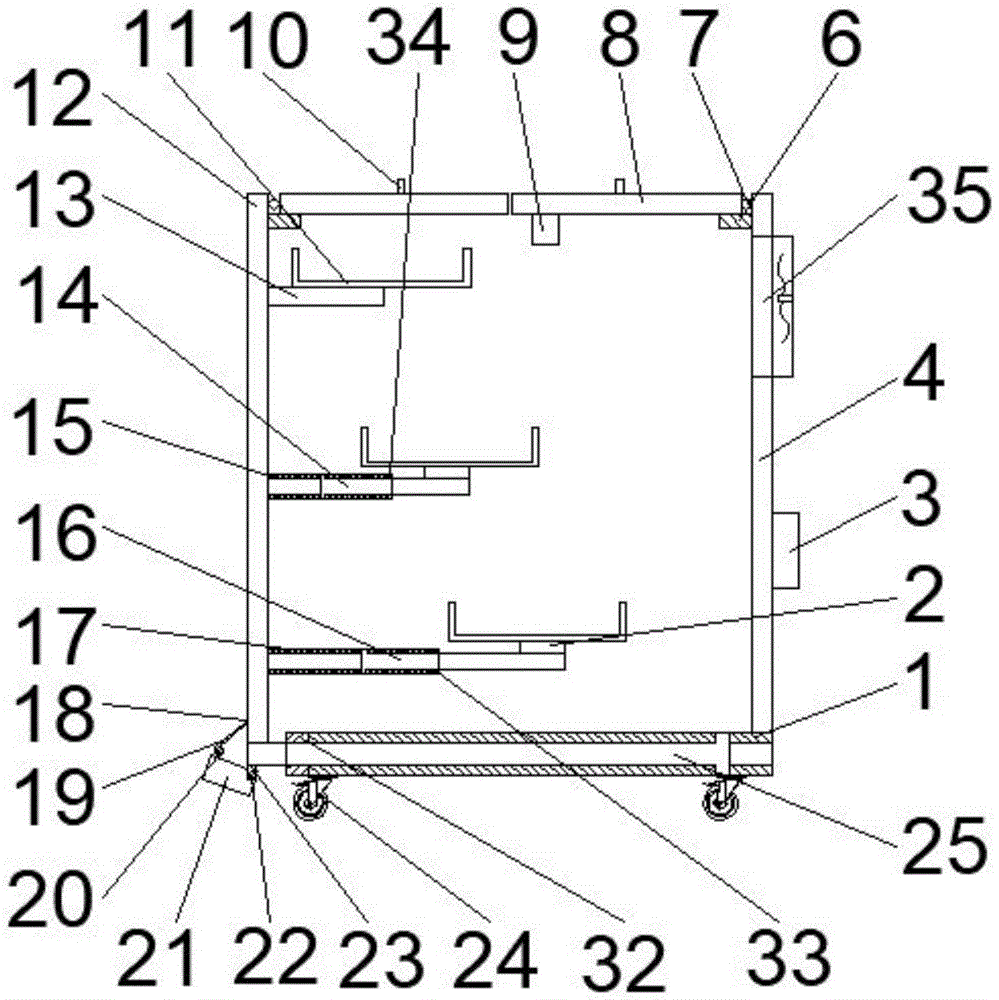

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic side view of the present invention;

fig. 3 is a schematic top view of the present invention;

fig. 4 is a schematic front view of the structure of the present invention;

fig. 5 is a schematic view of the structure of the tray of the present invention.

In the figure: 1. a first guide rail; 2. connecting blocks; 3. a switch box; 4. a first plate body; 5. a fan; 6. A fourth limiting block; 7. a hinge; 8. a second plate body; 9. an illuminating lamp; 10. a handle; 11. a tray; 12. a third plate body; 13. a first fixing plate; 14. a second slide plate; 15. a second guide rail; 16. a third slide plate; 17. a third guide rail; 18. a first rotating shaft; 19. pulling a hook; 20. lifting lugs; 21. a support block; 22. A second rotating shaft; 23. a second fixing plate; 24. a universal wheel; 25. a first slide plate; 26. a first switch group; 27. a protective cover; 28. a fourth guide rail; 29. locking; 30. a fourth plate body; 31. a second switch group; 32. a first stopper; 33. a third limiting block; 34. a second limiting block; 35. a through hole; 36. a grid.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Examples

Referring to fig. 1-5, the present invention provides a technical solution: a seedling raising frame for agriculture comprises a third plate body 12, wherein a first sliding plate 25 is welded on the lower surface of the third plate body 12, a first guide rail 1 is slidably connected on the outer side wall of the first sliding plate 25, a first limiting block 32 is fixedly connected on the inner side wall of the first guide rail 1, a first plate body 4 is welded on the upper surface of the first guide rail 1, a third guide rail 17 is welded on one side of the third plate body 12, a third sliding plate 16 is slidably connected on the inner side wall of the third guide rail 17, a third limiting block 33 is fixedly connected on the inner side wall of the third guide rail 17, a second guide rail 15 is welded on one side of the third plate body 12, a second sliding plate 14 is slidably connected on the inner side wall of the second guide rail 15, a second limiting block 34 is fixedly connected on the inner side wall of the second guide rail 15, a first fixing plate 13 is welded on one side of the third plate body 12, connecting blocks 2 are welded on the upper surfaces of the second sliding plate 14 and the, the fourth limiting blocks 6 are welded on the adjacent sides of the first plate body 4 and the third plate body 12, the second plate bodies 8 are hinged on the adjacent sides of the first plate body 4 and the third plate body 12 through hinges 7, and the lower surfaces of the two second plate bodies 8 are attached to the upper surfaces of the four limiting blocks 6 respectively.

In this embodiment, specifically: one side of the first plate body 4 is provided with a through hole 35, one side of the first plate body 4 is welded with a protective cover 27, the inner side wall of the protective cover 27 is provided with a fan 5, and the lower surface of one second plate body 8 is provided with an illuminating lamp 9; set up the circulation of air in this device can be guaranteed to fan 5, guarantee going on smoothly of seedling respiration, light 9 can also increase the photosynthesis time of seedling.

In this embodiment, specifically: a switch box 3 is installed on one side of the first plate 4, a first switch group 26 is installed inside the switch box 3, an electrical output end of the first switch group 26 is electrically connected with an electrical input end of the fan 5 through a wire, a second switch group 31 is installed inside the switch box 3, and an electrical output end of the second switch group 31 is electrically connected with an electrical input end of the illuminating lamp 9 through a wire; the first switch group 26 and the second switch group 31 are provided so that the fan 5 and the illumination lamp 9 can be independently controlled to be turned on and off.

In this embodiment, specifically: four universal wheels 24 are symmetrically welded at four corners of the lower surface of the first guide rail 1; universal wheels 24 are provided to facilitate movement of the device.

In this embodiment, specifically: one side of the third plate body 12 is symmetrically and rotatably connected with two drag hooks 19 through a first rotating shaft 18, one ends of the two drag hooks 19 are fixedly connected with supporting blocks 21 through lifting lugs 20, the front surfaces of the two supporting blocks 21 are rotatably connected with second rotating shafts 22, the outer side walls of the two second rotating shafts 22 are fixedly connected with second fixing plates 23, and the tops of the two second fixing plates 23 are welded on the lower surface of the first sliding plate 25; the support block 21 is provided to ensure the stability of the apparatus.

In this embodiment, specifically: the handles 10 are fixedly connected to the upper surfaces of the two second plate bodies 8, and the lock catch 29 is arranged between the two second plate bodies 8; handle 10 is provided to facilitate opening of second panel 8 and latch 29 ensures the integrity of the device.

In this embodiment, specifically: the inner side wall of the tray 11 is provided with a grid 36; the grid 36 is provided to facilitate counting of the number of seedlings.

In this embodiment, specifically: fourth guide rails 28 are welded on the front surfaces and the rear surfaces of the third plate body 12 and the first plate body 4, and the inner side walls of the two fourth guide rails 28 are connected with fourth plate bodies 30 in a sliding manner; the fourth plate body 30 is made of acrylic plates, so that the growth condition of seedlings in the device can be observed conveniently.

In summary, the working principle and the working process of the agricultural seedling raising frame are that when the agricultural seedling raising frame is used, firstly, the use safety of the part is checked, after the use is confirmed, seeds are put into the agricultural seedling raising frame according to the space between the grids 36, the lock catch 29 is opened, the handle 10 is pulled, the second plate body 8 rotates along the hinge 7, the first plate body 4 is pulled, the inner side wall of the first guide rail 1 slides along the first sliding plate 25, when the first sliding plate 25 is attached to the first limiting block 32, the universal wheel 24 on the lower surface of the first guide rail 1 is locked, the drag hook 19 is taken down, the supporting block 21 is vertically placed, the two fourth plate bodies 30 are taken out along the inner side wall of the fourth guide rail 28, then the third sliding plate 16 is pulled, the third sliding plate 16 slides along the inner side wall of the third guide rail 17, when one end of the third sliding plate 16 is attached to the third limiting block 33, and then the tray 11 is positioned at, the second sliding plate 14 is pulled, the second sliding plate 14 slides along the inner side wall of the second guide rail 15, when one end of the second sliding plate 14 is attached to the second limiting block 34, the pulling is stopped, at the moment, the tray 11 is positioned in the middle of the device, so that all seedlings can obtain sufficient sunlight, watering and spraying are convenient for the seedlings, when the device is collected, the second sliding plate 14, the third sliding plate 16 and the first plate 4 are pushed until the device cannot be pushed, the fourth plate 30 is placed along the inner side wall of the fourth guide rail 28, the two second plates 8 are restored, the position of the second plates 8 can be limited by the fourth limiting block 6, the lock catch 29 is fastened, the universal wheel 24 moves indoors, the second switch group 31 is turned on, the illuminating lamp 9 is lighted, therefore, the illumination time can be properly increased, the growth of seedlings is accelerated, the first switch group 26 is turned on, and the fan 5 is turned on to ensure that the seedlings in the device can breathe smoothly.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an agricultural is with nursery cabinet, includes third plate body (12), its characterized in that: the lower surface welding of the third plate body (12) has a first sliding plate (25), the outer side wall of the first sliding plate (25) is connected with a first guide rail (1) in a sliding manner, the inner side wall of the first guide rail (1) is fixedly connected with a first limiting block (32), the upper surface welding of the first guide rail (1) has a first plate body (4), one side of the third plate body (12) is welded with a third guide rail (17), the inner side wall of the third guide rail (17) is connected with a third sliding plate (16) in a sliding manner, the inner side wall of the third guide rail (17) is fixedly connected with a third limiting block (33), one side of the third plate body (12) is welded with a second guide rail (15), the inner side wall of the second guide rail (15) is connected with a second sliding plate (14) in a sliding manner, the inner side wall of the second guide rail (15) is fixedly connected with a second limiting block (34), one side of the, second slide (14) with connecting block (2), two have all been welded to the upper surface of third slide (16) connecting block (2) with the equal fixedly connected with tray of upper surface (11) of first fixed plate (13), first plate body (4) with fourth stopper (6) have all been welded to one side that third plate body (12) are adjacent, first plate body (4) with one side that third plate body (12) are adjacent all articulates through hinge (7) has second plate body (8), two the lower surface of second plate body (8) pastes respectively in two the upper surface of fourth stopper (6).

2. An agricultural seedling raising rack as claimed in claim 1, wherein: through-hole (35) have been seted up to one side of first plate body (4), one side welding of first plate body (4) has protection casing (27), fan (5), one are installed to the inside wall of protection casing (27) the lower surface mounting of second plate body (8) has light (9).

3. An agricultural seedling raising frame as set forth in claim 2, wherein: switch box (3) are installed to one side of first plate body (4), the internally mounted of switch box (3) has first switch group (26), the electrical output of first switch group (26) pass through the wire with the electrical input electric connection of fan (5), the internally mounted of switch box (3) has second switch group (31), the electrical output of second switch group (31) pass through the wire with the electrical input electric connection of light (9).

4. An agricultural seedling raising rack as claimed in claim 1, wherein: four universal wheels (24) are symmetrically welded at four corners of the lower surface of the first guide rail (1).

5. An agricultural seedling raising rack as claimed in claim 1, wherein: one side of the third plate body (12) is rotationally connected with two draw hooks (19) through a first rotating shaft (18) in a symmetrical mode, two one ends of the draw hooks (19) are respectively connected with a second rotating shaft (22) through a lifting lug (20) in a fixed mode, two front surfaces of the support blocks (21) are respectively connected with a second rotating shaft (22) in a rotating mode, two second rotating shafts (22) are respectively connected with a second fixing plate (23) through a outer side wall in a fixed mode, and two top portions of the second fixing plates (23) are respectively welded to the lower surface of the first sliding plate (25).

6. An agricultural seedling raising rack as claimed in claim 1, wherein: the upper surface of the two second plate bodies (8) is fixedly connected with a handle (10), and a lock catch (29) is installed between the two second plate bodies (8).

7. An agricultural seedling raising rack as claimed in claim 1, wherein: and a grating (36) is arranged on the inner side wall of the tray (11).

8. An agricultural seedling raising rack as claimed in claim 1, wherein: the third plate body (12) with fourth guide rail (28) have all been welded to the front surface and the rear surface of first plate body (4), two the inside wall sliding connection of fourth guide rail (28) has fourth plate body (30).
