Abstract
本实用新型公开一种环保内胎冷却水槽，包括冷却水槽主体，主体为不封顶的长方体槽体，主体两侧设有污水收集槽，污水收集槽高度为与之贴合的主体侧面高度的一半，污水收集槽内设有过滤网板，污水收集槽底部设有污水排出口，主体的底面设有出水口，出水口连接出水管。有益效果：传统的冷却水槽均为侧面或上面向下出水，本结构从底部向上出水，这样漂浮物升至顶面后会从两侧流下，水流顺至污水收集槽中，杂质本滤网板挡住，后续工作人员可以将滤网板拆下清理，而低杂质含量的污水会睡着污水的排出口流出，该结构能够极大的减少冷却水中杂质的含量，并且处理过的水可以再次利用，节能减排的同时有效的保证了产品的质量。
The utility model discloses an environmental protection inner tube cooling water tank, which comprises a cooling water tank main body, the main body is an uncapped cuboid tank body, two sides of the main body are provided with sewage collection tanks, and the height of the sewage collection tank is half of the height of the side surface of the main body attached to it. A filter screen plate is arranged in the sewage collection tank, a sewage outlet is arranged at the bottom of the sewage collection tank, a water outlet is arranged on the bottom surface of the main body, and the water outlet is connected with a water outlet. Beneficial effects: The traditional cooling water tank is the side or the top to discharge water downwards, this structure discharges water from the bottom upwards, so that the floating objects will flow down from both sides after rising to the top surface, the water will flow to the sewage collection tank, and the impurities will be filtered by the screen plate. Block, the follow-up staff can remove the screen plate for cleaning, and the sewage with low impurity content will flow out from the discharge port of the sewage. This structure can greatly reduce the content of impurities in the cooling water, and the treated water can be reused. , Energy saving and emission reduction while effectively ensuring the quality of the products.
Description
Technical Field
The utility model relates to an inner tube of a tyre production facility technical field specifically is an environmental protection inner tube of a tyre cooling trough.
Background
The inner tube needs to be cooled in the production process, the existing cooling mode is water cooling of a water cooling tank, the water cooling is one of the traditional cooling modes with better effect in practice, in the water cooling process, a plurality of producers can press unfinished semi-finished inner tubes into water by using the pressing shaft, the two types of existing equipment are almost all changed on the power transmission equipment and the pressing shaft at two ends, the problem of the water cooling tank is rarely considered, when the semi-finished inner tube is immersed in the water-cooling tank, some impurities may be attached to the semi-finished inner tube, including but not limited to colloid impurities of the semi-finished inner tube and raw materials dyed in the previous process and not integrated with the inner tube, these deposits can cause serious environmental pollution problems, and in order to avoid environmental pollution, manufacturers need to design a sink that can help remove or collect floating impurities in the sink.
In order to solve the above problems, there is provided a new solution, in which a cooling water tank is modified so that a large amount of floating materials are collected in a specially treated water tank to facilitate a subsequent treatment process.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing an environmental protection inner tube of a tyre cooling trough just in order to solve above-mentioned problem, including the cooling trough main part, the cuboid cell body of main part for not capping, the main part both sides are equipped with the sewage collecting vat, the sewage collecting vat highly is the laminating with it half of main part side height, be equipped with filter plate in the sewage collecting vat, the sewage collecting vat bottom is equipped with the sewage discharge port, the bottom surface of main part is equipped with the delivery port, the outlet pipe is connected to the delivery port.
Furthermore, the outlet pipe is arranged underground, and at least 4 positions are arranged at equal intervals at the water outlets.
Furthermore, the sections of the two side surfaces of the main body are triangular, and the sewage collecting grooves are embedded in the ground and are arranged on the two sides of the main body.
Furthermore, the filter screen plates are provided with at least 3 plates at equal intervals, and the mesh number of the filter screen plates is different.
Furthermore, the sewage discharge port is connected with a sewage discharge pipe, and the sewage discharge pipe is connected with a sewage processor.
The utility model has the advantages that: this scheme structure of use, traditional cooling trough is the side or goes out water downwards on, this structure goes out water from the bottom upwards, the floater rises can flow down from both sides after to the top surface like this, rivers are in the same direction as in the sewage collecting vat, this filter plate board of impurity blocks, follow-up staff can pull down the clearance with filter plate board, and the sewage of low impurity content can flow along with the discharge port of sewage, the content of impurity in the reduction cooling water that this structure can be very big, and the water of handling can reuse, the effectual quality of guaranteeing the product in the time of energy saving and emission reduction.
Drawings

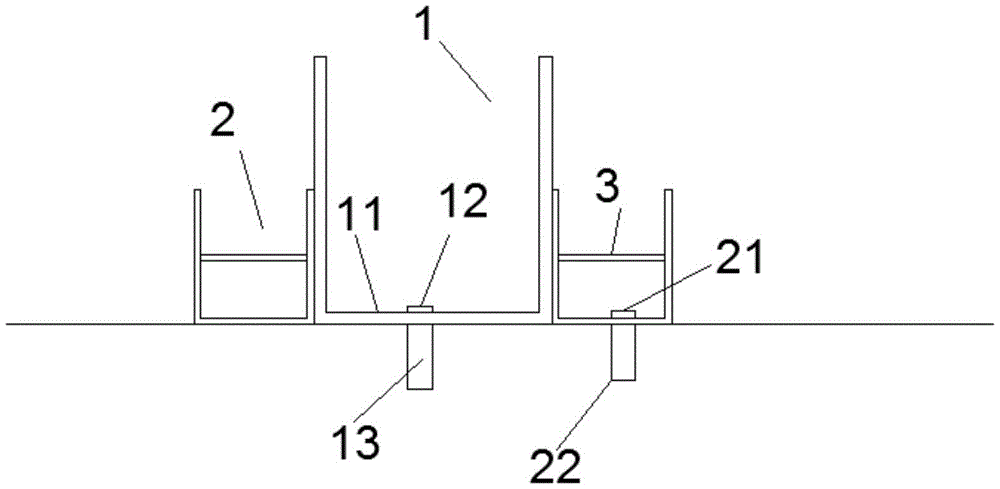

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural diagram of the second embodiment of the present invention.
The labels in the figure are: 1-main body, 2-sewage collecting tank, 3-filter screen, 11-bottom surface, 12-water outlet, 13-water outlet pipe, 21-sewage outlet and 22-sewage outlet pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
The environment-friendly inner tube cooling water tank shown in fig. 1-2 comprises a cooling water tank main body 1, wherein the main body 1 is a cuboid tank body which is not covered, and the cooling tank main body is a main body on a conventional inner tube cooling production line and is of a structure with a rectangular cross section;
the sewage collecting tanks 2 are arranged on two sides of the main body 1, the height of each sewage collecting tank 2 is half of the height of the side face of the main body 1 attached with the sewage collecting tank 2, the length of the side face of each sewage collecting tank 2 is the same as that of the side face of the main body 1, and the width of each sewage collecting tank is adaptive to the requirement of a site;
a filter screen plate 3 is arranged in the sewage collecting tank 2, and the filter screen plate 3 is used for filtering and collecting floaters, impurities and the like so as to facilitate subsequent centralized treatment and reduce the burden of sewage treatment equipment;
the bottom of the sewage collecting tank 2 is provided with a sewage outlet 21, the bottom surface 11 of the main body 1 is provided with a water outlet 12, and the water outlet 12 is connected with a water outlet pipe 13.
The water outlet pipe 13 is arranged underground, and at least 4 positions are arranged at equal intervals at the water outlet 12.
At least 3 plates are arranged at equal intervals on the filter screen plate 3, and the mesh number of the filter screen plate 3 is unequal.
The sewage discharge port 21 is connected to a sewage discharge pipe 22, and the sewage discharge pipe 22 is connected to a sewage treatment device.
Example two:
the main structure is the same as above but different:
the sections of the two side surfaces of the main body 1 are triangular, and the sewage collecting grooves 2 are embedded in the ground and are arranged on the two sides of the main body 1.
At least 3 plates are arranged at equal intervals on the filter screen plate 3, and the mesh number of the filter screen plate 3 is unequal.
The sewage discharge port 21 is connected to a sewage discharge pipe 22, and the sewage discharge pipe 22 is connected to a sewage treatment device.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (5)
1. The utility model provides an environmental protection inner tube of a tyre cooling trough, includes cooling trough main part (1), its characterized in that: the main part (1) is the cuboid cell body that does not seal up, main part (1) both sides are equipped with sewage collecting tank (2), sewage collecting tank (2) height is the laminating with it half of main part (1) side height, be equipped with filter plate (3) in sewage collecting tank (2), sewage collecting tank (2) bottom is equipped with sewage discharge port (21), bottom surface (11) of main part (1) are equipped with delivery port (12), outlet pipe (13) is connected in delivery port (12).
2. The environment-friendly inner tube cooling water tank as defined in claim 1, wherein: the water outlet pipe (13) is arranged underground, and at least 4 positions are arranged at equal intervals at the water outlet (12).
3. The environment-friendly inner tube cooling water tank as defined in claim 1, wherein: the cross sections of the two side surfaces of the main body (1) are triangular, and the sewage collecting tanks (2) are embedded in the ground and are arranged on the two sides of the main body (1).
4. The environment-friendly inner tube cooling water tank as defined in claim 1, wherein: the filter screen plates (3) are provided with at least 3 plates at equal intervals, and the mesh number of the filter screen plates (3) is different.
5. The environment-friendly inner tube cooling water tank as defined in claim 1, wherein: the sewage discharge port (21) is connected with a sewage discharge pipe (22), and the sewage discharge pipe (22) is connected with a sewage processor.
