CN213196568U

CN213196568U - Quick fixing tool

Info

Publication number: CN213196568U
Application number: CN202021825827.3U
Authority: CN
Inventors: 大吕伟
Original assignee: Xinghua Richeng Metal Products Co ltd
Current assignee: Xinghua Richeng Metal Products Co ltd
Priority date: 2020-08-27
Filing date: 2020-08-27
Publication date: 2021-05-14
Anticipated expiration: 2030-08-27

Abstract

The utility model provides a quick fixing tool for realizing the quick clamping and fixing of a workpiece on a machine tool, the tool comprises a first base, a second base and a plurality of push-pull type locking parts, the first base and the second base are arranged on the machine tool in parallel, the first base is provided with a plurality of fixed slots, the push-pull type locking parts correspond to the fixed slots one by one, the push-pull type locking parts are respectively fixed on the second base at positions corresponding to the fixed slots, through arranging the first base and the second base, the fixed slots are arranged on the first base, the push-pull type locking parts are arranged on the second base, the space utilization rate of the base is improved, and the number of clamping products is increased; the push-pull type locking piece is used for realizing the quick fixation of the workpiece to be machined, the trouble of assembling and disassembling screws is eliminated, the time consumption is reduced, the working efficiency is improved, and the operation is simplified.

Description

Quick fixing tool

Technical Field

The utility model relates to the technical field of machining, especially, relate to a quick fixed frock.

Background

The jig is a device for fixing a processing object to occupy a correct position for receiving construction or inspection in a machine manufacturing process, and is also called a jig. When a workpiece is machined on a machine tool, the workpiece needs to be clamped by a clamp before machining in order to enable the surface of the workpiece to meet the technical requirements of the size, the geometric shape, the mutual position precision with other surfaces and the like specified in the drawing.

When the company produces and processes batch products, a set of tools as shown in fig. 1 is used to improve and perfect various performances of product processing. This frock uses the screw to lock and dismantle as the basis, receives the restriction of lathe stroke, and tool size design has the limit requirement, and a clamping product is small in quantity, and needs manual dismantlement screw, and the operation is inconvenient, and work efficiency is low.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the work efficiency that current frock exists and hang down, operate inconvenient shortcoming, and the quick fixed frock that proposes.

In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a quick fixed frock for realize that the quick clamp of work piece is fixed on the lathe presss from both sides, this frock includes first base, second base and a plurality of plug-type retaining member, and first base and second base set up on the lathe parallelly mutually, are equipped with a plurality of fixed slots on the first base, a plurality of plug-type retaining members and a plurality of fixed slot one-to-one, and a plurality of plug-type retaining members are fixed respectively on the second base with the position that a plurality of fixed slots correspond.

Preferably, each fixing groove comprises an upper groove body and a lower groove body, and the upper groove body is connected with the lower groove body. Further, go up the cell body and include horizontal notch of last cell body and last cell body side direction notch, lower cell body includes horizontal notch of lower cell body and lower cell body side direction notch, goes up horizontal notch of cell body and lower horizontal notch of cell body and parallels each other, goes up the area of the horizontal notch of cell body and is greater than the area of the horizontal notch of lower cell body, goes up cell body side direction notch and lower cell body side direction notch coplane.

Preferably, an elastic block is disposed on an inner sidewall of each fixing groove.

Preferably, the second base is movably arranged on the machine tool relative to the first base. Furthermore, the first base is provided with a fixing hole for fixing the first base on a machine tool.

Preferably, the second base is provided with a plurality of backing plates at positions corresponding to the plurality of fixing grooves, the plurality of backing plates correspond to the plurality of fixing grooves one to one, and the plurality of push-pull locking parts are fixed on the plurality of backing plates respectively.

Compared with the prior art, the beneficial effects of the utility model are that: by arranging the first base and the second base, the fixed groove is arranged on the first base, and the push-pull type locking piece is arranged on the second base, so that the space utilization rate of the bases is improved, and the number of products clamped at one time is increased; the push-pull type locking piece is used for realizing the quick fixation of the workpiece to be machined, the trouble of assembling and disassembling screws is eliminated, the time consumption is reduced, the working efficiency is improved, and the operation is simplified.

Drawings

FIG. 1 is a schematic structural diagram of an original tooling;

fig. 2 is a schematic structural view of a quick fixing tool according to an embodiment of the present invention;

fig. 3 is a schematic perspective view of the fixing groove in fig. 2.

Detailed Description

In order to further understand the objects, structures, features and functions of the present invention, the following embodiments are described in detail.

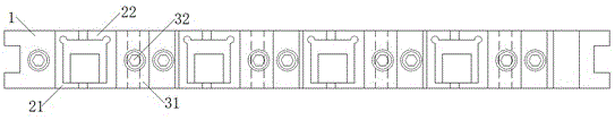

Please refer to fig. 1, fig. 1 is a schematic structural diagram of an original tooling, the tooling includes a base 1, a plurality of groups of clamping assemblies and a plurality of groups of locking assemblies, the plurality of groups of clamping assemblies and the plurality of groups of locking assemblies are all disposed on the base, the plurality of groups of locking assemblies correspond to the plurality of groups of clamping assemblies one by one, each group of clamping assemblies includes a first clamping member 21 and a second clamping member 22 disposed oppositely, the first clamping member 21 is fixed on the base, the second clamping member 22 is slidably disposed on the base 1, each group of locking assemblies includes a moving block 31 and a screw 32, when the screw 32 is tightened, the moving block 31 moves downwards to push the second clamping member 22 to move towards the first clamping member 21, so as to clamp and. This frock uses the screw to lock and dismantle as the basis, receives the restriction of lathe stroke, and tool size design has the limit requirement, and a clamping product is small in quantity, and needs manual dismantlement screw, and the operation is inconvenient, and work efficiency is low.

In order to solve the above problem, please refer to fig. 2, the utility model provides a quick fixed frock for realize that the quick clamp of work piece is fixed on the lathe presss from both sides, this frock includes first base 4, second base 5 and a plurality of plug-type retaining member 6, first base 4 and second base 5 parallel ground of each other set up on the lathe, be equipped with a plurality of fixed slots 41 on the first base 4, a plurality of plug-type retaining member 6 and a plurality of fixed slot 41 one-to-one, a plurality of plug-type retaining member 6 are fixed respectively on second base 5 with the position that a plurality of fixed slots 41 correspond. In a preferred embodiment, the second base 5 is movably arranged on the machine tool relative to the first base 4, so that the distance between the first base 4 and the second base 5 can be adjusted to enable the push-pull locking member 6 to clamp and fix different workpieces. Further, the first base 4 is provided with a fixing hole 7 for fixing the first base on a machine tool, and correspondingly, the second base 5 is movably arranged on the machine tool, and the moving mode can adopt a slide rail drive and the like.

Preferably, each fixing groove 41 comprises an upper groove body 42 and a lower groove body 43, the upper groove body 42 is connected with the lower groove body 43, so that the workpiece to be processed is limited through the upper groove body 42 and the lower groove body 43, and the push-pull type locking piece 6 is matched to clamp and fix the workpiece. Further, please refer to fig. 3, the upper tank 42 includes an upper tank horizontal notch 421 and an upper tank lateral notch 422, the lower tank 43 includes a lower tank horizontal notch 431 and a lower tank lateral notch 432, the upper tank horizontal notch 421 and the lower tank horizontal notch 431 are parallel to each other, the area of the upper tank horizontal notch 421 is larger than that of the lower tank horizontal notch 431, the upper tank lateral notch 422 and the lower tank lateral notch 432 are coplanar, so as to accommodate and limit different workpieces to be processed through the upper tank 42 and the lower tank 43, thereby cooperating with the push-pull locking member 6 to clamp and fix different workpieces.

Preferably, an elastic block (not shown) is disposed on an inner sidewall of each fixing groove 41 to buffer and protect the workpiece to be processed during processing, and also to improve the fixing effect of the workpiece to be processed. The elastic block can be a rubber buffer block or a spring and the like.

Preferably, the position that corresponds with a plurality of fixed slots 41 on the second base 5 is equipped with a plurality of backing plates 51, a plurality of backing plates 51 and a plurality of fixed slots 41 one-to-one, and a plurality of plug-type retaining members 6 are fixed respectively on a plurality of backing plates 51 to guarantee the fixed effect of a plurality of plug-type retaining members 6, prolong the life of this quick fixed frock.

The using method comprises the following steps: the non-processing end of the workpiece to be processed is placed in the fixing groove 41, the distance between the first base 4 and the second base 5 is adjusted, and then the workpiece to be processed is clamped and fixed by using the push-pull type locking piece 6. In practical use, the push-pull type locking piece 6 can be a common push-pull type locking piece structure.

The utility model discloses a quick fixed frock, through setting up first base and second base, set up the fixed slot on first base, set up plug-type retaining member on the second base, improved the space utilization of base, the quantity of a clamping product has been increased; the push-pull type locking piece is used for realizing the quick fixation of the workpiece to be machined, the trouble of assembling and disassembling screws is eliminated, the time consumption is reduced, the working efficiency is improved, and the operation is simplified.

The present invention has been described in relation to the above embodiments, which are only examples for implementing the present invention. It should be noted that the disclosed embodiments do not limit the scope of the invention. On the contrary, all changes and modifications which do not depart from the spirit and scope of the present invention are deemed to fall within the scope of the present invention.

Claims

1. The utility model provides a quick fixed frock for realize that the quick clamp of work piece is fixed on the lathe presss from both sides, a serial communication port, the frock includes first base, second base and a plurality of plug-type retaining member, first base with the second base sets up on the lathe parallelly to each other, be equipped with a plurality of fixed slots on the first base, a plurality of plug-type retaining members with a plurality of fixed slot one-to-ones, a plurality of plug-type retaining members are fixed respectively on the second base with the position that a plurality of fixed slots correspond.

2. The quick fixing tool according to claim 1, wherein each fixing groove comprises an upper groove body and a lower groove body, and the upper groove body is connected with the lower groove body.

3. The quick fixing tool according to claim 2, wherein the upper tank body comprises an upper tank body horizontal notch and an upper tank body lateral notch, the lower tank body comprises a lower tank body horizontal notch and a lower tank body lateral notch, the upper tank body horizontal notch and the lower tank body horizontal notch are parallel to each other, the area of the upper tank body horizontal notch is larger than that of the lower tank body horizontal notch, and the upper tank body lateral notch and the lower tank body lateral notch are coplanar.

4. The tool for rapid fixing according to claim 1, wherein an elastic block is disposed on an inner sidewall of each fixing groove.

5. The quick-fix tool of claim 1, wherein the second base is movably disposed on the machine tool relative to the first base.

6. The tool for quickly fixing the machine tool according to claim 5, wherein the first base is provided with a fixing hole for fixing the first base on the machine tool.

7. The tool for quickly fixing according to claim 1, wherein a plurality of base plates are arranged on the second base at positions corresponding to the plurality of fixing grooves, the base plates correspond to the fixing grooves one to one, and the push-pull type locking members are fixed on the base plates respectively.
