The utility model discloses a lubricating oil dehydration filter equipment, the power distribution box comprises a box body, one side fixed mounting of box has the conveying pipe, the opposite side fixed mounting of box has the oil extraction pipe, the fixed edulcoration storehouse that is provided with in one side of the inside of box, the fixed dehydration storehouse that is provided with of opposite side in edulcoration storehouse, the fixed constant temperature storage storehouse that is provided with of opposite side in dehydration storehouse, the inside fixed mounting in edulcoration storehouse has the filter screen, the inside fixed mounting in dehydration storehouse has the vacuum dehydration machine, the vacuum dehydration machine includes step motor, casing, rotary drum, hollow shaft and bearing frame for the vacuum dehydration, the inner wall fixed mounting in dehydration storehouse has two force (forcing) pumps, the inner wall fixed mounting in constant temperature storage storehouse has electric heater unit. The utility model discloses an edulcoration storehouse is clear away the inside magazine of lubricating oil, carries out dehydration through step motor and force (forcing) pump for vacuum dehydration to lubricating oil, and the device dehydration nature is strong, and job stabilization.

Description

Lubricating oil dehydration filter equipment

Technical Field

The utility model relates to a lubricating oil technical field specifically is a lubricating oil dehydration filter equipment.

Background

With the rapid development of social economy, lubricating oil is a liquid lubricant used in various kinds of machinery and equipment to reduce friction and protect machinery and workpieces, and plays roles of lubrication, cooling, rust prevention, cleaning, sealing, buffering, and the like in a system, and the lubricating oil is generally classified into hydraulic oil, turbine oil, compressor oil, refrigerator oil, gear oil, bearing oil, transformer oil, and the like according to the purpose. The lubricating oil inevitably mixes solid particles and moisture in production, storage and transportation, and the existence of the solid particles and the moisture can increase the abrasion of mechanical elements and accelerate the oxidative deterioration of the oil. Therefore, effective technical measures must be taken to remove solid particles and water in the lubricating oil in time.

However, the existing lubricating oil dehydration filtering device has a complex structure, is not perfect in processing the moisture in the lubricating oil, is easy to generate moisture residue, and is not stable enough in work; therefore, the existing requirements are not met, and a lubricating oil dehydration filter device is provided for the lubricating oil dehydration filter device.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a lubricating oil dehydration filter equipment to the structure of proposing is complicated in solving above-mentioned background art, and is perfect inadequately to the moisture content processing in the lubricating oil, produces moisture content easily and remains, and work stability scheduling problem inadequately.

In order to achieve the above object, the utility model provides a following technical scheme: a lubricating oil dehydration filtering device comprises a box body, wherein a feeding pipe is fixedly arranged on one side of the box body, an oil discharge pipe is fixedly arranged on the other side of the box body, a box cover is fixedly arranged on the upper end face of the box body, an impurity removing bin is fixedly arranged on one side of the interior of the box body, a dehydration bin is fixedly arranged on the other side of the impurity removing bin, a constant-temperature storage bin is fixedly arranged on the other side of the dehydration bin, a filter screen is fixedly arranged on the interior of the impurity removing bin, an impurity removing pipe is fixedly arranged on the rear end face of the impurity removing bin, a vacuum dehydrator is fixedly arranged in the dehydration bin and comprises a stepping motor for vacuum dehydration, a shell, a rotary drum, a hollow shaft and a bearing seat, the stepping motor for vacuum dehydration is fixedly arranged on the inner wall of the dehydration bin is arranged on the, the hollow shaft is installed through the bearing in the inside of casing, the external fixed surface of hollow shaft is equipped with the rotary drum, the edulcoration storehouse is connected through advancing oil pipe with the one end of hollow shaft, the intermediate position fixed mounting who advances oil pipe has the oil feed pump, the position grafting that one side of oil feed pump is close to the hollow shaft is installed and is located into the inboard filter of oil pipe, the casing is close to step motor's for vacuum dehydration surface and step motor for vacuum dehydration and is connected through going out oil pipe, the intermediate position fixed mounting who goes out oil pipe has the oil extraction pump, the inner wall fixed mounting who dewaters the storehouse has two force (forcing) pumps, the force (forcing) pump passes through the force (forcing) union coupling with the position that the casing is close to the top, the bottom fixed mounting who dewaters the storehouse has the sump.

Preferably, the front end face of the box body is fixedly provided with a switch, the switch is electrically connected with the stepping motor for vacuum dehydration, the pressure pump, the oil feeding pump, the oil discharging pump and the electric heating device, the position of the hollow shaft close to one end is connected with the bearing seat through a bearing, the top end of the stepping motor for vacuum dehydration is connected with the other end of the stepping motor for vacuum dehydration through a coupler, and a sealing rubber ring is arranged at the joint of the filter plate and the oil inlet pipe.

Preferably, the rear side of the impurity removing bin is fixedly provided with an impurity removing pipe, the upper surface of the water collecting trough plate is fixedly provided with a sliding groove, and the water collecting trough plate is in sliding connection with the dewatering bin through the sliding groove.

Preferably, the pressure pump is completely attached to the side wall of the dewatering bin, the pressure pump is fixedly connected with the inside of the machine shell through a pressure pipe, and the electric heating wire is fixedly arranged inside the electric heating device.

Preferably, one side of oil feed pump and the lateral wall fixed connection in edulcoration storehouse, the opposite side and the vacuum dehydration of oil feed pump are with step motor fixed connection, one side and this vacuum dehydration of oil extraction pump are with step motor fixed connection, the opposite side and the constant temperature of oil extraction pump store the lateral wall fixed connection in storehouse.

Preferably, round holes are uniformly formed in the middle of the outer surface of the rotary drum, and drain holes are formed in the bottom surface of the dewatering bin.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses a lubricating oil gets into to the edulcoration storehouse from oil feed pipe, the solid impurity in the filter screen inside the edulcoration storehouse is to lubricating oil is clear away, get rid of the processing through the edulcoration pipe, the lubricating oil after will filtering is arranged into the hollow shaft through oil feed pump and oil feed pipe again, the filter board of pegging graft through the oil feed pipe inside carries out secondary filter, it is stable to make things convenient for the dehydration, pressurize the lubricating oil inside the casing through the force (forcing) pump, because the density and the pressure of water and the density and the pressure of lubricating oil are different, rethread vacuum dehydration makes the moisture content in the lubricating oil with step motor messenger casing inside drum and hollow shaft work;

2. the utility model discloses a round hole on the inside hollow shaft of casing overflows to the sump plate of dehydration storehouse bottom to the moisture content of separating in, the sump plate through the spout and the dehydration storehouse sliding connection of upper end, can conveniently carry out recovery processing to water, the rethread oil extraction pump is discharged into to constant temperature storage storehouse through an oil pipe to the lubricating oil that step motor for vacuum dehydration finishes, carries out the oil extraction pipe discharge of constant temperature storage or through box one side through electric heating device.

Drawings

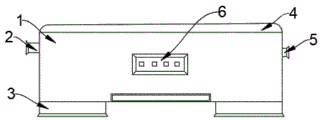

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of a partial structure of the present invention;

FIG. 3 is a schematic view of the internal structure of the present invention;

fig. 4 is a schematic view of the local structure of the dewatering bin of the present invention.

In the figure: 1. a box body; 2. a feed pipe; 3. supporting legs; 4. a box cover; 5. an oil discharge pipe; 6. a switch; 7. an impurity removal bin; 8. a filter screen; 9. a dewatering bin; 10. a stepping motor for vacuum dehydration; 11. a constant temperature storage bin; 12. a housing; 13. a pressure pump; 14. an oil supply pump; 15. a drum; 16. a hollow shaft; 17. an oil discharge pump; 18. an electric heating device; 19. an impurity removal pipe; 20. a pressurizing pipe; 21. a catchment channel plate; 22. an oil inlet pipe; 23. an oil outlet pipe; 24. a filter plate; 25. and a bearing seat.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1 to 4, the present invention provides an embodiment: a lubricating oil dehydration filtering device comprises a box body 1, a feeding pipe 2 is fixedly installed on one side of the box body 1, an oil discharge pipe 5 is fixedly installed on the other side of the box body 1, a box cover 4 is fixedly installed on the upper end face of the box body 1, an impurity removing bin 7 is fixedly arranged on one side of the interior of the box body 1, a dehydration bin 9 is fixedly arranged on the other side of the impurity removing bin 7, a constant-temperature storage bin 11 is fixedly arranged on the other side of the dehydration bin 9, a filter screen 8 is fixedly installed in the interior of the impurity removing bin 7, an impurity removing pipe 19 is fixedly installed on the rear end face of the impurity removing bin 7, a vacuum dehydrator is fixedly installed in the interior of the dehydration bin 9 and comprises a stepping motor 10 for vacuum dehydration, a machine shell 12, a rotary drum 15, a hollow shaft 16 and a bearing seat 25, a stepping motor 10 for vacuum dehydration is fixedly installed on, the hollow shaft 16 is installed through the bearing in the inside of casing 12, the external fixed surface of hollow shaft 16 is equipped with rotary drum 15, the one end of edulcoration storehouse 7 and hollow shaft 16 is connected through advancing oil pipe 22, the intermediate position fixed mounting who advances oil pipe 22 has oil feed pump 14, the position grafting that one side of oil feed pump 14 is close to hollow shaft 16 is installed and is located the inboard filter 24 of advancing oil pipe 22, the casing 12 is close to the surface of step motor 10 for vacuum dehydration and is connected through going out oil pipe 23 with step motor 10 for vacuum dehydration, the intermediate position fixed mounting who goes out oil pipe 23 has oil extraction pump 17, the inner wall fixed mounting of dehydration storehouse 9 has two force (forcing) pumps 13, force (forcing) pump 13 and casing 12 are close to the position of top and are connected through force (forcing) pipe 20, the bottom fixed mounting of dehydration storehouse 9 has water collection fri.

Further, the switch 6 is fixedly mounted on the front end face of the box body 1, the switch 6 is electrically connected with the vacuum dehydration stepping motor 10, the pressure pump 13, the oil feeding pump 14, the oil discharging pump 17 and the electric heating device 18, the position of the hollow shaft 16 close to one end is connected with the bearing seat 25 through a bearing, the top end of the vacuum dehydration stepping motor 10 is connected with the other end of the vacuum dehydration stepping motor 10 through a coupler, and a sealing rubber ring is arranged at the joint of the filter plate 24 and the oil inlet pipe 22, so that the device works stably.

Further, the fixed edulcoration pipe 19 that is provided with in rear side in edulcoration storehouse 7, the fixed surface of water catch bowl board 21 is provided with the spout, and water catch bowl board 21 passes through spout sliding connection with dehydration storehouse 9, conveniently handles filterable granule and moisture content.

Further, the pressure pump 13 is completely attached to the side wall of the dewatering bin 9, the pressure pump 13 is fixedly connected with the inside of the casing 12 through a pressure pipe 20, and the electric heating wire is fixedly arranged inside the electric heating device 18, so that the lubricating oil can be conveniently pressurized and stored.

Further, one side of oil feed pump 14 and the lateral wall fixed connection of edulcoration storehouse 7, the opposite side of oil feed pump 14 and vacuum dehydration are with step motor 10 fixed connection, one side and the vacuum dehydration of oil extraction pump 17 are with step motor 10 fixed connection, the opposite side of oil extraction pump 17 and the lateral wall fixed connection of constant temperature storage storehouse 11, make device job stabilization.

Furthermore, round holes are uniformly formed in the middle of the outer surface of the rotary drum 15, and drain holes are formed in the bottom surface of the dewatering bin 9, so that moisture can be conveniently drained.

The working principle is as follows: when the device is used, lubricating oil enters the impurity removal bin 7 from the feeding pipe 2, the filter screen 8 in the impurity removal bin 7 removes solid impurities in the lubricating oil, the solid impurities are removed through the impurity removal pipe 19, the filtered lubricating oil is discharged into the hollow shaft 16 through the oil feeding pump 14 and the oil inlet pipe 22, secondary filtration is performed through the filter plate 24 inserted in the oil inlet pipe 22, dehydration is stable, the lubricating oil in the shell 12 is pressurized through the pressure pump 13, the rotating drum 15 and the hollow shaft 16 in the shell 12 work through the stepping motor 10 for vacuum dehydration to separate water in the lubricating oil, the water separated through the round hole on the hollow shaft 16 in the shell 12 overflows into the water collection tank plate 21 at the bottom of the dehydration bin 9, and the water collection tank plate 21 is in sliding connection with the dehydration bin 9 through the chute at the upper end, can conveniently carry out recovery processing to water, the lubricating oil that rethread oil extraction pump 17 was handled with step motor 10 for vacuum dehydration discharges into to constant temperature storage storehouse 11 in through oil outlet pipe 23, carries out constant temperature storage or discharges through oil extraction pipe 5 of box 1 one side through electric heating device 18, and the device overall structure is simple, and it is strong to break away from the effect to the inside impurity of lubricating oil and moisture content, and job stabilization.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides a lubricating oil dehydration filter equipment, includes box (1), its characterized in that: one side of the box body (1) is fixedly provided with a feeding pipe (2), the other side of the box body (1) is fixedly provided with an oil discharge pipe (5), the upper end face of the box body (1) is fixedly provided with a box cover (4), one side of the inside of the box body (1) is fixedly provided with an impurity removal bin (7), the other side of the impurity removal bin (7) is fixedly provided with a dewatering bin (9), the other side of the dewatering bin (9) is fixedly provided with a constant temperature storage bin (11), the inside of the impurity removal bin (7) is fixedly provided with a filter screen (8), the rear end face of the impurity removal bin (7) is fixedly provided with an impurity removal pipe (19), the inside of the dewatering bin (9) is fixedly provided with a vacuum dewatering machine, the vacuum dewatering machine comprises a stepping motor (10) for vacuum dewatering, a machine shell (12), a rotary drum (15), a, the outer side fixed mounting of casing (12) one end has step motor (10) for the vacuum dehydration who is located dehydration storehouse (9) inner wall, the other end fixed mounting of casing (12) has bearing frame (25), hollow shaft (16) are installed through the bearing to the inside of casing (12), the external fixed surface of hollow shaft (16) is equipped with rotary drum (15), edulcoration storehouse (7) is connected through advancing oil pipe (22) with the one end of hollow shaft (16), the intermediate position fixed mounting who advances oil pipe (22) has oil feed pump (14), the filter (24) that are located into oil pipe (22) inboard is installed near the position grafting of hollow shaft (16) in one side of oil feed pump (14), casing (12) are connected through going out oil pipe (23) near the surface of step motor (10) for the vacuum dehydration with step motor (10) for the vacuum dehydration, the utility model discloses a dehydration storehouse, including casing (12), go out the intermediate position fixed mounting of oil pipe (23) and have oil extraction pump (17), the inner wall fixed mounting of dehydration storehouse (9) has two force (forcing) pumps (13), force (forcing) pump (13) are connected through force (forcing) pipe (20) with casing (12) position that is close to the top, the bottom fixed mounting of dehydration storehouse (9) has sump plate (21) that catchments, the inner wall fixed mounting of constant temperature storage storehouse (11) has electric heater unit (18).

2. The lubricating oil dehydrating filtration apparatus of claim 1, wherein: the utility model discloses a vacuum dewatering box, including box (1), preceding terminal surface fixed mounting of box (1) has switch (6), switch (6) and vacuum dewatering are with step motor (10), force (forcing) pump (13), oil feed pump (14), oil extraction pump (17) and electric heater unit (18) electric connection, hollow shaft (16) are close to the position of one end and are connected through the bearing with bearing frame (25), the top of vacuum dewatering is with step motor (10) and the other end of vacuum dewatering with step motor (10) passes through the coupling joint, filter (24) are equipped with the sealing rubber circle with the junction of advancing oil pipe (22).

3. The lubricating oil dehydrating filtration apparatus of claim 1, wherein: the rear side of the impurity removing bin (7) is fixedly provided with an impurity removing pipe (19), the upper surface of the water collecting trough plate (21) is fixedly provided with a sliding groove, and the water collecting trough plate (21) is in sliding connection with the dewatering bin (9) through the sliding groove.

4. The lubricating oil dehydrating filtration apparatus of claim 1, wherein: the side wall of the pressure pump (13) and the side wall of the dewatering bin (9) are completely attached, the pressure pump (13) is fixedly connected with the inside of the casing (12) through a pressure pipe (20), and the electric heating wire is fixedly arranged inside the electric heating device (18).

5. The lubricating oil dehydrating filtration apparatus of claim 1, wherein: one side of oil feed pump (14) and the lateral wall fixed connection in edulcoration storehouse (7), step motor (10) fixed connection is used with vacuum dehydration to the opposite side of oil feed pump (14), one side and this vacuum dehydration of oil extraction pump (17) are with step motor (10) fixed connection, the opposite side of oil extraction pump (17) and the lateral wall fixed connection in constant temperature storage storehouse (11).

6. The lubricating oil dehydrating filtration apparatus of claim 1, wherein: round holes are uniformly formed in the middle of the outer surface of the rotary drum (15), and drain holes are formed in the bottom surface of the dewatering bin (9).
