CN213158633U

CN213158633U - Ventilator device with storage function

Info

Publication number: CN213158633U
Application number: CN202021289505.1U
Authority: CN
Inventors: 郭萍; 黄榕; 曾灿辉; 蔡丽红; 宋洁
Original assignee: Nanfang Hospital of Southern Medical University
Current assignee: Nanfang Hospital of Southern Medical University
Priority date: 2020-07-02
Filing date: 2020-07-02
Publication date: 2021-05-11
Anticipated expiration: 2030-07-02

Abstract

The utility model discloses a ventilator device with a storage function, comprising a ventilator body, a push-pull handrail is mounted on the ventilator body, the push-pull handrail comprises two half-ring rods, and the two half-ring rods are symmetrically distributed on the ventilator body. On the left and right sides, the two ends of each semi-ring rod are detachably sleeved with sleeves, and there are hanging rings on the lower side of the sleeves. It also includes a storage box for accommodating simulated lungs, masks, and flow sensors, and a disposable breathing circuit. , Disposable humidity heat exchanger, extension tube, storage box 2 of simple breathing airbag, storage box 1 and storage box 2 are symmetrically distributed on the front and rear sides of the ventilator body and located between the ends of the two semi-ring rods. The second storage box has two hooks respectively, and the hooks of the first storage box and the second storage box are respectively hung on the hanging rings of the sleeves of the corresponding half-ring rod ends. The ventilator device with the storage function of the utility model saves the preparation time of articles, wins the rescue time, and improves the work efficiency.

Description

Breathing machine device with storage function

Technical Field

The utility model relates to the field of medical supplies, especially, relate to a breathing machine device with accomodate function.

Background

In modern clinical medicine, a ventilator has been widely used in respiratory failure due to various reasons, anesthesia respiratory management during major surgery, respiratory support therapy and emergency resuscitation, and occupies a very important position in the modern medical field, and the ventilator is a vital medical device capable of preventing and treating respiratory failure, reducing complications and saving and prolonging the life of a patient. The matched articles with the respirator comprise a simulated lung, a face mask, a flow sensor, a disposable breathing loop, a disposable wet heat exchanger, an extension tube and a simple breathing air bag. However, these accessories are not placed together with the breathing machine at ordinary times, and when the critical patient needs to use the breathing machine, the needed accessories need to be searched and prepared, which causes the waste of rescue time and reduces the work and rescue efficiency. Therefore, a respirator device with a storage function needs to be researched to overcome the above defects.

SUMMERY OF THE UTILITY MODEL

In order to solve the problem, the utility model aims at providing a breathing machine device with accomodate function need not to look for required supporting article when the critical patient urgently needs to use the breathing machine, has saved article preparation time, has won the rescue time, has improved work efficiency.

In order to achieve the purpose, the utility model provides a respirator device with a storage function, which comprises a respirator body, wherein a push-pull handrail is arranged on the respirator body, push-and-pull handrail includes two semi-ring pole, two semi-ring pole symmetric distributions are in the left and right sides of breathing machine body, the both ends detachably cover of each semi-ring pole is equipped with the sleeve, there is the link sleeve lower side, still including being used for accomodating the simulation lung, the face guard, flow sensor's first and be used for accomodating disposable breathing circuit, disposable wet heat exchanger, the extension pipe, simple and easy gasbag of breathing's receiver two, receiver one and receiver two symmetric distributions are just located between the tip of two semi-ring poles in the front and back side of breathing machine main part, receiver one and receiver two are equallyd divide and do not have two couples, the couple of receiver one and receiver two is hung respectively on the telescopic link of corresponding semi-ring pole tip suit.

As a further improvement of the present invention, each of the half-ring rods is fixedly connected to the respirator body through a connecting rod in the middle thereof, and a hook is fixed to the lower side of each connecting rod. The respirator is convenient to hook and use the register book.

As a further improvement, the first lid that includes box body one and can open of receiver, the three chamber that holds for placing simulation lung, face guard, flow sensor respectively through two baffle one divisions that arrange along the fore-and-aft direction in the inner chamber of box body one, and the left side external fixation of box body one has a C type card to hold the piece, and the right side external fixation of box body one has an external check of accomodating. The simulated lung, the mask and the flow sensor are arranged in the grid, so that the taking is more convenient and faster; the C-shaped clamping piece is convenient for hanging a respirator plug.

As a further improvement of the utility model, one side of the first box cover is hinged with one side of the first box body, and the other opposite side of the first box cover is a free side capable of being freely opened. The opening of the box cover I is facilitated, and the articles in the box body I can be taken and used more quickly.

As a further improvement of the utility model, an article name label I is pasted on the upper surface of the box cover I. The required matching articles can be conveniently and quickly found and taken.

As a further improvement, the second storage box comprises a second box body and a second openable box cover, and the inner cavity of the second box body is divided into four accommodating cavities for respectively placing a disposable breathing circuit, a disposable wet heat exchanger, an extension pipe and a simple breathing air bag through a second three partition plate arranged along the front-back direction. The disposable breathing loop, the disposable wet heat exchanger, the extension pipe and the simple breathing air bag are arranged in the grid, so that the taking and the use are more convenient and rapid; the second box cover is designed to prevent dust.

As a further improvement of the utility model, one side of the second box cover is hinged with one side of the second box body, and the other opposite side of the second box cover is a free side which can be freely opened. The second box cover is convenient to open, so that the articles in the second box body can be taken and used more quickly.

As a further improvement of the utility model, the upper surface of the second box cover is pasted with a second article name label. The required matching articles can be conveniently and quickly found and taken.

Compared with the prior art, the utility model discloses a breathing machine device with accomodate function's beneficial effect as follows:

(1) when critically ill patients urgently need to use the breathing machine, the needed matched articles in the first storage box and the second storage box are complete, the needed matched articles do not need to be searched, and only the breathing machine needs to be pushed, so that the article preparation time is saved, the rescue time is won, the working efficiency is improved, the space is saved, and the breathing machine is deeply welcomed by medical workers.

(2) Receiver one and receiver two all adopt the couple to hang on the telescopic link of corresponding semi-annular tip suit, when the breathing machine needs the disinfection, only need take off receiver one and receiver two, place in treatment mesa or head of a bed desktop can, it is very convenient, and receiver one and receiver two hang also can not remove on the link, influence the locating position of the people's hand that pushes away the breathing machine when avoiding promoting the breathing machine body, guarantee that the breathing machine pushes away other patient smoothly fast.

(3) Two semi-annular rods are adopted, so that the breathing machine can be pushed and pulled forwards and backwards, and the breathing machine is more convenient.

The invention will become more apparent from the following description when taken in conjunction with the accompanying drawings which illustrate embodiments of the invention.

Drawings

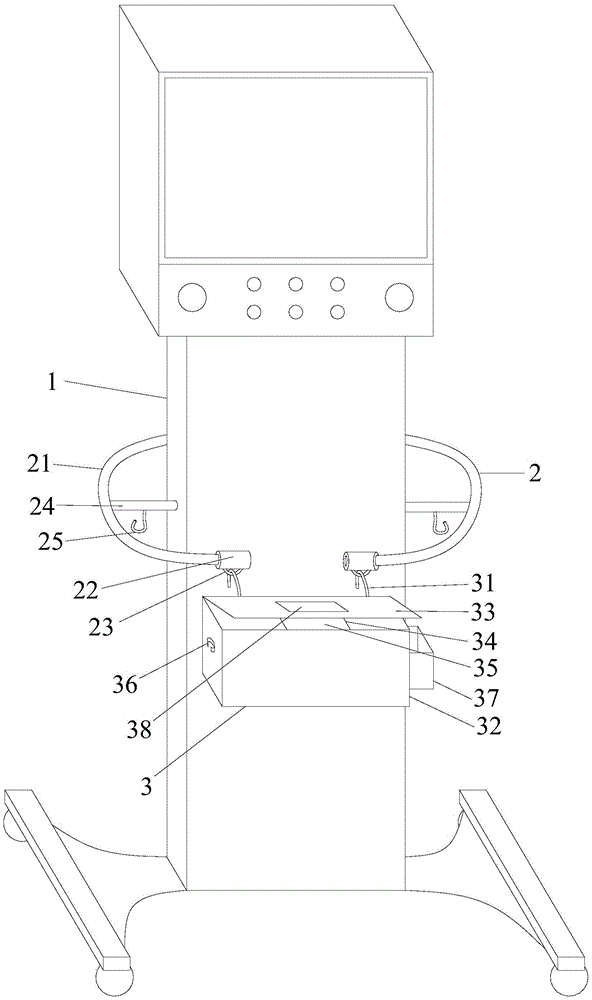

Fig. 1 is a front perspective view of a breathing apparatus with a storage function.

Fig. 2 is a rear perspective view of a ventilator device with a storage function.

Fig. 3 is a schematic view of a first storage box.

Fig. 4 is a schematic view of the second storage box.

The reference numbers illustrate: the breathing machine comprises a breathing machine body 1, a push-pull handrail 2, a semi-annular rod 21, a sleeve 22, a hanging ring 23, a connecting rod 24, a hook 25, a first storage box 3, a first hook 31, a first box body 32, a first box cover 33, a first partition plate 34, a containing cavity 35, a C-shaped clamping piece 36, an external storage grid 37, a first article name label 38, a second storage box 4, a second hook 41, a second box body 42, a second box cover 43, a second partition plate 44, a second containing cavity 45 and a second article name label 46.

Detailed Description

Embodiments of the present invention will now be described with reference to the drawings, wherein like element numerals represent like elements throughout.

Referring to fig. 1-4, the breathing apparatus with a storage function includes a breathing apparatus body 1, and a push-pull armrest 2 is mounted on the breathing apparatus body 1. The push-pull handrail 2 comprises two semi-annular rods 21, the two semi-annular rods 21 are symmetrically distributed on the left side and the right side of the breathing machine body 1, sleeves 22 are detachably sleeved at two ends of each semi-annular rod 21, and hanging rings 23 are arranged on the lower sides of the sleeves 22. The middle of each semi-annular rod 21 is fixedly connected to the respirator body 1 through a connecting rod 24, and a hook 25 is fixed on the lower side of each connecting rod 24, so that the respirator can be conveniently hooked to use the registration book.

The breathing machine device with the storage function further comprises a first storage box 3 used for storing the simulated lung, the mask and the flow sensor and a second storage box 4 used for storing the disposable breathing circuit, the disposable wet heat exchanger, the extension pipe and the simple breathing air bag. The first storage box 3 and the second storage box 4 are symmetrically distributed on the front side and the rear side of the respirator body 1 and are positioned between the end parts of the two semi-annular rods 21.

Receiver 3 has two couples 31, and receiver 31 two couples 31 are hung respectively on corresponding semi-annular pole 21 tip suit's sleeve 22 link 23, and when the breathing machine needs the disinfection, only need take off receiver 3, place on treatment mesa or head of a bed desktop can, and is very convenient, and receiver 3 is hung and also can not remove about on link 23 in addition, influences the locating position of the people's of pushing away the breathing machine hand when avoiding promoting the breathing machine body. The first storage box 3 comprises a first box body 32 and a first openable box cover 33, and a first hook 31 is fixed on the back of the first box body 32. The inner cavity of the box body I32 is divided into three containing cavities 35 for respectively placing the simulation lung, the face mask and the flow sensor through two partition plates I34 arranged in the front-back direction, and the simulation lung, the face mask and the flow sensor are placed in the division mode, so that the taking is more convenient and rapid. A C-shaped clamping piece 36 is fixed on the outer surface of the left side of the first box body 32, and a respirator plug can be conveniently hung. An external storage grid 37 is fixed on the outer surface of the right side of the box body I32, a plug of the respirator can be placed in the external storage grid 37 after being taken down from the respirator, and a special grid label for a plug of the respirator can be attached to the outer wall of the external storage grid 37. One side of the first box cover 33 is hinged with one side of the first box body 32, and the other opposite side of the first box cover 33 is a free side capable of freely opening the first box cover 33, so that the first box cover 33 can be conveniently opened, and the articles in the first box body 32 can be taken out and used more quickly. An article name label I38 is attached to the upper surface of the first box cover 33, so that the required matched articles can be conveniently and quickly found and used. When the articles in the first storage box 3 are in a standby state at ordinary times, the first box cover 33 is in a closed state.

The second storage box 4 is provided with two second hooks 41. Two 41 couples of two 4 couples of receiver hang on the link 23 of the sleeve 22 of corresponding semi-annular pole 21 tip suit, and when the breathing machine needs the disinfection, only need take off receiver 3, place in treatment mesa or head of a bed desktop can, it is very convenient, and receiver two 4 couples also can not remove about the link 23, influence the locating position of the people's of pushing away the breathing machine hand when avoiding promoting the breathing machine body in addition. The second storage box 4 comprises a second box body 42 and a second openable box cover 43, and the second hook 41 is fixed on the back of the second box body 42. The inner cavity of the second box body 42 is divided into four accommodating cavities 45 for respectively accommodating the disposable breathing circuit, the disposable wet heat exchanger, the extension pipe and the simple breathing air bag through three partition plates 44 arranged in the front-back direction, and the disposable breathing circuit, the disposable wet heat exchanger, the extension pipe and the simple breathing air bag are arranged in the partitions, so that the taking is more convenient and faster. One side of the second box cover 43 is hinged with one side of the second box body 42, and the other opposite side of the second box cover 43 is a free side capable of freely opening the second box cover 43, so that the second box cover 43 can be conveniently opened, and the articles in the second box body 42 can be taken and used more quickly. An article name label II 46 is attached to the upper surface of the second box cover 43, so that required matched articles can be conveniently and quickly found and used. When the articles in the second storage box 4 are in the standby state at ordinary times, the second box cover 43 is in the closed state.

When critically ill patients urgently need to use the breathing machine, needed matched articles in the first storage box 3 and the second storage box 4 are complete, the needed matched articles do not need to be searched, and only the breathing machine needs to be pushed, so that the article preparation time is saved, the rescue time is won, the working efficiency is improved, the space is saved, and the breathing machine is deeply welcomed by medical workers.

The present invention has been described above with reference to the preferred embodiments, but the present invention is not limited to the above-disclosed embodiments, and various modifications, equivalent combinations, which are made according to the essence of the present invention, should be covered.

Claims

1. a ventilator device with a storage function, comprising a ventilator body, a push-pull handrail is installed on the ventilator body, and it is characterized in that: the push-pull handrail comprises two half-ring rods, and the two half-ring rods are symmetrically distributed in the breathing apparatus. On the left and right sides of the machine body, the two ends of each half-ring rod are detachably sleeved with sleeves, and there are hanging rings on the lower side of the sleeves. It also includes a storage box for storing simulated lungs, masks, and flow sensors, and a storage box for storing once The second storage box of the breathing circuit, the disposable humidity heat exchanger, the extension tube, and the simple breathing airbag, the storage box one and the storage box two are symmetrically distributed on the front and rear sides of the ventilator main body and are located between the ends of the two semi-ring rods. The first storage box and the second storage box have two hooks respectively, and the hooks of the first storage box and the second storage box are respectively hung on the hanging rings of the sleeves of the corresponding half-ring rod ends.

2 . The ventilator device with storage function according to claim 1 , wherein the middle of each half-ring rod is fixedly connected to the ventilator body through a connecting rod, and a hook is fixed on the lower side of each connecting rod. 3 .

3. The ventilator device with a storage function according to claim 2, wherein the storage box 1 comprises a box body 1 and an openable box cover 1, and the inner cavity of the box body 1 passes through two in the front-rear direction. The arranged partition 1 is divided into three accommodating cavities for placing the simulated lung, the mask and the flow sensor respectively. A C-shaped holder is fixed on the left outer surface of the box body 1, and a C-shaped holder is fixed on the right outer surface of the box body 1. External storage compartment.

4. The ventilator device with storage function as claimed in claim 3, wherein one side of the box cover one is hinged with one side of the box body one, and the other opposite side of the box cover one is free to open the box cover A free edge.

5 . The ventilator device with storage function according to claim 4 , wherein: the upper surface of the box cover 1 is affixed with an item name label 1 . 6 .

6. The ventilator device with a storage function according to claim 2, wherein the storage box two comprises a box body two and an openable box cover two, and the inner cavity of the box body two passes three along the front-rear direction. The two arranged partitions are divided into four accommodating cavities two, where the disposable breathing circuit, the disposable humidification heat exchanger, the extension pipe and the simple breathing airbag are respectively placed.

7. The ventilator device with storage function as claimed in claim 6, wherein one side of the box cover two is hinged with one side of the box body two, and the other opposite side of the box cover two is a box cover that can be opened freely Two free edges.

8 . The ventilator device with storage function according to claim 7 , wherein: the upper surface of the second box cover is affixed with the second item name label. 9 .
