Abstract
本实用新型公开了一种多功能输液架，属于输液架技术领域，其包括底座、支撑杆以及挂钩架，底座水平设置，支撑杆竖直设置在底座的顶面，挂钩架设于支撑杆的顶部，并设置有若干挂钩；底座的顶面设置有两个脚踏式垃圾桶，一个用于收纳利器，另一个用于收纳非利器垃圾；脚踏式垃圾桶与底座可拆卸连接，方便倾倒垃圾；支撑杆上设置有用于放置治疗盘的第一托盘，第一托盘包括第一滑套、配合板、第一盘体以及插销；第一托盘的盘体使用时通过插销固定，呈水平状态，用完可向下翻转折叠，减小占用空间；本实用新型解决了现有输液架不具备放置治疗盘及回收医疗垃圾功能的问题。
The utility model discloses a multifunctional infusion stand, belonging to the technical field of infusion stand, comprising a base, a support rod and a hook frame. , and is provided with a number of hooks; the top surface of the base is provided with two foot-operated trash cans, one for storing sharp objects and the other for storing non-sharp trash; the foot-operated trash can and the base are detachably connected to facilitate dumping of trash The support rod is provided with a first tray for placing the treatment tray, the first tray includes a first sliding sleeve, a matching plate, a first tray body and a latch; the tray body of the first tray is fixed by the latch when in use, in a horizontal state, After use, it can be turned down and folded to reduce the occupied space; the utility model solves the problem that the existing infusion stand does not have the functions of placing a treatment tray and recycling medical waste.
Description
Technical Field
The utility model relates to a transfusion frame technical field, in particular to multifunctional transfusion frame.
Background
The infusion support is a common infusion auxiliary tool in hospitals and generally comprises a movable base, a support rod arranged on the movable base and a hook frame arranged at the top of the support rod; the infusion support has the advantages of simple structure and convenient use, but has the defect of single function and only has the function of hanging an infusion bottle; when a medical worker transfuses or treats a patient, the medical worker usually needs to carry a treatment vehicle, the treatment vehicle can be used for placing a treatment plate, the medical worker can conveniently operate the treatment vehicle, and medical garbage generated by operation can be thrown into a garbage can at the bottom layer of the treatment vehicle; however, the medical care personnel push the treatment trolley back and forth, which is very inconvenient, and the volume of the treatment trolley is large, which easily influences the movement of the personnel in the ward; medical waste generated in the operation process of medical care personnel can be thrown into the garbage can only by bending down and choking the wrist, which is inconvenient; if the infusion support has the function of placing the treatment plate and recycling medical waste, medical staff do not need to use the treatment trolley, so that the problems can be well solved, but the existing infusion support does not have the function of placing the treatment plate and recycling the waste.
SUMMERY OF THE UTILITY MODEL
In view of the above, there is a need for a multifunctional infusion support, which is used to solve the problem that the existing infusion support does not have the functions of placing a treatment tray and recycling medical waste.
In order to achieve the above purpose, the utility model adopts the technical proposal that:
a multifunctional infusion support comprises a base, a support rod and a hook frame, wherein the base is horizontally arranged, the support rod is vertically arranged on the top surface of the base, and the hook frame is arranged at the top of the support rod and provided with a plurality of hooks; the top surface of the base is provided with two foot-operated garbage cans, the top surface of the base is provided with two limiting grooves, the two foot-operated garbage cans are respectively limited and installed in the two limiting grooves, the limiting grooves are detachably connected with the foot-operated garbage cans, and openings for exposing pedals of the foot-operated garbage cans are formed in the limiting grooves;
the support rod is provided with a first tray for placing a treatment disc, and the first tray comprises a first sliding sleeve, a matching plate, a first disc body and a bolt; the first sliding sleeve is sleeved on the supporting rod in a sliding mode and is provided with a first hand-operated locking screw for locking the first sliding sleeve on the supporting rod; the matching plate is fixedly arranged on one side, away from the first hand-screwed locking screw, of the first sliding sleeve and is horizontally arranged; the first tray body is hinged with the matching plate through a hinge, and the turning direction of the first tray body is up-down turning; the bolt comprises a pin plate, a pin shaft and a pin nose; the pin plate is fixedly arranged on the first tray body, the pin shaft is movably arranged in the pin plate, and the pin nose is fixedly arranged on the matching plate; when the first disc body is horizontally arranged, the pin shaft is arranged opposite to the pin nose, and the pin shaft can be connected with the pin nose in a detachable mode through translation.
Preferably, a second tray for placing the infusion pump is further arranged on the support rod, and the second tray comprises a second tray body and a second sliding sleeve; the second sliding sleeve is sleeved on the supporting rod in a sliding mode and is provided with a second hand-screwed locking screw used for locking the second sliding sleeve on the supporting rod; the second disc body is fixedly arranged on one side, away from the second hand-screwed locking screw, of the second sliding sleeve and is horizontally arranged; the second tray is located above the first tray.
Preferably, a third tray is further arranged on the supporting rod, and the third tray comprises a third tray body and a third sliding sleeve; the third sliding sleeve is sleeved on the supporting rod in a sliding mode and is provided with a third hand-screwed locking screw for locking the third sliding sleeve on the supporting rod; the third disc body is fixedly arranged on one side, far away from the third hand-screwed locking screw, of the third sliding sleeve and is horizontally arranged; the third tray body is located above the second tray body, and a test tube rack is placed in the third tray body.
Preferably, the test-tube rack is the cuboid shape, and the inner wall of third disk body is established in the equal activity subsides of its four sides.
Preferably, the bottom of the base is provided with a plurality of universal wheels.
Preferably, the supporting rod is a lifting rod and comprises a fixed sleeve and a movable rod, the bottom of the fixed sleeve is fixedly connected with the base, and the movable rod is arranged in the fixed sleeve and is in sliding connection with the fixed sleeve; a fourth hand-operated locking screw for locking the movable rod is arranged at the upper end of the fixed sleeve; the first sliding sleeve, the second sliding sleeve and the third sliding sleeve are all arranged on the fixed sleeve, and the hook is erected at the top of the movable rod.
Preferably, the fixing sleeve is cylindrical.
Preferably, the two pedal-operated garbage cans are respectively located at the left side and the right side of the fixing sleeve, the fixing sleeve is located at the rear side of the top surface of the base, and the pedal plates of the pedal-operated garbage cans are located at the front side of the pedal-operated garbage cans.
Preferably, the number of the pins is two, and the two pins are arranged at intervals.
Due to the adoption of the technical scheme, the utility model discloses following beneficial effect has:
1. the utility model is provided with two foot-operated garbage cans on the base, one is used for accommodating sharps and the other is used for accommodating non-sharps garbage, so as to carry out simple garbage classification and facilitate the subsequent treatment of medical garbage; when medical personnel discard the garbage, the cover on the garbage can be automatically opened only by slightly stepping on the pedal on the garbage can, so that the medical personnel can easily throw the garbage into the garbage can without stooping and choking the wrist, and great convenience is brought to the medical personnel; in addition, the top surface of the base is provided with two limiting grooves, and the two pedal-type garbage cans are respectively limited and installed in the two limiting grooves, so that the stability of the garbage cans in the moving process is ensured; the limiting groove can be detachably connected with the pedal type garbage can, so that medical personnel can take out the garbage can and dump garbage conveniently, and the garbage can has better convenience.
2. The utility model is provided with the first tray for placing the treatment tray on the support rod, when medical staff treats a patient, the treatment tray can be placed in the first tray body of the first tray and operated on the first tray body, thus avoiding the inconvenience brought by carrying a treatment vehicle; the first disk body is fixed through the bolt when in use and is in a horizontal state, and can be turned and folded downwards when being used up, so that the occupied space is reduced, and the inconvenience caused by over-extension of the first disk body is avoided; in addition, first disk body is installed on the bracing piece through first sliding sleeve, and the bracing piece is cylindricly, and consequently first disk body can be followed the bracing piece and rotated to make things convenient for medical personnel to adjust the horizontal orientation of first disk body according to actual demand.
3. The utility model is also provided with a second tray for placing the infusion pump on the support rod, when the infusion pump needs to be used, the infusion pump can be placed in the second tray body of the second tray, and the infusion pump has better convenience; still be provided with the third tray on the bracing piece, placed the test-tube rack in the third tray of third tray, medical personnel carry out blood sampling operation in-process to patient, can place the sample of gathering on the test-tube rack, when the blood sampling operation is accomplished, take out the sample and examine again.
4. The utility model discloses still have advantages such as simple structure, convenient to use, cost of manufacture are low and the practicality is strong, can solve current infusion support effectively and do not possess the problem of placing treatment dish and retrieving the medical waste function, bring very big facility for medical personnel, have better popularization meaning.
Drawings

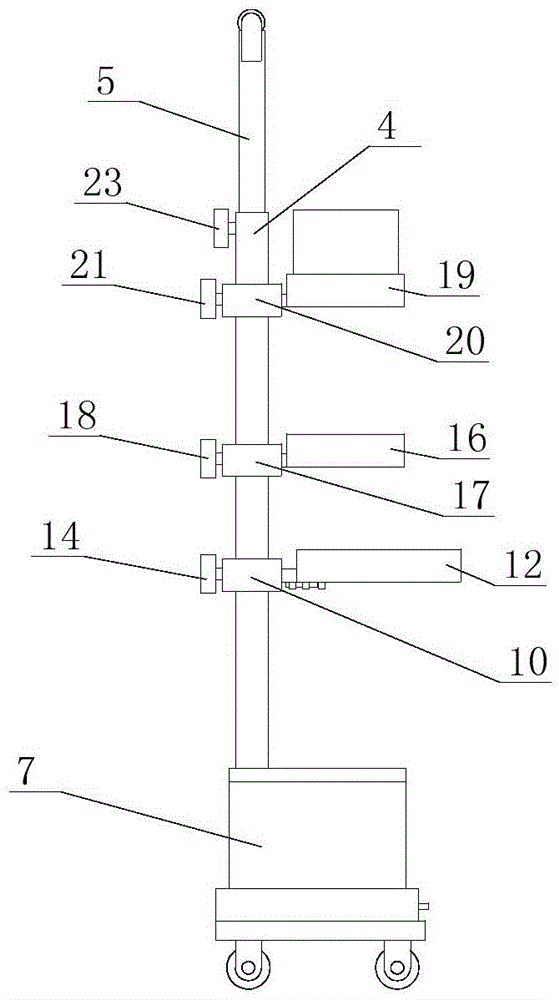

Fig. 1 is a front view of a multifunctional infusion support provided by the embodiment of the utility model;
fig. 2 is a left side view of the multifunctional infusion support provided by the embodiment of the utility model;
fig. 3 is a top view of a base provided by an embodiment of the present invention;
fig. 4 is a bottom view of a first tray provided in an embodiment of the present invention;
the main reference symbols in the drawings are as follows:
in the figure, 1-a base, 2-universal wheels, 3-a support rod, 4-a fixed sleeve, 5-a movable rod, 6-a hook frame, 7-a pedal garbage can, 8-a limiting groove, 9-an opening, 10-a first sliding sleeve, 11-a matching plate, 12-a first tray body, 13-a bolt, 14-a first hand-screwed locking screw, 15-a hinge, 16-a second tray body, 17-a second sliding sleeve, 18-a second hand-screwed locking screw, 19-a third tray body, 20-a third sliding sleeve, 21-a third hand-screwed locking screw, 22-a test tube rack and 23-a fourth hand-screwed locking screw.
The following detailed description of the invention will be further described in conjunction with the above-identified drawings.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. The accompanying drawings are only for illustrative purposes and are only schematic drawings rather than actual drawings, which are not intended to limit the present disclosure, and in order to better illustrate the embodiments of the present disclosure, some components of the drawings may be omitted, enlarged or reduced, and do not represent the size of an actual product.
In the description of the present invention, it should be further noted that, unless otherwise explicitly stated or limited, the terms "disposed" and "connected" are to be interpreted broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
Examples
Referring to fig. 1-4, a multifunctional infusion support comprises a base 1, a support rod 3 and a hook frame 6.
The base 1 is horizontally arranged, and the bottom of the base 1 is provided with a plurality of universal wheels 2. In this embodiment, four universal wheels 2 are provided at the bottom of the base 1. The supporting rod 3 is vertically arranged on the top surface of the base 1, and the hook frame 6 is arranged on the top of the supporting rod 3 and is provided with a plurality of hooks. In this embodiment, the hanger frame 6 is provided with two hangers. The top surface of base 1 is provided with two foot-operated garbage bins 7, and base 1's top surface is provided with two restriction tanks 8, and two foot-operated garbage bins 7 restrict respectively and install in two restriction tanks 8, and restriction tank 8 can dismantle with foot-operated garbage bin 7 and be connected to offer the opening 9 that is used for exposing 7 running-boards of foot-operated garbage bin, make things convenient for medical personnel to step on the footboard gently.
The utility model is provided with two foot-operated garbage cans 7 on the base 1, one is used for accommodating sharps and the other is used for accommodating non-sharps garbage, so as to carry out simple garbage classification and facilitate the subsequent treatment of medical garbage; when medical personnel discard the garbage, the cover on the garbage can be automatically opened only by slightly stepping on the pedal on the garbage can, so that the medical personnel can easily throw the garbage into the garbage can without stooping and choking the wrist, and great convenience is brought to the medical personnel; in addition, the top surface of the base 1 is provided with two limiting grooves 8, and the two pedal-operated garbage cans 7 are respectively limited and installed in the two limiting grooves 8, so that the stability of the garbage cans in the moving process is ensured; restriction groove 8 can be dismantled with foot-operated garbage bin 7 and be connected, and the medical personnel of being convenient for take out the garbage bin and empty rubbish, have better convenience.
The support rod 3 is provided with a first tray for placing a treatment disc, and the first tray comprises a first sliding sleeve 10, a matching plate 11, a first disc body 12 and a bolt 13. The first sliding sleeve 10 is slidably sleeved on the support rod 3 and is provided with a first hand-screwed locking screw 14 for locking the first sliding sleeve on the support rod 3. The first sliding sleeve 10 is provided with a threaded hole, and a first hand is used for screwing the locking screw 14 to be in threaded connection with the threaded hole and to be perpendicular to the supporting rod 3. The first hand is screwed on the locking screw 14, and the locking screw can be contacted with the supporting rod 3 through rotation, so that the locking effect is realized. The matching plate 11 is fixedly arranged on one side of the first sliding sleeve 10 far away from the first hand-screwed locking screw 14 and is horizontally arranged. The first tray body 12 is hinged to the matching plate 11 through a hinge 15, and the turning direction of the first tray body 12 is up-down turning. The bolt 13 comprises a pin plate, a pin shaft and a pin nose; the pin plate is fixedly arranged on the first disc body 12, the pin shaft is movably arranged in the pin plate, and the pin nose is fixedly arranged on the matching plate 11; when the first disc body 12 is horizontally arranged, the pin shaft and the pin nose are oppositely arranged, and the pin shaft can be detachably connected with the pin nose through translation. In this embodiment, the number of the bolts 13 is two, and the two bolts 13 are arranged at intervals, so that the stability of the first tray body 12 during use is improved. When the pin shaft is separated from the pin nose, the first disc body 12 is turned downwards under the action of gravity, and the occupied space is reduced.
The utility model is provided with the first tray for placing the treatment tray on the support bar 3, when the medical staff treats the patient, the treatment tray can be placed in the first tray body 12 of the first tray and operated on the first tray body 12, thus avoiding the inconvenience caused by carrying the treatment vehicle; when in use, the first tray body 12 is fixed by the bolt 13 and is in a horizontal state, and can be turned and folded downwards when being used up, so that the occupied space is reduced, and the inconvenience caused by the fact that the first tray body 12 is stretched is avoided; in addition, first disk 12 is installed on bracing piece 3 through first sliding sleeve 10, and bracing piece 3 is cylindricly, and consequently first disk 12 can rotate along bracing piece 3 to make things convenient for medical personnel to adjust the horizontal orientation of first disk 12 according to actual demand.
The support rod 3 is further provided with a second tray for placing an infusion pump, and the second tray comprises a second tray body 16 and a second sliding sleeve 17. The second sliding sleeve 17 is slidably sleeved on the supporting rod 3 and is provided with a second hand-screwed locking screw 18 for locking the second hand-screwed locking screw on the supporting rod 3. The second tray 16 is fixedly arranged on one side of the second sliding sleeve 17 far away from the second hand-screwed locking screw 18 and is horizontally arranged, and the second tray 16 is positioned above the first tray 12.
The support rod 3 is further provided with a third tray, and the third tray comprises a third tray body 19 and a third sliding sleeve 20. The third sliding sleeve 20 is slidably sleeved on the support rod 3 and is provided with a third hand-screwed locking screw 21 for locking the third sliding sleeve on the support rod 3. The third tray body 19 is fixedly arranged on one side of the third sliding sleeve 20 far away from the third hand-screwed locking screw 21 and is horizontally arranged; a third tray 19 is positioned above the second tray 16 and a test tube rack 22 is positioned in the third tray 19. Wherein, the test-tube rack 22 is cuboid shape, and the inner wall of the third tray 19 is all set up in the activity of its four sides subsides.
Specifically, the support rod 3 is a lifting rod and comprises a fixed sleeve 4 and a movable rod 5, the bottom of the fixed sleeve 4 is fixedly connected with the base 1, and the movable rod 5 is arranged in the fixed sleeve 4 and is in sliding connection with the fixed sleeve 4; a fourth hand-screwed locking screw 23 for locking the movable rod 5 is arranged at the upper end of the fixed sleeve 4; the first sliding sleeve 10, the second sliding sleeve 17 and the third sliding sleeve 20 are all arranged on the fixed sleeve 4, and the hook frame 6 is arranged at the top of the movable rod 5. Wherein the fixing sleeve 4 is cylindrical. Two foot-operated garbage bins 7 are located the left and right sides of fixing sleeve 4 respectively, and fixing sleeve 4 is located the rear side of base 1 top surface, and the running-board of foot-operated garbage bin 7 is located the front side of foot-operated garbage bin 7.
The utility model is also provided with a second tray for placing the infusion pump on the support rod 3, when the infusion pump needs to be used, the infusion pump can be placed in the second tray body 16 of the second tray, and the infusion pump has better convenience; still be provided with the third tray on the bracing piece 3, placed the test-tube rack 22 in the third disk body 19 of third tray, medical personnel carry out the blood sampling operation in-process to patient, can place the sample of gathering on test-tube rack 22, when the blood sampling operation is accomplished, take out the sample and examine again.
The utility model discloses still have advantages such as simple structure, convenient to use, cost of manufacture are low and the practicality is strong, can solve current infusion support effectively and do not possess the problem of placing treatment dish and retrieving the medical waste function, bring very big facility for medical personnel, have better popularization meaning.
The above description is for the detailed description of the preferred possible embodiments of the present invention, but the embodiments are not intended to limit the scope of the present invention, and all equivalent changes or modifications accomplished under the technical spirit suggested by the present invention should fall within the scope of the present invention.
Claims (9)
1. The utility model provides a multifunctional infusion support, includes base, bracing piece and couple frame, the base level sets up, the vertical setting of bracing piece is in the top surface of base, the couple erects in the top of bracing piece to be provided with a plurality of couples, its characterized in that: the top surface of the base is provided with two foot-operated garbage cans, the top surface of the base is provided with two limiting grooves, the two foot-operated garbage cans are respectively limited and installed in the two limiting grooves, the limiting grooves are detachably connected with the foot-operated garbage cans, and openings for exposing pedals of the foot-operated garbage cans are formed in the limiting grooves;
the support rod is provided with a first tray for placing a treatment disc, and the first tray comprises a first sliding sleeve, a matching plate, a first disc body and a bolt; the first sliding sleeve is sleeved on the supporting rod in a sliding mode and is provided with a first hand-operated locking screw for locking the first sliding sleeve on the supporting rod; the matching plate is fixedly arranged on one side, away from the first hand-screwed locking screw, of the first sliding sleeve and is horizontally arranged; the first tray body is hinged with the matching plate through a hinge, and the turning direction of the first tray body is up-down turning; the bolt comprises a pin plate, a pin shaft and a pin nose; the pin plate is fixedly arranged on the first tray body, the pin shaft is movably arranged in the pin plate, and the pin nose is fixedly arranged on the matching plate; when the first disc body is horizontally arranged, the pin shaft is arranged opposite to the pin nose, and the pin shaft can be connected with the pin nose in a detachable mode through translation.
2. The multifunctional infusion support according to claim 1, wherein: the support rod is also provided with a second tray for placing the infusion pump, and the second tray comprises a second tray body and a second sliding sleeve; the second sliding sleeve is sleeved on the supporting rod in a sliding mode and is provided with a second hand-screwed locking screw used for locking the second sliding sleeve on the supporting rod; the second disc body is fixedly arranged on one side, away from the second hand-screwed locking screw, of the second sliding sleeve and is horizontally arranged; the second tray is located above the first tray.
3. The multifunctional infusion support according to claim 2, wherein: the supporting rod is also provided with a third tray, and the third tray comprises a third tray body and a third sliding sleeve; the third sliding sleeve is sleeved on the supporting rod in a sliding mode and is provided with a third hand-screwed locking screw for locking the third sliding sleeve on the supporting rod; the third disc body is fixedly arranged on one side, far away from the third hand-screwed locking screw, of the third sliding sleeve and is horizontally arranged; the third tray body is located above the second tray body, and a test tube rack is placed in the third tray body.
4. The multifunctional infusion support according to claim 3, wherein: the test-tube rack is cuboid shape, and the inner wall of establishing the third disk body is all pasted in its four side activity.
5. The multifunctional infusion support according to claim 1, wherein: the bottom of base is provided with a plurality of universal wheel.
6. The multifunctional infusion support according to claim 3, wherein: the supporting rod is a lifting rod and comprises a fixed sleeve and a movable rod, the bottom of the fixed sleeve is fixedly connected with the base, and the movable rod is arranged in the fixed sleeve and is in sliding connection with the fixed sleeve; a fourth hand-operated locking screw for locking the movable rod is arranged at the upper end of the fixed sleeve; the first sliding sleeve, the second sliding sleeve and the third sliding sleeve are all arranged on the fixed sleeve, and the hook is erected at the top of the movable rod.
7. The multifunctional infusion support according to claim 6, wherein: the fixed sleeve is cylindrical.
8. The multifunctional infusion support according to claim 7, wherein: the two pedal-operated garbage cans are respectively positioned at the left side and the right side of the fixing sleeve, the fixing sleeve is positioned at the rear side of the top surface of the base, and the pedal plates of the pedal-operated garbage cans are positioned at the front sides of the pedal-operated garbage cans.
9. The multifunctional infusion support according to claim 1, wherein: the quantity of bolt is two, and two bolts interval sets up.
