Abstract
本实用新型公开了一种儿内科用于消化临床的灌肠装置，包括管体，所述管体的内壁滑动连接有内管，所述内管的下表面固定连接有限位圈，所述内管的内壁滑动连接有小号活塞，所述内管的下表面开设有圆孔，所述管体的上表面设置有螺纹口，所述螺纹口的表面螺纹连接有顶盖，所述顶盖的下表面活动连接有密封圈，所述密封圈的下表面固定连接有管体。该儿内科用于消化临床的灌肠装置，该装置可以将内管从管体里推出，可以增加进入肛门的长度，因为内管直径小于管体的直径，所以病人会减少疼感，通过顶盖尖锐状设置能够更加方便进入肛门，通过长杆和短杆能够组成一个推杆能够分别推出药液和内管，通过限位块能够防止管体进入肛门。
The utility model discloses an enema device used for digestive clinics in pediatrics, comprising a tube body, an inner tube is slidably connected to the inner wall of the tube body, the lower surface of the inner tube is fixedly connected with a limiting ring, and the inner tube A small piston is slidably connected to the inner wall of the inner tube, a circular hole is formed on the lower surface of the inner tube, a threaded port is provided on the upper surface of the tube body, and a top cover is threadedly connected to the surface of the threaded port. A sealing ring is movably connected to the lower surface, and a pipe body is fixedly connected to the lower surface of the sealing ring. This pediatric enema device is used in digestive clinics. The device can push the inner tube out of the tube body and increase the length of the anus. Because the diameter of the inner tube is smaller than the diameter of the tube body, the patient will feel less pain. The sharp-shaped arrangement can make it easier to enter the anus, the long rod and the short rod can form a push rod, which can push out the medicinal liquid and the inner tube respectively, and the stop block can prevent the tube body from entering the anus.
Description
Technical Field
The utility model relates to a digestion enema technical field specifically is an enema device that children's internal medicine is used for digestion clinic.
Background
The enema method in medicine is to insert the liquid into colon from anus through rectum to achieve the therapeutic effect of relaxing bowels, clearing intestine, exhausting air and expelling toxin. The liquid can stimulate enterokinesia, soften, remove feces, and has effects in lowering temperature, promoting parturition, diluting intestinal toxic substances, and reducing absorption. In addition, the liquid can also supply medicine, nutrition, water and other therapeutic effects through dissolved medicines and the like. The purpose of adopting the enema method is as follows: relieving constipation, cooling, diluting and removing harmful substances in intestinal tract to relieve poisoning.
The enema device of current gastroenterology is the fixed length, when letting in the patient anus, needs whole inside movement, and is longer with patient's contact time, can be very uncomfortable, and the position of anal canal is unfixed, needs medical personnel manual support, and has injected into washing liquid or the liquid medicine in the anus and leak outward easily, uses very trouble.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides an infant's internal medicine is used for digesting clinical enema device has solved the problem that provides in the above-mentioned background art.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides an enema device that internal medicine is used for digestion clinic, includes the body, the inner wall sliding connection of body has the inner tube, the fixed surface of inner tube is connected with the spacing collar, the inner wall sliding connection of inner tube has the small size piston, the round hole has been seted up to the lower surface of inner tube, the upper surface of body is provided with the screw thread mouth, the surperficial threaded connection of screw thread mouth has the top cap, the lower surface swing joint of top cap has the sealing washer, the fixed surface of sealing washer is connected with the body, the sliding surface of round hole is connected with the stock, the quarter butt has been cup jointed on the surface.
Optionally, the upper surface of the short rod is fixedly connected with a large piston, and the lower surface of the short rod is fixedly connected with a push handle.
Optionally, the lower surface of the long rod is provided with a connecting hole, and the surface of the connecting hole is spliced with a handle.
Optionally, the surface of the long rod is provided with scale marks, and the two sides of the pipe body are fixedly connected with limiting blocks.
Optionally, an annular groove is formed in the inner wall of the top cover, a sealing ring is fixedly connected to the surface of the annular groove, and an inner pipe is movably connected to the surface of the sealing ring.
Optionally, the lower surface of inner tube is provided with the liquid outlet, the lower surface joint of body has large piston, the inner wall of body has the inner tube through the top cap joint.
(III) advantageous effects
The utility model provides an enema device that department of children's internal medicine is used for digesting clinically possesses following beneficial effect:
1. this department of children's internal medicine is used for digesting clinical enema device, the device can be released the inner tube from the body, can increase the anal length of entering, because the inner tube diameter is less than the diameter of body, so patient can reduce the painful sense, can conveniently get into the anus more through the sharp-pointed form setting of top cap, can constitute a push rod through stock and quarter butt and can release liquid medicine and inner tube respectively.
2. This child's internal medicine is used for digesting clinical enema device can prevent through the stopper that the body from getting into the anus, can increase the sealing washer of body through the sealing washer, can know the dosage of pushing the liquid medicine through the scale mark.
Drawings

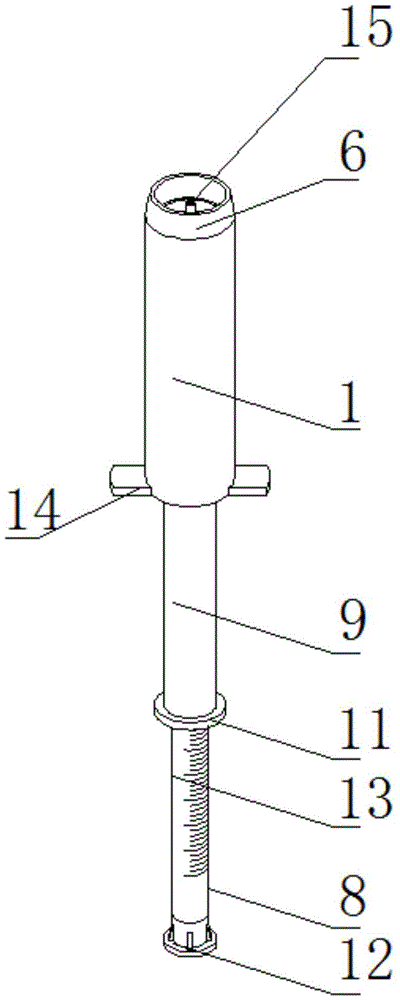

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the enema device of this invention;
fig. 3 is a schematic view of the cross-sectional structure of the tube body of the present invention.
In the figure: 1. a pipe body; 2. an inner tube; 3. a limiting ring; 4. a small piston; 5. a circular hole; 6. a top cover; 7. a seal ring; 8. a long rod; 9. a short bar; 10. a large piston; 11. a push handle; 12. a handle; 13. scale lines; 14. a limiting block; 15. and a liquid outlet.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 3, the present invention provides a technical solution: an enema device for digestive clinic in department of children comprises a tube body 1, wherein the inner wall of the tube body 1 is connected with an inner tube 2 in a sliding way, the lower surface of the inner tube 2 is fixedly connected with a spacing ring 3, the inner wall of the inner tube 2 is connected with a small piston 4 in a sliding way, the lower surface of the inner tube 2 is provided with a round hole 5, the upper surface of the tube body 1 is provided with a threaded opening, the surface of the threaded opening is in threaded connection with a top cover 6, the lower surface of the top cover 6 is movably connected with a sealing ring 7, the lower surface of the sealing ring 7 is fixedly connected, the device can push the inner tube 2 out of the tube body 1, and can increase the length of the inner tube 2 entering the anus, because the diameter of the inner tube 2 is smaller than that of the tube body 1, so that the pain of the patient can be reduced, the sharp arrangement of the top cover 6 can more conveniently enter the anus, a push rod can be formed by the long rod 8 and the short rod 9 and can respectively push out the liquid medicine and the inner tube 2;
As an optimal technical solution of the utility model: the whole device is made of plastic, and the smoothness of the pipe body is guaranteed.
Use the explanation, this enema device that department of children is used for digesting clinically, during the use, with the liquid medicine in sucking inner tube 2 from the container, again with inner tube 2 pull out in the body of tube 1, insert the body of tube 1 into patient's anus after the liquid medicine is filled and push out inner tube 2 again, inner tube 2 is whole to be pushed out and to push away stock 8 and extrude the medicament to the anus.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. An enema device that department of pediatrics is used for digestion clinic, includes body (1), its characterized in that: the inner wall sliding connection of body (1) has inner tube (2), the lower fixed surface of inner tube (2) is connected with spacing collar (3), the inner wall sliding connection of inner tube (2) has small piston (4), round hole (5) have been seted up to the lower surface of inner tube (2), the upper surface of body (1) is provided with the screw thread mouth, the surface threaded connection of screw thread mouth has top cap (6), the lower surface swing joint of top cap (6) has sealing washer (7), the lower fixed surface of sealing washer (7) is connected with body (1), the surface sliding connection of round hole (5) has stock (8), quarter butt (9) have been cup jointed on the surface of stock (8).
2. An enema device used in a digestive clinic in the department of pediatrics as claimed in claim 1, wherein: the upper surface of the short rod (9) is fixedly connected with a large piston (10), and the lower surface of the short rod (9) is fixedly connected with a push handle (11).
3. An enema device used in a digestive clinic in the department of pediatrics as claimed in claim 1, wherein: the lower surface of the long rod (8) is provided with a connecting hole, and the surface of the connecting hole is spliced with a handle (12).
4. An enema device used in a digestive clinic in the department of pediatrics as claimed in claim 1, wherein: the surface of stock (8) is provided with scale mark (13), the equal fixedly connected with stopper (14) in both sides of body (1).
5. An enema device used in a digestive clinic in the department of pediatrics as claimed in claim 1, wherein: the inner wall of top cap (6) has seted up the ring channel, the fixed surface of ring channel is connected with sealing washer (7), the surface swing joint of sealing washer (7) has inner tube (2).
6. An enema device used in a digestive clinic in the department of pediatrics as claimed in claim 1, wherein: the upper surface of inner tube (2) is provided with liquid outlet (15), the lower surface joint of body (1) has large piston (10), the inner wall of body (1) has inner tube (2) through top cap (6) joint.
