CN213106706U

CN213106706U - Structure convenient to location processing motor end cover

Info

Publication number: CN213106706U
Application number: CN202022014126.8U
Authority: CN
Inventors: 陈继辉; 黄美武; 邹火土; 杨瑞丽
Original assignee: Zhangzhou Zhenhui Motor Manufacturing Co ltd
Current assignee: Zhangzhou Zhenhui Motor Manufacturing Co ltd
Priority date: 2020-09-15
Filing date: 2020-09-15
Publication date: 2021-05-04
Anticipated expiration: 2030-09-15

Abstract

The utility model relates to the technical field of machining, specifically be a structure convenient to location processing motor end cover, comprises an operation bench, the last fixed surface of operation panel installs the connection pad, the connection pad passes through the bolt and is connected with the last fixed surface of operation panel, the last fixed surface of operation panel installs the rectangular block, the both sides of operation panel are provided with positioning mechanism, positioning mechanism includes the spout, the spout has been seted up to the bilateral symmetry of operation panel, the inner wall sliding connection of two sets of spouts has the slide bar, the lower fixed surface of operation panel installs the supporting leg, the inside of rectangular block is provided with fixed establishment, one side that two sets of clamp splice are relative is provided with the end cover body. The utility model discloses, through setting up this positioning mechanism, can fix a position the end cover body simply conveniently, avoid the people to utilize the scale to carry out the phenomenon emergence of fixing a position, improve the positioning accuracy degree, ensure the precision of processing, prevent because the inaccurate condemned phenomenon of product that leads to in location takes place.

Description

Structure convenient to location processing motor end cover

Technical Field

The utility model relates to a machining technical field especially relates to a structure convenient to location processing motor end cover.

Background

The end cover is a rear cover arranged behind the motor and other machine cases, and the quality of the end cover can directly affect the quality of a motor of the motor, so that the use of the whole motor can be affected, and the processing of the end cover of the motor is particularly important.

In the traditional motor end cover positioning process, due to the lack of a corresponding mechanism, a worker often manually positions the motor end cover by using a graduated scale in the positioning process, and when the motor end cover is manually positioned, a large positioning error can be caused, so that the end cover is in the processing process, the size precision can be deviated, the motor end cover cannot be matched and mounted, and the product is scrapped.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a structure convenient for positioning and processing a motor end cover.

In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a structure convenient to location processing motor end cover, includes the operation panel, the last fixed surface of operation panel installs the connection pad, the last fixed surface of operation panel installs the rectangular block, the both sides of operation panel are provided with positioning mechanism.

Positioning mechanism includes the spout, the spout has been seted up to the bilateral symmetry of operation panel, and is two sets of the inner wall sliding connection of spout has the slide bar, and is two sets of the one end fixed mounting that the operation panel was kept away from to the slide bar has the connecting rod, one side fixed mounting that the operation panel was kept away from to the slide bar has the dead lever, one side fixed mounting that the slide bar is close to the operation panel has the pointer, the inner wall fixed mounting that the spout is close to pointer one end has magnet, the inside slip of connecting rod runs through there is the locating lever, the one end fixed mounting of locating lever has the pilot pin, the outer surface cover that the pilot pin one end was kept away from to the locating lever is equipped with the disc, fixed mounting has reset spring between.

Preferably, a handle is fixedly mounted at one end, away from the sliding rod, of the fixing rod, and a pressing block is fixedly mounted at one end, away from the positioning needle, of the positioning rod.

Preferably, the lower surface fixed mounting of operation panel has the supporting leg, the connection pad passes through the upper surface fixed connection of bolt with the operation panel.

Preferably, the inside of rectangular block is provided with fixed establishment, fixed establishment includes the motor, the last fixed surface of connection pad installs the motor, the rectangular channel has been seted up to the inside upper surface of rectangular block, the output of motor rotates and is connected with the threaded rod, the threaded rod rotates and runs through the rectangular channel and extends to the inside of rectangular channel.

Preferably, the outer surface symmetry cover of threaded rod is equipped with the slider, the last fixed surface of slider installs the connecting block, and is two sets of the symmetrical fixed mounting in one side that the connecting block is relative has the clamp splice.

Preferably, two sets of one side that the clamp splice is relative is provided with the end cover body, the spacing groove has been seted up to the inner wall symmetry of rectangular channel, the bilateral symmetry fixed mounting that the slider is close to the spacing groove has the stopper, the stopper is connected with the inner wall sliding of spacing groove.

Compared with the prior art, the utility model has the advantages and positive effects that,

1. in the utility model, when the positioning device is used by a worker, the end cover body is firstly fixed through the fixing device, the handle is then held, then the fixing rod is pulled, the fixing rod drives the sliding rods to slide along the inner wall of the chute, two groups of sliding rods can drive the connecting rods to move together while sliding, then the processing position is determined through the pointer and the dial, then the worker presses the press block, the press block can drive the positioning rod to move downwards, at the moment, the disc can compress the return spring, when the positioning needle is moved to the final position, the positioning needle can be positioned on the surface of the end cover body, after the positioning is completed, the worker loosens the press block, the return spring rebounds to restore the positioning rod to the original position, then the worker holds the handle to push the whole positioning mechanism back to the original position, the magnet can act with the sliding rods, so that, through setting up this positioning mechanism, can fix a position the end cover body simple and conveniently, avoid the phenomenon that the people for utilizing the scale to fix a position to take place, improve the positioning accuracy degree, ensure the precision of processing, reduce the error, prevent to lead to the condemned phenomenon of product to take place owing to the location is inaccurate.

2. The utility model discloses in, need fix a position the end cover when the staff man-hour, at first the staff holds the end cover body, open the motor immediately, the motor can drive the threaded rod immediately and rotate, the threaded rod is when rotating, under the effect of stopper and spacing groove, two sets of sliders can be drawn close to the centre, the slider can be taken the connecting block to move to the centre together simultaneously, the connecting block can take two sets of clamp splice to move to the centre in the time to the centre motion, and clip the end cover body firmly, then the staff can use positioning mechanism to fix a position, through setting up this fixed establishment, can ensure at the positioning process, the skew can not appear in the end cover body, positioning accuracy has been improved, and the processing quality is guaranteed.

Drawings

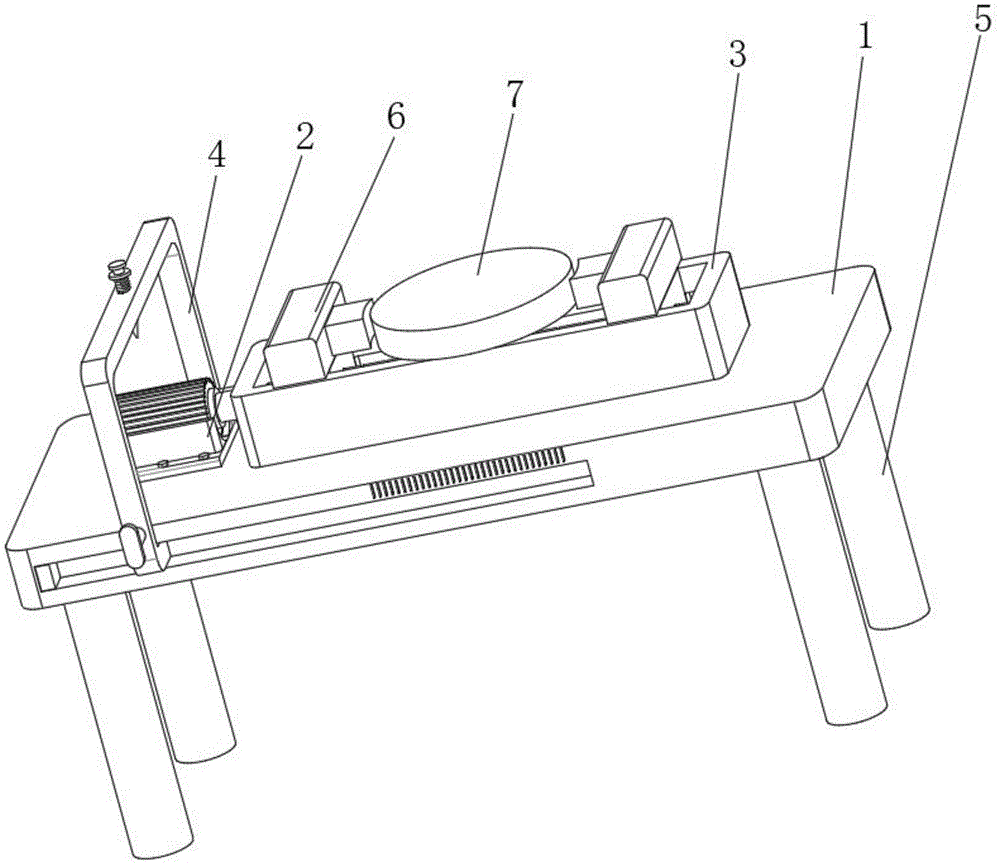

Fig. 1 is the utility model provides a main part structure sketch map of structure convenient to location processing motor end cover.

Fig. 2 is the utility model provides a positioning mechanism structure sketch map of structure convenient to location processing motor end cover.

Fig. 3 is the utility model provides a structure schematic diagram of a department in fig. 2 of structure convenient to location processing motor end cover.

Fig. 4 is the utility model provides a structure sketch map of B department in fig. 2 of structure convenient to location processing motor end cover.

Fig. 5 is the utility model provides a fixed establishment structure sketch map of structure convenient to location processing motor end cover.

Fig. 6 is the utility model provides a structure sketch map of C department in fig. 5 of structure convenient to location processing motor end cover.

Illustration of the drawings:

1. an operation table; 2. a connecting disc; 3. a rectangular block; 4. a positioning mechanism; 5. supporting legs; 6. a fixing mechanism; 7. an end cap body; 401. a chute; 402. a slide bar; 403. a connecting rod; 404. fixing the rod; 405. a pointer; 406. a magnet; 407. positioning a rod; 408. a positioning pin; 409. a disc; 410. a return spring; 411. a dial scale; 601. a motor; 602. a rectangular groove; 603. a threaded rod; 604. a slider; 605. connecting blocks; 606. a clamping block; 607. a limiting groove; 608. and a limiting block.

Detailed Description

In order to make the above objects, features and advantages of the present invention more clearly understood, the present invention will be further described with reference to the accompanying drawings and examples. It should be noted that the embodiments and features of the embodiments of the present application may be combined with each other without conflict.

In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, however, the present invention may be practiced in other ways than those specifically described herein, and therefore the present invention is not limited to the limitations of the specific embodiments of the present disclosure.

As shown in fig. 1-6, the utility model provides a structure convenient to location processing motor end cover, including operation panel 1, the last fixed surface of operation panel 1 installs connection pad 2, and connection pad 2 passes through the bolt and is connected with the last fixed surface of operation panel 1, and the last fixed surface of operation panel 1 installs rectangular block 3, and the both sides of operation panel 1 are provided with positioning mechanism 4, and the lower fixed surface of operation panel 1 installs supporting leg 5, and the inside of rectangular block 3 is provided with fixed establishment 6, and one side that two sets of clamp splice 606 are relative is provided with end cover body 7.

The specific arrangement and function of the positioning means 4 and the fixing means 6 will be described in detail below.

As shown in fig. 3, when a worker uses the positioning device, firstly, the end cover body 7 is fixed by a fixing device, the positioning mechanism 4 includes a sliding slot 401, the two sides of the console 1 are symmetrically provided with the sliding slots 401, the inner walls of the two sets of sliding slots 401 are connected with a sliding rod 402 in a sliding manner, one end of the two sets of sliding rods 402 away from the console 1 is fixedly provided with a connecting rod 403, one side of the sliding rod 402 away from the console 1 is fixedly provided with a fixing rod 404, one end of the fixing rod 404 away from the sliding rod 402 is fixedly provided with a handle, then the worker holds the handle, then pulls the fixing rod 404, the fixing rod 404 drives the sliding rod 402 to slide along the inner wall of the sliding slot 401, the two sets of sliding rods 402 move together with the connecting rod 403 while sliding, one side of the sliding rod 402 close to the console 1 is fixedly provided with a pointer 405, the inner, a positioning pin 408 is fixedly arranged at one end of the positioning rod 407, a pressing block is fixedly arranged at one end of the positioning rod 407, which is far away from the positioning pin 408, a disc 409 is sleeved on the outer surface of one end of the positioning rod 407, which is far away from the positioning pin 408, a return spring 410 is fixedly arranged between one side of the disc 409, which is close to the connecting rod 403, and the upper surface of the connecting rod 403, a dial 411 is arranged at one side of the operating platform 1, which is close to the pointer 405, a machining position is determined through the pointer 405 and the dial 411, then a worker presses the pressing block, the pressing block can drive the positioning rod 407 to move downwards, the disc 409 can compress the return spring 410 at the moment, when the final position is reached, the positioning pin 408 can be positioned on the surface of the end cover body 7, after the positioning is completed, the worker loosens the pressing block, the return, magnet 406 can act with slide bar 402 for whole positioning mechanism 4 can not kick-back, through setting up this positioning mechanism 4, can fix a position end cover body 7 simply conveniently, avoids the phenomenon that the people utilized the scale to carry out the location to take place, has improved the positioning accuracy degree, has ensured the precision of processing, has reduced the error, prevents to lead to the condemned phenomenon of product to take place owing to the location is inaccurate.

When a worker uses the positioning device, the end cover body 7 is firstly fixed through the fixing device, then the handle is held, then the fixing rod 404 is pulled, the fixing rod 404 drives the sliding rods 402 to slide along the inner wall of the sliding groove 401, the two groups of sliding rods 402 can drive the connecting rod 403 to move together while sliding, next, the processing position is determined through the pointer 405 and the dial 411, then the worker presses the pressing block, the pressing block can drive the positioning rod 407 to move downwards, at the moment, the disc 409 can compress the return spring 410, when the final position is reached, the positioning needle 408 can perform positioning on the surface of the end cover body 7, after the positioning is completed, the worker loosens the pressing block, the return spring 410 rebounds to restore the positioning rod 407 to the original position, then the worker holds the handle, and pushes the whole positioning mechanism 4 back to the original position, magnet 406 can act with slide bar 402 for whole positioning mechanism 4 can not kick-back, through setting up this positioning mechanism 4, can fix a position end cover body 7 simply conveniently, avoids the phenomenon that the people utilized the scale to carry out the location to take place, has improved the positioning accuracy degree, has ensured the precision of processing, has reduced the error, prevents to lead to the condemned phenomenon of product to take place owing to the location is inaccurate.

As shown in fig. 5, when an operator needs to position the end cap, the operator firstly holds the end cap body 7, the fixing mechanism 6 is arranged inside the rectangular block 3, the fixing mechanism 6 includes a motor 601, the upper surface of the connecting disc 2 is fixedly provided with the motor 601, the motor 601 is then started, the inner upper surface of the rectangular block 3 is provided with a rectangular groove 602, the output end of the motor 601 is rotatably connected with a threaded rod 603, the motor 601 can drive the threaded rod 603 to rotate, the threaded rod 603 rotates to penetrate through the rectangular groove 602 and extend into the rectangular groove 602, the outer surface of the threaded rod 603 is symmetrically sleeved with a sliding block 604, the upper surface of the sliding block 604 is fixedly provided with connecting blocks 605, one side of the two groups of connecting blocks 605 opposite is symmetrically and fixedly provided with clamping blocks 606, the inner wall of the rectangular groove 602 is symmetrically provided with limiting grooves 607, and two sides of the, inner wall sliding connection of stopper 608 and spacing groove 607, threaded rod 603 is when rotating, under the effect of stopper 608 and spacing groove 607, two sets of sliders 604 can be drawn close to the centre, slider 604 can take connecting block 605 to move to the centre together simultaneously, connecting block 605 can take two sets of clamp splice 606 to move to the centre when moving to the centre, and firmly clip end cover body 7, then the staff can use positioning mechanism 4 to fix a position, through setting up this fixed establishment 6, can ensure at the positioning process, skew can not appear in end cover body 7, positioning accuracy is improved, and the processing quality is guaranteed.

The whole fixing mechanism 6 has the advantages that when workers need to position the end cover, firstly the workers hold the end cover body 7, then the motor 601 is started, the motor 601 can drive the threaded rod 603 to rotate, when the threaded rod 603 rotates, under the action of the limiting block 608 and the limiting groove 607, the two groups of sliding blocks 604 can be drawn close to the middle, meanwhile, the sliding blocks 604 can drive the connecting blocks 605 to move towards the middle together, the connecting blocks 605 can drive the two groups of clamping blocks 606 to move towards the middle while moving towards the middle, and firmly clamp the end cover body 7, then the workers can use the positioning mechanism 4 to position, and by arranging the fixing mechanism 6, the end cover body 7 can be ensured not to deviate in the positioning process, the positioning precision is improved, and the processing quality is ensured.

The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention in other forms, and any person skilled in the art may use the above-mentioned technical contents to change or modify the equivalent embodiments into equivalent variations to apply to other fields, but all those persons do not depart from the technical contents of the present invention, and any simple modification, equivalent variation and modification made to the above embodiments according to the technical matters of the present invention still belong to the protection scope of the technical solution of the present invention.

Claims

1. The utility model provides a structure convenient to location processing motor end cover, includes operation panel (1), its characterized in that: a connecting disc (2) is fixedly installed on the upper surface of the operating platform (1), a rectangular block (3) is fixedly installed on the upper surface of the operating platform (1), and positioning mechanisms (4) are arranged on two sides of the operating platform (1);

the positioning mechanism (4) comprises a sliding groove (401), the sliding grooves (401) are symmetrically formed in two sides of the operating platform (1), a sliding rod (402) is connected to the inner wall of the two groups of sliding grooves (401) in a sliding mode, a connecting rod (403) is fixedly mounted at one end, far away from the operating platform (1), of the two groups of sliding rods (402), a fixing rod (404) is fixedly mounted at one side, far away from the operating platform (1), of the sliding rod (402), a pointer (405) is fixedly mounted at one side, close to the operating platform (1), of the sliding groove (401), a magnet (406) is fixedly mounted at the inner wall, close to one end of the pointer (405), of the sliding groove (401), a positioning rod (407) penetrates through the inner portion of the connecting rod (403) in a sliding mode, a positioning needle (408) is fixedly mounted at one end of the positioning, a return spring (410) is fixedly mounted between one side of the disc (409) close to the connecting rod (403) and the upper surface of the connecting rod (403), and a dial (411) is arranged on one side of the operating platform (1) close to the pointer (405).

2. The structure for facilitating positioning and processing of the motor end cover according to claim 1, wherein: a handle is fixedly arranged at one end, far away from the sliding rod (402), of the fixing rod (404), and a pressing block is fixedly arranged at one end, far away from the positioning needle (408), of the positioning rod (407).

3. The structure for facilitating positioning and processing of the motor end cover according to claim 1, wherein: the lower fixed surface of operation panel (1) installs supporting leg (5), connection pad (2) are connected through the upper surface fixed of bolt and operation panel (1).

4. The structure for facilitating positioning and processing of the motor end cover according to claim 1, wherein: the inside of rectangle piece (3) is provided with fixed establishment (6), fixed establishment (6) include motor (601), the last fixed surface of connection pad (2) installs motor (601), rectangular channel (602) have been seted up to the inside upper surface of rectangle piece (3), the output of motor (601) rotates and is connected with threaded rod (603), threaded rod (603) rotate and run through rectangular channel (602) and extend to the inside of rectangular channel (602).

5. The structure for facilitating positioning and processing of the motor end cover according to claim 4, wherein: the outer surface symmetry cover of threaded rod (603) is equipped with slider (604), the last fixed surface of slider (604) installs connecting block (605), two sets of one side symmetry fixed mounting that connecting block (605) is relative has clamp splice (606).

6. The structure for facilitating positioning and processing of the motor end cover according to claim 5, wherein: two sets of one side that clamp splice (606) is relative is provided with end cover body (7), spacing groove (607) have been seted up to the inner wall symmetry of rectangular groove (602), the bilateral symmetry fixed mounting that slider (604) are close to spacing groove (607) has stopper (608), the inner wall sliding connection of stopper (608) and spacing groove (607).
