Abstract
本实用新型公开了一种老年患者用行走辅助装置，所述老年患者用行走辅助装置包括后支撑板、座板、座板支撑板、挡板、导向杆、齿轮、齿条和止动板，其特征在于，所述座板通过转轴铰接安装在后支撑板的凹槽内，座板两侧还设有凸块，所述底座支撑板安装在连接板的内侧，所述挡板上开设有滑槽，所述导向杆穿过滑槽固定安装在后支撑板的上端，所述转轴的两端设有齿轮，所述后支撑板的两侧为中空结构，后支撑板的内壁设有齿条，所述齿条与齿轮相互啮合，齿条的下侧还固定连接有止动板，该老年患者用行走辅助装置，当老人行走过程中，体力不支进行休息时，将座板放下，通过与座板相连的止动机构能将该装置进行止动，保证了老人休息时不会发生危险。
The utility model discloses a walking assistance device for elderly patients. The walking assistance device for elderly patients comprises a rear support plate, a seat plate, a seat plate support plate, a baffle plate, a guide rod, a gear, a rack and a stop plate. It is characterized in that the seat plate is hingedly installed in the groove of the rear support plate through the rotating shaft, the two sides of the seat plate are also provided with bumps, the base support plate is installed on the inner side of the connecting plate, and the baffle plate is provided with A chute, the guide rod is fixedly installed on the upper end of the rear support plate through the chute, the two ends of the rotating shaft are provided with gears, the two sides of the rear support plate are hollow structures, and the inner wall of the rear support plate is provided with teeth The rack and the gear are meshed with each other, and the lower side of the rack is also fixedly connected with a stop plate. The elderly patient uses a walking assist device. The stopper mechanism connected with the seat plate can stop the device, so as to ensure that no danger occurs when the elderly are resting.
Description
Technical Field
The utility model relates to a medical care equipment field specifically is an old patient walking auxiliary device.
Background
The elderly face many social problems such as old age and medical care, and China is in the aging stage for a while, so that the physical and mental health of the elderly is more important, and the elderly have poor coordination and are inconvenient for legs and feet, so that most of the elderly need to use walking assistance devices.
At present, generally install the seat on the walking auxiliary device, can have a rest when old man's physical strength is not sufficient, but current walking auxiliary device does not set up stop gear, when the old man sits the rest on the seat, if do not have stop gear, can have certain danger.
SUMMERY OF THE UTILITY MODEL
In order to achieve the above object, the utility model provides a following technical scheme:
a walking assisting device for old patients comprises a rear supporting plate, a seat plate supporting plate, a baffle plate, a guide rod, a gear, a rack and a stop plate, and is characterized in that the seat plate is hinged and installed in a groove of the rear supporting plate through a rotating shaft, protruding blocks are further arranged on two sides of the seat plate, the bottom plate supporting plate is installed on the inner side of a connecting plate, a sliding groove is formed in the baffle plate, and the guide rod penetrates through the sliding groove and is fixedly installed at the upper end of the rear supporting plate; the rear supporting plate is fixedly connected with the front supporting column through a connecting plate, and travelling wheels are respectively arranged on the two sides of the lower ends of the rear supporting plate and the front supporting column; the both ends of pivot are equipped with the gear, the both sides of back backup pad are hollow structure, and the inner wall of back backup pad is equipped with the rack, rack and gear intermeshing, the downside of rack still fixedly connected with locking plate, and the locking plate is also installed to preceding support column lower extreme simultaneously, two the locking plate passes through the horizontal pole and connects.
As a further aspect of the present invention: and the outer side of the connecting plate is provided with a handrail.
As a further aspect of the present invention: the oxter support frame is connected with the front support column through a telescopic rod.
As a further aspect of the present invention: an arc-shaped opening is formed in the upper end of the armpit supporting frame, and a cotton pad is arranged on the arc-shaped opening.
As a further aspect of the present invention: the walking wheel is of a spherical structure.
As a further aspect of the present invention: the top structure of the guide rod is a cylinder, and the diameter of the cylinder is larger than the width of the sliding groove.
As a further aspect of the present invention: a back massager is arranged in the groove of the rear supporting plate.
As a further aspect of the present invention: the bottom of the stop plate may be provided with granular protrusions.
Compared with the prior art, the beneficial effects of the utility model are that: this old patient uses walking auxiliary device, when the old man walking in-process, when the physical stamina does not support to have a rest, put down the bedplate, can stop the device through the detent mechanism who links to each other with the bedplate, can not take place danger when having guaranteed the old man rest.
Drawings

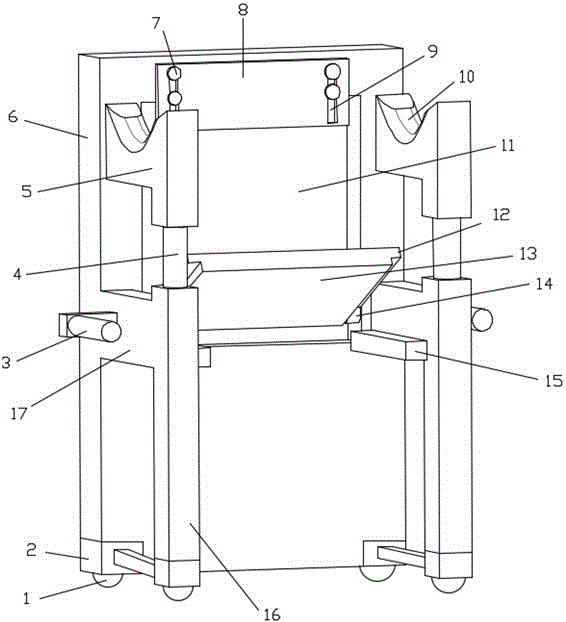

Fig. 1 is a perspective view of a walking assistance device for an elderly patient.
Fig. 2 is a sectional view of a walking assistance device for an elderly patient.
Fig. 3 is a front view of a walking assistance device for an elderly patient.
Fig. 4 is a side view of a walking assistance device for an elderly patient.
In the figure: 1. a traveling wheel; 2. a stopper plate; 3. a handrail; 4. a telescopic rod; 5. an underarm support; 6. a rear support plate; 7. a guide bar; 8. a baffle plate; 9. a chute; 10. an arc-shaped opening; 11. a back massager; 12. a bump; 13. a seat plate; 14. a rotating shaft; 15. a seat plate supporting plate; 16. a front support column; 17. a connecting plate; 18. a gear; 19. a rack.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Example 1
Referring to fig. 1-4, the walking assisting device for the elderly patients in the present embodiment includes a rear supporting plate 6, a seat plate 13, a seat plate supporting plate 15, a baffle plate 8, a guiding rod 7, a gear 18, a rack 19 and a stop plate 2, wherein the seat plate 13 is hinged to a groove of the rear supporting plate 6 through a rotating shaft 14, two sides of the seat plate 13 are further provided with a protrusion 12, the seat plate supporting plate 15 is mounted at an inner side of a connecting plate 17, when the physical strength of the elderly is insufficient, the seat plate 13 can be rotated downward, and at this time, the seat plate supporting plate 15 will abut against the protrusion 12 at two sides of the seat plate 13, thereby stopping the seat plate; the baffle 8 is provided with a sliding chute 9, the guide rod 7 passes through the sliding chute 9 and is fixedly arranged at the upper end of the rear supporting plate 6, when the back-up seat is used, the baffle 8 is lifted upwards, then the seat plate 13 is rotated upwards into the groove of the rear supporting plate 6, at the moment, the baffle 8 is released, and the baffle 8 can slide downwards along the guide rod 7, so that the seat plate 13 is blocked; the top structure of the guide rod 7 is a cylinder, the diameter of the cylinder is larger than the width of the chute 9, so that an anti-falling mechanism is formed, and the anti-falling mechanism can prevent the baffle 8 from falling off from the guide rod 7; the rear support plate 6 is fixedly connected with the front support column 16 through a connecting plate 17, and the two sides of the lower ends of the rear support plate 6 and the front support column 16 are respectively provided with a travelling wheel 1; the two ends of the rotating shaft 14 are provided with gears 18, the two sides of the rear supporting plate 6 are of a hollow structure, the inner wall of the rear supporting plate 6 is provided with a rack 19, the rack 19 is meshed with the gears 18, a stop plate 2 is fixedly connected to the lower side of the rack 19, meanwhile, the lower end of the front supporting column 16 is also provided with the stop plate 2, the two stop plates 2 are connected through a cross rod so as to move synchronously, when the chair plate 13 is rotated downwards by an old man in use, the rotating shaft can drive the gears 18 to rotate, so that the rack 19 meshed with the gears 18 is driven to move downwards, the stop plate 2 fixedly connected with the rack 19 can move downwards, the bottom of the stop plate 2 finally abuts against the ground to prevent walking wheels from rolling, so that a parking mechanism is formed, the old man does not worry about that the device can move when sitting down for rest, and granular bulges can be, increasing the frictional force at the bottom of the detent plate 2.
Further, connecting plate 17 outside is provided with handrail 3, preceding support column 16 couples together through telescopic link 4 with armpit support frame 5, during the use, can adjust armpit support frame 5's height through telescopic link 4, can be suitable for the old person of different heights like this, increases this old patient walking auxiliary device's application scope, arc opening 10 has been seted up to armpit support frame 5 upper end, can place cotton pad in the arc opening 10, and the old person can place the armpit on cotton pad during the use, increases the comfort level, and handrail 3 is held to the reuse hand to rely on old patient walking auxiliary device with whole health, to the consumption of oneself physical power during the walking of greatly reduced.
Example 2
In order to make the old people have a more comfortable experience when having a rest, the embodiment is further improved on the basis of the embodiment 1, and the improvement is that: be provided with back massager 11 in the recess of back backup pad 6, can lean on the back on back massager 11 when the old man has a rest, alleviate the fatigue that brings when walking.
Although the preferred embodiments of the present patent have been described in detail, the present patent is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present patent within the knowledge of those skilled in the art.
