CN213096764U - Music book support is used in music class - Google Patents
Music book support is used in music class Download PDFInfo
- Publication number
- CN213096764U CN213096764U CN202020881099.1U CN202020881099U CN213096764U CN 213096764 U CN213096764 U CN 213096764U CN 202020881099 U CN202020881099 U CN 202020881099U CN 213096764 U CN213096764 U CN 213096764U
- Authority
- CN
- China
- Prior art keywords
- music
- placing
- welded
- plate
- placing plate
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Tables And Desks Characterized By Structural Shape (AREA)
Abstract
本实用新型公开了一种音乐课用乐谱支架，包括安装板和固定连接于安装板底部的支撑架，所述安装板顶部通过螺栓连接有伸缩杆，所述伸缩杆顶部两侧外壁上均通过固定螺栓连接有连接板，两个所述连接板顶部焊接有第一放置板，所述第一放置板两侧外壁上均开有滑槽，且两个滑槽内均滑动安装有连接杆，两个所述连接杆一侧外壁上均焊接有第二放置板，所述连接杆远离第二放置板一端外壁上焊接有挡板，所述第一放置板上的两个滑槽一侧内壁上均焊接有挡块。本实用新型设置有可以进行拉伸的放置板，可以适用不同长度的乐谱摆放，在教学完成后可以收缩减小放置板的体积，减少了放置板占用的空间，便于教学人员对支架进行转移和携带，且固定方便。
The utility model discloses a musical score support for music lessons, which comprises a mounting plate and a support frame fixedly connected to the bottom of the mounting plate. A telescopic rod is connected to the top of the mounting plate by bolts, and two outer walls of the top of the telescopic rod are connected by bolts. The fixing bolts are connected with connecting plates, the tops of the two connecting plates are welded with a first placing plate, the outer walls on both sides of the first placing plates are provided with sliding grooves, and connecting rods are slidably installed in the two sliding grooves, A second placing plate is welded on the outer wall of one side of the two connecting rods, a baffle is welded on the outer wall of one end of the connecting rod away from the second placing plate, and the inner wall of one side of the two chutes on the first placing plate is Blocks are welded on top. The utility model is provided with a placing board that can be stretched, and can be used for placing musical scores of different lengths. After the teaching is completed, the volume of the placing board can be shrunk to reduce the space occupied by the placing board, and it is convenient for teaching staff to transfer the bracket. and portable, and easy to fix.
Description
Technical Field
The utility model relates to a teaching equipment technical field especially relates to a music book support is used to music class.
Background
A music stand is a stand for placing music, and generally, the music stand includes a supporting part for elevating a height and a placing plate for placing music.
But current music book support structure is complicated, puts the music book place the board can not be applicable to the music book of various sizes, causes easily that the music book landing phenomenon takes place at the teaching in-process, is unfavorable for the teaching.
Disclosure of Invention
The utility model aims at solving the defects existing in the prior art and providing a music stand for a music class.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a music class uses music book support, includes mounting panel and fixed connection in the support frame of mounting panel bottom, there is the telescopic link mounting panel top through bolted connection, all be connected with the connecting plate, two through fixing bolt on the outer wall of telescopic link top both sides the welding of connecting plate top has the first board of placing, the first spout of placing has all been opened on the board both sides outer wall, and equal slidable mounting has a connecting rod, two in two spouts all the welding has the second to place the board on the outer wall of connecting rod one side, the connecting rod is kept away from the second and is placed the welding of board one end outer wall and have the baffle, the first dog that has all welded on two spout one side inner walls.
Preferably, the telescopic rod comprises a sleeve and a connecting pipe slidably mounted in the sleeve, a fastening bolt is screwed on the outer wall of the sleeve, and the fastening bolt and the connecting pipe form fastening fit.
Preferably, the fixing bolt comprises a bolt and a nut matched with the outer diameter of a screw rod of the bolt, and the bolt and the nut form fastening fit.
Preferably, the top of the connecting plate exceeds the top of the telescopic rod by 1-2 cm.
Preferably, the second placing plate is adapted to the first placing plate in height.
Preferably, two equal fixedly connected with music folder on the board top outer wall is placed to the second.
The utility model has the advantages that:
1. the stretchable placing plate is arranged, so that the music book placing device is suitable for placing music books with different lengths, and can be contracted to reduce the volume of the placing plate after teaching is finished, so that the space occupied by the placing plate is reduced;
2. the support is simple in structure, small in overall mass, convenient to transfer and carry by a teaching worker, convenient to fix and capable of being directly placed on the ground.
Drawings

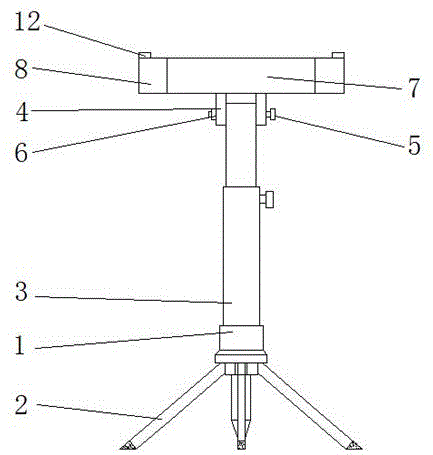

Fig. 1 is a schematic structural view of a music book stand for a music class according to the present invention;
fig. 2 is a schematic structural view of a placing plate of a music book stand for a music class according to the present invention;
fig. 3 is a schematic view of a part of the music stand for music class according to the present invention.
In the figure: 1 mounting panel, 2 support frames, 3 telescopic links, 4 connecting plates, 5 bolts, 6 nuts, 7 first place the board, 8 second place the board, 9 connecting rods, 10 baffles, 11 dogs, 12 music clamps.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, a music book stand for music class comprises a mounting plate 1 and a support frame 2 fixedly connected to the bottom of the mounting plate 1, wherein the top of the mounting plate 1 is connected with a telescopic rod 3 through a bolt, the telescopic rod 3 comprises a sleeve and a connecting pipe slidably mounted in the sleeve, a fastening bolt is screwed on the outer wall of the sleeve and forms fastening fit with the connecting pipe, the outer walls of the two sides of the top of the telescopic rod 3 are connected with connecting plates 4 through the fixing bolt, the top of the connecting plate 4 exceeds the top of the telescopic rod 3 by 1-2cm, the fixing bolt comprises a bolt 5 and a nut 6 matched with the outer diameter of a screw rod of the bolt 5, the bolt 5 and the nut 6 form fastening fit, the top of the two connecting plates 4 is welded with a first placing plate 7, the outer walls of the two sides of the first placing plate 7 are both provided with chutes, two all the welding has the second to place board 8 on the outer wall of connecting rod 9 one side, the second is placed board 8 height and the first board 7 high looks adaptation of placing, connecting rod 9 is kept away from the second and is placed board 8 one end outer wall and weld on baffle 10, all the welding has dog 11, two on the first board 7 of placing two spout one side inner walls all the welding have the second place board 8 top outer wall on equal fixedly connected with music clamp 12.
The working principle is as follows: when teaching, utilize telescopic link 3 to adjust the height, adjust to and fix with fastening bolt when suitable height, unscrew bolt 5 again, adjust the first gradient of placing board 7 and board 8 is placed to the second, adjust according to the music book size and place board length, place board 8 to two seconds of both sides pulling, when pulling suitable position, with the fixed music book of music book clip 12, after the teaching, place board 8 with two seconds and push back the normal position, contact with the first board 7 of placing.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
