本实用新型公开了一种具有防寒保暖功能服装，包括本体，吸热装置，所述吸热装置固定于所述本体的后侧，所述吸热装置包括光伏组件，所述光伏组件通过按钮固定于所述本体上；蓄电槽，所述蓄电槽设置于所述本体的前侧底部，本实用新型涉及防寒保暖技术领域。该一种具有防寒保暖功能服装，通过吸热装置对太阳能进行吸收转化成电能，储存在蓄电槽内的电池内，通过控制面板设置加热的稳定，通过电池放电对夹层内的加热丝进行加热，温度通过亲肤层传到使用者的身上，提高使用者的温度，从而达到防寒保暖的作用，通过保暖层对加热层进行保暖，防止温度散失，通过纽扣对加热层进行拆卸，在不需要保暖时，减轻本体的重量，提高使用者的体验感。
The utility model discloses a garment with cold-proof and warm-keeping functions, comprising a body and a heat absorbing device, the heat absorbing device is fixed on the rear side of the body, the heat absorbing device comprises a photovoltaic component, and the photovoltaic component is fixed by a button On the main body; an electric storage tank, the electric storage tank is arranged on the bottom of the front side of the main body, and the utility model relates to the technical field of cold protection and warmth. The clothing with the function of preventing cold and keeping warm, absorbs solar energy and converts it into electric energy through a heat absorbing device, stores it in a battery in a storage tank, sets the heating stability through a control panel, and heats the heating wire in the interlayer through battery discharge. , the temperature is transmitted to the user's body through the skin-friendly layer to increase the user's temperature, so as to achieve the effect of preventing cold and keeping warm. The heating layer is kept warm by the thermal layer to prevent temperature loss. When keeping warm, the weight of the main body is reduced to improve the user's experience.
Description
Technical Field
The utility model relates to a cold-proof technical field specifically is a clothing with cold-proof function.
Background
The clothes play an important role in modern life, are closely related to the daily life of people, and particularly, the clothes in winter increasingly pay more attention to the concept of being light, thin, beautiful, warm-keeping and health-care.
The problem that people wear clothes which are not overstaffed and not easy to be cooled in cold environment, can keep warm and keep health and have individuality is solved, and the problem is a subject of research of manufacturers.
When the existing cold-proof warm-keeping functional clothes are used, the heating layer plays a role in heating and keeping warm for a body, but the weather is fine, and when a user does not need to use the cold-proof warm-keeping clothes for heating, the heating layer of the cold-proof warm-keeping functional clothes cannot be detached, so that the use feeling of the user is influenced.
SUMMERY OF THE UTILITY MODEL
The utility model provides a cold-proof function clothing that keeps warm to the not enough of prior art, the utility model provides a problem that can not dismantle cold-proof function clothing has been solved.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a cold-proof warm-keeping garment, which comprises a body,
the heat absorption device is fixed on the rear side of the body and comprises a photovoltaic assembly, and the photovoltaic assembly is fixed on the body through a button;
the storage battery is arranged at the bottom of the front side of the body, and a battery is connected in the storage battery;
the control panel is arranged on the body;
the warm-keeping layer is fixed on the inner layer of the body;
the heating device is arranged on the inner side of the warm-keeping layer and comprises a heating layer, an interlayer is arranged in the heating layer, and a heating wire is movably connected in the interlayer;
the skin-friendly layer is arranged on the inner layer of the heating layer;
the buttons are fixedly connected to the inner side of the body;
the two pockets are respectively arranged on two sides of the front side of the body.
Further, both sides of the body are fixedly connected with zippers, and the two zippers are connected through zipper sliders.
The zipper is pulled by the zipper head to close the body, so that a user can wear the body on the body to prevent the body from being cold-proof and influencing the use.
Furthermore, the surface of the photovoltaic module is fixedly connected with three fluorescent strips, and the fluorescent strips are uniformly distributed on the surface of the photovoltaic module.
Fix on photovoltaic module through the phosphor strip, make the user wear to be convenient for after the body at night observe, prevent accident.
Further, the battery is an accumulator type rechargeable battery.
When no sunlight exists, the battery can be charged by direct current, and cold protection and warm keeping can be performed on a user in rainy days.
Further, the heating wire is electrically connected with the accumulator cell.
Through the electric connection of accumulator jar and heater strip, make the battery heat the heater strip to dispel the heat to the zone of heating, thereby heat the close skin layer, carry out cold-proof winter protection to the user.
Further, the control panel is electrically connected with the battery.
The battery is controlled to run through the control panel, so that the heating temperature of the heating layer is controlled, and the damage to a user is prevented.
Further, the warm-keeping layer, the heating layer and the skin-friendly layer are fixedly connected with the body through buttons.
Through the button, when need not use the zone of heating, the accessible button takes off the zone of heating, prevents to influence user's unnecessary use, can dismantle skin-friendly layer and cold-proof layer simultaneously and wash.
Compared with the prior art, the beneficial effects of the utility model are that:
this kind of have cold-proof function clothing that keeps warm, absorb solar energy through the heat sink and change into the electric energy, store in the battery of accumulator jar, set up the stability of heating through control panel, discharge through the battery and heat the heater strip in the interlayer, the temperature passes on one's body the user through close skin layer, user's temperature is improved, thereby reach the cold-proof effect, keep warm to the zone of heating through cold-proof layer, prevent that the temperature from scattering and disappearing, dismantle the zone of heating through the button, when not needing cold-proof, the weight of the body that reduces, the person's of facilitating the use dress, user's experience is felt is improved.
Drawings

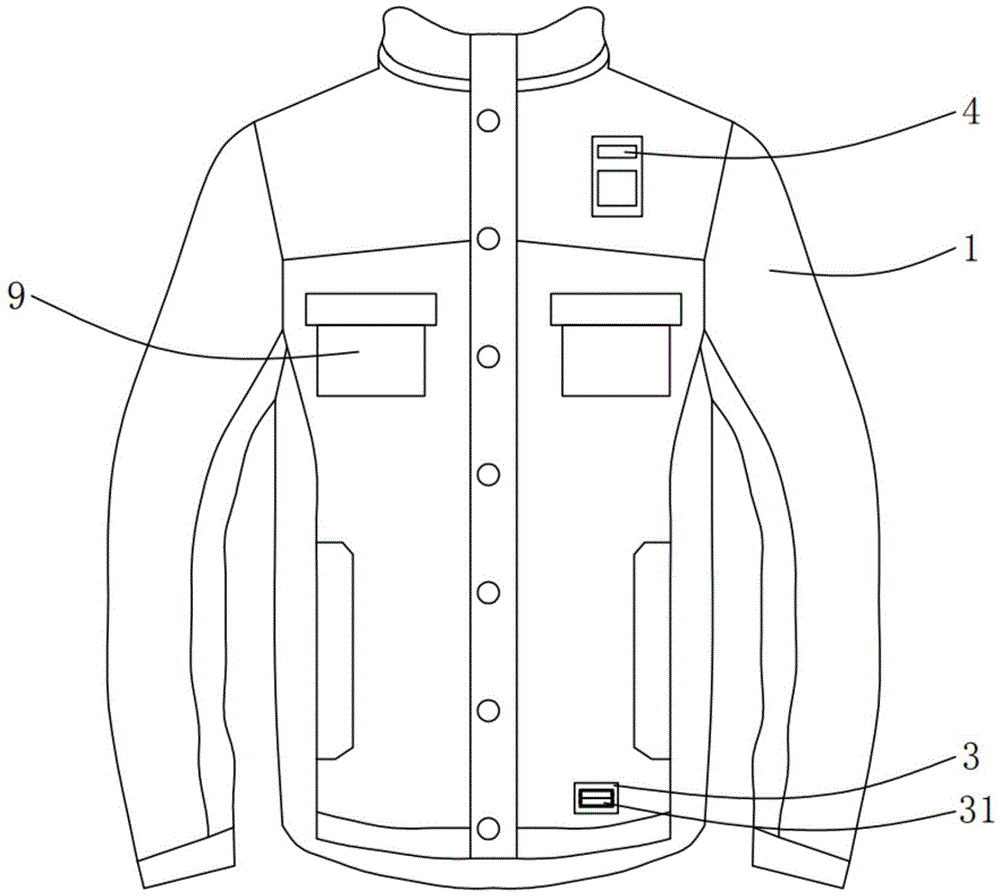

Fig. 1 is a schematic structural view of a preferred embodiment of a garment with cold-proof and warm-keeping functions provided by the present invention;
FIG. 2 is a rear elevational view of the whole of FIG. 1;
FIG. 3 is an expanded view of the body shown in FIG. 1;
FIG. 4 is an enlarged view of a portion of FIG. 1;
FIG. 5 is an enlarged view of the point A shown in FIG. 3;
fig. 6 is an enlarged view of fig. 4 at B.
In the figure: 1-body, 11-zipper, 12-zipper head, 2-heat absorber, 21-photovoltaic module, 22-fluorescent strip, 23-button, 3-accumulator tank, 31-battery, 4-control panel, 5-warm layer, 6-heating device, 61-heating layer, 62-interlayer, 63-heating wire, 7-skin-friendly layer, 8-button and 9-pocket.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: a cold-proof warm-keeping garment, which comprises a body 1,
the heat absorber 2 is fixed on the rear side of the body 1, the heat absorber 2 comprises a photovoltaic module 21, and the photovoltaic module 21 is fixed on the body 1 through a button 23;
the storage battery 3 is arranged at the bottom of the front side of the body 1, and a battery 31 is connected in the storage battery 3;
the control panel 4 is arranged on the body 1;
the warm keeping layer 5 is fixed on the inner layer of the body 1;
the heating device 6 is arranged on the inner side of the warm-keeping layer 5, the heating device 6 comprises a heating layer 61, an interlayer 62 is arranged in the heating layer 61, and a heating wire 63 is movably connected in the interlayer 62;
the skin-friendly layer 7 is arranged on the inner layer of the heating layer 61;
the buttons 8 are all fixedly connected to the inner side of the body 1;
two pockets 9, two pockets 9 set up respectively in the both sides of the front side of body 1.
Absorb solar energy through heat sink 2 and change the electric energy into, store in battery 31 in accumulator jar 3, set up the stability of heating through control panel 4, discharge through battery 31 and heat the heater strip 63 in intermediate layer 62, the temperature passes to on one's body of user through close skin layer 7, improve user's temperature, thereby reach the cold-proof effect, it is cold-proof to zone of heating 61 through cold-proof layer 5, prevent that the temperature from scattering and disappearing, dismantle zone of heating 61 through button 8, when not needing cold-proof, alleviate body 1's weight, the wearing of person of facilitating the use, improve user's experience and feel.
The two sides of the body 1 are fixedly connected with zippers 11, and the two zippers 11 are connected through zipper sliders 12.
The zipper 11 is pulled by the zipper head 12 to close the body 1, so that a user can wear the body 1 on the body to prevent the body from being cold-proof and influencing the use.
The surface of the photovoltaic module 21 is fixedly connected with three fluorescent strips 22, and the fluorescent strips 22 are uniformly distributed on the surface of the photovoltaic module 21.
Fix on photovoltaic module 21 through phosphor strip 22, make the user wear to be convenient for observe behind body 1 night, prevent accident.
The battery 31 is an accumulator type rechargeable battery.
When sunlight does not exist, the battery 31 can be charged through direct current, and cold protection and warm keeping can be performed on a user in rainy days.
The heating wire 63 is electrically connected to the storage battery 3.
Through the electrical connection of accumulator cell 3 and heater strip 63, make battery 31 heat heater strip 63 to dispel the heat to heater layer 61, thereby heat close skin layer 7, keep warm to the user winter protection.
The control panel 4 is electrically connected to the battery 31.
The operation of the battery 31 is controlled by the control panel 4, so that the heating temperature of the heating layer 61 is controlled, and the injury to the user is prevented.
The warming layer 5, the heating layer 61 and the skin-friendly layer 7 are fixedly connected with the body 1 through buttons 8.
Through button 8, when need not use zone of heating 61, accessible button 8 takes off zone of heating 61, prevents to influence the unnecessary use of user, can dismantle skin-friendly layer 7 and cold-proof layer 5 simultaneously and wash.
When the solar thermal insulation type solar thermal insulation device works, firstly, a user wears the body 1 on the body through the zipper puller 12 and the zipper 11, the proper temperature is adjusted through the control panel 4, after the adjustment is completed, the control panel 4 drives the battery 31 to discharge, the heating wires 63 in the interlayer 62 are heated, the temperature keeps the user warm through the skin-friendly layer 7, the skin temperature of the user is improved, the heating layer 61 is kept warm through the thermal insulation layer 5, heat dissipation is prevented, when the day is fine, solar energy is converted into electric energy through the photovoltaic module and stored in the battery 31, and the consumption of the battery is reduced;
when not needing to use zone of heating 61, take out zone of heating 61 and close skin layer 7 through button 8, installing close skin layer 7, dismantle heater strip 63 and accumulator cell 3, take off accumulator cell 3 and control panel 4, take off photovoltaic module 21 from body 1 through button 23, alleviate the weight of body 1, convenient to use person's wearing, it is light comfortable.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
The above description is only a preferred embodiment of the present invention, and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
