CN213091944U

CN213091944U - Portable waterproof optic fibre wire jumper of resistance to compression

Info

Publication number: CN213091944U
Application number: CN202022417392.5U
Authority: CN
Inventors: 刘小芳
Original assignee: Shenzhen Optical Fiber City Communication Co ltd
Current assignee: Shenzhen Optical Fiber City Communication Co ltd
Priority date: 2020-10-27
Filing date: 2020-10-27
Publication date: 2021-04-30
Anticipated expiration: 2030-10-27

Abstract

The utility model discloses a pressure-resistant portable waterproof optical fiber jumper in the field of electric power technology. The first storage box, the second storage box, and the third storage box, an optical fiber jumper device is movably connected between a group of the support rods, and a spare optical fiber jumper device is clamped on the holder, and the tool The top of the box is provided with a control box, and the top of the control box is provided with a pull rod. The pull rod is fixed to connect the tool box. By setting the optical fiber jumper device, it is convenient to wind the optical fiber jumper on the roller. Drive the rotating shaft to drive the support rod to drive the roller shaft to drive the roller to rotate, which is convenient for the fiber jumper to be used for winding.

Description

Portable waterproof optic fibre wire jumper of resistance to compression

Technical Field

The utility model relates to an electric power tech field specifically is a portable waterproof optic fibre wire jumper of resistance to compression.

Background

Along with social economy's continuous development and scientific and technological progress, more and more intelligent substation begins to build and popularize, the optical fiber jumper wire is the important transmission means in the electric power information transfer, current optical fiber jumper wire all has resistance to compression and waterproof function, but current optical fiber jumper wire does not have the toolbox of special storage, cause the dust to pile up easily, and when meetting urgent transformer maintenance condition, inconvenient carrying and use optical fiber jumper wire, influence work efficiency, in order to conveniently use optical fiber jumper wire, the reply is in time the transformer maintenance condition, for this reason, we provide the portable waterproof optical fiber jumper wire of resistance to compression.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a portable waterproof optic fibre wire jumper of resistance to compression to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a portable waterproof optic fibre wire jumper of resistance to compression, includes the toolbox, the toolbox left end hinge is equipped with the chamber door, from last first storage box, second storage box, the third storage box that is equipped with the size the same extremely down in proper order in the toolbox, third storage box inner chamber swing joint has a set of bracing piece, and is a set of swing joint has optic fibre wire jumper device between the bracing piece, first storage box and second storage box inner chamber top all are equipped with a set of holder, press from both sides on the holder and be equipped with reserve optic fibre wire jumper device, the toolbox top is equipped with the control box, the control box top is equipped with the pull rod, pull rod fixed connection toolbox.

Further, optic fibre wire jumper device includes the roller, fixedly connected with roller on the roller, the activity runs through on the roller and is equipped with a set of splint, and is a set of be equipped with the optic fibre wire jumper of winding roller between the splint, be located the bracing piece of third storage box inner chamber right-hand member runs through the toolbox and rotates and is connected with the pivot, pivot right-hand member fixedly connected with positive and negative motor.

Further, both ends all are equipped with the round hole about the roller, be equipped with the internal thread in the round hole, a side end that the bracing piece is close to the roller is equipped with the protruding body of rod, be equipped with on the protruding body of rod with internal thread assorted external screw thread, a set of the bracing piece size is the same.

Further, the clamping plate is movably connected with the roller through a threaded bolt.

Further, the holder is electronic clamping jaw, control box and electronic clamping jaw electric connection, electronic clamping jaw a set of has two.

Furthermore, a group of movable wheels is arranged at the bottom end of the tool box, and the movable wheels have a self-locking function.

Compared with the prior art, the beneficial effects of the utility model are that:

1. through setting up the optical fiber jumper wire device, the convenience is convoluteed the optical fiber jumper wire on the roller, rotate through positive and negative motor, thereby can drive the pivot and drive the bracing piece and drive the roller and rotate, thereby make things convenient for the optical fiber jumper wire to carry out the rolling and use, through setting up first storage box, reserve optical fiber jumper wire device is conveniently placed to the second storage box, and the service efficiency is improved, through setting up splint, be convenient for fixed optical fiber jumper wire coiling scope, avoid the optical fiber jumper wire to break away from the roller.

2. Through being equipped with the protruding body of rod on round hole and the bracing piece on the roller, connect through the mutually supporting of internal thread and external screw thread, convenient to detach or installation use optical fiber jumper device, through setting up the holder, make things convenient for the reserve optical fiber jumper device of centre gripping promptly through electronic clamping jaw, produce when avoiding the toolbox to remove and rock, improve stability, remove the convenient this device of removal use of wheel through setting up, improve work efficiency.

Drawings

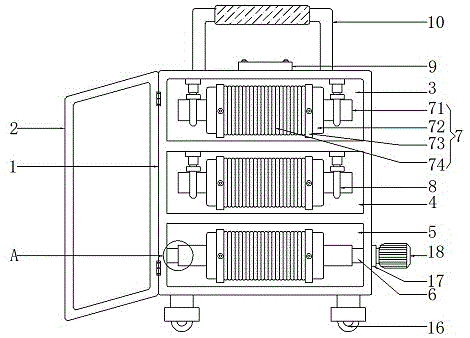

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic diagram of a detailed structure at A in FIG. 1 according to the present invention;

FIG. 3 is a front view of the clamp holder of the present invention;

in the figure: 1. a tool box; 2. a box door; 3. a first storage box; 4. a second storage box; 5. a third storage box; 6. a support bar; 7. an optical fiber jumper device; 71. a roll shaft; 72. a roller; 73. a splint; 74. an optical fiber jumper; 8. a holder; 9. a control box; 10. a pull rod; 11. a circular hole; 12. an internal thread; 13. a convex rod body; 14. an external thread; 15. a threaded bolt; 16. a moving wheel; 17. a rotating shaft; 18 positive and negative motors.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Please refer to fig. 1 and fig. 3, a portable waterproof optical fiber jumper wire of resistance to compression, including toolbox 1, toolbox 1 left end is articulated to be equipped with chamber door 2, toolbox 1 is interior from last to being equipped with the same first storage box 3 of size down in proper order, second storage box 4, third storage box 5, the inner chamber swing joint of third storage box 5 has a set of bracing piece 6, swing joint has optical fiber jumper device 7 between a set of bracing piece 6, first storage box 3 and 4 inner chamber tops of second storage box all are equipped with a set of holder 8, holder 8 is gone up to press from both sides and is equipped with reserve optical fiber jumper device 7, toolbox 1 top is equipped with control box 9, control box 9 top is equipped with pull rod 10, pull rod 10 fixed connection toolbox 1.

Referring to fig. 1, the optical fiber jumper device 7 includes a roller shaft 71, a roller 72 is fixedly connected to the roller shaft 71, a set of clamping plates 73 is movably arranged on the roller 72 in a penetrating manner, an optical fiber jumper 74 for winding the roller 72 is arranged between the clamping plates 73, a supporting rod 6 at the right end of the inner cavity of the third storage box 5 penetrates through the tool box 1 and is rotatably connected with a rotating shaft 17, a positive and negative motor 18 is fixedly connected to the right end of the rotating shaft 17, the clamping plates 73 are movably connected with the roller 72 through a threaded bolt 15, a clamping device 8 is an electric clamping jaw, a control box 9 is electrically connected with the electric clamping jaw, the control box 9 is a control switch in the prior art and is connected with equipment control through an external power supply, two electric clamping jaws are arranged in one group, so as to clamp and fix the standby optical fiber jumper device 7 conveniently, thereby avoiding shaking generated when the tool box, the working efficiency is improved.

Referring to fig. 2, round holes 11 are formed in the left end and the right end of the roller shaft 71, internal threads 12 are formed in the round holes 11, a protruding rod body 13 is arranged at one side end, close to the roller shaft 71, of each support rod 6, external threads 14 matched with the internal threads 12 are formed in the protruding rod body 13, and the support rods 6 in a group are identical in size and convenient to detach or install the optical fiber jumper device 7.

The working principle is as follows: during the use, move toolbox 1 to the job site through removing wheel 16, open chamber door 2, rotate through positive and negative motor 18, thereby can drive pivot 17 and drive bracing piece 6 thereby drive roller 71 and drive roller 72 and rotate, make things convenient for optical fiber jumper wire 74 to carry out the rolling and use, after optical fiber jumper wire 74 in the third storage box 5 used up, can control holder 8 through control box 9, take off reserve optical fiber jumper wire 74, internal thread 12 in the round hole 11 on the roller 71 and external thread 14 on the protruding pole body 13 of bracing piece 6 front end carry out threaded connection, conveniently dismantle or install optical fiber jumper device 7, and the operation is simple and convenient, and the improvement of work efficiency is facilitated.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a portable waterproof optic fibre wire jumper of resistance to compression, includes toolbox (1), its characterized in that: articulated chamber door (2) that is equipped with of toolbox (1) left end, from last first storage box (3), second storage box (4), the third storage box (5) that are the same to being equipped with the size down in proper order in toolbox (1), third storage box (5) inner chamber swing joint has a set of bracing piece (6), and is a set of swing joint has optic fibre jumper device (7) between bracing piece (6), first storage box (3) and second storage box (4) inner chamber top all are equipped with a set of holder (8), press from both sides on holder (8) and be equipped with reserve optic fibre jumper device (7), toolbox (1) top is equipped with control box (9), control box (9) top is equipped with pull rod (10), pull rod (10) fixed connection toolbox (1).

2. The pressure-resistant portable waterproof optical fiber patch cord according to claim 1, wherein: optical fiber wire jumper device (7) are including roller (71), fixedly connected with roller (72) on roller (71), the activity runs through on roller (72) and is equipped with a set of splint (73), and is a set of be equipped with optical fiber wire jumper (74) of winding roller (72) between splint (73), is located bracing piece (6) of third storage box (5) inner chamber right-hand member run through toolbox (1) and rotate and be connected with pivot (17), pivot (17) right-hand member fixedly connected with positive and negative motor (18).

3. The pressure-resistant portable waterproof optical fiber patch cord according to claim 2, wherein: both ends all are equipped with round hole (11) about roller (71), be equipped with internal thread (12) in round hole (11), a side end that bracing piece (6) are close to roller (71) is equipped with the protruding body of rod (13), be equipped with on the protruding body of rod (13) with internal thread (12) assorted external screw thread (14), a set of bracing piece (6) size is the same.

4. The pressure-resistant portable waterproof optical fiber patch cord according to claim 2, wherein: the clamping plate (73) is movably connected with the roller (72) through a threaded bolt (15).

5. The pressure-resistant portable waterproof optical fiber patch cord according to claim 1, wherein: the clamp holder (8) is an electric clamping jaw, the control box (9) is electrically connected with the electric clamping jaw, and the electric clamping jaw is divided into two groups.

6. The pressure-resistant portable waterproof optical fiber patch cord according to claim 1, wherein: the tool box is characterized in that a group of moving wheels (16) is arranged at the bottom end of the tool box (1), and the moving wheels (16) have a self-locking function.
