本实用新型公开了一种雾化面罩，包括：面罩本体，所述面罩本体用于与脸部贴合，所述面罩本体与脸部间围合形成待吸入药物的扩散腔；进药管，所述进药管贯穿所述面罩本体设置，在所述进药管的位于所述扩散腔内的一端的管壁上设有第一扩散孔；奶嘴件，所述奶嘴件设置于所述扩散腔内，且套设于所述进药管的端部，其为一体式结构，包括依次设置的连接部、扩散部、伸缩部与奶嘴，所述连接部套设于所述端部且使所述扩散部与所述第一扩散孔对应设置，所述伸缩部用于调节所述奶嘴的位置。该雾化面罩主要使用于婴幼儿，减少婴幼儿雾化过程中的恐惧感，提高治疗效率。
The utility model discloses an atomizing mask, comprising: a mask body, which is used for fitting with the face, and a diffusion cavity for medicine to be inhaled is formed between the mask body and the face; a medicine inlet pipe, The medicine feeding tube is arranged through the mask body, and a first diffusion hole is provided on the tube wall of one end of the medicine feeding tube located in the diffusion cavity; a nipple piece is arranged on the diffusion chamber In the cavity, and sleeved on the end of the medicine feeding tube, it is an integral structure, including a connecting part, a diffusing part, a telescopic part and a nipple arranged in sequence, and the connecting part is sleeved on the end part and makes the The diffusing portion is disposed corresponding to the first diffusing hole, and the telescopic portion is used to adjust the position of the nipple. The atomizing mask is mainly used for infants and young children, which reduces the fear of infants and young children during the atomization process and improves the treatment efficiency.
Description
Technical Field
The utility model relates to the field of medical equipment, especially, relate to an atomizing face guard.
Background
Aerosol therapy refers primarily to aerosol inhalation therapy. Aerosol refers to fine solid or liquid particles suspended in air. Therefore, the aerosol inhalation therapy is to disperse the medicine into tiny droplets or particles by using an atomizing device, suspend the particles in the air and enter a breathing passage and a lung so as to achieve the purposes of cleaning the air passage, humidifying the air passage, local treatment and whole-body treatment. When the atomization treatment is used for infants, the infants are afraid of fear, inevitably cry and scream, and the atomization mask is refused to use, so that the whole process of atomization medication is difficult to smoothly carry out.
Disclosure of Invention
The utility model aims at providing an atomizing face guard, this atomizing face guard mainly used are infant, reduce the sense of fear among the infant's atomizing process, improve treatment effeciency.
In order to achieve the above purpose, the utility model adopts the technical scheme that: an aerosolizing mask comprising:
the face mask comprises a face mask body, a first fixing piece and a second fixing piece, wherein the face mask body is used for being attached to the face, and a diffusion cavity for medicine to be inhaled is formed between the face mask body and the face in a surrounding mode;
the medicine inlet pipe penetrates through the mask body, and a first diffusion hole is formed in the pipe wall of one end, located in the diffusion cavity, of the medicine inlet pipe;
the nipple piece is arranged in the diffusion cavity and sleeved at the end part of the medicine inlet pipe, the nipple piece is of an integrated structure and comprises a connecting part, a diffusion part, a telescopic part and a nipple which are sequentially arranged, the connecting part is sleeved at the end part, the diffusion part is arranged corresponding to the first diffusion hole, and the telescopic part is used for adjusting the position of the nipple.
In the above technical solution, the diffusion portion is provided with a second diffusion hole, and an overlapping region of the second diffusion hole and the first diffusion hole is a diffusion region.
In the above technical solution, the first diffusion hole and the second diffusion hole are both waist-shaped holes.
In the technical scheme, the inner side of the periphery of the mask body is provided with the elastic ring layer for being attached to the face.
In the technical scheme, the mask body is provided with a bandage for fixing the mask body on the head of a wearer.
In the technical scheme, air holes are oppositely formed in two sides of the mask body and used for exchanging air inside and outside the diffusion cavity.
Due to the application of the technical scheme, compared with the prior art, the invention has the following advantages:
1. the utility model discloses in the tip cover of advancing the pencil is equipped with nipple spare, makes the infant when wearing the atomizing face guard, can suck the nipple, disperses its attention, reduces the sense of fear to be favorable to medical personnel to carry out the fog inhalation.
2. The pipe wall of the end of the medicine inlet pipe, which is positioned in the diffusion cavity, is provided with a first diffusion hole, the diffusion part of the nipple piece is provided with a second diffusion hole, and the diffusion quantity of the medicine can be adjusted by adjusting the size of the overlapped area of the first diffusion hole and the second diffusion hole, so that the medicine can be fully absorbed.
3. The nipple piece comprises a telescopic part, the distance from the nipple to the mouth of an infant can be adjusted through the telescopic part, the use requirements of different infants are met, and the use process of the nipple piece is more comfortable.
4. The elastic ring layer is arranged on the inner side of the periphery of the mask body and is used for being attached to the face, protecting the skin of an infant and improving the comfort level.
Drawings

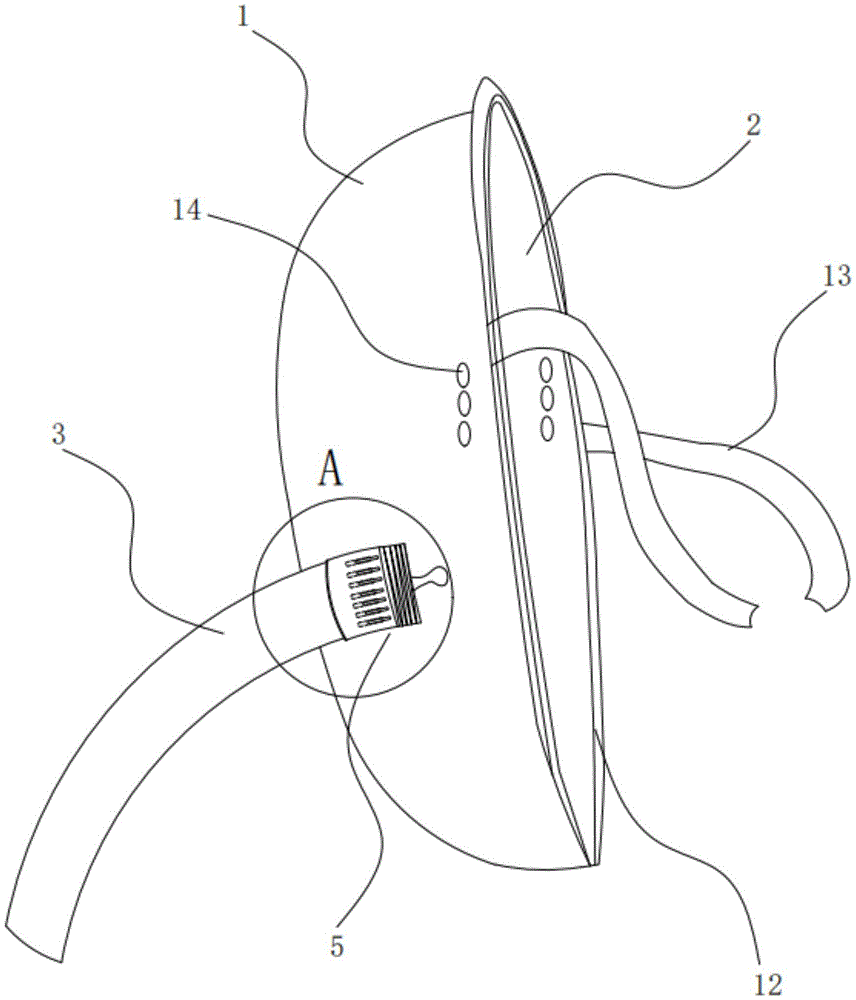

FIG. 1 is a schematic view of the structure of the mask of the present invention;
FIG. 2 is an enlarged view of a portion of FIG. 1 at A;
fig. 3 is a schematic structural view of the nipple member of the present invention.
Wherein: 1. a mask body; 2. a diffusion chamber; 3. a medicine inlet pipe; 4. a first diffusion hole; 5. a nipple piece; 6. a connecting portion; 7. a diffusion portion; 8. a telescopic part; 9. a nipple; 10. a second diffusion hole; 11. a diffusion region; 12. an elastic loop layer; 13. binding bands; 14. and (4) air holes.
Detailed Description
The invention will be further described with reference to the following drawings and examples:
the first embodiment is as follows: referring to fig. 1-3, an aerosolizing mask comprises:
the face mask comprises a face mask body 1, wherein the face mask body 1 is used for being attached to the face, and a diffusion cavity 2 for medicine to be inhaled is formed between the face mask body 1 and the face in a surrounding mode;
the medicine inlet pipe 3 penetrates through the mask body 1, and a first diffusion hole 4 is formed in the pipe wall of one end, located in the diffusion cavity 2, of the medicine inlet pipe 3;
the nipple piece 5 is arranged in the diffusion cavity 2 and sleeved at the end part of the medicine inlet pipe 3, the nipple piece 5 is of an integrated structure and comprises a connecting part 6, a diffusion part 7, a telescopic part 8 and a nipple 9 which are sequentially arranged, the connecting part 6 is sleeved at the end part, the diffusion part 7 corresponds to the first diffusion hole 4, and the telescopic part 8 is used for adjusting the position of the nipple 9.
Through establishing nipple spare 5 at the end cover of medicine feed pipe 3, make the infant when wearing the atomizing face guard, can suck nipple 9, disperse its attention, reduce the sense of fear to be favorable to medical personnel to carry out the fog inhalation.
In a preferred embodiment, the diffusion portion 7 is provided with a second diffusion hole 10, and an overlapping region of the second diffusion hole 10 and the first diffusion hole 4 is a diffusion region 11. When in use, the overlapped area of the second diffusion holes 10 and the first diffusion holes 4 is adjusted, so that the diffusion amount of the liquid medicine is changed.
Referring to fig. 2, the first diffusion holes 4 and the second diffusion holes 10 are all kidney-shaped holes.
In order to prevent the infant from generating pain when wearing the atomization mask and protect the skin of the face of the infant, an elastic ring layer 12 is arranged on the inner side of the periphery of the mask body 1 and is used for being attached to the face.
Referring to fig. 1, the mask body 1 is provided with a strap 13 for fixing the mask body 1 to the head of a wearer.
Referring to fig. 1, two sides of the mask body 1 are oppositely provided with air holes 14, and the air holes 14 are used for exchanging air inside and outside the diffusion cavity 2.
The above embodiments are only for illustrating the technical concept and features of the present invention, and the purpose of the embodiments is to enable people skilled in the art to understand the contents of the present invention and to implement the present invention, which cannot limit the protection scope of the present invention. All equivalent changes and modifications made according to the spirit of the present invention should be covered by the protection scope of the present invention.
Claims (6)
1. An aerosolizing mask, comprising:
the face mask comprises a face mask body, a first fixing piece and a second fixing piece, wherein the face mask body is used for being attached to the face, and a diffusion cavity for medicine to be inhaled is formed between the face mask body and the face in a surrounding mode;
the medicine inlet pipe penetrates through the mask body, and a first diffusion hole is formed in the pipe wall of one end, located in the diffusion cavity, of the medicine inlet pipe;
the nipple piece is arranged in the diffusion cavity and sleeved at the end part of the medicine inlet pipe, the nipple piece is of an integrated structure and comprises a connecting part, a diffusion part, a telescopic part and a nipple which are sequentially arranged, the connecting part is sleeved at the end part, the diffusion part is arranged corresponding to the first diffusion hole, and the telescopic part is used for adjusting the position of the nipple.
2. The nebulizing mask of claim 1 wherein: the diffusion part is provided with a second diffusion hole, and the overlapping area of the second diffusion hole and the first diffusion hole is a diffusion area.
3. The nebulizing mask of claim 2 wherein: the first diffusion hole and the second diffusion hole are both waist-shaped holes.
4. The nebulizing mask of claim 1 wherein: the inner side of the periphery of the mask body is provided with an elastic ring layer for being attached to the face.
5. The nebulizing mask of claim 1 wherein: the mask body is provided with a bandage for fixing the mask body on the head of a wearer.
6. The nebulizing mask of claim 1 wherein: both sides of the mask body are provided with air holes relatively, and the air holes are used for exchanging the air inside and outside the diffusion cavity.
