Abstract
本实用新型属于高效筛选装置技术领域，尤其是一种用于新材料的高效筛选装置，针对目前，用于新材料的高效筛选装置，粉碎效果差，粉碎颗粒大小不均匀，无法满足生产的要求，同时对粉碎后的物料进行筛选的筛网大都是固定式的，筛选效果差，效率低的问题。现提出如下方案，其包括筛料柜，所述筛料柜的顶部固定有粉碎罐，粉碎罐的顶部两侧均安装有进料口，粉碎罐的内壁固定有筛网一，筛网一的上方设有安装在粉碎罐上的粉碎机构。本实用新型通过粉碎机构，能够对原材料进行充分的粉碎，使得原材料粉碎的颗粒大小均匀，满足生产的要求，提高了粉碎原材料的品质，也提高了原材料的粉碎效率，方便使用者使用。
The utility model belongs to the technical field of high-efficiency screening devices, in particular to a high-efficiency screening device for new materials. In view of the current high-efficiency screening devices for new materials, the pulverization effect is poor, the size of pulverized particles is uneven, and the production requirements cannot be met. At the same time, most of the screens used to screen the crushed materials are fixed, resulting in poor screening effect and low efficiency. The following scheme is now proposed, which includes a screening cabinet, a crushing tank is fixed on the top of the screening cabinet, feeding ports are installed on both sides of the top of the crushing tank, a screen mesh is fixed on the inner wall of the crushing tank, and a screen mesh is fixed on the inner wall of the crushing tank. There is a crushing mechanism installed on the crushing tank above. The utility model can fully pulverize the raw materials through the pulverizing mechanism, so that the particle size of the pulverized raw materials is uniform, which meets the requirements of production, improves the quality of pulverized raw materials, and also improves the pulverizing efficiency of raw materials, which is convenient for users to use.
Description
Technical Field
The utility model relates to a sieving mechanism technical field especially relates to a high-efficient sieving mechanism for new material.
Background
The new material refers to a structural material with excellent performance and a functional material with special properties which are newly developed or are being developed, and the structural material mainly utilizes the mechanical properties of the structural material, such as strength, toughness, hardness, elasticity and the like, such as a novel ceramic material, an amorphous alloy, namely metal glass and the like.
At present, a high-efficient sieving mechanism for new material, its device is when smashing the material, smashes the effect poor, and the kibbling particle size of raw and other materials is inhomogeneous, can't satisfy the requirement of production, and then has reduced the quality of smashing raw and other materials, and the screen cloth that filters is carried out to the material after smashing simultaneously is mostly fixed, and the screening effect is poor, and is inefficient, and then can influence the efficiency that the finished product was made, for this reason we have designed a high-efficient sieving mechanism for new material.
SUMMERY OF THE UTILITY MODEL
The utility model provides a high-efficient sieving mechanism for new material has solved at present for the high-efficient sieving mechanism of new material, smashes the effect poor, smashes the particle size inhomogeneous, can't satisfy the requirement of production, and the screen cloth that carries out the screening to the material after smashing simultaneously is mostly fixed, and the screening effect is poor, the problem of inefficiency.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a high-efficiency screening device for new materials comprises a screening cabinet, wherein a crushing tank is fixed at the top of the screening cabinet, feed inlets are respectively arranged on two sides of the top of the crushing tank, a first screen is fixed on the inner wall of the crushing tank, a crushing mechanism arranged on the crushing tank is arranged above the first screen, a feeding funnel fixed on the inner wall of the crushing tank is arranged below the first screen, a blanking port matched with the discharge port of the feeding funnel is arranged at the bottom of the crushing tank, a discharge mechanism arranged on the crushing tank is arranged at the blanking port, a feeding port matched with the blanking port is arranged at the top of the screening cabinet, a square movable frame connected to the inner top wall of the screening cabinet in a sliding manner is arranged below the feeding port, guide blocks are respectively fixed on two sides of the top of the square movable frame, guide grooves matched with the two guide blocks are respectively arranged on the inner top wall of the screening cabinet, elastic blocks are respectively fixed on, the inner wall of the square-shaped movable frame is fixed with a second screen mesh, a screening mechanism is connected between the square-shaped movable frame and the screening cabinet, and a material receiving drawing box which is movably connected to the screening cabinet is arranged below the second screen mesh.
Preferably, crushing mechanism smashes the oar including rotating the spiral of connection on crushing jar interior roof, and the outer wall both sides of spiral crushing oar are fixed with a plurality of crushing stick one respectively, and the top of crushing jar is fixed with crushing motor, and crushing motor's output shaft links to each other with the one end of spiral crushing oar.
Preferably, the terminal both sides of spiral crushing oar all rotate and have crushing stick two, and two other ends of smashing stick two are all rotated and are connected with annular sliding seat, smash the inner wall of jar and offer with annular sliding seat matched with annular sliding tray, and two outsides of smashing stick two all are fixed with bevel gear, and two bevel gear's top all meshes and is connected with the annular awl rack, and the top of annular awl rack is fixed with solid fixed ring, gu fixed ring fixed mounting is on the inner wall of smashing the jar.
Preferably, discharge mechanism is including seting up two inner chambers on smashing the jar, and two inner chambers are located the both sides of blanking mouth, and the equal sliding connection in inside of two inner chambers has the movable plate, and two opposite one sides of movable plate all are fixed with the baffle, and the inside threaded connection of two movable plates has the screw rod, is equipped with the equipartition on the screw rod and revolves to two kinds of opposite external screw threads, and the screw rod both ends all are connected with the inner wall rotation of two inner chambers, and the one end of screw rod extends to the outside of smashing the jar to the output shaft with motor one links to each other, and motor one is fixed at the top.
Preferably, sieve material mechanism is including fixing at the left loading board of sieve material cabinet outer wall, and the top of loading board is rotated and is connected with the pivot, and the outside of pivot is fixed to be cup jointed irregular gear, and the bottom of loading board is fixed with motor two, and motor two's output shaft links to each other with the one end of pivot.
Preferably, the outer side of the irregular gear is engaged with a movable square frame, a plurality of tooth sockets matched with the irregular gear are arranged on the inner wall of the movable square frame at equal intervals, a push-pull rod is fixed at one end of the movable square frame, the other end of the push-pull rod penetrates through the screening cabinet and is connected with the outer wall of the square movable frame, and a movable groove matched with the push-pull rod is arranged on the screening cabinet.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses among the rubbing crusher constructs, under the cooperation of spiral crushing oar, crushing stick one, crushing motor, crushing stick two, annular sliding seat, bevel gear, loop type taper rack, solid fixed ring, can carry out abundant crushing to raw and other materials for the kibbling particle size of raw and other materials is even, satisfies the requirement of production, has improved the quality of smashing raw and other materials, has also improved the crushing efficiency of raw and other materials, and the person of facilitating the use uses, and has also improved this sieving mechanism's availability factor.
2. The utility model discloses among the discharge mechanism, through the cooperation of inner chamber, movable plate, baffle, screw rod, motor one, can conveniently adjust the distance between two baffles, and then be convenient for control the ejection of compact speed of discharge gate department, be favorable to the cooperation of production work, simple structure simultaneously, reasonable in design, the processing ease has improved work efficiency.
3. The utility model discloses among the sieve material mechanism, under the cooperation of loading board, irregular gear, the square frame of activity, tooth's socket, push-and-pull rod and motor two, can make the push-and-pull rod promote two screen cloth on the style of calligraphy movable frame and carry out reciprocating type motion, and then can carry out the reciprocating type screening in second floor to the material after the first layer screening, it is effectual to filter, has effectively realized the quick screening process of big raw and other materials after smashing in batches, and the screening efficiency is high simultaneously, and the practicality is high, and has improved the efficiency that the finished product was made.
Drawings

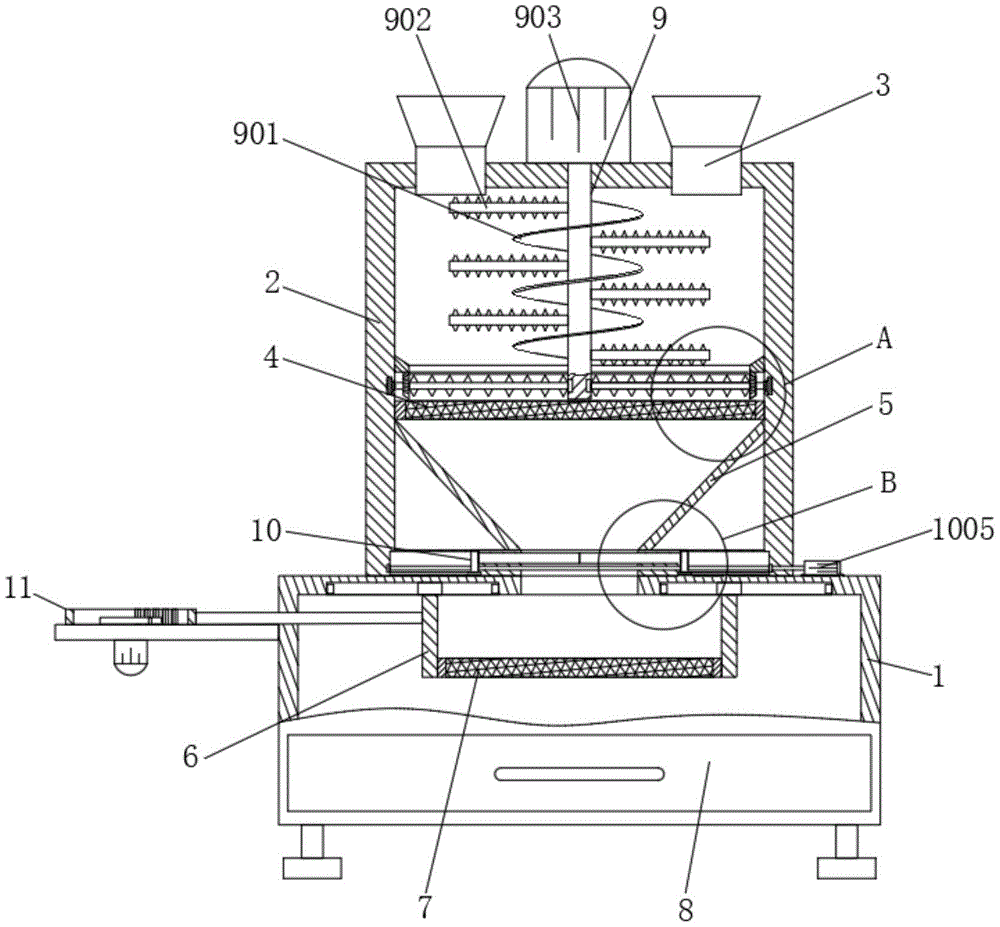

Fig. 1 is a front view of a high-efficiency screening device for new materials according to the present invention;
fig. 2 is a schematic structural diagram of a top view of a discharging mechanism of the efficient screening device for new materials according to the present invention;
fig. 3 is a schematic structural diagram of a material sieving mechanism of the efficient sieving device for new materials according to the present invention from top view;
fig. 4 is an enlarged schematic structural diagram of a high-efficiency screening device for new materials, which is provided by the present invention;
fig. 5 is an enlarged schematic structural diagram at B of the efficient screening apparatus for new materials according to the present invention.
In the figure: 1. a material screening cabinet; 2. a grinding tank; 3. a feed inlet; 4. a first screen mesh; 5. a feed hopper; 6. a square movable frame; 7. a second screen; 8. a material receiving drawer box; 9. a crushing mechanism; 901. a spiral crushing paddle; 902. crushing the first rod; 903. a grinding motor; 904. a second crushing rod; 905. an annular sliding seat; 906. a bevel gear; 907. a ring-shaped bevel rack; 908. a fixing ring; 10. a discharging mechanism; 1001. an inner cavity; 1002. moving the plate; 1003. a baffle plate; 1004. a screw; 1005. a first motor; 11. a material screening mechanism; 1101. a carrier plate; 1102. an irregular gear; 1103. a movable square frame; 1104. a tooth socket; 1105. a push-pull rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-5, a high-efficiency screening device for new materials comprises a screening cabinet 1, a crushing tank 2, a feeding port 3, a first screen mesh 4, a feeding funnel 5, a square movable frame 6, a second screen mesh 7, a material receiving drawer 8, a crushing mechanism 9, a spiral crushing paddle 901, a first crushing rod 902, a crushing motor 903, a second crushing rod 904, an annular sliding seat 905, a bevel gear 906, an annular bevel rack 907, a fixing ring 908, a discharging mechanism 10, an inner cavity 1001, a moving plate 1002, a baffle 1003, a screw 1004, a first motor 1005, a screening mechanism 11, a bearing plate 1101, an irregular gear 1102, a movable square frame 1103, a tooth socket 1104 and a push-pull rod 1105, wherein the crushing tank 2 is fixed on the top of the screening cabinet 1, the feeding ports 3 are respectively installed on two sides of the top of the crushing tank 2, the first screen mesh 4 is fixed on the inner wall of the crushing tank 2, the crushing mechanism 9 installed on the crushing, a feeding funnel 5 fixed on the inner wall of the crushing tank 2 is arranged below the screen I4, a blanking port matched with the discharging port of the feeding funnel 5 is arranged at the bottom of the crushing tank 2, a discharging mechanism 10 arranged on the crushing tank 2 is arranged at the blanking port, a feeding port matched with the blanking port is arranged at the top of the screen cabinet 1, a square movable frame 6 connected on the inner top wall of the screen cabinet 1 in a sliding manner is arranged below the feeding port, guide blocks are fixed on both sides of the top of the square movable frame 6, guide grooves matched with the two guide blocks are arranged on both sides of the inner top wall of the screen cabinet 1, elastic blocks are fixed on both sides of the inner walls of the two guide grooves, a screen II 7 is fixed on the inner wall of the square movable frame 6, a screen mechanism 11 is connected between the square movable frame 6 and the screen cabinet 1, and a material receiving drawing box 8 movably connected on the screen cabinet 1 is arranged below the, connect the material to take out the setting of box 8, the material after smashing is conveniently connect the material, and is convenient for artifically clear up it, and the sieve mesh of screen cloth two 7 is less than the sieve mesh of screen cloth one 4, and the setting of elasticity piece avoids when guide block reciprocating motion simultaneously, causes the striking to the guide way inner wall, and the cushioning effect is good, and the transversal type of square column structure of personally submitting of square style of calligraphy movable frame 6.
Further, the crushing mechanism 9 comprises a spiral crushing paddle 901 rotationally connected to the inner top wall of the crushing tank 2, a plurality of crushing rods 902 are respectively fixed on two sides of the outer wall of the spiral crushing paddle 901, a crushing motor 903 is fixed on the top of the crushing tank 2, an output shaft of the crushing motor 903 is connected with one end of the spiral crushing paddle 901, a second crushing rod 904 is rotationally arranged on two sides of the tail end of the spiral crushing paddle 901, the other ends of the two crushing rods 904 are rotationally connected with an annular sliding seat 905, an annular sliding groove matched with the annular sliding seat 905 is formed in the inner wall of the crushing tank 2, bevel gears 906 are respectively fixed on the outer sides of the two crushing rods 904, annular bevel gear racks 907 are respectively engaged and connected above the two bevel gears 906, a fixing ring 908 is fixed on the top of the annular bevel gear racks 907, the fixing ring 908 is fixedly installed on the inner wall of the crushing tank 2, and drives the two crushing rods 904 to rotate when the, the bevel gears 906 connected to the two crushing rods 904 are meshed with the annular bevel gear 907 at the bottom of the fixing ring 908, so that the two crushing rods 904 rotate between the spiral crushing paddle 901 and the annular sliding seat 905, and the raw materials which are not completely crushed on the screen I4 can be crushed again, so that the size of the screen holes of the screen II 7 is achieved, and the raw materials quickly fall into the feeding hopper 5.
Further, discharge mechanism 10 is including seting up two inner chambers 1001 on smashing jar 2, two inner chambers 1001 are located the both sides of blanking mouth, the equal sliding connection in inside of two inner chambers 1001 has movable plate 1002, two movable plate 1002 one sides that subtend all are fixed with baffle 1003, the inside threaded connection of two movable plates 1002 has screw rod 1004, be equipped with the equal division on screw rod 1004 and revolve to opposite two kinds of external screw threads, the screw rod 1004 both ends all are connected with the inner wall rotation of two inner chambers 1001, the one end of screw rod 1004 extends to the outside of smashing jar 2, and link to each other with the output shaft of a motor 1005, a motor 1005 is fixed at the top of sieve material cabinet 1, screw rod 1004 sets up in the centre of blanking mouth, do not influence the ejection of compact work of its material.
Further, the screening mechanism 11 comprises a bearing plate 1101 fixed on the left side of the outer wall of the screening cabinet 1, a rotating shaft is rotatably connected to the top of the bearing plate 1101, an irregular gear 1102 is fixedly sleeved on the outer side of the rotating shaft, the irregular gear 1102 comprises a circular disc, convex teeth which are uniformly distributed in a one-hundred-eighty degree mode are arranged on the outer arc wall of the circular disc, a second motor is fixed to the bottom of the bearing plate 1101, an output shaft of the second motor is connected with one end of the rotating shaft, a movable square frame 1103 is meshed and connected to the outer side of the irregular gear 1102, a plurality of tooth sockets 1104 matched with the convex teeth on the irregular gear 1102 are equidistantly arranged on the inner wall of the movable square frame 1103, a push-pull rod 1105 is fixed to one end of the movable square frame 1103, the other end of the push-pull rod 1105 penetrates through the screening cabinet 1 and is connected with the outer wall of the, when the irregular gear 1102 is rotated, the irregular gear 1102 drives the movable square frame 1103 through the tooth socket 1104, and the movable square frame 1103 reciprocates, so that the movable square frame 1103 pushes the second screen 7 on the square movable frame 6 to reciprocate through the push-pull rod 1105.
The working principle is as follows: an operator can firstly put raw materials into the crushing tank 2 through the feeding hole 3 and starts the crushing motor 903, so that the raw materials can be crushed under the rotating action of the spiral crushing paddle 901 and the second crushing rods 904, the crushing effect is good, meanwhile, the two second crushing rods 904 at the two sides of the tail end of the spiral crushing paddle 901 rotate along with the spiral crushing paddle 901, the two second crushing rods 904 can also rotate under the matching of the bevel gear 906, the annular sliding seat 905, the annular conical rack 907 and the fixing ring 908, and the completely crushed materials on the screen I4 are crushed again, so that the crushed materials can fall into the feeding hopper 5 through the screen I4, and then, the motor I1005 is started to drive the screw 1004 to rotate anticlockwise, and the screw 1004 is in threaded connection with the two movable plates 1002, and the screw 1004 is provided with two external threads which are equally divided and have opposite rotation directions, so that the two moving plates 1002 can move back to back, the two baffle plates 1003 move along with the two external threads, the discharge port and the blanking port are unfolded and communicated, the material falls onto the screen II 7 on the square moving frame 6, finally, the motor II is started to rotate the irregular gear 1102, the irregular gear 1102 drives the moving square frame 1103 through the tooth socket 1104, the moving square frame 1103 reciprocates, the moving square frame 1103 pushes the screen II 7 on the square moving frame 6 to reciprocate through the push-pull rod 1105, and the material screened by the first layer can be screened by the second layer reciprocating screening, so that the screening efficiency of the material is improved, the screening effect is good, and the working principle of the device is completed.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
