Abstract
The utility model discloses an operation table of liftable convenient to gynaecology and obstetrics baby of delivering, including the bed board, one side of bed board has the back through pivot swing joint, the lower fixed surface of bed board is connected with the elevating platform, the lower fixed surface of elevating platform is connected with the base, the equal fixedly connected with stopper in both sides of bed board, the sliding surface of stopper is connected with branch, the sliding surface of branch is connected with the slider, the upper surface joint of slider has the layer board, the lower fixed surface of layer board is connected with the foam-rubber cushion. This operation table convenient to liftable of gynaecology and obstetrics's midwifery baby can accomplish the lift of bed board through output motor and elevating platform, has solved the unable circumstances that goes up and down of current operation, sets up and can adjust suitable position according to the difference of pregnant woman height with the rotatable setting of slider through branch L shape, can accomodate the liquid that produces in the operation through protection network and storage ware.
Description
Technical Field
The utility model relates to a technical field of delivery of gynaecology and obstetrics specifically is a liftable operation table convenient to baby's of delivery of gynaecology and obstetrics.
Background
The obstetrics and gynecology department is one of four main subjects of clinical medicine, and is mainly used for researching the etiology, pathology, diagnosis and prevention of female reproductive organ diseases, the physiological and pathological changes of pregnancy and childbirth, the prevention and diagnosis and treatment of high-risk pregnancy and dystocia, female reproductive endocrine, family planning, female health care and the like. The advanced research of the medical basic theories of modern molecular biology, oncology, genetics, reproductive endocrinology, immunology and the like and the progress of the clinical medical diagnosis and treatment detection technology widen and deepen the development of the gynecologic and obstetric science, and play an important role in ensuring the health and reproductive health of women and preventing and treating various gynecological diseases.
At present, in the operation table used clinically, in the process of childbirth, a parturient usually opens the two legs to assist childbirth, and meanwhile, the parturient is convenient for the observation of medical staff. However, the height of the existing operating bed can not be adjusted, so that the pregnant woman can not conveniently get on or off the bed, the opening distance of the two legs can not be adjusted, and the labor intensity of the gynecologist is increased.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a to prior art not enough, the utility model provides an operation table of liftable convenient to baby's of delivering a child of gynaecology and obstetrics has solved the problem that provides in the above-mentioned background art.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides an operation table convenient to gynaecology and obstetrics's baby of delivering a child's liftable, includes the bed board, one side of bed board has the back through pivot swing joint, the lower fixed surface of bed board is connected with the elevating platform, the lower fixed surface of elevating platform is connected with the base, the equal fixedly connected with stopper in both sides of bed board, the sliding surface of stopper is connected with branch, the sliding surface of branch is connected with the slider, the upper surface joint of slider has the layer board, the lower fixed surface of layer board is connected with the foam-rubber cushion, one side threaded connection of slider has the screw down ware, one side joint of screw down ware has branch, the quantity of branch is two, the lower surface joint of branch has the stopper.
Optionally, a through hole is formed in the upper surface of the bed board, a storage vessel is movably connected to the surface of the through hole, and a protection net is fixedly connected to the upper surface of the storage vessel.
Optionally, the upper surface of the bed board is fixedly connected with a back cushion, and the two sides of the bed board are fixedly connected with handles.
Optionally, one side threaded connection of stopper has the ware of screwing up, the other end joint of screwing up the ware has branch.
Optionally, the upper surface of the bed board is movably connected with an ejector rod through a rotating shaft, and the lower surface of the backrest is fixedly connected with a clamping block.
Optionally, the surface joint of fixture block has the ejector pin, the quantity of fixture block is a plurality of, the interior bottom threaded connection of elevating platform has output motor, output motor's output swing joint has the elevating platform.
(III) advantageous effects
The utility model provides an operation table of liftable convenient to gynaecology and obstetrics's baby of delivering a child possesses following beneficial effect:
1. this operation table convenient to liftable of gynaecology and obstetrics's midwifery baby can accomplish the lift of bed board through output motor and elevating platform, has solved the unable circumstances that goes up and down of current operation, sets up and can adjust suitable position according to the difference of pregnant woman height with the rotatable setting of slider through branch L shape, can accomodate the liquid that produces in the operation through protection network and storage ware.
2. This operation table convenient to liftable of gynaecology and obstetrics's midwifery baby can adjust the angle of back through the align to grid of fixture block and make the pregnant woman find suitable angle and lay down, can increase the travelling comfort of shank through the foam-rubber cushion, can prevent through the handle that the pregnant woman from dropping the operation table.
Drawings

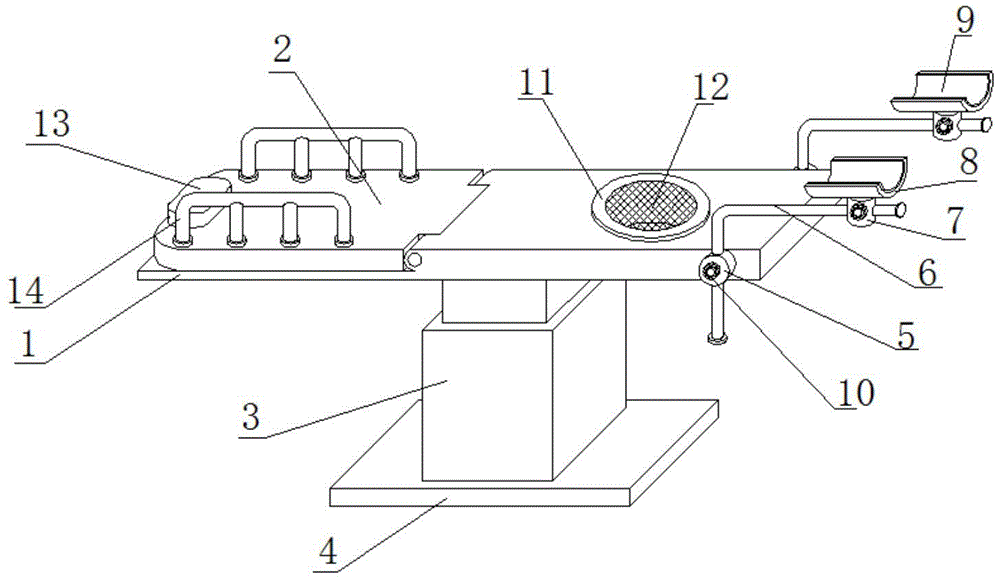

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the cross-sectional structure of the bed plate of the present invention;
fig. 3 is a schematic view of the sectional structure of the slider of the present invention.
In the figure: 1. a bed board; 2. a backrest; 3. a lifting platform; 4. a base; 5. a limiting block; 6. a strut; 7. a slider; 8. a support plate; 9. a sponge cushion; 10. a tightening device; 11. storing the dishes; 12. a protection net; 13. a back cushion; 14. a handle; 15. a top rod; 16. a clamping block; 17. and outputting the motor.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 3, the present invention provides a technical solution: a liftable operating bed convenient for a delivery baby of obstetrics and gynecology department comprises a bed plate 1, one side of the bed plate 1 is movably connected with a backrest 2 through a rotating shaft, the lower surface of the bed plate 1 is fixedly connected with a lifting table 3, the lower surface of the lifting table 3 is fixedly connected with a base 4, both sides of the bed plate 1 are fixedly connected with limit blocks 5, the surface of each limit block 5 is slidably connected with a support rod 6, the surface of each support rod 6 is slidably connected with a slide block 7, the upper surface of each slide block 7 is connected with a supporting plate 8 in a clamping manner, the upper surface of each supporting plate 8 is, the lifting of the bed board 1 can be completed through the output motor 17 and the lifting platform 3, the problem that the lifting can not be completed in the existing operation is solved, the proper position can be adjusted according to different heights of the pregnant woman through the L-shaped arrangement of the supporting rod 6 and the rotatable arrangement of the sliding block 7, the liquid generated in the operation can be stored through the protective net 12 and the storage dish 11;
one side of the sliding block 7 is in threaded connection with a tightening device 10, one side of the tightening device 10 is in clamping connection with two support rods 6, the lower surfaces of the support rods 6 are in clamping connection with limiting blocks 5, the upper surface of the bed plate 1 is provided with a through hole, the surface of the through hole is movably connected with a storage vessel 11, the upper surface of the storage vessel 11 is fixedly connected with a protective net 12, the upper surface of the bed plate 1 is fixedly connected with a back cushion 13, both sides of the bed plate 1 are fixedly connected with handles 14, one side of the limiting block 5 is in threaded connection with the tightening device 10, the other end of the tightening device 10 is in clamping connection with the support rods 6, the upper surface of the bed plate 1 is movably connected with ejector rods 15 through rotating shafts, the lower surface of the back 2 is fixedly connected with clamping blocks 16, the surface of the clamping blocks 16 is in clamping connection with the ejector rods 15, the number of the, the angle that can adjust back 2 through the align to grid of fixture block 16 makes the pregnant woman find suitable angle and lies down, can increase the travelling comfort of shank through foam-rubber cushion 9, can prevent through handle 14 that the pregnant woman from dropping the operation table.
As an optimal technical solution of the utility model: the output motor pushes the lifting platform to rise, and the lower surface of the base is provided with an anti-slip mat.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
The operation instruction shows that when the liftable operating table convenient for the delivery baby of the obstetrics and gynecology department is used, the height of the bed plate 1 is adjusted to enable a pregnant woman to lie on the table conveniently, two legs of the pregnant woman are placed on the supporting plate 8, the supporting rod 6 is adjusted to a proper distance to enable the pregnant woman to be comfortable, the two tightening devices 10 are tightened to place the two legs, and the storage dish 11 is used for containing the flowing liquid certainly.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides an operation table convenient to gynaecology and obstetrics's baby of delivering a child's liftable, includes bed board (1), its characterized in that: one side of the bed board (1) is movably connected with a backrest (2) through a rotating shaft, the lower surface of the bed board (1) is fixedly connected with a lifting platform (3), the lower surface of the lifting platform (3) is fixedly connected with a base (4), both sides of the bed board (1) are fixedly connected with limit blocks (5), the surface of the limiting block (5) is connected with a supporting rod (6) in a sliding way, the surface of the supporting rod (6) is connected with a sliding block (7) in a sliding way, the upper surface of the sliding block (7) is clamped with a supporting plate (8), the upper surface of the supporting plate (8) is fixedly connected with a sponge cushion (9), one side of the sliding block (7) is in threaded connection with a tightening device (10), one side of the tightening device (10) is clamped with a support rod (6), the quantity of branch (6) is two, the lower surface joint of branch (6) has stopper (5).
2. The liftable operating bed convenient for the delivery baby of obstetrics and gynecology department according to claim 1, characterized in that: the upper surface of the bed board (1) is provided with a through hole, the surface of the through hole is movably connected with a storage dish (11), and the upper surface of the storage dish (11) is fixedly connected with a protection net (12).
3. The liftable operating bed convenient for the delivery baby of obstetrics and gynecology department according to claim 1, characterized in that: the upper surface of the bed board (1) is fixedly connected with a back cushion (13), and the two sides of the bed board (1) are fixedly connected with handles (14).
4. The liftable operating bed convenient for the delivery baby of obstetrics and gynecology department according to claim 1, characterized in that: one side threaded connection of stopper (5) has tightening device (10), the other end joint of tightening device (10) has branch (6).
5. The liftable operating bed convenient for the delivery baby of obstetrics and gynecology department according to claim 1, characterized in that: the upper surface of the bed board (1) is movably connected with an ejector rod (15) through a rotating shaft, and the lower surface of the backrest (2) is fixedly connected with a clamping block (16).
6. The liftable operating bed convenient for the delivery baby of obstetrics and gynecology department according to claim 5, characterized in that: the surface joint of fixture block (16) has ejector pin (15), the quantity of fixture block (16) is a plurality of, the interior bottom threaded connection of elevating platform (3) has output motor (17), the output swing joint of output motor (17) has elevating platform (3).
