CN213041534U

CN213041534U - A sampling device for protective clothing

Info

Publication number: CN213041534U
Application number: CN202021744724.4U
Authority: CN
Inventors: 陈鸿发; 杨镇蔚
Original assignee: Zhejiang Zhixiang Technology Co ltd
Current assignee: Shenzhen Shenghong Medical Technology Co ltd
Priority date: 2020-08-20
Filing date: 2020-08-20
Publication date: 2021-04-23
Anticipated expiration: 2030-08-20

Abstract

The utility model discloses a sampling device for protective clothing, which comprises a sampling device main body, bolts are threadedly sleeved on both sides of the sampling device main body, and a blanking groove and a classification storage mechanism are arranged inside the sampling device main body. The blanking trough is located above the classification and storage mechanism, the upper end of the sampling device main body is plugged with socket rods, the upper end of the socket rod is fixedly connected with a top plate, and both sides of the bottom of the top plate are fixedly connected with The compression spring and the front face of the top plate are threaded with fasteners, and the middle of the top plate is provided with a quick sampling mechanism. The sampling device for protective clothing according to the utility model is provided with a rapid sampling mechanism and a classification storage mechanism, which can facilitate the rapid interception of the protective clothing, the operation is more convenient, the practicability of the sampling device is better, and the different parts can be collected. Classification and sampling of protective clothing can ensure more accurate sampling and detection, and bring better prospects for use.

Description

Sampling device for protective clothing

Technical Field

The utility model relates to a protective clothing sampling technical field, in particular to sampling device that protective clothing was used.

Background

The protective clothing is mostly used in operating rooms and laboratories, but after experiments or operations, in order to detect bacteria or viruses and help people to know risks of the experiments or operations in time, the sampling device for the protective clothing is provided.

The existing sampling device has certain disadvantages when in use, firstly, the sampling of the protective clothing is troublesome, the sampling efficiency cannot be improved, certain adverse effect is achieved, secondly, the cloth at different positions on the protective clothing can not be classified and sampled and stored, the sampling detection quality cannot be guaranteed, the data can have deviation and certain adverse effect, certain influence is brought to the using process of people, and therefore the sampling device for the protective clothing is provided.

SUMMERY OF THE UTILITY MODEL

A primary object of the present invention is to provide a sampling device for protective clothing, which can effectively solve the problems of the background art.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a sampling device that protection was taken, includes the sampling device main part, the equal screw thread in both sides of sampling device main part has cup jointed the bolt to and the inside of sampling device main part is equipped with silo and categorised receiving mechanism, the silo is located categorised receiving mechanism's top, the upper end of sampling device main part has all been pegged graft all around and has been cup jointed the pole, cup joint the upper end fixedly connected with roof of pole, the equal fixedly connected with pressure spring in bottom both sides of roof to and the positive screw thread of roof has cup jointed the fastener, and the middle part of roof is equipped with quick sampling mechanism.

Preferably, the quick sampling mechanism comprises a sliding rod, a U-shaped cover, a blade, a fixing block and a rocker, the rocker is fixedly connected to the upper end of the sliding rod, the U-shaped cover is fixedly mounted at the lower end of the sliding rod, the fixing block is fixedly mounted at the lower end of the U-shaped cover, and the blade is fixedly connected to the lower end of the fixing block.

Preferably, categorised receiving mechanism includes drawer, categorised box, reference numeral circle and handle knob, the inside of drawer is equipped with the categorised box of a plurality of telescopic, the positive middle part of categorised box is equipped with the reference numeral circle to and the equal fixedly connected with handle knob in the positive both sides of categorised box.

Preferably, the sliding rod is connected to the middle of the top plate in a sliding mode, and the lower end of the U-shaped cover is designed to be provided with a U-shaped opening.

Preferably, the inside of drawer is equipped with a plurality of spouts No. one, the inside of drawer is through the outer wall sliding connection of a spout and categorised box, be equipped with the spout No. two between sampling device main part and the drawer, the inside of sampling device main part is through the outer wall sliding connection of spout No. two and drawer.

Preferably, the upper end middle part of sampling device main part is equipped with the opening, and the opening is coaxial with the charging conduit, the one end of bolt stretches into in the sampling device main part to compress tightly with the lateral wall of cup jointing the pole.

Compared with the prior art, the utility model discloses following beneficial effect has: the sampling device for the protective clothing can lay the protective clothing of a part to be sampled on a sampling device main body through the arranged quick sampling mechanism, then a sleeve rod is contracted into the sampling device main body, the protective clothing is tightly pressed through a compression spring at the lower end of a top plate, when the compression spring tightly presses the protective clothing, a bolt on the sampling device main body can be screwed so as to fix the position of the sleeve rod on the sampling device main body, then a fastener at the front end of the top plate is unscrewed, a slide rod slides on the top plate, a blade on the fixed block penetrates through the protective clothing, then the slide rod is driven to rotate through a rocker, so that the protective clothing is quickly cut through the blade on the fixed block, the protective clothing falls into a classified storage mechanism through a blanking groove, through the designed sampling mode, the operation is more convenient and convenient, the use is convenient for people, and through the arranged classified storage mechanism, can accomodate the protective clothing of sample through the categorised box in the drawer, when accomodating different position protective clothing, can take out the categorised box at the positive both sides position of drawer, replace with the categorised box at the positive middle part of drawer, thereby play the effect of categorised accomodating, can also mark the protective clothing at different positions through categorised box front end reference number circle, the staff of being convenient for differentiates, can guarantee that the sample detection data is more accurate, be favorable to people to use, whole a sampling device simple structure of protective clothing, high durability and convenient operation, the effect of using is better for traditional mode.

Drawings

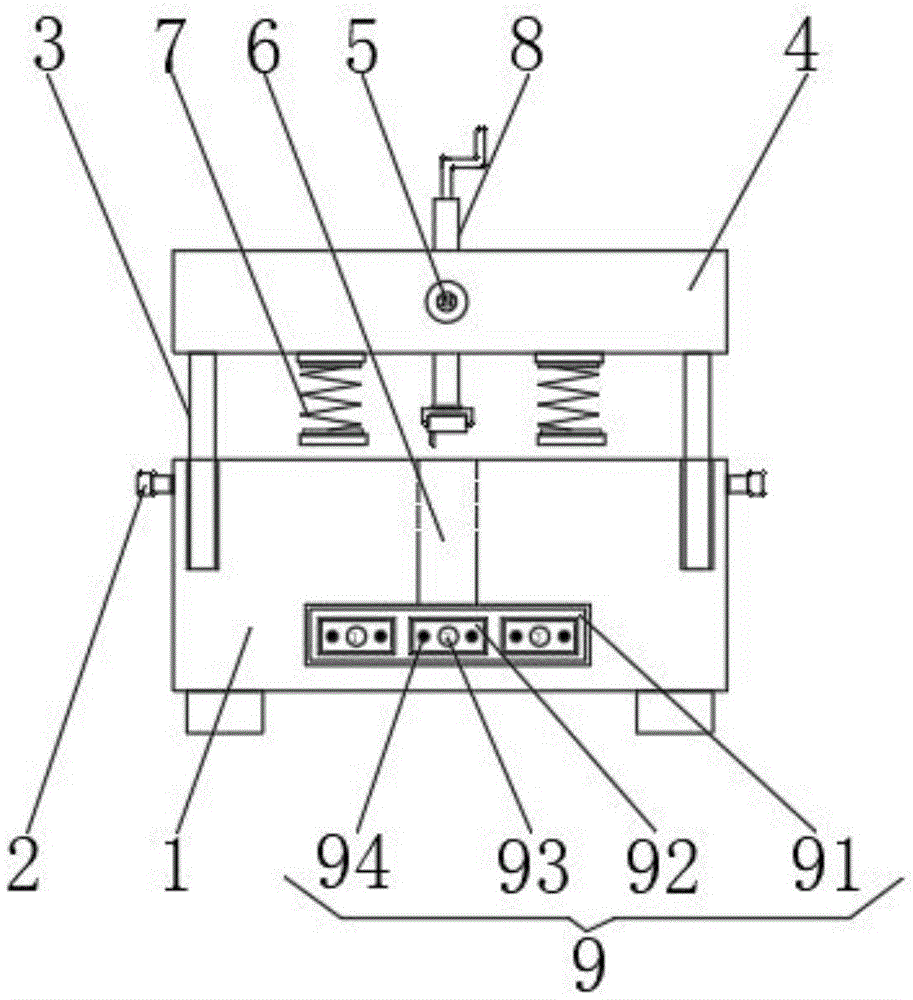

Fig. 1 is a schematic view of the whole structure of the sampling device for protective clothing of the present invention.

Fig. 2 is a schematic structural diagram of the rapid sampling mechanism 8 in fig. 1 of the sampling device for protective clothing of the present invention.

Fig. 3 is a schematic structural diagram of the classification storage mechanism 9 in fig. 1 of the sampling device for protective clothing of the present invention.

In the figure: 1. a sampling device body; 2. a bolt; 3. a sleeved rod; 4. a top plate; 5. a fastener; 6. a charging chute; 7. a compression spring; 8. a rapid sampling mechanism; 81. a slide bar; 82. a U-shaped cover; 83. a blade; 84. a fixed block; 85. a rocker; 9. a sorting and storing mechanism; 91. a drawer; 92. a sorting box; 93. a label ring; 94. a handle knob.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.

As shown in fig. 1-3, a sampling device for protective clothing, including sampling device main part 1, bolt 2 has been cup jointed to the equal screw thread in both sides of sampling device main part 1, and the inside of sampling device main part 1 is equipped with blanking tank 6 and categorised receiving mechanism 9, blanking tank 6 is located the top of categorised receiving mechanism 9, the upper end of sampling device main part 1 all has been pegged graft all around and has been cup jointed pole 3, the upper end fixedly connected with roof 4 of cup jointed pole 3, the equal fixedly connected with pressure spring 7 in bottom both sides of roof 4, and the front screw thread of roof 4 has cup jointed fastener 5, and the middle part of roof 4 is equipped with quick sampling mechanism 8.

Further, the rapid sampling mechanism 8 comprises a slide bar 81, a U-shaped cover 82, a blade 83, a fixing block 84 and a rocker 85, the rocker 85 is fixedly connected to the upper end of the slide bar 81, the U-shaped cover 82 is fixedly installed at the lower end of the slide bar 81, the fixing block 84 is fixedly installed at the lower end of the U-shaped cover 82, the blade 83 is fixedly connected to the lower end of the fixing block 84, a part of protective clothing to be sampled can be laid on the sampling device main body 1, then the sleeve rod 3 is contracted into the sampling device main body 1, the protective clothing is compressed through a compression spring 7 at the lower end of the top plate 4, after the compression spring 7 compresses the protective clothing, a bolt 2 on the sampling device main body 1 can be screwed down, so that the position of the sleeve rod 3 on the sampling device main body 1 is fixed, then a fastener 5 at the front end of the top plate 4 is unscrewed, the slide bar 81 slides on the, then drive slide bar 81 through rocker 85 and rotate to carry out the fly-cutting to the protective clothing through blade 83 on the fixed block 84, make the protective clothing fall into categorised receiving mechanism 9 through charging chute 6 in, through the sample mode of this design, it is more convenient to operate, and the people of being convenient for use.

Further, categorised receiving mechanism 9 includes drawer 91, categorised box 92, reference numeral circle 93 and handle knob 94, the inside of drawer 91 is equipped with a plurality of drawable categorised boxes 92, the positive middle part of categorised box 92 is equipped with reference numeral circle 93, and the equal fixedly connected with handle knob 94 in the front both sides of categorised box 92, can accomodate the protective clothing of sample through categorised box 92 in drawer 91, when accomodating different positions protective clothing, can take out the categorised box 92 of the positive both sides position of drawer 91, replace with the categorised box 92 of the positive middle part of drawer 91, thereby play the effect of categorised accomodating, can also mark the protective clothing of different positions through categorised box 92 front end reference numeral circle 93, the staff of being convenient for differentiates, can guarantee that the sample detection data is more accurate, be favorable to people to use.

Further, slide bar 81 slides and connects in the middle part of roof 4, and the lower extreme of U type cover 82 is the design of U type opening, and the spout has been seted up at the middle part of roof 4, and the slide bar 81 of being convenient for slides on roof 4, conveniently carries out the intercepting to the protective clothing.

Further, the inside of drawer 91 is equipped with a plurality of spouts, and the outside wall sliding connection of spout and categorised box 92 is passed through to the inside of drawer 91, is equipped with the spout No. two between sampling device main part 1 and the drawer 91, and the outside wall sliding connection of spout No. two and drawer 91 is passed through to the inside of sampling device main part 1, is mainly convenient for pull out drawer 91 from sampling device main part 1, makes things convenient for people to take the protective clothing of accomodating.

Further, the upper end middle part of sampling device main part 1 is equipped with the opening, and the opening is coaxial with charging chute 6, and the one end of bolt 2 stretches into in the sampling device main part 1 to compress tightly with the lateral wall that cup joints pole 3, be convenient for fix the position of cup jointing pole 3 in sampling device main part 1.

The utility model discloses theory of operation and use flow: when the sampling device is used, a part of protective clothing to be sampled can be laid on the sampling device main body 1, then the sleeve rod 3 is contracted into the sampling device main body 1, the protective clothing is compressed through the compression spring 7 at the lower end of the top plate 4, after the compression spring 7 compresses the protective clothing, the bolt 2 on the sampling device main body 1 can be screwed down so as to fix the position of the sleeve rod 3 on the sampling device main body 1, then the fastener 5 at the front end of the top plate 4 is unscrewed, the sliding rod 81 slides on the top plate 4, the blade 83 on the fixing block 84 penetrates through the protective clothing, then the sliding rod 81 is driven to rotate through the rocker 85, so that the protective clothing is quickly cut through the blade 83 on the fixing block 84, the protective clothing falls into the classifying and accommodating mechanism 9 through the blanking groove 6, the sampling mode is more convenient and convenient to operate and convenient for people to use, when the intercepted protective clothing falls into the classifying and accommodating mechanism 9, can accomodate the protective clothing of sample through categorised box 92 in the drawer 91, when accomodating different position protective clothing, can take out the categorised box 92 at the positive both sides position of drawer 91, replace with the categorised box 92 at the positive middle part of drawer 91, thereby play the effect of categorised accomodating, can also mark the protective clothing at different positions through categorised box 92 front end reference numeral circle 93, the staff of being convenient for differentiates, can guarantee that the sample detection data is more accurate, be favorable to people to use.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. A sampling device for protective clothing, comprising a sampling device main body (1), characterized in that: both sides of the sampling device main body (1) are threadedly sleeved with bolts (2), and the sampling device main body (1) There is a blanking trough (6) and a classification and storage mechanism (9) inside, the blanking slot (6) is located above the classification and storage mechanism (9), and the upper end of the sampling device main body (1) is plugged all around. There is a sleeve connecting rod (3), the upper end of the sleeve connecting rod (3) is fixedly connected with a top plate (4), and both sides of the bottom of the top plate (4) are fixedly connected with a compression spring (7), and the top plate ( A fastener (5) is threadedly sleeved on the front face of 4), and a quick sampling mechanism (8) is arranged in the middle of the top plate (4).

2. The sampling device for protective clothing according to claim 1, characterized in that: the rapid sampling mechanism (8) comprises a sliding rod (81), a U-shaped cover (82), a blade (83), a fixed block (84) and the rocker (85), the upper end of the slide bar (81) is fixedly connected with the rocker (85), and the lower end of the slide bar (81) is fixedly mounted with a U-shaped cover (82), the U-shaped A fixing block (84) is fixedly installed on the lower end of the cover (82), and a blade (83) is fixedly connected to the lower end of the fixing block (84).

3. A sampling device for protective clothing according to claim 1, characterized in that: the classification and storage mechanism (9) comprises a drawer (91), a classification box (92), a label ring (93) and a handle knob ( 94), the interior of the drawer (91) is provided with a number of drawable sorting boxes (92), the front middle of the sorting box (92) is provided with a labeling circle (93), and the front of the sorting box (92) Both sides are fixedly connected with handle knobs (94).

4 . The sampling device for protective clothing according to claim 2 , wherein the sliding rod ( 81 ) is slidably connected to the middle of the top plate ( 4 ), and the lower end of the U-shaped cover ( 82 ) is 4. 5 . U-shaped opening design.

5. A sampling device for protective clothing according to claim 3, characterized in that: the drawer (91) is provided with a number of No. 1 chute inside, and the inside of the drawer (91) passes through the No. 1 chute It is slidably connected with the outer wall of the classification box (92), the second chute is provided between the sampling device main body (1) and the drawer (91), and the interior of the sampling device main body (1) is connected to the drawer through the second chute The outer wall of (91) is slidably connected.

6. A sampling device for protective clothing according to claim 1, characterized in that: an opening is provided in the middle of the upper end of the sampling device main body (1), and the opening is coaxial with the blanking chute (6), so One end of the bolt (2) extends into the main body (1) of the sampling device, and is pressed against the side wall of the socket rod (3).
